AM5 Overclocking Help


ENTERPRISE

Recommended Posts

Hey guys,



So I am now sat down with my build AM5 system, now it is time to see what extra performance I can get out of it BUT AM5 is a new beast to me and I am sure much of what applied to AM4 is applicable, but safer to just start from scratch. So I am looking for help in both CPU Optimization and RAM OC. Right now I am just running PBO for the CPO and EXPO for the RAM. My details are as follows



System Specs



CPU: Ryzen 9 7950X3D

Motherboard: MSI Meg ACE X670E  (BIOS:7D69v19 / AGESA ComboPI 1.0.0.7c updated)

RAM: 64GB Corsair Vengeance  PC5-48000C30 6000MHz / CMH32GX5M2B6000Z30 (4x16GB DIMMS)



According to the net, my RAM has SK-HYNIX M-Die IC's. I would confirm with Thaiphoon Burner but it will not function as the kernel mode driver is blocked or my SPD EEPROM Device is not compatible. I have disabled all Windows based security, so I will just assume its not compatible yet.



Just so we are all on the same page to the current BIOS setup, everything is Auto, other than EXPO for RAM and adjusted PBO. But for clarity, see below

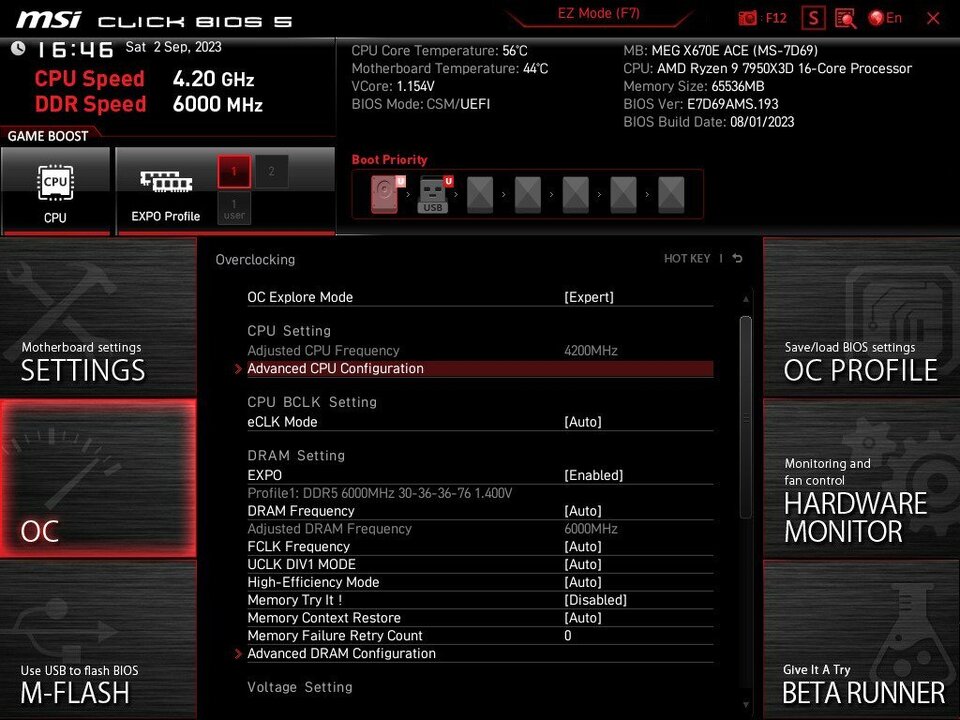

OC Main Menu

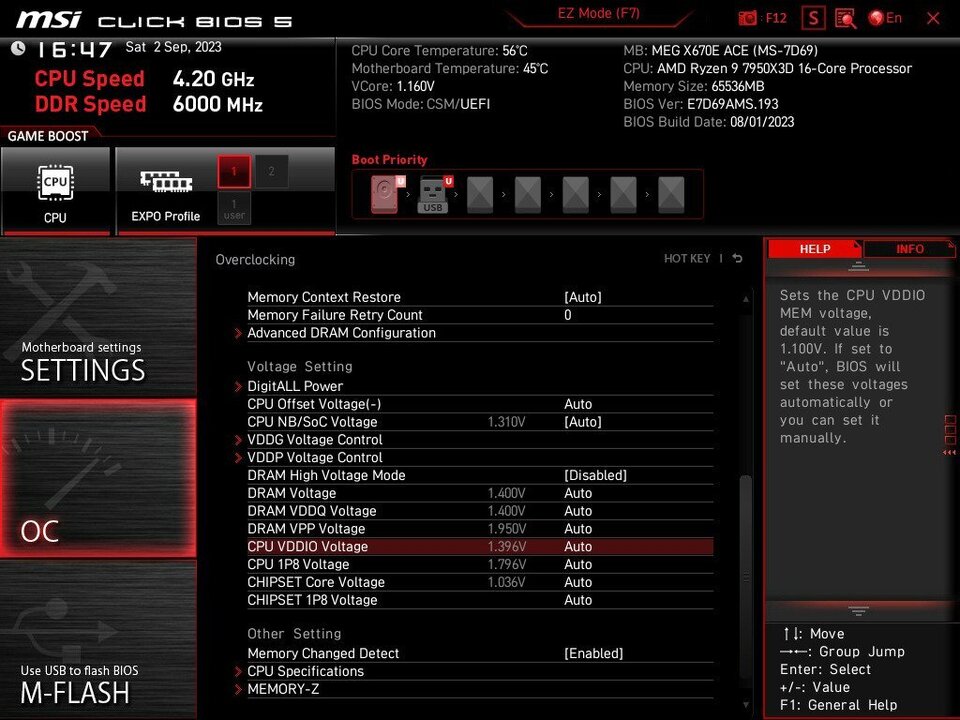

OC Main Menu 2

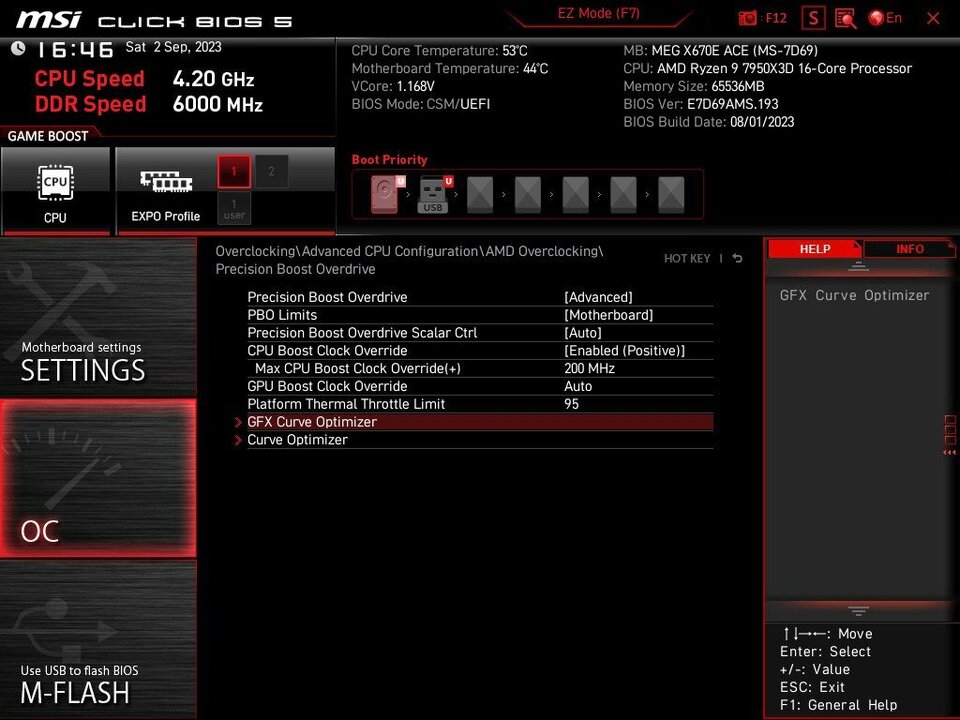

AMD PBO Settings

(No Curve Optimizer Adjustments)

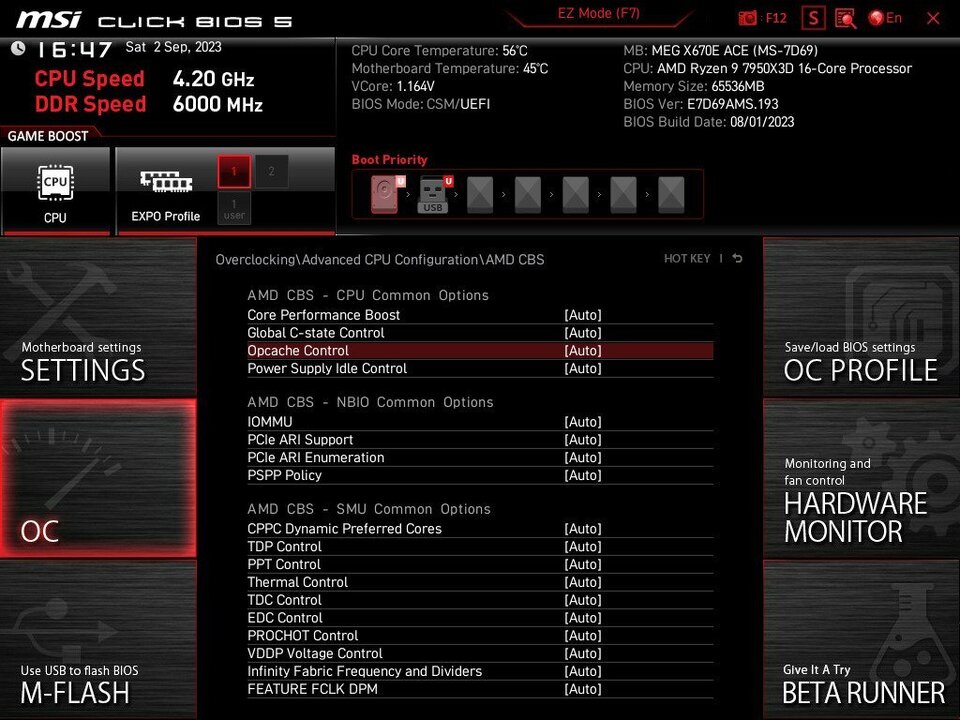

AMD CBS

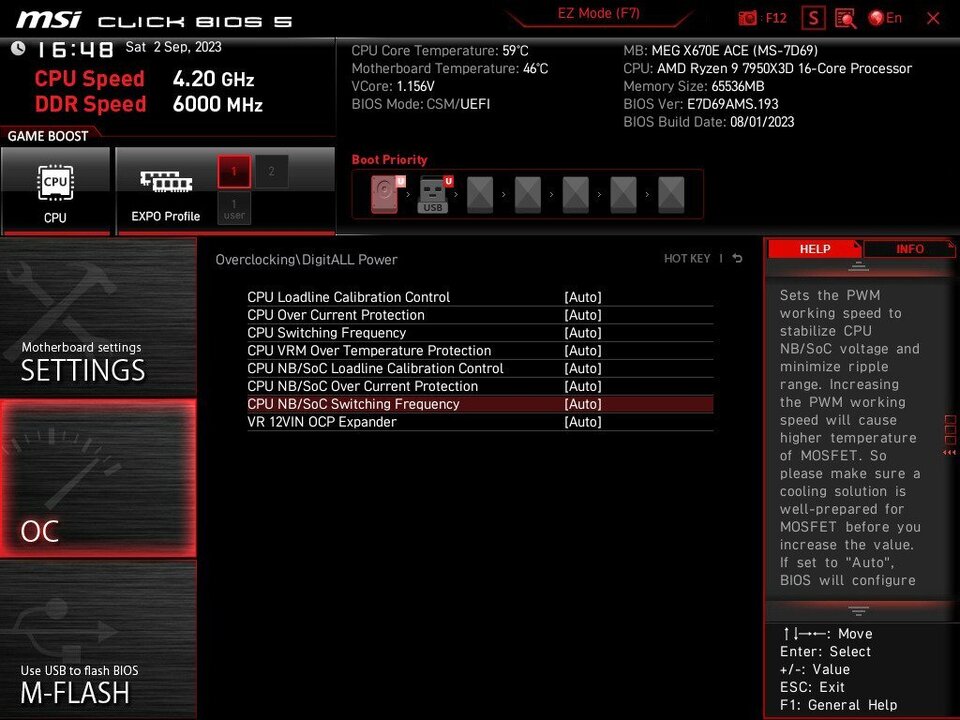

Digital All Power




Firstly, I understand there are limits in what can be achieved on the X3D variant of the AMD CPU's so far as actual overclocking, but would love some feedback from those who have tweaked their X3D's.



Secondly, I know that OC mileage will vary with my RAM config as I have a 4x DIMM config which stability wise can be more of a challenge VS a 2x DIMM config.



Have at it guys. help me optimize 🙂



Thanks in advance,

E

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

Bump

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

Do you have any particular question about setting up your mobo settings? Or just everything from scratch?

First of all disable all CPU things like:

spread spectrum, global c-states, virtual machine(vt-d), core performance boost, also disable PBO completely

all the voltages, frequencies, timings: for all of them, dont use auto settings but instead dial it in. i like to use the EXPO settings at first later you can tweak. 4x16GB Hynix M you can get 6200C30 in 1:1 mode but not Much more. That will be around 1,25v soc, maybe up to 1,55v vdd/vddq but chances are you can get away with lower voltages. For 1:2 mode, what is prefered with dual ccd chips, you can use 2x16GB and Maybe get 8000 to work but i have not tried Hynix M-die at those speeds yet.

If you have any particular questions pls feel free to ask!





  • Thanks 1
Link to comment
Share on other sites

3 hours ago, kaliz said:

Do you have any particular question about setting up your mobo settings? Or just everything from scratch?

First of all disable all CPU things like:

spread spectrum, global c-states, virtual machine(vt-d), core performance boost, also disable PBO completely

all the voltages, frequencies, timings: for all of them, dont use auto settings but instead dial it in. i like to use the EXPO settings at first later you can tweak. 4x16GB Hynix M you can get 6200C30 in 1:1 mode but not Much more. That will be around 1,25v soc, maybe up to 1,55v vdd/vddq but chances are you can get away with lower voltages. For 1:2 mode, what is prefered with dual ccd chips, you can use 2x16GB and Maybe get 8000 to work but i have not tried Hynix M-die at those speeds yet.

If you have any particular questions pls feel free to ask!







Hey,



Well I guess I left it up to interpretation but it was more of a "Whatever recommendations" people may have.  I am happy to dial in some settings manually but I do not think I will for everything. I will disable spread spectrum, global C States. I use VM's so I will keep VT-D enabled. Actually spread spectrum I do believe MSI have hidden from the BIOS....Annoyingly. I cannot locate it and after some googling, it is a common complaint.



I am currently using PBO for managing the CPU performance, might look into overlocking it, even though overclocking from what I understand is fairly limited on the X3D chips.



I am currently tuning my RAM, I have enabled EXPO and now tuning the timings to see what I can get. I have no particular issues leaving it at 6000Mt/s but wanted to see if I could improve on the EXPO timings and reduce the latency. Once I have that down, I may see if I can go for 6200. I tried for 6400 but the latency was poor and fiddling with the timings did not yield much improvement. I will first see what I can get on 6000 with tuned timings and then may investigate further.



I will look at reducing the SOC voltage as it is in Auto and by default is running at 1.3v, I will play with that once I know I reduce that as it will just throw in another factor to consider at this point.

  • Respect 1
