Corsair M65 RGB Elite "mod"


Bastiaan_NL

Recommended Posts

A few months ago I decided to replace my Logitech G500s with a Corsair M65 RGB Elite on the main system, so the G500s could be used on any of the other systems if needed.
I've been using the M65 for many hours, but after some time I noticed that there was not enough support for my ring finger and the little finger is always dragging over my mousepad. This is not a big deal for a short period of time, but gaming a few hours causes some numbness in my hand from trying to hold my fingers up. On the G500s is a little edge next to the right mouse button, big enough for the ring finger automatically holding the little finger up a bit. On the M65 the whole top is a button, so no place to rest a finger other than pushing it to the side of the cover.


To fix this and enjoy the mouse even more I decided to get some 2 component plastic and add a support to the right side of the mouse.  First I had to take the whole mouse apart to get to the clips holding the right plastic cover in place, forgot to take pictures at that time, and removed it. I drilled 2 holes for screws in the cover, so the screws could support the weight of 2 fingers and the big chunk of plastic that I was going to add. After that I molded the plastic to the cover and gave it a shape I thought would be good to rest my fingers on. To "bake" the 2 comp plastic I placed the support on a GPU running Folding @ Home, nice and warm :classic_tongue:

After installing the modded support and giving it a quick test I was very happy with the result. It doesn't look perfect, but it's impossible to see that with my hand on the mouse. The added weight makes it feel much better in my hand, and no more numb fingers! According to Corsair it weighs 97 grams in its original state (not sure if that's with the little weight inserts), and after the mod my scale said 159 grams. The added width is 15mm in the middle and 20mm in the front and rear.

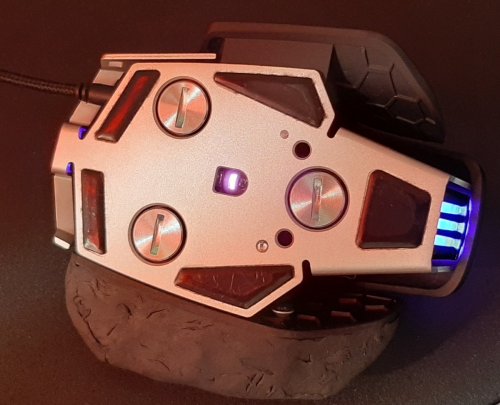

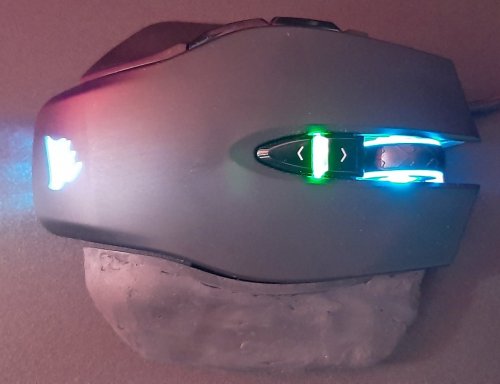

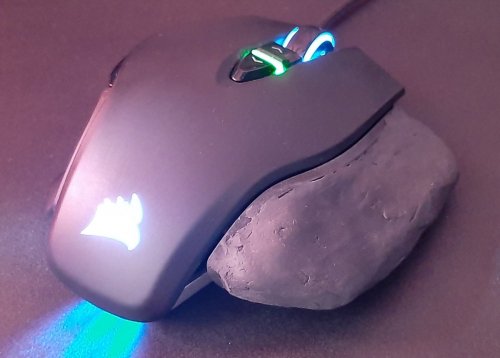

Here are some pictures:




Edited by Bastiaan_NL

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

That is certainly a mod I will give you that. Does that not unbalance the mouse at all when moving it around. For instance does it not tip if moving it towards the right where the new support is and snag ?

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

That was something I was afraid of, but with the weight of a few fingers on it the balance point is still somewhere in the middle of the mouse. No noticeable resistance from the added weight, to be honest it feels better!



Even if I'm trying to tip it over to the right by pressing on the outer right edge of the support I need to press pretty hard to make it tip over. There is about 60 grams (if the scale is correct) on right of the right outer slide pad and about 100 grams on the left, placing the balance point only a little off center from the original mouse. I've been using it for a few weeks this way, doing lots of browsing and a good few hours of Warzone without wanting to remove the support.

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

6 hours ago, Bastiaan_NL said:

That was something I was afraid of, but with the weight of a few fingers on it the balance point is still somewhere in the middle of the mouse. No noticeable resistance from the added weight, to be honest it feels better!



Even if I'm trying to tip it over to the right by pressing on the outer right edge of the support I need to press pretty hard to make it tip over. There is about 60 grams (if the scale is correct) on right of the right outer slide pad and about 100 grams on the left, placing the balance point only a little off center from the original mouse. I've been using it for a few weeks this way, doing lots of browsing and a good few hours of Warzone without wanting to remove the support.

Well if it works...it works ! Take the win and run with it :)
