Sony publishes the first teardown video of PlayStation 5


Recommended Posts

Folding@Home Staff
726 370
Quote

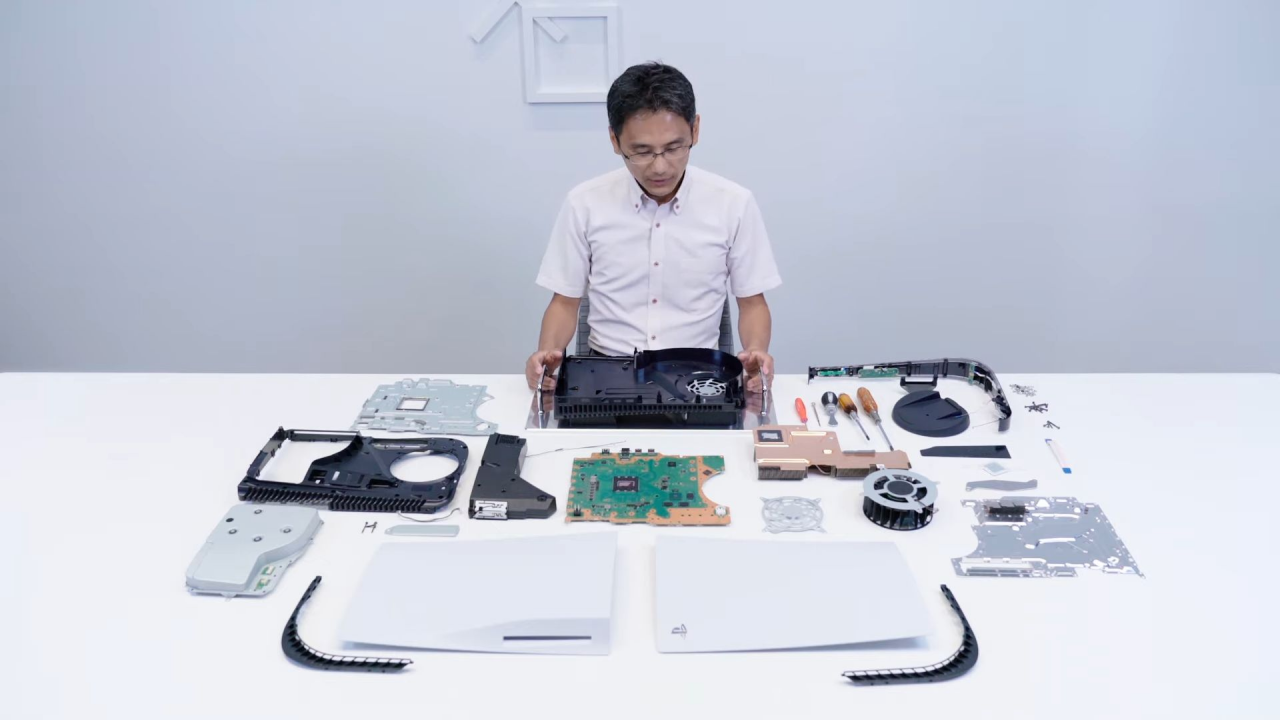

Sony finally showcased the internal design of its next-generation gaming console. Many interesting details were confirmed by the video posted by Sony. The console will feature liquid metal on its system on a chip, for which Sony spent two years developing the mechanism to apply.



The console has two white plastic covers that can be removed by users themselves. The console has built-in dust filters that should make the cleaning process a lot faster. The video also showcases the design of the PCB, featuring AMD Zen2/RDNA2 SoC, custom 825GB SSD and additional 8GB of GDDR6 memory.



The console is cooled down by a 45mm thick and 120mm side fan, which is a dual-intake design. The fan is attached to a massive heatsink, which is not a vapor chamber design. Size-wise it does however take a big portion of the console. Sony also confirmed that the power supply is rated at 350W, but no details were revealed as to actual power consumption during normal use.






Source





That heatsink + Liquid Metal is quite nice.



Also that large black plastic skeleton/air diverter looks nice and durable too adding some good strength to the structure.  That added strength is almost wasted though as gone are the days of bringing your console to a buddy's house or to camp because this console is huge and has some pretty high power draw.

Link to comment
Share on other sites

Folding@Home Staff
726 370
35 minutes ago, Huzzug said:

Going liquid metal with that big of a heatsink and the power supply makes me think that Navi too is going to be a power hog.



Maybe we'll see.



I'm going to guestimate ~200W under continuous gaming loads with peaks up to ~275W.  The 350W brick might have just been the next option up.  I can't see Sony wasting R&D budget on the Power Supply and would instead source an ODM for that and looking at Laptop power bricks for rough sizes, my 240W Dell power supply is the largest I've seen so 350W might just be the next size that makes sense to design and build at scale to help save money by an ODM.  It also helps that it would have a larger safety margin when the power brick gets inevitably thrown behind the entertainment unit along with all the other cables and power bricks.

Link to comment
Share on other sites

33 minutes ago, axipher said:



I'm going to guestimate ~200W under continuous gaming loads with peaks up to ~275W.  The 350W brick might have just been the next option up.  I can't see Sony wasting R&D budget on the Power Supply and would instead source an ODM for that and looking at Laptop power bricks for rough sizes, my 240W Dell power supply is the largest I've seen so 350W might just be the next size that makes sense to design and build at scale to help save money by an ODM.  It also helps that it would have a larger safety margin when the power brick gets inevitably thrown behind the entertainment unit along with all the other cables and power bricks.

I made the statement taking into account Sony's decision to use an expensive TIM solution, a large heatsink and a PSU that big and how the performance and power consumption will translate to desktop cards, as the consoles are designed with performance metric first.

Link to comment
Share on other sites

Once again once the console is apart, it doesn't exactly look special but neither did any of the predecessors. Amazing what they pack onto one board these days. Nice to see they have gone for what looks like a decent cooling solution (time will tell) so bravo for that.

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

Very interesting to see a console that big, but I guess they really are just SFF computers.



I'm not that well versed on Liquid Metal. What are the long-term effects of its use?
