1080ti bios, how to?

1 Attachment

Recommended Posts

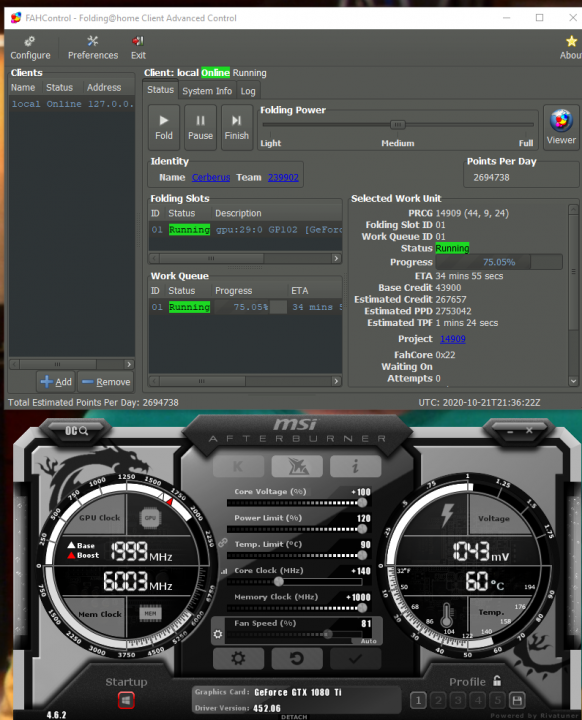

I would like to push my 1080ti past 2000/12000, i have the sliders (besides core +140) maxed out



Any tips on how to flash a faster bios? I know there are guides on other sites, but I want to start something here



Edited by Cerberus



CPU: 10900k
RAM: 32GB 3600mhz G.Skill
SSD/NVME: 970 EVO plus 1TB
CASE: Thermaltake Core x71
Full Rig Info



CPU: Intel® Core™ i7-11700K
HDD: 15x4TB MD1000
SSD/NVME: 10x512GB Samsung SSD (Cache) MD1000
Full Rig Info
Link to comment
Share on other sites

So far as I recall, Nvidia required that there BIOS files had a valid digital signature which means an overall BIOS modification is out of the question. However has you looked up other 1080Ti variant BIOS's that allow for a higher TDP ? I have in the past grabbed a BIOS files for my cards (assuming they are the same model of course) that have a higher TDP rating allowing more power to be pushed to the card for overclocks. That being said, when you grab a BIOS from another card while it tends not to matter which vendor it has come from (MSI,EVGA etc) be sure that when you find a card with a better BIOS that you ensure that the card and your card have the same PCI-e power connector configuration. I have seen people flash a BIOS made for cards with say 3x 6 Pin connections to a card with only 2x 6 Pin and this obviously will cause issues, so be sure to match up that config.


The other thing to note is that if your card has any other abilities, such as run silent, this can be BIOS specific, as such if you flash another BIOS you can lose the 0 RPM feature for when the card is at idle or low usage. Though if I am honest that is not big deal. The same can be said for any fancy RGB functions, again can be BIOS specific.


Check out Techpowerup for other 1080Ti BIOS files , check here : https://www.techpowerup.com/vgabios/?architecture=NVIDIA&manufacturer=&model=GTX+1080+Ti&interface=&memType=&memSize=&since=


Click on a BIOS that takes your fancy, it will load to another window to show you all the specific on that BIOS, including TDP limits etc.




CPU: AMD Ryzen 9 7950X3D
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info



CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info




CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites
