Best GPU memory test?


neurotix
3 Attachments
Go to solution Solved by The Pook,

Recommended Posts

Premium Platinum - Lifetime

Hey all,



What's the best way to test OC'ed GPU memory?



I'm pretty confident in my limits with core clock on my 4090. However, I have the memory at 12110MHz effective which is +1650 in Afterburner. Stock is like 10500. I know it can do more as I've folded with the memory at 12210, but I'm unsure the easiest/fastest way to find the limits of my card's memory.



Any advice appreciated and thanks in advance.

$5500

Owned

 Share

CPU: Ryzen 9 7900X3D 2100MHz fclk
RAM: G.skill TridentZ5 7600MHz 36-45-45-45 1.425v
GPU: MSI RTX 4090 Gaming X Trio 3.135GHz/12.152GHz
MOTHERBOARD: Asus ROG Strix X670E-E Gaming Wifi
SSD/NVME: Crucial T700 1TB Gen 5 M.2
MONITOR: Acer Ultrawide Curved 3440x1440 144Hz HDR400 FreeSync
CASE: anidees Ai Crystal AR3 Midtower
CPU COOLER: EK Nucleus AIO CR360 Dark w/ PTM7950
Full Rig Info

Owned

 Share

CPU: i5-7600 4.5GHz
MOTHERBOARD: ASUS ROG Strix Z270H Gaming
RAM: G.skill DDR4-3000 15-16-16
CASE: Silverstone Grandia series GD09
GPU: GT 710
SSD/NVME: Samsung 850 Evo
MONITOR: Asus V239H 1080p 60Hz IPS
CPU COOLER: Thermalright AXP-120-X67
Full Rig Info
Link to comment
Share on other sites

  • Solution

windowed Unigine Heaven. scenes still render while paused.



bench until the card gets to max (VRAM) temp, pause on any static screen with space (so FPS is as consistent as possible), and watch the FPS counter while you increase frequency. Go until either it freezes/crashes/FPS drops.



if the 4000 series is anything like the 3000/2000/1000 series then performance will fall off before you get visual issues/crashes.

  • Thanks 1

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
OPERATING SYSTEM 2: Debian 12.5 KDE
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime
1 hour ago, The Pook said:

windowed Unigine Heaven. scenes still render while paused.



bench until the card gets to max (VRAM) temp, pause on any static screen with space (so FPS is as consistent as possible), and watch the FPS counter while you increase frequency. Go until either it freezes/crashes/FPS drops.



if the 4000 series is anything like the 3000/2000/1000 series then performance will fall off before you get visual issues/crashes.

Thanks so much. I'll try it tomorrow.

  • Thanks 1

$5500

Owned

 Share

CPU: Ryzen 9 7900X3D 2100MHz fclk
RAM: G.skill TridentZ5 7600MHz 36-45-45-45 1.425v
GPU: MSI RTX 4090 Gaming X Trio 3.135GHz/12.152GHz
MOTHERBOARD: Asus ROG Strix X670E-E Gaming Wifi
SSD/NVME: Crucial T700 1TB Gen 5 M.2
MONITOR: Acer Ultrawide Curved 3440x1440 144Hz HDR400 FreeSync
CASE: anidees Ai Crystal AR3 Midtower
CPU COOLER: EK Nucleus AIO CR360 Dark w/ PTM7950
Full Rig Info

Owned

 Share

CPU: i5-7600 4.5GHz
MOTHERBOARD: ASUS ROG Strix Z270H Gaming
RAM: G.skill DDR4-3000 15-16-16
CASE: Silverstone Grandia series GD09
GPU: GT 710
SSD/NVME: Samsung 850 Evo
MONITOR: Asus V239H 1080p 60Hz IPS
CPU COOLER: Thermalright AXP-120-X67
Full Rig Info
Link to comment
Share on other sites

I've found Timespy to be pretty good at figuring out when my VRAM overclocks are unstable.



I've also found Unigine Superposition to be really good at figuring out clocks as its pretty consistent with scoring on repeated runs so its pretty useful for dialing in the VRAM (and core clocks) just right.

Edited by Sir Beregond

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1 OLED
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

3 hours ago, neurotix said:

Hey all,



What's the best way to test OC'ed GPU memory?



I'm pretty confident in my limits with core clock on my 4090. However, I have the memory at 12110MHz effective which is +1650 in Afterburner. Stock is like 10500. I know it can do more as I've folded with the memory at 12210, but I'm unsure the easiest/fastest way to find the limits of my card's memory.



Any advice appreciated and thanks in advance.



... search for ' memtest_vulkan ' on github ...I works great with GDDR6X as well and I use it on my 4090 for both ECC and non-ECC settings.  On a typical 4090, memtest_vulkan will draw around 400W + -

  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

Going to vouch for Timespy here.  Out of all the gpu benchs I've run, this one would always crash and need 10-20mhz lower on the memory to be stable.

  • Thanks 1

Owned

 Share

CPU: 11900k 5.4 single / 4.9 all core
MOTHERBOARD: Asus TUF Z590
RAM: 32gb G.Skill DDR4-4000 CL16 @ 3733 14-14-14-32 2T 1.49v
GPU: AMD 6900XT 2500/2100 1.115mV
CPU COOLER: Noctua NH-D15 Chromax
SOUNDCARD: Creative Sound Blaster Z
PSU: 750w Evga SuperNOVA p2
CASE: Fractal Torrent Black
Full Rig Info

Owned

 Share

CPU: i9 10900
MOTHERBOARD: Asrock Steel Legend Z590
RAM: 64gb T-Force Vulcan Z 3600 c18
GPU: Asrock Challenger Arc A380
PSU: 850w NZXT Hale-82
Full Rig Info

Owned

 Share

CPU: Ryzen 7 4700U
RAM: 32gb Kingston Fury c20 3200
GPU: Vega 7 APU
Full Rig Info
Link to comment
Share on other sites

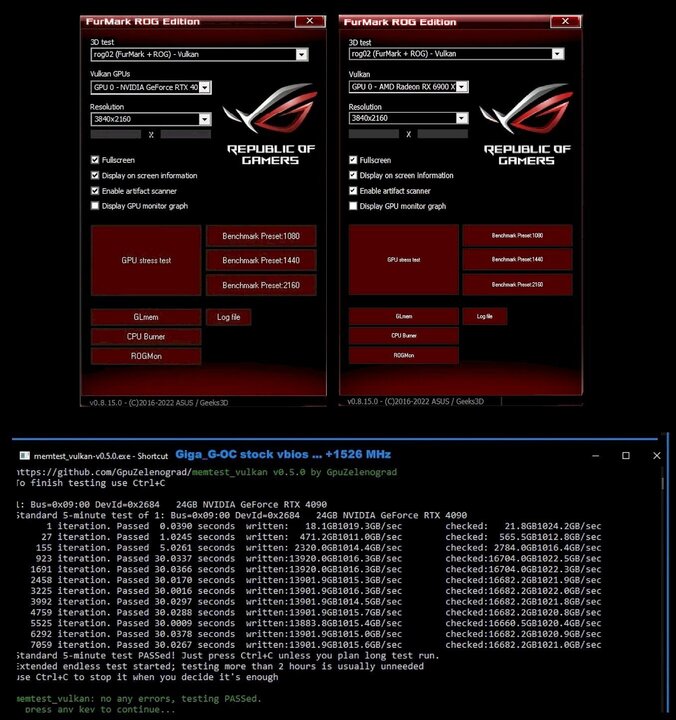

3DM's TimeSpy / Extreme, Port Royal and Speedway are very good tests for VRAM, though memtest_vulkan is a bit more sensitive in picking out VRAM OC that doesn't quite measure up, IMO. Below / bottom screen is the Giga vbios for the 4090 in memtest_vulkan, the Galax HoF vbios is similar.



Another interesting test is the ROG Furmark version (I usually set that to Vulkan instead of Open CL). The ROG Furmark also has a built-in artifact scanner !  Note of caution: ROG Furmark can REALLY test the outer limits of your card's power and temperature handling - so best to keep PL at or below 100% - at full bore, I have seen > 670 W on the GPU 🤪.  Finally, OCCT's VRAM tests is also pretty sensitive.



FYI, for the OP's RTX 4090, it is worth remembering that VRAM on that card is a bit unusual - it likes to be warm...around 55 C for best oc performance...so there will be a best 'cold' OC result and a best 'hot' result for VRAM and those can diverge by as much as 100 MHz.








Edited by J7SC_Orion

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

9 hours ago, J7SC_Orion said:

FYI, for the OP's RTX 4090, it is worth remembering that VRAM on that card is a bit unusual - it likes to be warm...around 55 C for best oc performance...so there will be a best 'cold' OC result and a best 'hot' result for VRAM and those can diverge by as much as 100 MHz.

Interesting. How does it look with a water block on it? Does it stay cooler than that, or?

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1 OLED
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

53 minutes ago, Sir Beregond said:

Interesting. How does it look with a water block on it? Does it stay cooler than that, or?



...water block basically has GPU and VRAM temp very close to each other - not least as on this gen, VRAM is also physically much closer to the core. Add a wallop of thermal putty on the VRAM...



Below was at 26 C ambient but w/o water block, VRAM temps would have been warmer ('better') but hotspot would be too high. First pic = water-block, second pic = first boot after card install w/stock air cooler (obviously, different oc settings and vbios as well as lower ambient of 22 C to factor in)




  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites
