Help with motherboard socket cover


Go to solution Solved by Sir Beregond,

Recommended Posts

Premium Platinum - Lifetime

Hey all,



As a last ditch effort to see if I can fix the 2nd CCD of my 7900X3D not boosting at all, I am looking to pull the chip out of the socket and remount it. While also probably applying some PTM7950 thermal putty to the water block.



However, my board came with a socket cover and I read in the manual that it helps align the chip when you mount it.



Problem is, I've never reinstalled a socket cover! So I'm wondering, do I need to hold the retention bracket up and try to push the plastic socket cover through it while holding it up, or do I put it in place as if I am mounting a CPU and lower the socket arm down like I'd do for a CPU (won't it just push through the top like when I mounted the chip? And will it bend pins?)



Thanks guys.

Link to comment
Share on other sites

I would keep the CPU in the socket to protect the pins while you are installing the socket cover.  With the retention bracket up, you should be able to attach the socket cover to the bracket.



This youtube video looks helpful if you want to see the full process of installing the CPU.  For your purposes, it might be helpful to see how the socket cover comes preinstalled (e.g. orientation).



Link to comment
Share on other sites

Premium Platinum - Lifetime

No, I know how to install the CPU, problem is if I leave it in the socket and lower the arm with the socket cover in place and the cpu in, the socket cover will pop out. By design.



I need to know how to reattach the socket cover to the metal retention bracket, like it was when the mobo was new.

Link to comment
Share on other sites


Edited by waffl3ninja

Owned

 Share

MOTHERBOARD: rog dark hero x570
CPU: ryzen 9 5950x
GPU: toxic 6900xt extreme edition
RAM: pny 3733 16-19-16-19-36
CASE: phanteks p600s
WC RADIATOR: barrow 360mm x 60mm (top) barrom 240x40mm(front)
WC PUMP: alphacool d5
WC CPU BLOCK: EK Monoblock for dark hero
Full Rig Info
Link to comment
Share on other sites

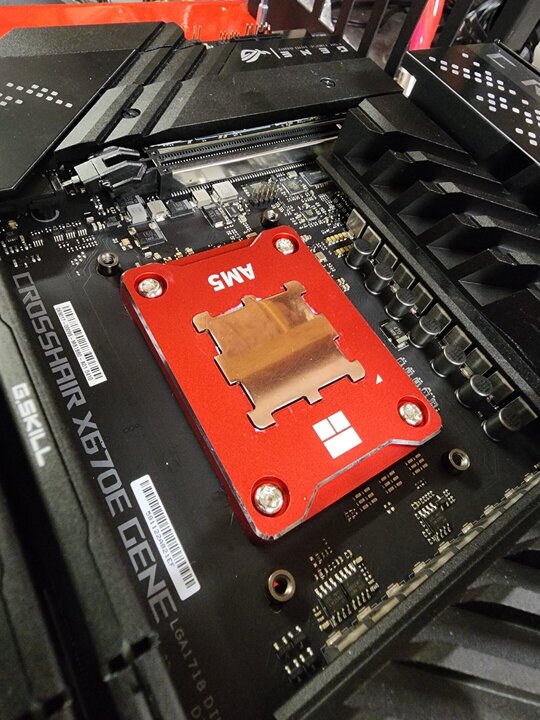

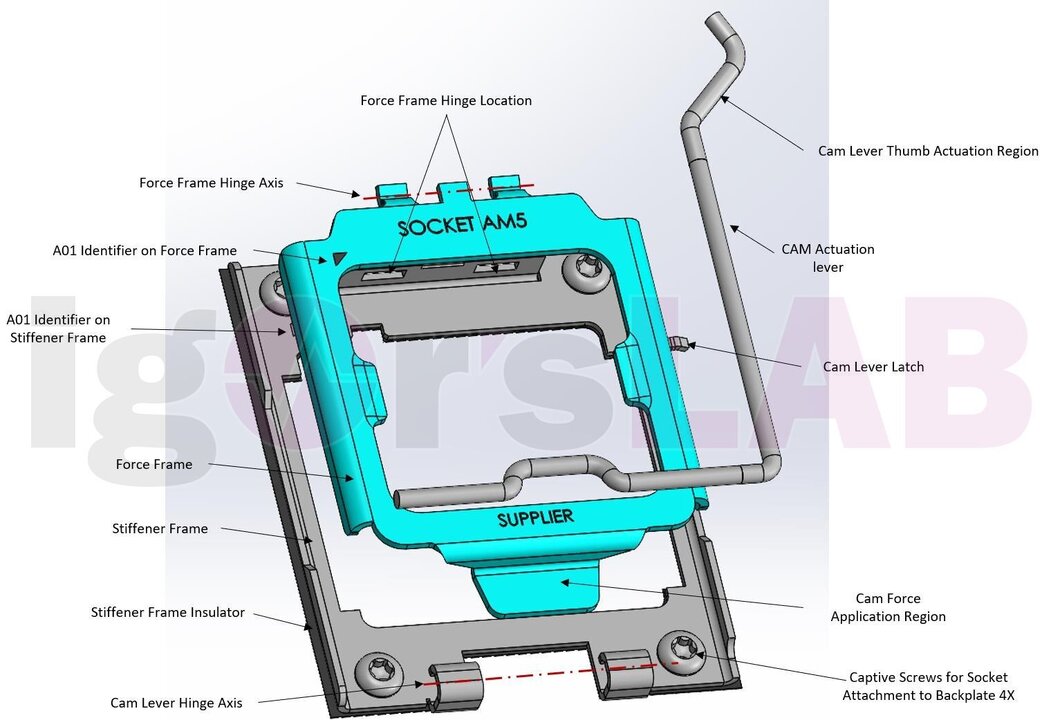

Is this what you mean? the first pic kinda shows clips.  is that what you're trying to reinstall?




or would this be better



 Socket-01-1536x1022.thumb.jpg.7df5cfc10fad682a12c8440275bf456f.jpgSocket-02.thumb.jpg.ecb569f69d8680f51cab250d42d3af80.jpg


Edited by waffl3ninja
  • Respect 1

Owned

 Share

MOTHERBOARD: rog dark hero x570
CPU: ryzen 9 5950x
GPU: toxic 6900xt extreme edition
RAM: pny 3733 16-19-16-19-36
CASE: phanteks p600s
WC RADIATOR: barrow 360mm x 60mm (top) barrom 240x40mm(front)
WC PUMP: alphacool d5
WC CPU BLOCK: EK Monoblock for dark hero
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime

What is referred to in the 2nd image as the "external cap". A piece of plastic that attaches to the retention bracket, that helps align the cpu when you install it, and pops off when you put a chip in and lower the arm all the way.

Link to comment
Share on other sites

I'm lost as to how a socket cover is going to fix a broken CCD. The CPUs can only go in one way as far as I'm aware due to notching in the chip and socket.



The socket cover is only used to protect the pins when a CPU is not installed in the socket.

Edited by Sir Beregond
  • Thanks 1
  • Respect 2

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 CL14)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 42" C4 OLED
Full Rig Info

Owned

 Share

CPU: E8400, i5-650, i7-870, i7-960, i5-2400, i7-4790k, i9-10900k, i3-13100, i9-13900ks
GPU: many
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS P7P55 WS SC | ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime

I'm remounting it as a last ditch effort to get the damn thing to boost to 5.6GHz on the 2nd CCD like it used to.



The socket cover acts as a guide to align the chip and pops out when the retention bracket and arm are lowered with the cpu installed. It says so in my motherboard manual.



And I've tried everything to try and get the damn thing boosting for benchmarking. Its happened twice, when I first got it the 2nd CCD would hit 5650 running benchmarks, then after a month it just stopped one day. Eventually, a bios flash made it work again, but only for a month or two, then it stopped again and no bios flashes or troubleshooting I did with both Asus and AMD has fixed it. I really suspect that the boost clock limit for the first CCD with V-Cache is being applied to the whole chip by this "AMD 3D V Cache Optimizer service", two of which are running on my system and get installed with the chipset driver. So my second chiplet will not go above 5150MHz, which is the max for the first chiplet.

Link to comment
Share on other sites

you could also kill two birds with one stone and try this out lots of good feedback about it and seems like if you would have to pull the am5 out again for any reason it easier to reinstall install.   its 8 bucks. PS read the article before you say no offtopic solutions. then again i really dont understand what the problem is.

WWW.CLUB386.COM

Thermalright is aiming to strengthen Ryzen 7000 installation with a 45g aluminium frame.



Edited by waffl3ninja

Owned

 Share

MOTHERBOARD: rog dark hero x570
CPU: ryzen 9 5950x
GPU: toxic 6900xt extreme edition
RAM: pny 3733 16-19-16-19-36
CASE: phanteks p600s
WC RADIATOR: barrow 360mm x 60mm (top) barrom 240x40mm(front)
WC PUMP: alphacool d5
WC CPU BLOCK: EK Monoblock for dark hero
Full Rig Info
Link to comment
Share on other sites

22 minutes ago, neurotix said:

The socket cover acts as a guide to align the chip and pops out when the retention bracket and arm are lowered with the cpu installed. It says so in my motherboard manual.

Right. The cover I believe has the little corner triangle on it, etc. If your CPU is in the socket, this isn't your problem.



I mean you should try a remount sure, but literally all socket covers for LGA sockets pop out when you install a CPU. They aren't really for alignment, they just protect the socket.

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 CL14)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 42" C4 OLED
Full Rig Info

Owned

 Share

CPU: E8400, i5-650, i7-870, i7-960, i5-2400, i7-4790k, i9-10900k, i3-13100, i9-13900ks
GPU: many
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS P7P55 WS SC | ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime
13 hours ago, pioneerisloud said:

You're not using that Cooler Master PSU again are you?  A bad PSU could potentially effect your boost algorithms.  🤷‍♂️

🤣 Lmao. No I'm not using it. I'm not that stupid, ty. I am using a Seasonic Vertex GX 1200w gold with a proper 12VHPWR cable.



Besides, this issue was happening with that old psu, and persists with the new one. We've even tried reinstalling Windows and that doesn't fix it when this issue is happening.



I may just end up getting a 7900x instead, other than that I might just have to wait for a bios fix.





Link to comment
Share on other sites

7800 is the way. Or 7950 if you need lots of cores.

Owned

 Share

CPU: AMD Ryzen 7 7800X3D
MOTHERBOARD: MSI X670E Carbon
GPU: MSI RTX 4080 Gaming X Trio
RAM: Corsair 2x32GB @6000 MT/s 28-36-36-28-30-58 1T
SSD/NVME: Kingston Fury Renegade 1 TB
SSD/NVME 2: Kingston Fury Renegade 4 TB
PSU: Super Flower Leadex V Pro Gold 1000W
CASE: be quiet! Silent Base 802
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime
22 minutes ago, rares495 said:

7800 is the way. Or 7950 if you need lots of cores.

Nope. I had a 3900x in 2019, then a 5900x last year, so it would have to be a 7900x because I'm not losing threads. The wife also is sick of buying stuff for me and so cannot afford a 7950x (we can afford it but she won't agree to it).



This thread had gone way off topic. Does anyone know how to reattach a plastic socket cover to the mounting bracket? This is not just for possibly remounting the CPU but also in case I get a new board and sell this one, or sell it in the future when I upgrade. Thanks.



@damric@The Pook@Fluxmaven

Edited by neurotix
Link to comment
Share on other sites

I've never tried to put the plastic socket protector back on but I assume it just snaps on. I'd have to remember where I put the stock stuff to test that though 😅




  • Respect 1

Owned

 Share

CPU: 5900X + Optimus block
MOTHERBOARD: MSI X570 Ace
GPU: EVGA RTX 3090 FTW3 Ultra + Optimus block
RAM: 32GB Oloy Blade 3600CL14
SSD/NVME: 1TB SN750 Black
SSD/NVME 2: 1TB SN750 Black
SSD/NVME 3: 2TB Samsung 970 Evo Plus
CASE: LD PC-V7
Full Rig Info

Owned

 Share

CPU: 7800X3D
MOTHERBOARD: B650E-I Strix
RAM: G.Skill Flare X5
GPU: Reference 6950 XT
CASE: InWin D-Frame Mini
WC RADIATOR: MO-RA3 with 4x180mm Silverstone fans
FAN CONTROLLER: Aquaero
Full Rig Info

Owned

 Share

CPU: 12600KF
MOTHERBOARD: Z790I Strix
RAM: G.Skill Trident Z5 Neo
GPU: RTX 2080
CASE: Sliger SM580
WC RESEVOIR: Phanteks R160C
WC RADIATOR: XSPC TX240 Ultrathin
FANS: Phanteks T30
Full Rig Info
Link to comment
Share on other sites

  • Solution

LGA socket covers just snap back onto the retention mechanism. They will pop off if you close the retention mechanism with a CPU installed. They are literally just for protecting the pins when no CPU is present in the socket. I am not sure how it helps with "alignment" - the CPU can only go in one way due to notches in the socket/CPU.

  • Thanks 1
  • Respect 3

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 CL14)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 42" C4 OLED
Full Rig Info

Owned

 Share

CPU: E8400, i5-650, i7-870, i7-960, i5-2400, i7-4790k, i9-10900k, i3-13100, i9-13900ks
GPU: many
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS P7P55 WS SC | ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

1 hour ago, neurotix said:

I guess you hold the bracket upright with your fingers and push the thing in with your thumbs from underneath or something then?

From on top. The plastic socket cover attaches on top of the retention bracket, hence why it would pop off if you close the mechanism with a CPU installed.



I found this video, I know its pretty rudimentary in explaining things, but it shows how the cover works. It helps in alignment only so much as it also has the corner triangle on it for correctly aligning the CPU with the socket. The socket also has the triangle though. But you can see clearly how the plastic cover works.



Basically all to say, the plastic cover isn't going to help you with anything you haven't already done just socketing the processor.





Edited by Sir Beregond
  • Thanks 2
  • Respect 2

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 CL14)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 42" C4 OLED
Full Rig Info

Owned

 Share

CPU: E8400, i5-650, i7-870, i7-960, i5-2400, i7-4790k, i9-10900k, i3-13100, i9-13900ks
GPU: many
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS P7P55 WS SC | ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime

Thanks. So you just latch the socket and push the plastic cover in from the top? I am talking about getting the cover back on the board if I decide to RMA it or sell it.



Also, I just tried remounting the CPU and it did not fix the 2nd CCD boosting problem as you and others stated.



Guess I'm stuck waiting for a bios update to permanently fix it, as one time when it wasn't boosting a new bios fixed it. (I have already tried reverting to that particular bios with USB bios flashback and it didn't fix my boosting issue. But if I want help with that I will make a new thread.)



Edited by neurotix
Link to comment
Share on other sites
