Best 4090?


neurotix
2 Attachments

Recommended Posts

Premium Platinum - Lifetime

So if Microcenter ever has these in stock, what is the best card out of these three:



Gigabyte Gaming OC

WWW.MICROCENTER.COM

Get it now! The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10...



MSI Gaming Trio:



WWW.MICROCENTER.COM

Get it now! Play with style! GAMING is upgraded with TRI FROZR 3 to sustain intense performance during gaming...



Zotac AMP



WWW.MICROCENTER.COM

Get it now! "Love Gaming with the all-new ZOTAC GAMING GeForce graphics cards based on the NVIDIA Ada...



Galax is not available nor do I think my power supply would be able to power the two 12VNP whatever stupid new connectors on the card. I will have to use one of the included 8-pin to 12-pin blah blah blah to even power these cards and hope it works.



Thoughts? I'm leaning towards Gigabyte myself. Also, how long is the warranty and how is the RMA process/quality for each of these brands. I've only used Evga and Sapphire in the past.

Edited by neurotix

$5500

Owned

 Share

CPU: Ryzen 9 7900X3D 2100MHz fclk
RAM: G.skill TridentZ5 7600MHz 36-45-45-45 1.425v
GPU: MSI RTX 4090 Gaming X Trio 3.135GHz/12.152GHz
MOTHERBOARD: Asus ROG Strix X670E-E Gaming Wifi
SSD/NVME: Crucial T700 1TB Gen 5 M.2
MONITOR: Acer Ultrawide Curved 3440x1440 144Hz HDR400 FreeSync
CASE: anidees Ai Crystal AR3 Midtower
CPU COOLER: EK Nucleus AIO CR360 Dark w/ PTM7950
Full Rig Info

Owned

 Share

CPU: i5-7600 4.5GHz
MOTHERBOARD: ASUS ROG Strix Z270H Gaming
RAM: G.skill DDR4-3000 15-16-16
CASE: Silverstone Grandia series GD09
GPU: GT 710
SSD/NVME: Samsung 850 Evo
MONITOR: Asus V239H 1080p 60Hz IPS
CPU COOLER: Thermalright AXP-120-X67
Full Rig Info
Link to comment
Share on other sites

I believe the MSI card does only 3 (lol) 8-pins to 16-pin 12VHPWR while the others are 4. So from an enthusiast perspective probably better with the Gigabyte or Zotac if you are planning to overclock and play with power. @J7SC_Orion has that Gigabyte I believe.



As far as warranty, not sure, I've not owned any of these brand GPUs before for an extended period of time. I've heard hit and miss things with each of them over the years, but I couldn't really tell you anything definitively.

Edited by Sir Beregond
  • Thanks 1

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1 OLED
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

All I can comment on is I avoid Gigabyte since the 2080Ti whereby the weight of the card caused it to flex and the fans would bind in some form unless the card was really supported. That being said, they may have overcome the issue.



I would focus on seeing if the power delivery system is better on any one of these models as it will aid in Overclocking should that be something you look at. Check out the reviews for each GPU as they will likely comment on the power system.



Are you using stock cooling or putting under WC ?



If using stock cooler, I would opt for one with the largest cooler (if you can fit it) as these boys will get toasty.

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

I'm avoiding Gigabyte from now on due to horrible RMA experiences with them. I haven't owned anything MSI since 775 and I haven't owned anything Zotac since the GTX 500 series so idk for them.



Zotac has a marginally higher power limit (+15W) than the MSI. If you're going run them on HWBOT it might be worth an extra $50 but ¯\_(ツ)_/¯

  • Thanks 2

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
OPERATING SYSTEM 2: Debian 12.5 KDE
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime
4 minutes ago, The Pook said:

I'm avoiding Gigabyte from now on due to horrible RMA experiences with them. I haven't owned anything MSI since 775 and I haven't owned anything Zotac since the GTX 500 series so idk for them.



Zotac has a marginally higher power limit (+15W) than the MSI. If you're going run them on HWBOT it might be worth an extra $50 but ¯\_(ツ)_/¯



The Zotac also has a larger, 3 slot cooler though the mounting bracket is only 2 slot.



Thanks for the warning about Gigabyte and thanks for the power limit heads up since yes, card will be benched for the bot.



14 minutes ago, Sir Beregond said:

I believe the MSI card does only 3 (lol) 8-pins to 16-pin 12VHPWR while the others are 4. So from an enthusiast perspective probably better with the Gigabyte or Zotac if you are planning to overclock and play with power. @J7SC_Orion has that Gigabyte I believe.



As far as warranty, not sure, I've not owned any of these brand GPUs before for an extended period of time. I've heard hit and miss things with each of them over the years, but I couldn't really tell you anything definitively.



Thanks for your input too @ENTERPRISE

I'm totally confused about the connector and adapter issue now. I thought you clarified for me in another topic that the connector on the card is 12 pin and you plug 1x 8 pin PCI-E into it, with an extra 4 pins on the adapter being unused.



Is the "12VHPWR" actually 16 pin and I plug two 8 pin PCI-E into the adapter then in to the card? Good god I don't see the effing point of this new connector, I love my current PSU and don't want to have to put in a new one. This is the wiring on the backside of my rig and we'd have to rip it all apart:


$5500

Owned

 Share

CPU: Ryzen 9 7900X3D 2100MHz fclk
RAM: G.skill TridentZ5 7600MHz 36-45-45-45 1.425v
GPU: MSI RTX 4090 Gaming X Trio 3.135GHz/12.152GHz
MOTHERBOARD: Asus ROG Strix X670E-E Gaming Wifi
SSD/NVME: Crucial T700 1TB Gen 5 M.2
MONITOR: Acer Ultrawide Curved 3440x1440 144Hz HDR400 FreeSync
CASE: anidees Ai Crystal AR3 Midtower
CPU COOLER: EK Nucleus AIO CR360 Dark w/ PTM7950
Full Rig Info

Owned

 Share

CPU: i5-7600 4.5GHz
MOTHERBOARD: ASUS ROG Strix Z270H Gaming
RAM: G.skill DDR4-3000 15-16-16
CASE: Silverstone Grandia series GD09
GPU: GT 710
SSD/NVME: Samsung 850 Evo
MONITOR: Asus V239H 1080p 60Hz IPS
CPU COOLER: Thermalright AXP-120-X67
Full Rig Info
Link to comment
Share on other sites

49 minutes ago, neurotix said:

So if Microcenter ever has these in stock, what is the best card out of these three:



Gigabyte Gaming OC

WWW.MICROCENTER.COM

Get it now! The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10...



MSI Gaming Trio:



WWW.MICROCENTER.COM

Get it now! Play with style! GAMING is upgraded with TRI FROZR 3 to sustain intense performance during gaming...



Zotac AMP



WWW.MICROCENTER.COM

Get it now! "Love Gaming with the all-new ZOTAC GAMING GeForce graphics cards based on the NVIDIA Ada...



Galax is not available nor do I think my power supply would be able to power the two 12VNP whatever stupid new connectors on the card. I will have to use one of the included 8-pin to 12-pin blah blah blah to even power these cards and hope it works.



Thoughts? I'm leaning towards Gigabyte myself. Also, how long is the warranty and how is the RMA process/quality for each of these brands. I've only used Evga and Sapphire in the past.





...as @Sir Beregond mentioned, I have the Gigabyte-Gaming-OC (since mid-October), and so far, it is great...it came with a 4 year warranty. My card is water-cooled, so @ENTERPRISE's comment on fans won't be an issue. FYI, all told in my home-office / work and play, I have a Gigabyte mobo, and six GPUs of theirs and never had to do an RMA, so I don't really know how that would be like...my previous and only RMA experiences with Asus and MSI (one claim each) were excellent.



...the best PCB (IMO) for the 4090 is the MSI SuprimX / & AIO version...there's also the extremely expensive Asu Strix and the unobtanium Galax Hof, but if you want to go for Asus, I would get the TUF / OC and flash another vbios on it (ie Strix, Galax Hof)....all told, avoid cards that don't have 2x vbios and less than 20+4 VRM.

  • Respect 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime
3 minutes ago, J7SC_Orion said:





...as @Sir Beregond mentioned, I have the Gigabyte-Gaming-OC (since mid-October), and so far, it is great...it came with a 4 year warranty. My card is water-cooled, so @ENTERPRISE's comment on fans won't be an issue. FYI, all told in my home-office / work and play, I have a Gigabyte mobo, and six GPUs of theirs and never had to do an RMA, so I don't really know how that would be like...my previous and only RMA experiences with Asus and MSI (one claim each) were excellent.



...the best PCB (IMO) for the 4090 is the MSI SuprimX / & AIO version...there's also the extremely expensive Asu Strix and the unobtanium Galax Hof, but if you want to go for Asus, I would get the TUF / OC and flash another vbios on it (ie Strix, Galax Hof)....all told, avoid cards that don't have 2x vbios and less than 20+4 VRM.



Alright thanks for your input, I might go with Gigabyte then ,(if these things are ever even available getting pissed off waiting for no stock,), 4 year warranty is pretty great too.



Still need Sir Beregond to straighten me out on exactly what the 12V8HWR1337 hemi connector actually is though 🤣

  • Thanks 1

$5500

Owned

 Share

CPU: Ryzen 9 7900X3D 2100MHz fclk
RAM: G.skill TridentZ5 7600MHz 36-45-45-45 1.425v
GPU: MSI RTX 4090 Gaming X Trio 3.135GHz/12.152GHz
MOTHERBOARD: Asus ROG Strix X670E-E Gaming Wifi
SSD/NVME: Crucial T700 1TB Gen 5 M.2
MONITOR: Acer Ultrawide Curved 3440x1440 144Hz HDR400 FreeSync
CASE: anidees Ai Crystal AR3 Midtower
CPU COOLER: EK Nucleus AIO CR360 Dark w/ PTM7950
Full Rig Info

Owned

 Share

CPU: i5-7600 4.5GHz
MOTHERBOARD: ASUS ROG Strix Z270H Gaming
RAM: G.skill DDR4-3000 15-16-16
CASE: Silverstone Grandia series GD09
GPU: GT 710
SSD/NVME: Samsung 850 Evo
MONITOR: Asus V239H 1080p 60Hz IPS
CPU COOLER: Thermalright AXP-120-X67
Full Rig Info
Link to comment
Share on other sites

2 hours ago, neurotix said:



Alright thanks for your input, I might go with Gigabyte then ,(if these things are ever even available getting pissed off waiting for no stock,), 4 year warranty is pretty great too.



Still need Sir Beregond to straighten me out on exactly what the 12V8HWR1337 hemi connector actually is though 🤣



...I got mine locally at the equivalent of US$ 1,619, but since then they were sold out all over Canada at various online/ local outlet chains. In fact, there is some minor / scant evidence that at least the initial batch of Gigabyte Gaming OCs could have started life as Aorus Master (due to the old RTX3K inventory at that time). I don't know about the latest batch (supposedly, there's a drop of new shipments of various 4090s hitting the stores in the US at least).



...I would make a quick list with 'most desired' on top of the list and 'definitely avoid' at the bottom of the list. However, 4090s tend to be tightly grouped re. OC and even if you can oc to the ying-yang (my card does over 3210 MHz), the gain in fps is minor - the  4090 stock performance is that good. One thing to remember - especially if you don't go for AIO or custom water-blocks - is that these things are HUGE and don't easily fit into many cases, even bigger cases...just check the available space in your case versus the measurements of your desired cards (per list) online.



...the card will come with a 3x or 4x-into-1 PCIe 8 pin dongle that on the card side has the 12VHPR connector, on the other end the PCIe-s. I ended up using a custom 'single' cable from CableMod, but the dongle I initially used also worked fine, unsightly as it is. Just make sure that there are no horizontal bends and that the connector is pushed in all the way - no GAPs !





Edited by J7SC_Orion
  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

2 hours ago, neurotix said:

Is the "12VHPWR" actually 16 pin and I plug two 8 pin PCI-E into the adapter then in to the card? Good god I don't see the effing point of this new connector, I love my current PSU and don't want to have to put in a new one. This is the wiring on the backside of my rig and we'd have to rip it all apart:

Two? No you plug in three or four (depending on card model) 8-pin PCIe into the adapter which converts that to the single 16-pin 12VHPWR. Overclocking, you can literally push 600W+ with these things. If you don't have 4 dedicated 8-pin PCIe cables available from your PSU, may need to upgrade as I don't think running two daisy chained PCIe cables is a good idea (the ones that are two 8-pins on a single cable).



Definitely also make sure it is plugged in all the way and try to avoid hard bends if possible.

Edited by Sir Beregond
  • Thanks 2

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1 OLED
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

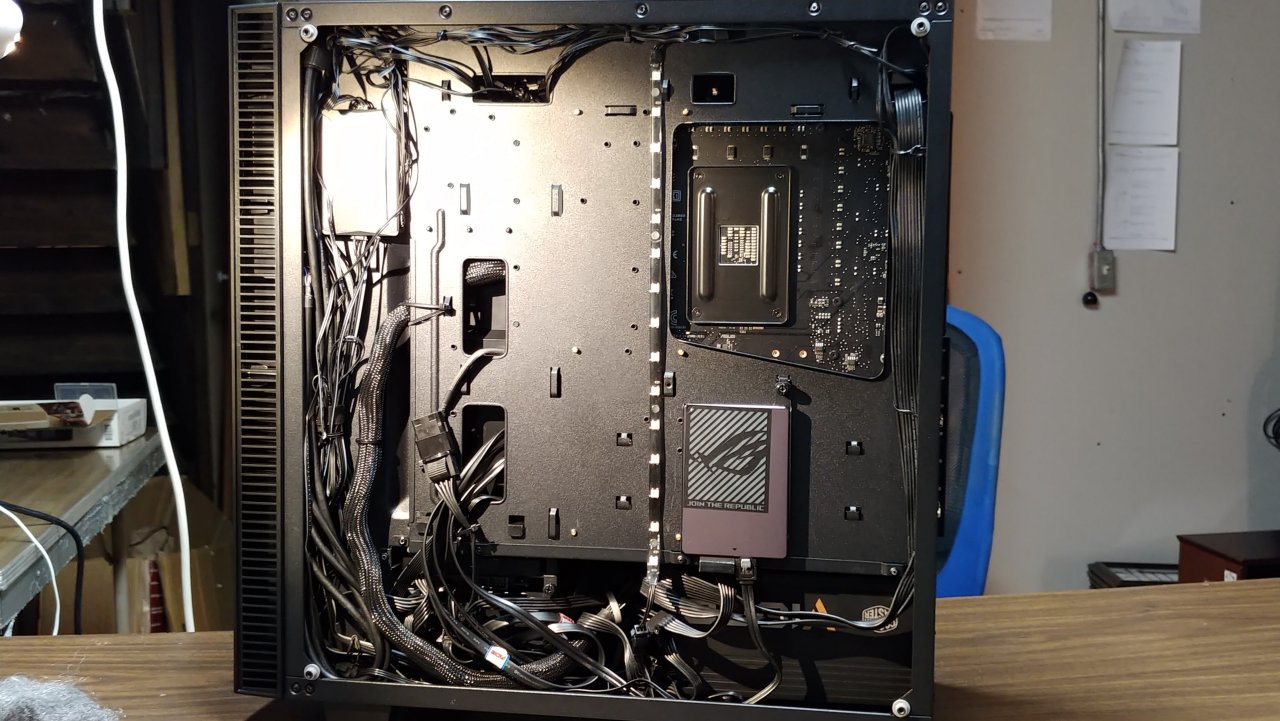

I've currently got four psu vga connectors plugged into my Strix 4090 on my bench, which is powered by an EVGA 1600 T2;



What was said about making sure the 12V8HWR1337 hemi connector is fully plugged in is critical if you'd like to avoid burning down the house;



Lastly, make sure your muffler bearings are fully lubricated before engaging the turbo encabulator;  it's way too easy to lose all the teeth on your primary drive sprocket.

Edited by iamjanco
  • Thanks 1
  • Respect 3
Link to comment
Share on other sites

Premium Platinum - Lifetime

Alright thanks everyone. Now I finally understand the dongle/adapter situation. I think length should be no problem, see pics of my rig.



What may be an issue is that my psu has the mentioned daisy chained 8-pin connectors; 2x 8 pin on one cable. However, its a Seasonic unit and run multiple GPU setups using those with no issues, even with 2x 290 and an FX-8350 pulling 950w+. So I'll chance it and I think both cables are on seperate rails as well.



Will be sure to plug stuff in all the way as well- no gaps.



That's assuming I can get my hands on one; Microcenter is close but like 1 1/2-2 hrs on the Chicago freeways. I don't know if I'll have to reserve one or be able to, or just drive there and hope they don't sell out by the time we arrive.

$5500

Owned

 Share

CPU: Ryzen 9 7900X3D 2100MHz fclk
RAM: G.skill TridentZ5 7600MHz 36-45-45-45 1.425v
GPU: MSI RTX 4090 Gaming X Trio 3.135GHz/12.152GHz
MOTHERBOARD: Asus ROG Strix X670E-E Gaming Wifi
SSD/NVME: Crucial T700 1TB Gen 5 M.2
MONITOR: Acer Ultrawide Curved 3440x1440 144Hz HDR400 FreeSync
CASE: anidees Ai Crystal AR3 Midtower
CPU COOLER: EK Nucleus AIO CR360 Dark w/ PTM7950
Full Rig Info

Owned

 Share

CPU: i5-7600 4.5GHz
MOTHERBOARD: ASUS ROG Strix Z270H Gaming
RAM: G.skill DDR4-3000 15-16-16
CASE: Silverstone Grandia series GD09
GPU: GT 710
SSD/NVME: Samsung 850 Evo
MONITOR: Asus V239H 1080p 60Hz IPS
CPU COOLER: Thermalright AXP-120-X67
Full Rig Info
Link to comment
Share on other sites

15 minutes ago, neurotix said:

Alright thanks everyone. Now I finally understand the dongle/adapter situation. I think length should be no problem, see pics of my rig.



What may be an issue is that my psu has the mentioned daisy chained 8-pin connectors; 2x 8 pin on one cable. However, its a Seasonic unit and run multiple GPU setups using those with no issues, even with 2x 290 and an FX-8350 pulling 950w+. So I'll chance it and I think both cables are on seperate rails as well.



Will be sure to plug stuff in all the way as well- no gaps.



That's assuming I can get my hands on one; Microcenter is close but like 1 1/2-2 hrs on the Chicago freeways. I don't know if I'll have to reserve one or be able to, or just drive there and hope they don't sell out by the time we arrive.

Multiple rails? What PSU are you using?

  • Thanks 1

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1 OLED
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

2 hours ago, neurotix said:

Alright thanks everyone. Now I finally understand the dongle/adapter situation. I think length should be no problem, see pics of my rig.



What may be an issue is that my psu has the mentioned daisy chained 8-pin connectors; 2x 8 pin on one cable. However, its a Seasonic unit and run multiple GPU setups using those with no issues, even with 2x 290 and an FX-8350 pulling 950w+. So I'll chance it and I think both cables are on seperate rails as well.



Will be sure to plug stuff in all the way as well- no gaps.



That's assuming I can get my hands on one; Microcenter is close but like 1 1/2-2 hrs on the Chicago freeways. I don't know if I'll have to reserve one or be able to, or just drive there and hope they don't sell out by the time we arrive.



As per above, there is supposed to be a restocking of 4090s going on, but the demand is strong, so I would reserve one you pre-selected by phone / credit card with a trusted retaiIer. As to 12VHPWR, the cables have sense pins and wires which determine whether the limit is 450W or 600W...there are 2x PCIe 8 pin to 12VHPWR cables available (including from Seasonic) which can hit 600W, but the PCIe plug right into the PSU...those cables will have '600W' stamped on them and use the beefy wire-gauge (!).



Using a custom vbios, I can get close to 700W but the heavy-gauge CableMod custom cable is made for the Seasonic Platinum PX1300W and plugs into 4x PCIe 8 pin at the PSU end. The CableMod is the one at the right in the pic below.










Edited by J7SC_Orion
  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

Gigabyte show 4 years warantly on their website for that gpu.  No idea about the Phase Setup.  Never really liked gigabyte but the one i had just ran without any issue 7950 windforce.



Msi well with my short experience with a z97 and my z690 motherboard and one rma i can says i always prefered them but this gpu seem to be just a normal one without any special feature.



The Zotac seem to be the better specced one. Website says that AIRO card got 24+4 Phase count









  • Thanks 1

Owned

 Share

MOTHERBOARD: MSI MPG Z790i EDGE
CPU: Intel 13900k + Top Mounted 280mm Aio
RAM: 2x24gb Gskill 6400 cl36-48-48 1.4v
PSU: Cooler Master V850 SFX Gold White Edition
GPU: UHD ULTRA EXTREME BANANA GRAPHIC
MONITOR: [Monitor] LG CX48 OLED [VR] Samsung HMD Odyssey Plus OLED + Meta Quest 2 120hz
CASE: CoolerMaster NR200P White Mini ITX
SSD/NVME: 2TB Intel 660p 1tb sn850 1tb sn770
Full Rig Info

Owned

 Share

CPU: Asus Strix G15 AE 6800m 5900hx 32gb ram 1440p
RAM: MSI GT60 Dominator 870m 4800MQ
GPU: Alienware M11x R2 i7 640um Nvidia 335m 8gb Ram
MONITOR: Lenovo X270 1080p i7 7600u 16gb ram
SSD/NVME: Acer Chromebook 11.6
Full Rig Info

Owned

 Share

CPU: Ryzen 5560u
MOTHERBOARD: Beelink SER5 Mini PC Box
RAM: 2x32gb Sodimm
CASE: Jonsbo N1 Mini ITX
HDD: 8TB + 4TB HDD + 2 x Intel DC S3500 800GB
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime

Thanks for the input guys.



Using a 2014 era Cooler Master V1000, @Sir Beregond

Edited by neurotix
  • Thanks 1

$5500

Owned

 Share

CPU: Ryzen 9 7900X3D 2100MHz fclk
RAM: G.skill TridentZ5 7600MHz 36-45-45-45 1.425v
GPU: MSI RTX 4090 Gaming X Trio 3.135GHz/12.152GHz
MOTHERBOARD: Asus ROG Strix X670E-E Gaming Wifi
SSD/NVME: Crucial T700 1TB Gen 5 M.2
MONITOR: Acer Ultrawide Curved 3440x1440 144Hz HDR400 FreeSync
CASE: anidees Ai Crystal AR3 Midtower
CPU COOLER: EK Nucleus AIO CR360 Dark w/ PTM7950
Full Rig Info

Owned

 Share

CPU: i5-7600 4.5GHz
MOTHERBOARD: ASUS ROG Strix Z270H Gaming
RAM: G.skill DDR4-3000 15-16-16
CASE: Silverstone Grandia series GD09
GPU: GT 710
SSD/NVME: Samsung 850 Evo
MONITOR: Asus V239H 1080p 60Hz IPS
CPU COOLER: Thermalright AXP-120-X67
Full Rig Info
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now


×
×
  • Create New...

Important Information

This Website may place and access certain Cookies on your computer. ExtremeHW uses Cookies to improve your experience of using the Website and to improve our range of products and services. ExtremeHW has carefully chosen these Cookies and has taken steps to ensure that your privacy is protected and respected at all times. All Cookies used by this Website are used in accordance with current UK and EU Cookie Law. For more information please see our Privacy Policy
