gtx 980 overheating


Cerberus
2 Attachments

Recommended Posts

I have a zotac gtx 980 that I've been trying to keep alive, temp limit in afterburner is hard set to 88c (any higher and I'll bsod) but it will do that temp for months straight (while folding).





now, i've re seated and re pasted this card at least 10 times, what gives? no overclock on card, fans at 100%



this card

https://www.zotac.com/us/product/graphics_card/gtx-980-amp

Edited by Cerberus

Owned

 Share

CPU: 10900k
MOTHERBOARD: EVGA z490 DARK
RAM: 32GB 3600mhz G.Skill
GPU: EVGA 2080 SUPER
SSD/NVME: 970 EVO plus 1TB
CASE: Thermaltake Core x71
Full Rig Info

Owned

 Share

CPU: Intel® Core™ i7-11700K
MOTHERBOARD: ASUS PRIME Z590-P WIFI
RAID CONTROLLER: Dell H200E
HDD: 15x4TB MD1000
SSD/NVME: 10x512GB Samsung SSD (Cache) MD1000
OPERATING SYSTEM: Unraid 6.11.5
Full Rig Info
Link to comment
Share on other sites

How is the cooler surface? Fairly flat?
How is your case airflow on the card?


Edited by Mistio

€ Press F

Owned

 Share

CPU: Rocket Lake 11900K
MOTHERBOARD: MAXIMUS XIII EXTREME GLACIAL
RAM: G-SKILL ROYAL
PSU: DARK POWER PRO 12 - 1200W
GPU: NVIDIA RTX 3080 TI Founder's Edition
SSD/NVME: Samsung 980 PRO (PCIE 4)
SSD/NVME 2: Samsung 980 PRO (PCIE 4)
SSD/NVME 3: WD Black (Courtesy of TicToc!)
Full Rig Info
Link to comment
Share on other sites

2 hours ago, Mistio said:

How is the cooler surface? Fairly flat?
How is your case airflow on the card?

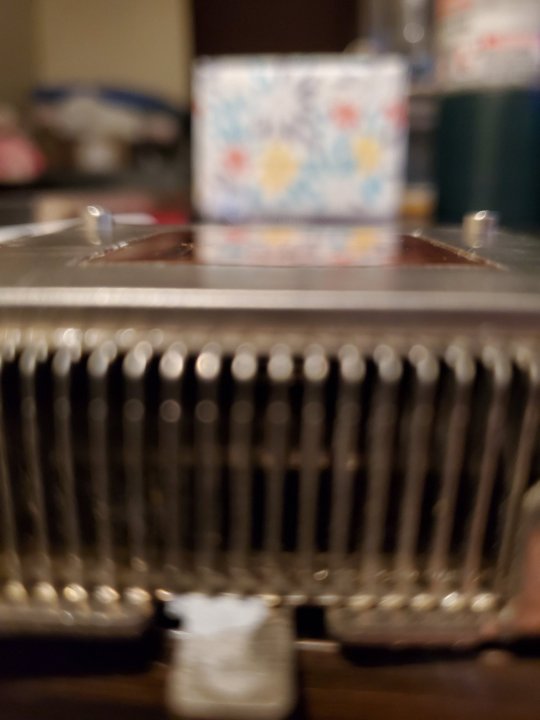

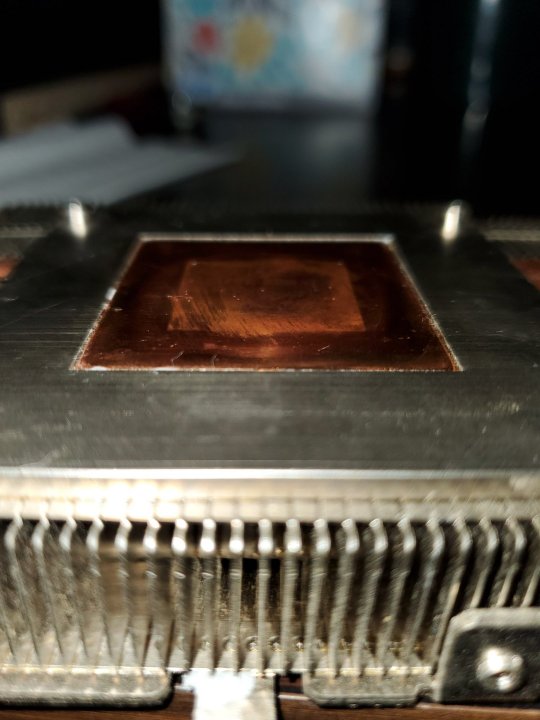

tbh, never really paid attention to the cooler surface, case has moderate airflow (360mm rad push only, 120mm exhaust) ill take some pics of the cooler later tonight



Owned

 Share

CPU: 10900k
MOTHERBOARD: EVGA z490 DARK
RAM: 32GB 3600mhz G.Skill
GPU: EVGA 2080 SUPER
SSD/NVME: 970 EVO plus 1TB
CASE: Thermaltake Core x71
Full Rig Info

Owned

 Share

CPU: Intel® Core™ i7-11700K
MOTHERBOARD: ASUS PRIME Z590-P WIFI
RAID CONTROLLER: Dell H200E
HDD: 15x4TB MD1000
SSD/NVME: 10x512GB Samsung SSD (Cache) MD1000
OPERATING SYSTEM: Unraid 6.11.5
Full Rig Info
Link to comment
Share on other sites

Do you remember what the temps were like when the card was new?
88C sounds really high, but there are many results if I google it (no personal experience with the 9xx cards).

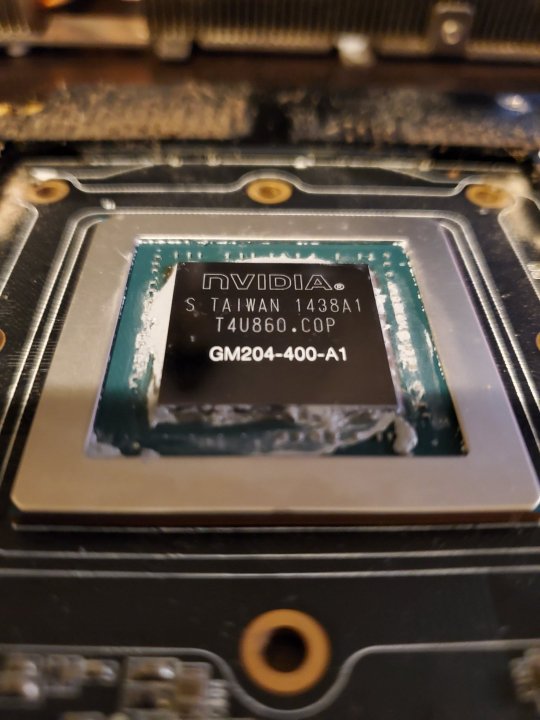

I would take a good look at the cooler surface and chip like @Mistio said, look at how the paste has been pressed out to the sides on the die(maybe not enough pressure), and confirm that all 3 of the fans work.
If all the above is looking like it should I would try to add fans to direct cool air to the gpu, and make sure the hot air can escape out of the case. Play around with the config and look for changes.

Edited by Bastiaan_NL
Link to comment
Share on other sites

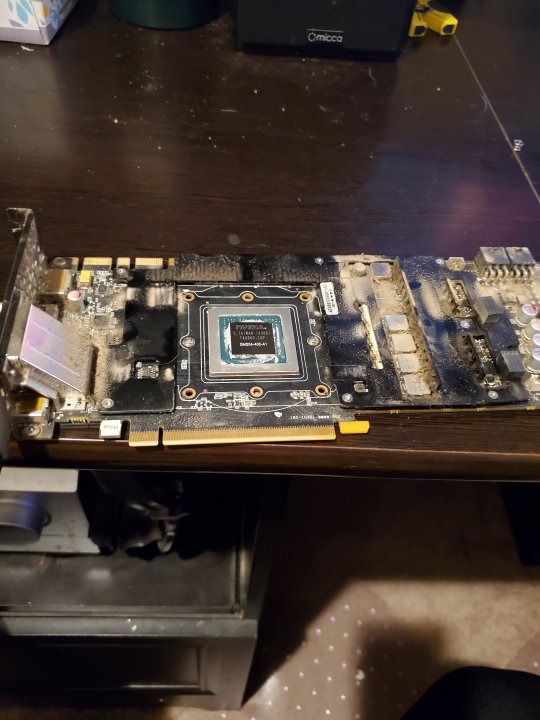

AFAIK everything seems fine, except for no memory cooling





Owned

 Share

CPU: 10900k
MOTHERBOARD: EVGA z490 DARK
RAM: 32GB 3600mhz G.Skill
GPU: EVGA 2080 SUPER
SSD/NVME: 970 EVO plus 1TB
CASE: Thermaltake Core x71
Full Rig Info

Owned

 Share

CPU: Intel® Core™ i7-11700K
MOTHERBOARD: ASUS PRIME Z590-P WIFI
RAID CONTROLLER: Dell H200E
HDD: 15x4TB MD1000
SSD/NVME: 10x512GB Samsung SSD (Cache) MD1000
OPERATING SYSTEM: Unraid 6.11.5
Full Rig Info
Link to comment
Share on other sites

...I happen to have 2x GTX 980 Classified running in one of my retro machines. Even with XOC bios and on stock air cooler, they are at about 57 C max (no oc) after 20 min at 100 % load / 1.212v per test just now. That, though, is with a well-ventilated case (mesh side panel).

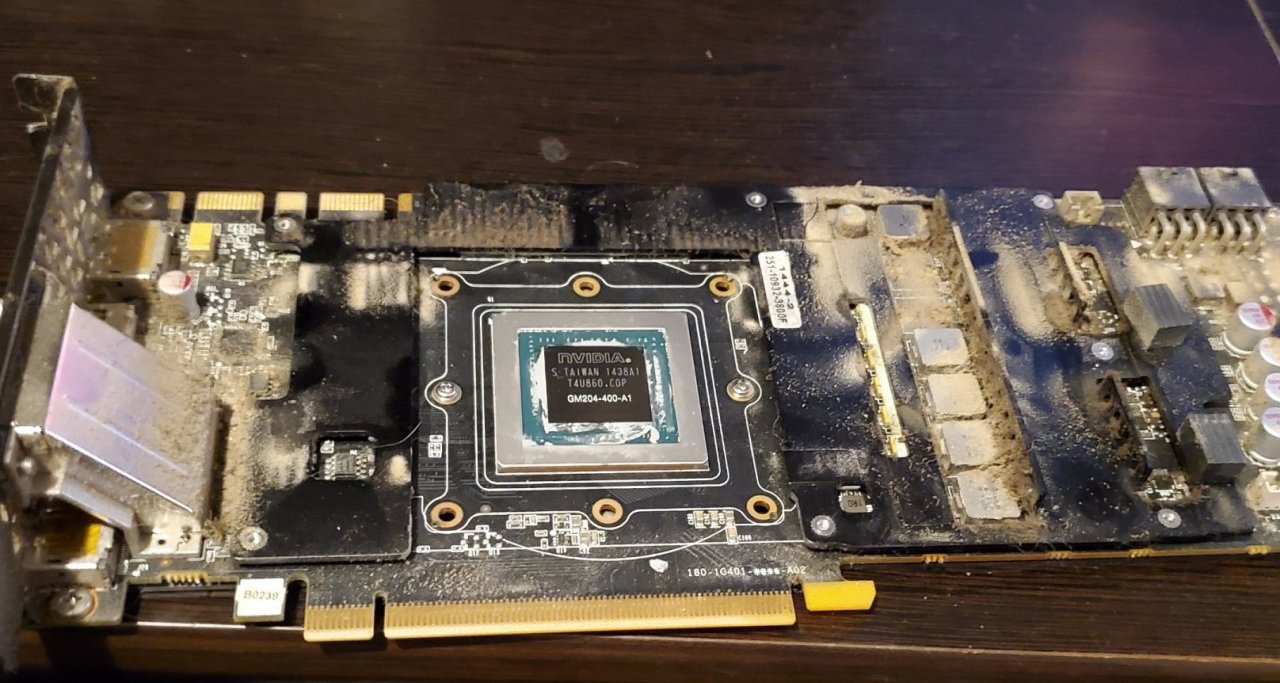

One thing that would definitely help is to clean that card...I did a double-take re. your top pic. The memory, power stages and all that contribute to heat, and their heat transfer is diminished per your pic. Also, if the fan shroud / fans have a similar build-up, their efficiency will be very much affected.



...an additional test you can try beyond the above and the GPU itself is case flow and cooling efficiency...try running your system with both the side-panel on and off and compare the GPU stress test temp results.




Edited by J7SC_Orion

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

on a desk, with filters, I promise this isnt a airflow issue, and the heatsink is super clean. possible the hatpipes i nthe heatsink have failed? i might just pick up a cheap waterblock for it

Owned

 Share

CPU: 10900k
MOTHERBOARD: EVGA z490 DARK
RAM: 32GB 3600mhz G.Skill
GPU: EVGA 2080 SUPER
SSD/NVME: 970 EVO plus 1TB
CASE: Thermaltake Core x71
Full Rig Info

Owned

 Share

CPU: Intel® Core™ i7-11700K
MOTHERBOARD: ASUS PRIME Z590-P WIFI
RAID CONTROLLER: Dell H200E
HDD: 15x4TB MD1000
SSD/NVME: 10x512GB Samsung SSD (Cache) MD1000
OPERATING SYSTEM: Unraid 6.11.5
Full Rig Info
Link to comment
Share on other sites

7 hours ago, Cerberus said:

on a desk, with filters, I promise this isn't a airflow issue, and the heatsink is super clean. possible the heatpipes i nthe heatsink have failed? i might just pick up a cheap waterblock for it

Def possible. I once did a repair on an imac where the heatsink had failed and the gas inside it had leaked out through a tiny hole. Replacing the heatsink fixed it.

Edited by UltraMega

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

2 hours ago, Cerberus said:

on a desk, with filters, I promise this isnt a airflow issue, and the heatsink is super clean. possible the hatpipes i nthe heatsink have failed? i might just pick up a cheap waterblock for it



I would still clean the PCB but in any case, I have used these universal-GPU w-coolers on various (by now older) GPUs, including the 980 Cls. They work great. Just add 120 mm fan for the VRM and VRAM, and you're done.




  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

Did you buy the card refurb? Zotac regularly sells cheap refurb 1080/1080 Tis, maybe it was a return but made it through QC since they (probably) just test for function.



If you don't want to go the WC route then you can get an Arctic Accelero or a slightly more expensive Morpheus II. the Morpheus is marginally better but doesn't come with fans.

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
OPERATING SYSTEM 2: Debian 12.5 KDE
Full Rig Info
Link to comment
Share on other sites

Did you notice it steadily getting worse over time, or did it just one day crap out on temps?



Immediate thoughts are that either the gas in the heat pipes leaked out as mentioned before and thus they aren't working to carry away the heat, or maybe fans are broken even if reading at "100%", but that seems unlikely.



I'd see if you can source another heatsink, or else look at a universal water block or aftermarket heatsink. Considering you've re-pasted and reseated several times, I'm inclined to agree that the heatsink is probably toast if everything else is clean and airflow is good.

Edited by Sir Beregond
  • Thanks 1

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 CL14)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 42" C4 OLED
Full Rig Info

Owned

 Share

CPU: E8400, i5-650, i7-870, i7-960, i5-2400, i7-4790k, i9-10900k, i3-13100, i9-13900ks
GPU: many
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS P7P55 WS SC | ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites
