Obsidian 1000D 'buildlog'


Bastiaan_NL
18 Attachments

Recommended Posts

Premium Platinum - Lifetime


Picture borrowed from google, will be replaced asap





For a while I've been the owner of a Corsair Obsidian 1000D case.
It was the idea that this monster was going to house my main system, an AMD 3950x paired with 2 3090's in NVLink with water cooling. Finding a board with the proper spacing for an EVGA NVLink bridge is fun or very expensive, so I ditched that plan a while back. I could have used a Quadro NVLink bridge, but that was a big step as an EVGA fanboy. The case moved to the side and disappeared under a pile of boxes from other projects and the mess my regained interest in benchmarking (HWBOT) creates. After some applied pressure by @Avacado and @J7SC_Orion I decided it was time to dig up this case from under the mess and start working on it.



Plans for this system:
This is going to be a dual loop water cooled benchmark and fun system.



Hardware (subject to change):

CPU: Intel i9 12900KF

Mainboard: ASUS ROG Maximus Z690 Hero

Memory: 32GB G.Skill DDR5 Trident Z5 6400Mhz CL32

PSU: Corsair AX1600i
Storage: Samsung 980Pro 1TB
GPU: somewhere between a GTX580 and a 3090 (pair?)



CPU loop (don't mention overkill on EHW!):

2x Alphacool 480/45 xflow rad

1x Alphacool 420/45 rad

BP fittings

PrimoChill PrimoFlex Advanced LRT 19/13mm black tubing

AquaComputer Ultitube D5 150

16x Corsair ML120 RGB

6x Corsair ML140 RGB

Watercool Heatkiller IV w/ Socket 1700 Backplate and conversion kit



GPU loop (TBD):

External radiator on a stand

AquaComputer D5

Reservoir

BP fittings

Mayhems Ultra Clear 19/13mm tubing

Koolance QD4's



Update 1: Water cooling gear.
Update 2: Installing some of the hardware.

Edited by Bastiaan_NL
  • Thanks 1
  • Respect 1
Link to comment
Share on other sites

Premium Platinum - Lifetime

Most of the parts are already here.

Only the external GPU radiator is something I need to figure out, but I'm not in a hurry.

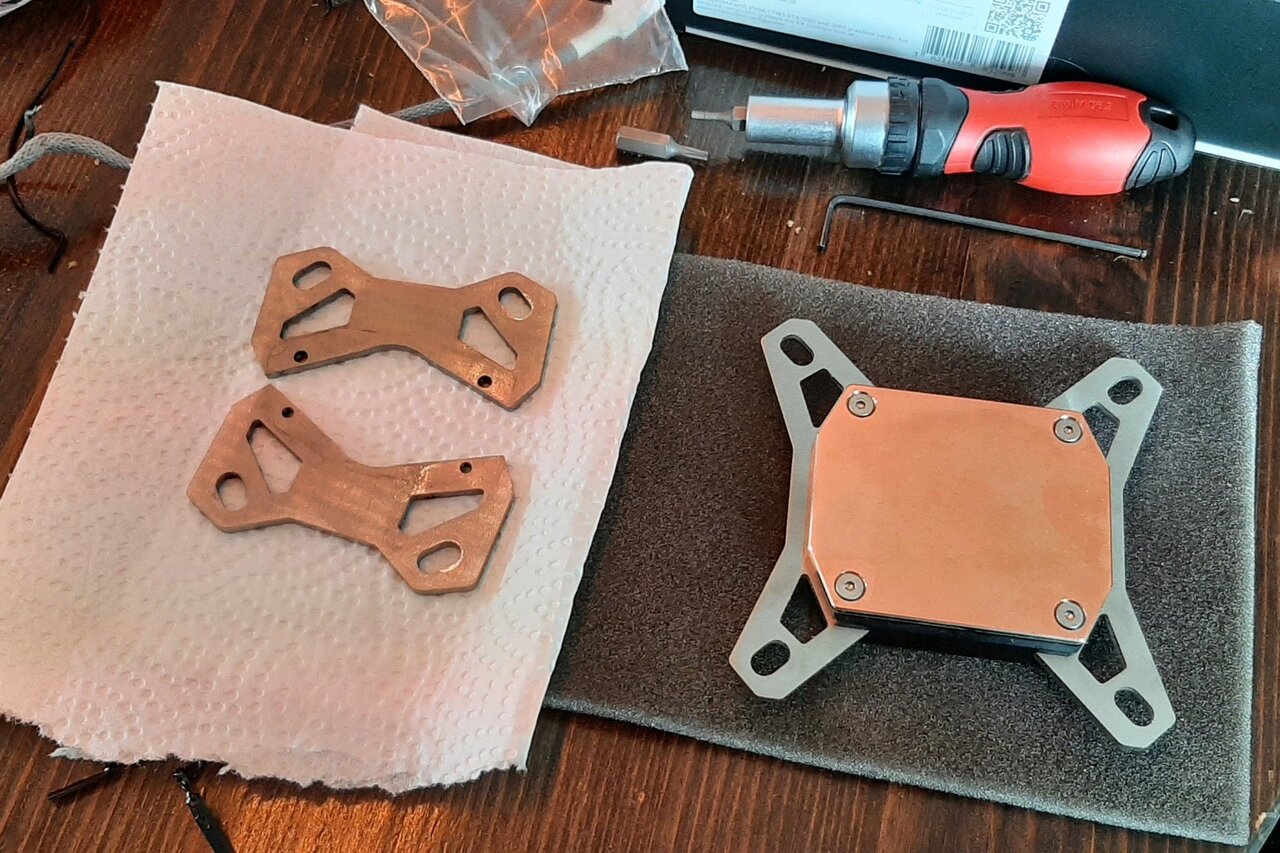

I started with the conversion from AM4 to Socket 1700:

20220221_135209_resized.thumb.jpg.09ecc86285f1c37f715f9fd2374f313b.jpg20220221_135442_resized.thumb.jpg.7047b1a365371a7c352979c5069dcd55.jpg20220221_140109_resized.thumb.jpg.9add7193c3bffdf718753d3f0741d5fa.jpg



The most time consuming thing all day, this little fella.

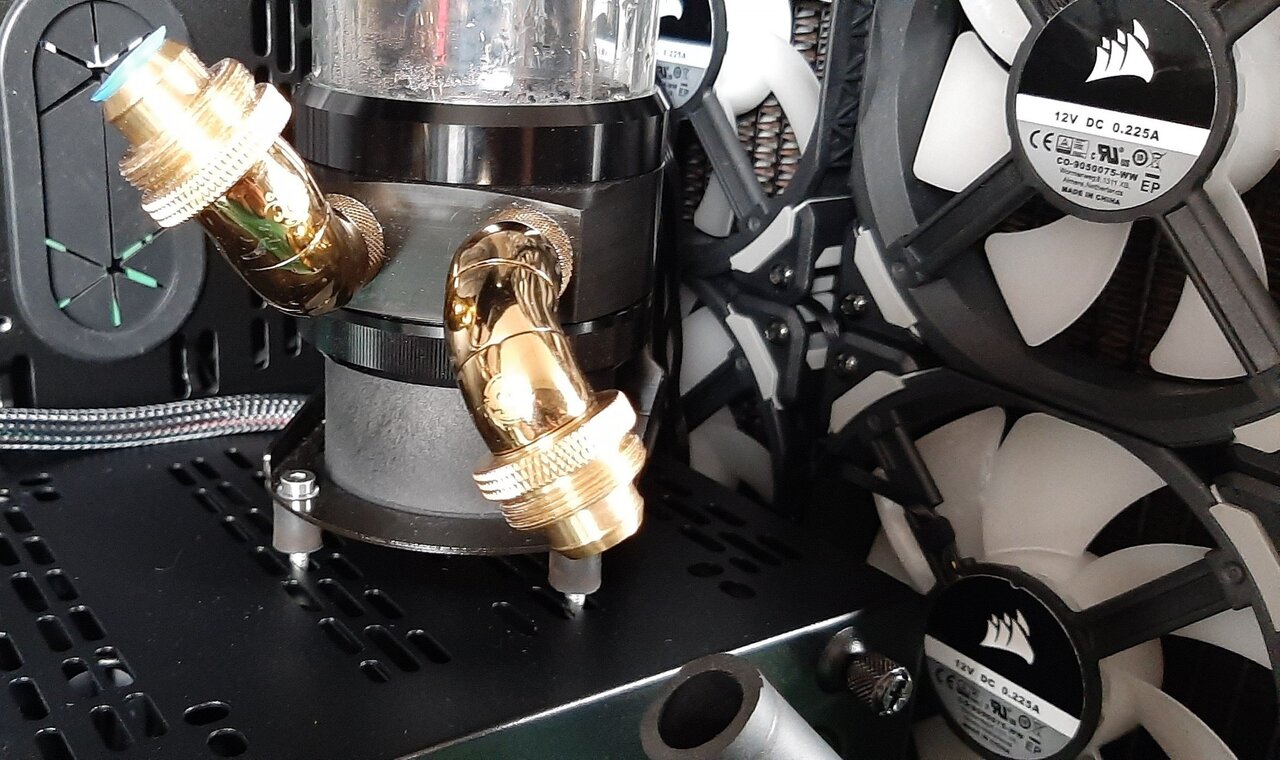

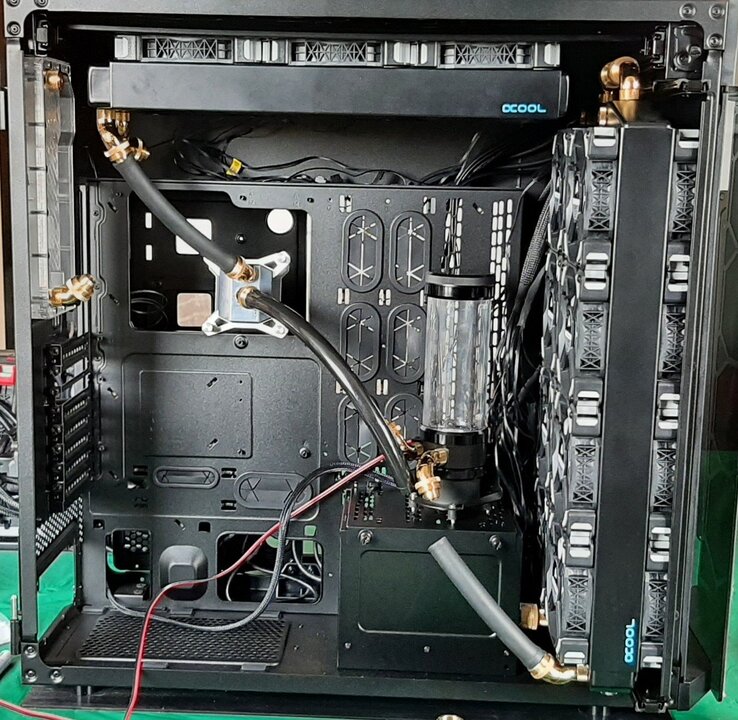

Temporary mockup, figuring out where everything goes.
Sadly I wont be using the EKWB 240 reservoir, that would have worked great with the GPU's included in the loop but now it just messes with the loop order and tubing.




A tube will connect the rear fitting on the top 420 rad to the front radiator shown here:

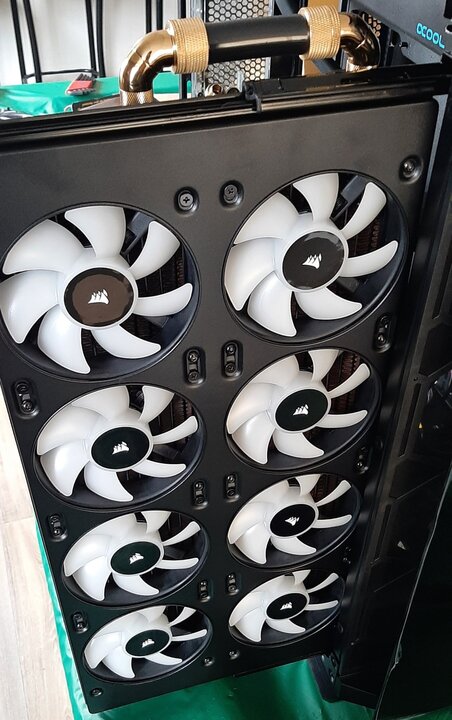

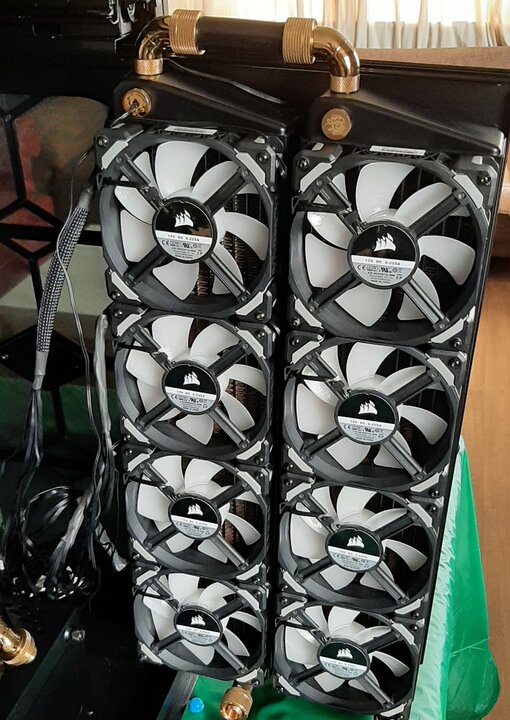

16 ML120 fans, RGB cable nightmare 😂

20220221_151336_resized.thumb.jpg.e526adc8dc3d5802d5f4e9c9b4ad704a.jpg20220221_151421_resized.thumb.jpg.00f4b88745c3aa2395ca807e1e10d438.jpg



The hole spacing on the bracket below the pump works pretty good, just enough room to fit a nut on the threads so I need some black plastic washers to fill the gap.




That's it for now 🙂

Edited by Bastiaan_NL
  • Respect 2
Link to comment
Share on other sites

Dude that is a sweet case, that and the upcoming HAF 700 EVO.



Looking forward to seeing this build.

  • Respect 1

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro SE Gen 5 4TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: 2x WD RED 1TB NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime

@Bastiaan_NL So, 7,830,000mm³ of radiator for just the CPU, "Big Boy" tubing, and a power supply that will trip a 15-amp circuit breaker if your electrician cut any corners.  Fun times! 🤩



BTW, that is some of the fastest rated DDR5 I have seen out in the wild, but I have not been following that market closely.

  • Thanks 1
  • Respect 1

TDM

Owned

 Share

CPU: 5950x
MOTHERBOARD: Dark Hero
GPU: Aorus 6900XT Extreme WF
RAM: G. Skill Ripjaws V 64GB 3600 14-14-14-34
WC CPU BLOCK: Watercool Heatkiller IV
WC PUMP: XTOP Revo / FLT 120 + 3 D5's
SSD/NVME: Samsung 980 Pro
CASE: Gutted Enthoo Pro 2
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime

Second post updated with the first few build pictures.



1 hour ago, ENTERPRISE said:

Dude that is a sweet case, that and the upcoming HAF 700 EVO.



Looking forward to seeing this build.

Thanks E!
It's a sweet case for sure, just a bit heavy. I checked out the HAF 700 EVO, that's an awesome case too!



1 hour ago, ArchStanton said:

@Bastiaan_NL So, 7,830,000mm³ of radiator for just the CPU, "Big Boy" tubing, and a power supply that will trip a 15-amp circuit breaker if your electrician cut any corners.  Fun times! 🤩



BTW, that is some of the fastest rated DDR5 I have seen out in the wild, but I have not been following that market closely.

Like I said, we don't use the expression 'overkill' here but it kinda is..

The radiators were already in the case as I was planning to go dual GPU and a CPU in one loop. If I remove the 420 rad it'll look empty 😂

As for the breaker situation, we use 16 amp 240V here so I'm pretty safe!

The memory is crazy, just being able to buy something this fast and without even touching it... At some point I'll see where I(we) can take it, I bet it could go higher.

Link to comment
Share on other sites

Premium Platinum - Lifetime
2 minutes ago, Bastiaan_NL said:

As for the breaker situation, we use 16 amp 240V here so I'm pretty safe!

Yes, I realized after submitting my original reply that you would likely be on European rather than USA electrical standards.  That power supply is right on the limit of what 99% of US residential wiring is configured to handle.  Glad to hear you will have no such difficulties 😎.

  • Respect 1

TDM

Owned

 Share

CPU: 5950x
MOTHERBOARD: Dark Hero
GPU: Aorus 6900XT Extreme WF
RAM: G. Skill Ripjaws V 64GB 3600 14-14-14-34
WC CPU BLOCK: Watercool Heatkiller IV
WC PUMP: XTOP Revo / FLT 120 + 3 D5's
SSD/NVME: Samsung 980 Pro
CASE: Gutted Enthoo Pro 2
Full Rig Info
Link to comment
Share on other sites

👏 @Bastiaan_NL - absolutely love it 😍 and hoping it ends up with the 2x 3090s !



As you know, I prefer big cases... I once stuffed 4x air-cooled NVidia 600 series and an eATX mobo into a regular Antec A300 case...shall we say it had 'slight air-flow and cooling problems'...ever since then, I see the wisdom of going big or going home, ie. TT Core P series, Corsair Obsidian 1000D, HAF 700 EVO & Co. You might want to set a whole afternoon aside though for all the fan and RGB wiring 😁



I'm really looking forward to good pictorials on this build !























Edited by J7SC_Orion
  • Respect 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime
3 hours ago, ArchStanton said:

Yes, I realized after submitting my original reply that you would likely be on European rather than USA electrical standards.  That power supply is right on the limit of what 99% of US residential wiring is configured to handle.  Glad to hear you will have no such difficulties 😎.

It's one of the things I love about being here. But then there are a lot of things over there I wish I had, like cheap electricity instead of the €0.275 I pay per kWh 😞



3 hours ago, J7SC_Orion said:

👏 @Bastiaan_NL - absolutely love it 😍 and hoping it ends up with the 2x 3090s !



As you know, I prefer big cases... I once stuffed 4x air-cooled NVidia 600 series and an eATX mobo into a regular Antec A300 case...shall we say it had 'slight air-flow and cooling problems'...ever since then, I see the wisdom of going big or going home, ie. TT Core P series, Corsair Obsidian 1000D, HAF 700 EVO & Co. You might want to set a whole afternoon aside though for all the fan and RGB wiring 😁



I'm really looking forward to good pictorials on this build !

Thanks J!
I hope I can get the 3090's running. I gave it a try a few days ago but I couldn't get it working for some reason. Now there are always some issues if you try something that's a bit unusual, so we'll see what's wrong soon.
The biggest issue is slot spacing, with a Quadro NVLink bridge I could get it working though.



I like big cases too, both for cooling reasons and just easy access.
As for the RGB stuff, I think I'll need to spread it out over a few days to stay sane 😂

Link to comment
Share on other sites

  • Bastiaan_NL changed the title to Obsidian 1000D 'buildlog'
14 minutes ago, Bastiaan_NL said:

It's one of the things I love about being here. But then there are a lot of things over there I wish I had, like cheap electricity instead of the €0.275 I pay per kWh 😞



Thanks J!
I hope I can get the 3090's running. I gave it a try a few days ago but I couldn't get it working for some reason. Now there are always some issues if you try something that's a bit unusual, so we'll see what's wrong soon.
The biggest issue is slot spacing, with a Quadro NVLink bridge I could get it working though.



I like big cases too, both for cooling reasons and just easy access.
As for the RGB stuff, I think I'll need to spread it out over a few days to stay sane 😂



...what do you mean with stay sane 😂 ? That horse left the barn a while back - I know because it is friends with my horses



Re. NVLink, check > this out at Elmor Labs




  • Respect 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime

Little update, installing some of the hardware.

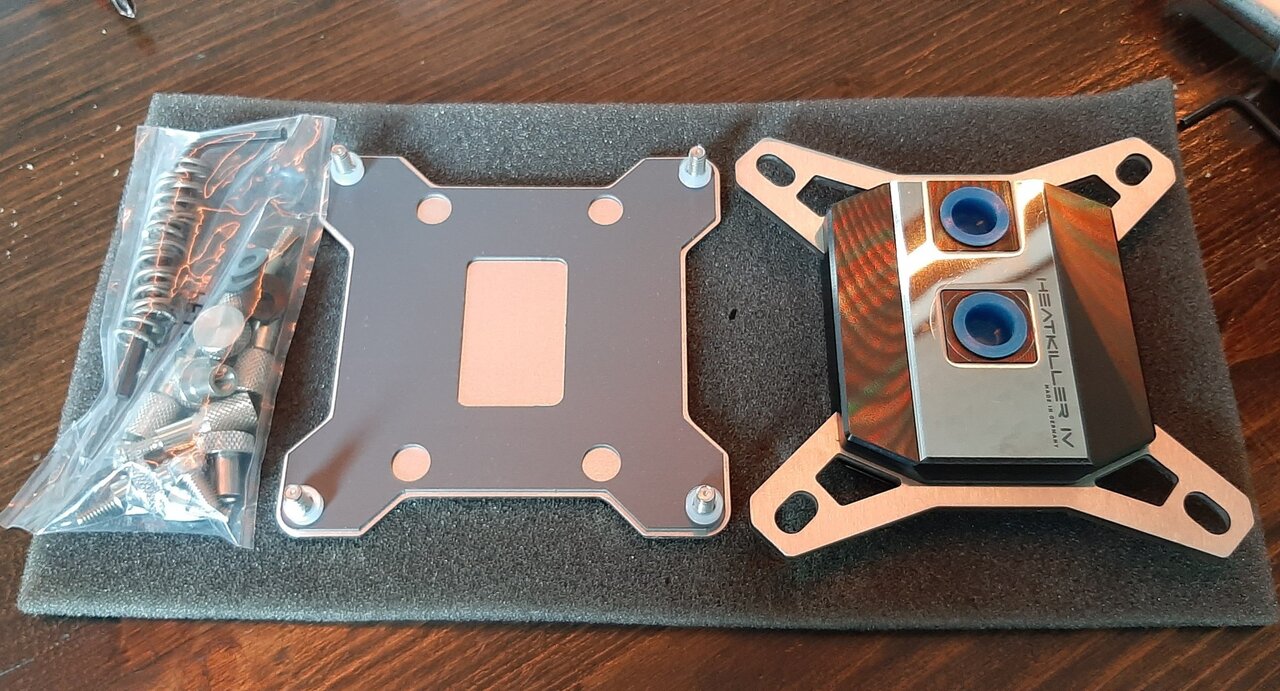

Watercool.de Heatkiller LGA1700 backplate:

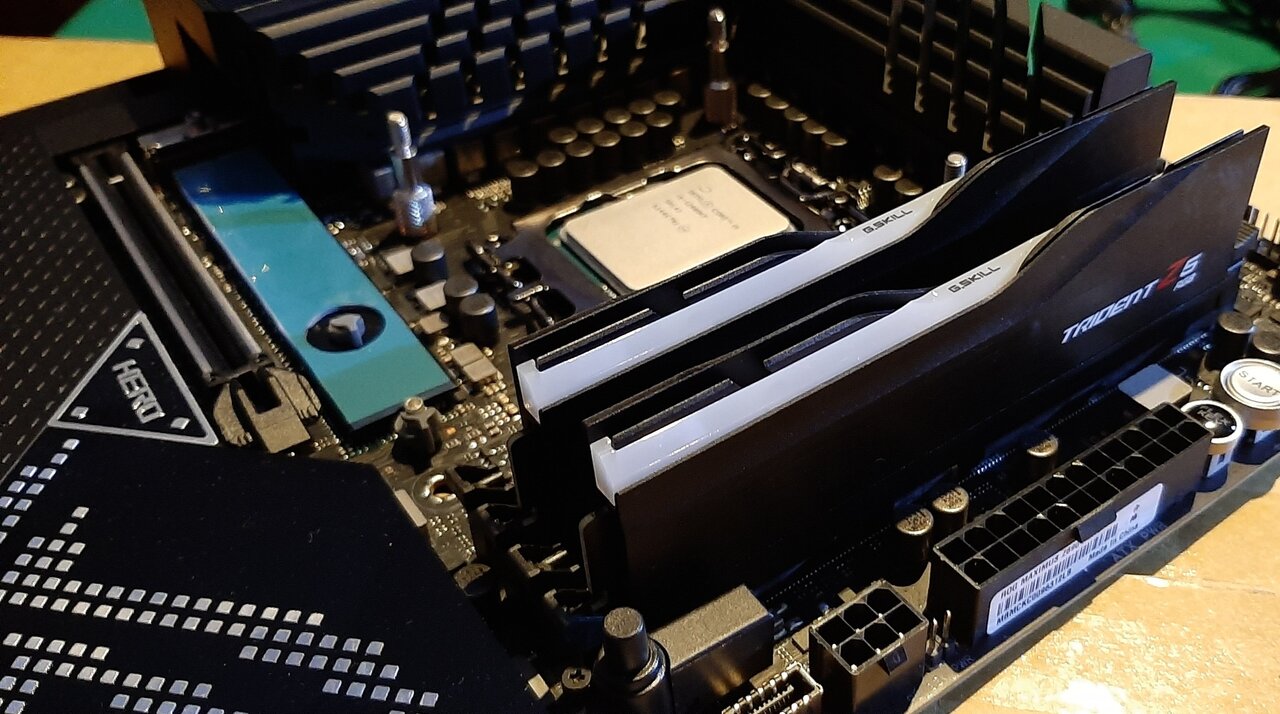

The mainboard with the CPU and memory installed:




I love the looks of the memory, just be careful because it's sharp (@Avacado)

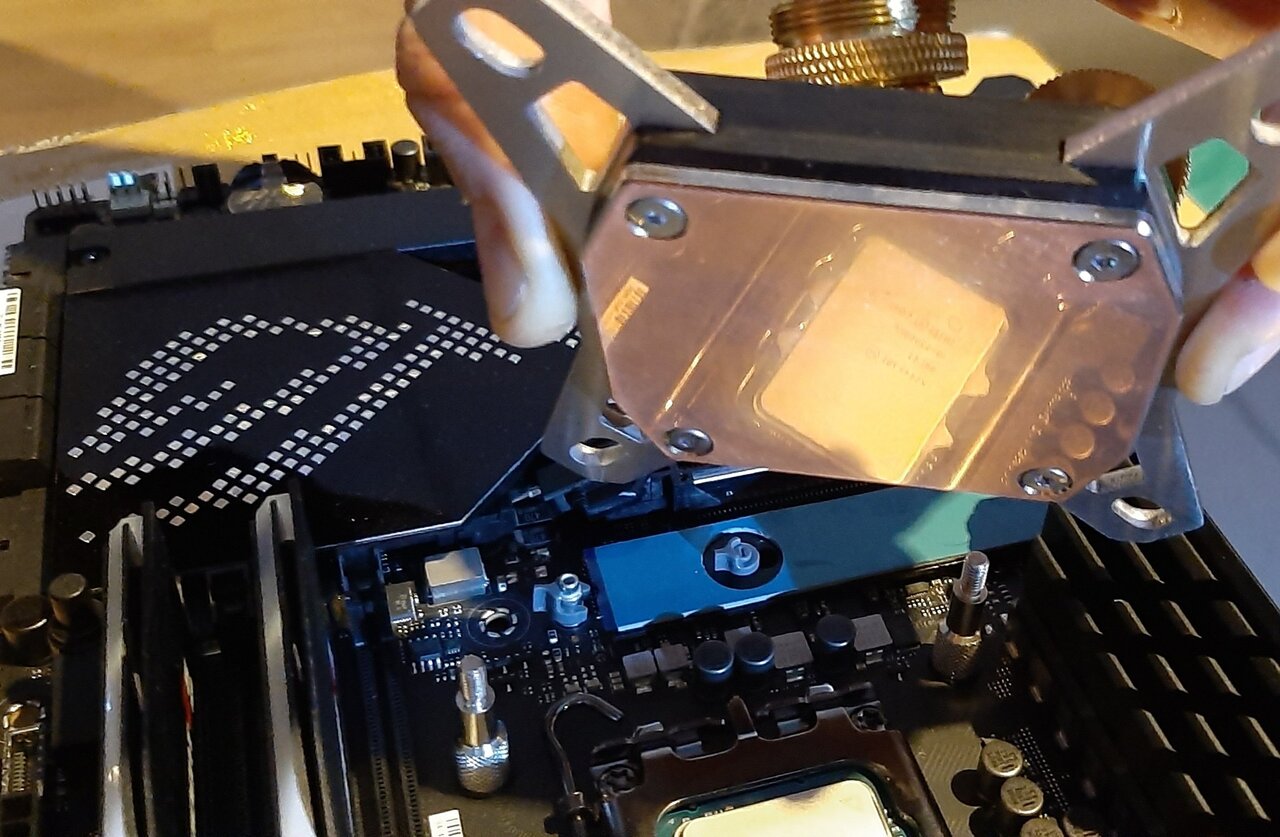

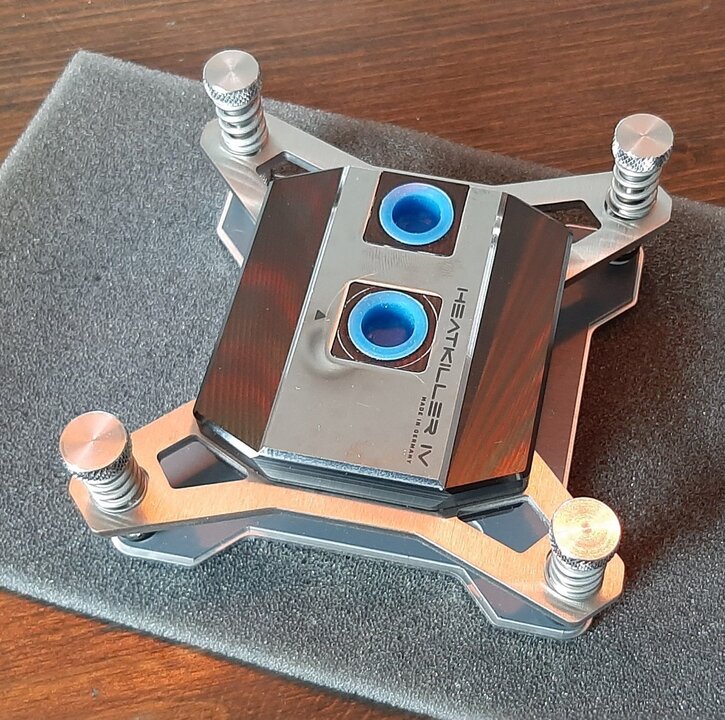

Shiny Heatkiller IV, I polished/lapped this one for the 3950x a while back:

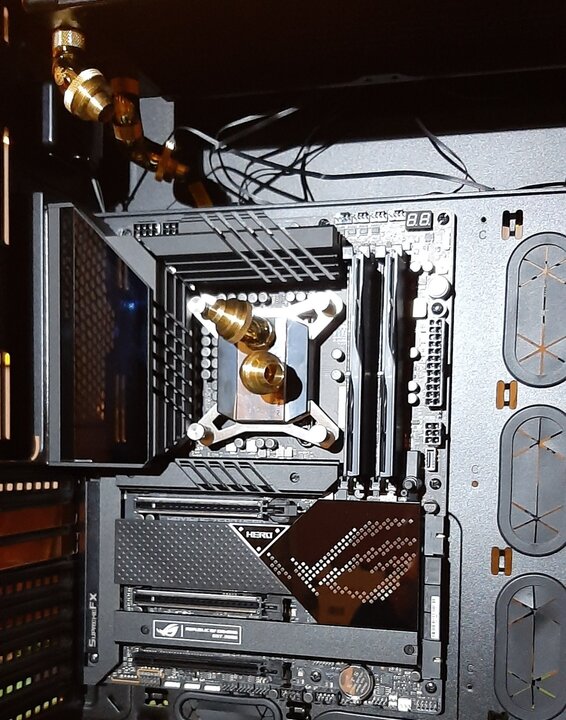

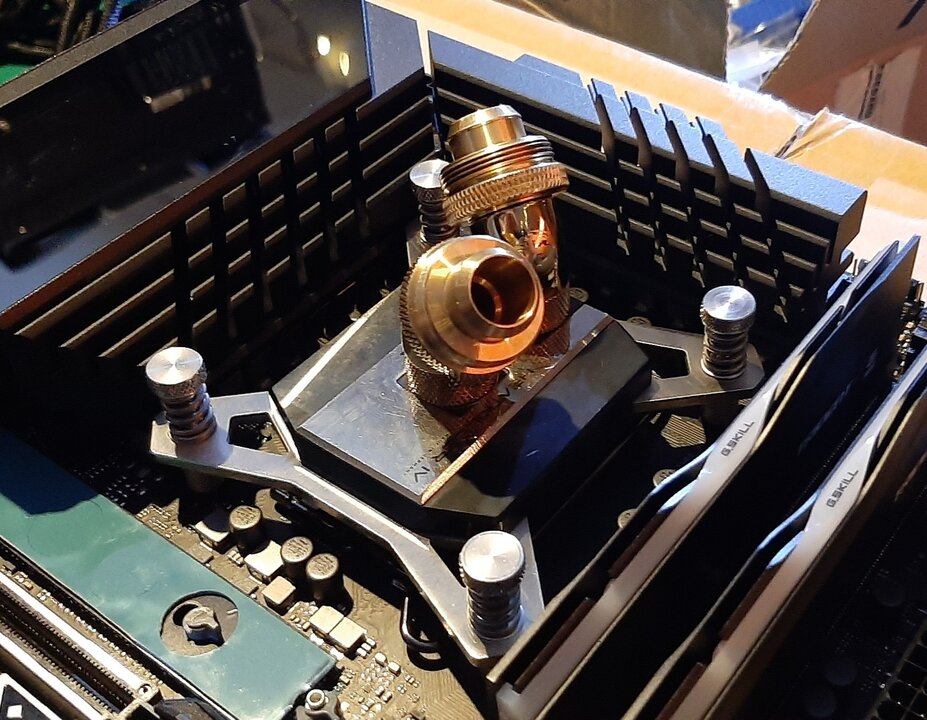

And installed on the board with the true brass fittings 😍




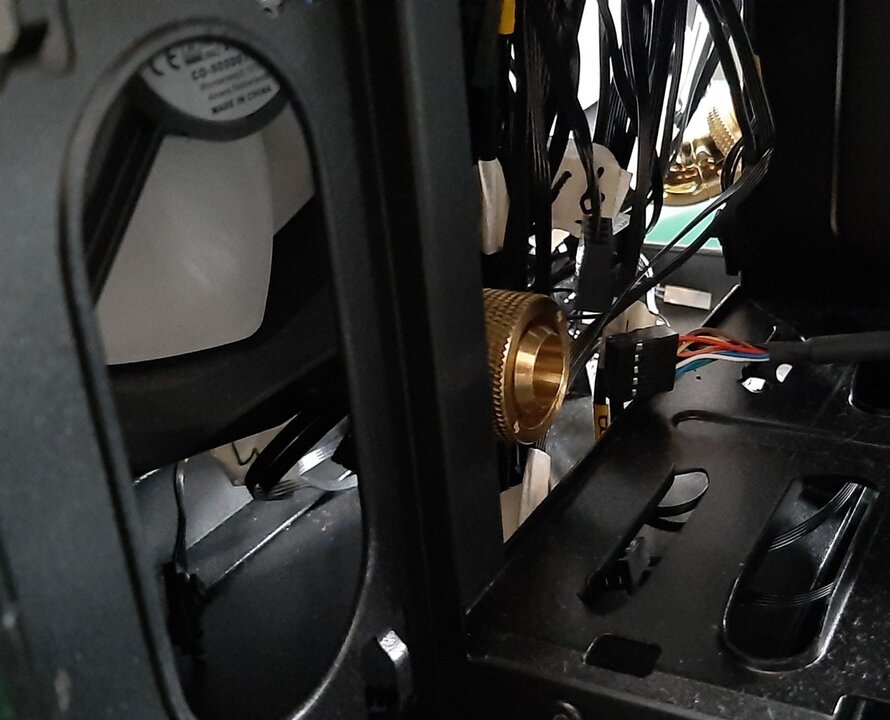

The board installed in the case, bit of a wire mess (wait until you see the back 😂)

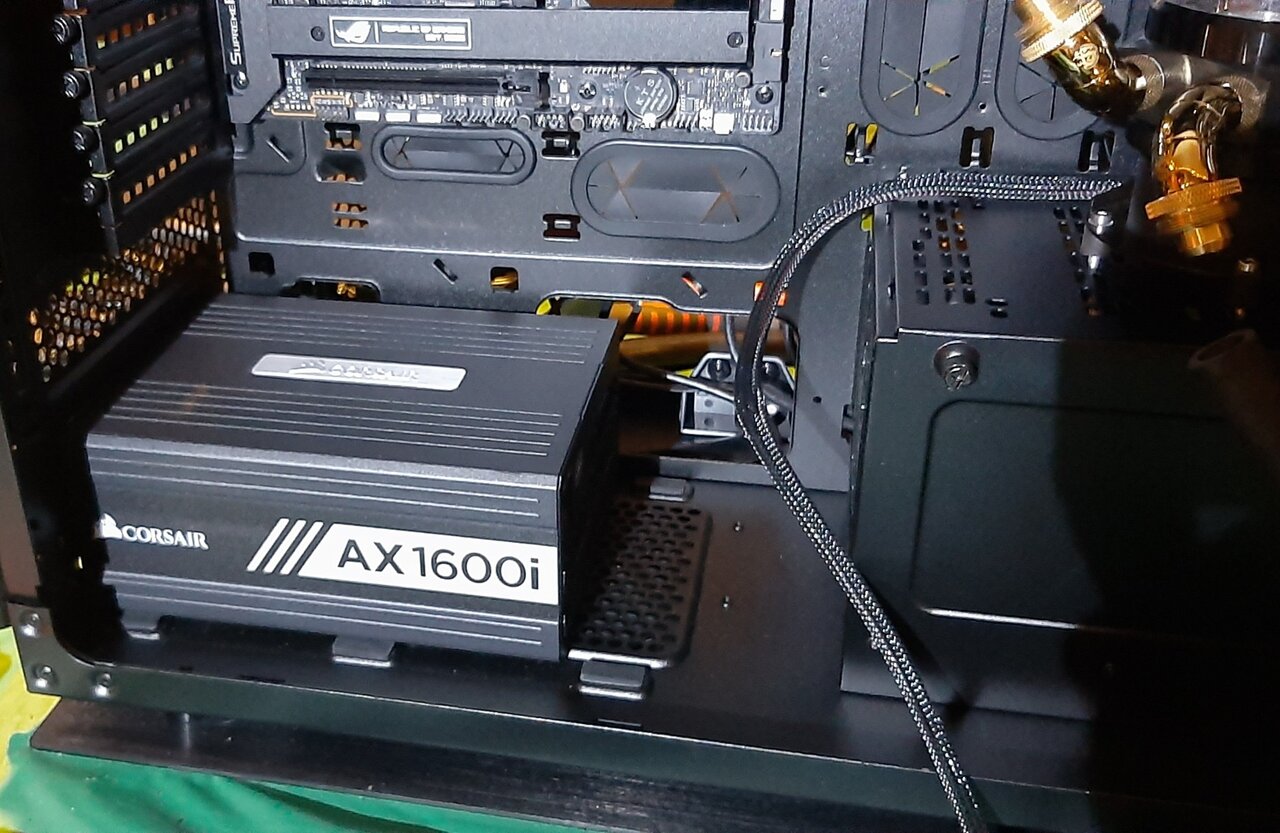

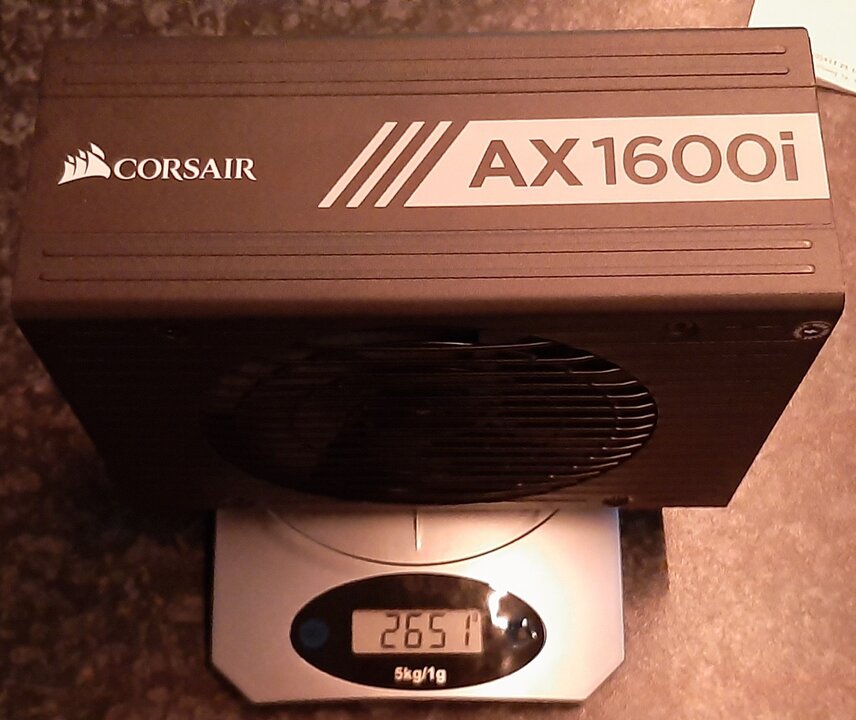

The PSU installed, it's a big boy...
