[Official] AMD Radeon RX™ 7900 XTX / 7900 XT Owner's Club


Slaughtahouse

Recommended Posts

AMD Radeon RX™ 7900 XTX / 7900 XT Owner's Club

RDNA GPU Table

Spoiler
RX 7900 XTX | Navi 31 XTX  | 5nm | 520mm² | 57.7 BT | 6144 SPs | 384 TMUs | 192 ROPs | 96 CUs | 2500 MHz | 24GB | 2048MB x 12 | GDDR6 | 384-bit | 960 GB/s | 355W
RX 7900 XT  | Navi 31 XT   | 5nm | 520mm² | 57.7 BT | 5376 SPs | 336 TMUs | 192 ROPs | 84 CUs | 2400 MHz | 20GB | 2048MB x 10 | GDDR6 | 320-bit | 800 GB/s | 300W
RX 6950 XT  | Navi 21 KXTX | 7nm | 536mm² | 26.8 BT | 5120 SPs | 320 TMUs | 128 ROPs | 80 CUs | 2310 MHz | 16GB | 2048MB x 8  | GDDR6 | 256-bit | 576 GB/s | 335W
RX 6900 XT  | Navi 21 XTX  | 7nm | 536mm² | 26.8 BT | 5120 SPs | 320 TMUs | 128 ROPs | 80 CUs | 2250 MHz | 16GB | 2048MB x 8  | GDDR6 | 256-bit | 512 GB/s | 300W
RX 6800 XT  | Navi 21 XT   | 7nm | 536mm² | 26.8 BT | 4608 SPs | 288 TMUs | 128 ROPs | 72 CUs | 2250 MHz | 16GB | 2048MB x 8  | GDDR6 | 256-bit | 512 GB/s | 300W
RX 6800     | Navi 21 XL   | 7nm | 536mm² | 26.8 BT | 3840 SPs | 240 TMUs |  96 ROPs | 60 CUs | 2105 MHz | 16GB | 2048MB x 8  | GDDR6 | 256-bit | 512 GB/s | 250W
RX 6750 XT  | Navi 22 KXT  | 7nm | 335mm² | 17.2 BT | 2560 SPs | 160 TMUs |  64 ROPs | 40 CUs | 2600 MHz | 12GB | 2048MB x 6  | GDDR6 | 192-bit | 432 GB/s | 250W
RX 6700 XT  | Navi 22 XT   | 7nm | 335mm² | 17.2 BT | 2560 SPs | 160 TMUs |  64 ROPs | 40 CUs | 2581 MHz | 12GB | 2048MB x 6  | GDDR6 | 192-bit | 432 GB/s | 230W
RX 6650 XT  | Navi 23 KXT  | 7nm | 237mm² | 11.1 BT | 2048 SPs | 128 TMUs |  64 ROPs | 32 CUs | 2635 MHz |  8GB | 2048MB x 4  | GDDR6 | 128-bit | 280 GB/s | 176W
RX 6600 XT  | Navi 23 XT   | 7nm | 237mm² | 11.1 BT | 2048 SPs | 128 TMUs |  64 ROPs | 32 CUs | 2589 MHz |  8GB | 2048MB x 4  | GDDR6 | 128-bit | 256 GB/s | 160W
RX 5700 XT  | Navi 10 XTX  | 7nm | 251mm² | 10.3 BT | 2560 SPs | 160 TMUs |  64 ROPs | 40 CUs | 1980 MHz |  8GB | 1024MB x 8  | GDDR6 | 256-bit | 448 GB/s | 235W
RX 5700 XT  | Navi 10 XT   | 7nm | 251mm² | 10.3 BT | 2560 SPs | 160 TMUs |  64 ROPs | 40 CUs | 1905 MHz |  8GB | 1024MB x 8  | GDDR6 | 256-bit | 448 GB/s | 225W
RX 5700     | Navi 10 XL   | 7nm | 251mm² | 10.3 BT | 2304 SPs | 144 TMUs |  64 ROPs | 36 CUs | 1725 MHz |  8GB | 1024MB x 8  | GDDR6 | 256-bit | 448 GB/s | 180W
RX 5600 XT  | Navi 10 XLE  | 7nm | 251mm² | 10.3 BT | 2304 SPs | 144 TMUs |  64 ROPs | 36 CUs | 1560 MHz |  6GB | 1024MB x 6  | GDDR6 | 192-bit | 288 GB/s | 150W
RX 5600     | Navi 10 XE   | 7nm | 251mm² | 10.3 BT | 2048 SPs | 128 TMUs |  64 ROPs | 32 CUs | 1560 MHz |  6GB | 1024MB x 6  | GDDR6 | 192-bit | 288 GB/s | 150W

RDNA 3 Architecture: Overview


More details on RDNA 3 architecture can be found here -> https://www.techpowerup.com/review/amd-radeon-rx-7900-xtx/2.html

Overview of RDNA from AMD can be found here -> https://www.amd.com/en/newsroom/press-releases/2022-11-3-amd-unveils-world-s-most-advanced-gaming-graphics-.html



7900 XTX / 7900 XT: Overview




Reference board specifications

Spoiler
Name GPU Clock Boost Clock Memory Clock Board Design
Reference RX 7900 XTX9965-front.tiny.jpg 1855 MHz 2499 MHz 2500 MHz 287 mm/11.3 inches, Dual-slot, 1x HDMI 2.1a, 2x DisplayPort 2.1, 1x USB-C, 2x 8-pin
Reference RX 7900 XT9965-front.tiny.jpg 1500 MHz 2394 MHz 2500 MHz 276 mm/10.9 inches, Dual-slot, 1x HDMI 2.1a, 2x DisplayPort 2.1, 1x USB-C, 2x 8-pin



7900 XTX / 7900 XT TechPowerUp GPU Data Base Links

Source -> https://www.techpowerup.com/gpu-specs/radeon-rx-7900-xtx.c3941

Source -> https://www.techpowerup.com/gpu-specs/radeon-rx-7900-xt.c3912



LINK TO LATEST DRIVERS HERE



If you also have an AMD processor, click here -> https://youtu.be/EIPggCgYK38



More info to come...













Edited by Slaughtahouse
Updated with consolidated info. Feb 10, 2023
  • Respect 4
Link to comment
Share on other sites

Link to comment
Share on other sites

Club Members / Owner's List



  • All users have the ability to comment
  • OP owns the responsibility to moderate and/or edit the sheet
  • All users that add a post to this thread identifying themselves as an owner, will be added unless mentioned otherwise.
  • Filters:
    • Go to the tab "Data", "Filter Views" and there you find four (4) preset filters.
      • User # (A-Z)
      • User Name (A-Z)
      • Model (A-Z)
      • Version (A-Z)
    • Alternatively, you can make your own personal filter in the "Filter View" tab. These are exclusively to you and won't impact how others see or review the data.



Edited by Slaughtahouse
  • Thanks 1
Link to comment
Share on other sites

1 hour ago, criminal said:

Awesome you started a thread here! Thanks for doing this.

Cheers. Yes, it was a long time coming 🙂



Edit: I may need to play around with the formatting. The BB code and tables break there. I'll see if I can make it more "intuitive" 🙂

Edited by Slaughtahouse
Link to comment
Share on other sites

Agreed. I'll begin to populate this thread with my own results. Including stock performance with the MBA / Reference 7900 XTX. Additionally, all of the hoopla around the hot spot / vapour chamber issue. What is it, what is the scope of the issue (which cards are affected), how to diagnose it, what are the steps people need to take to resolve it (RMA).



I've taken some time to consolidate the OP. Hiding the graphs behind spoiler tags to keep it clean. I've also included a relative performance chat with large images so people know, right off the bat what to expect with these cards against other cards in the same or different classes.

  • Thanks 2
  • Respect 1
Link to comment
Share on other sites

Add me

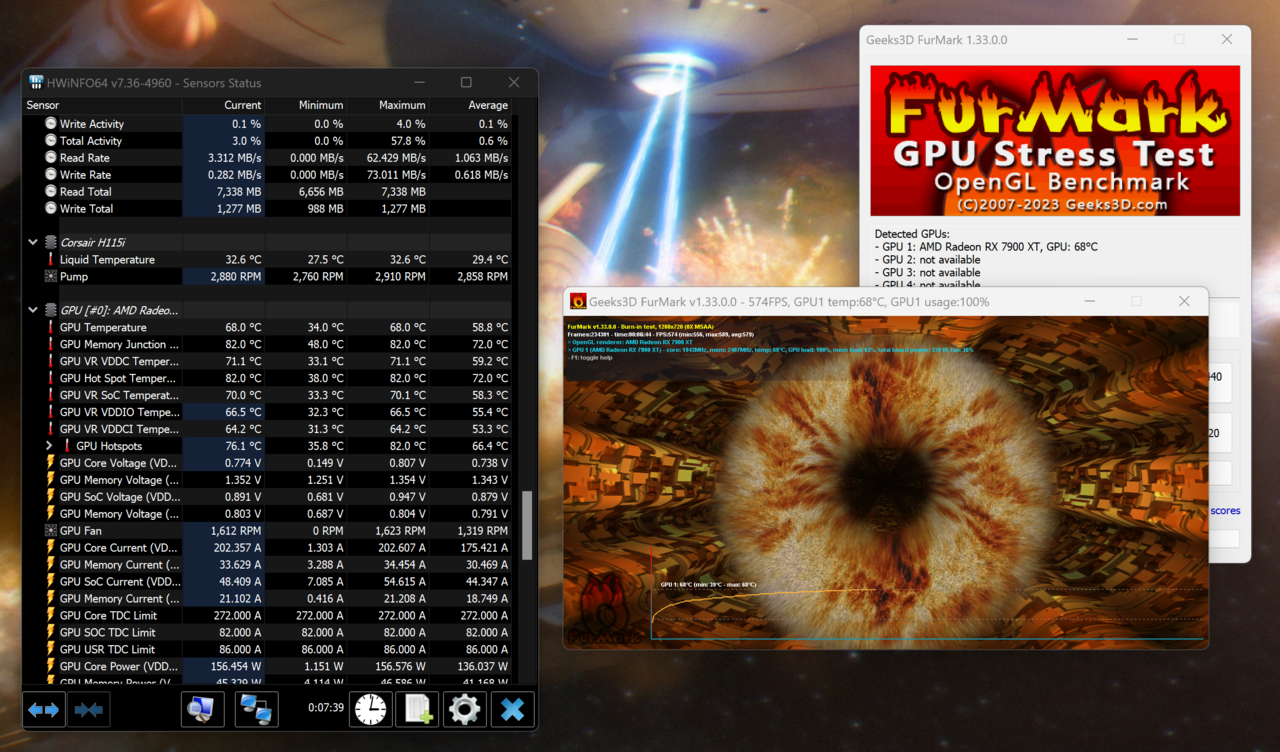

Screenshot 2023-02-20 152859.png

Edited by UltraMega
  • Respect 2

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3200mhz CL16
GPU: RX 6800
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

22 minutes ago, UltraMega said:

Add me


Screenshot 2023-02-20 152859.png

Nice upgrade from the 6800?

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 C14) B-die
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790k
GPU: ASUS GTX 980 Strix
RAM: Corsair 32GB DDR3-2400
MOTHERBOARD: ASUS Z97 Deluxe
SSD/NVME: Crucial M550 512GB
HDD: 2x WD Black 3TB
PSU: Corsair AX750
CASE: Lian Li O11 Dynamic
Full Rig Info
Link to comment
Share on other sites

16 minutes ago, Sir Beregond said:

Nice upgrade from the 6800?

Very nice. GPU is super quiet, can finally get a vsync locked 60FPS in wildlands (even a 3090 can't do that)



Very happy with it so far.

  • Respect 2

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3200mhz CL16
GPU: RX 6800
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

5 hours ago, UltraMega said:

Very nice. GPU is super quiet, can finally get a vsync locked 60FPS in wildlands (even a 3090 can't do that)



Very happy with it so far.



Congrats!



To be honest im a bit jealous as im fighting my inner Daemon and trying to convince him and my self that i dont need an upgrade now .. :buttkick:



Having the XFX 6900 XT and as well happy with the card. But from the reviews i saw so far its basically the hotest (highest temps - but the design is hot) from all the AIB models which kinda surprised me... IDK what your plan is with it, if you gonna WC it or keep it on air - but if you write the customer support they give you the information of the thickens of every thermal pad there. Did it last year and this year finally ordered the pads.. have to replace the pads (or better i want to see if i can get more out of the cooler. And as it has a copper plate i can just recommend to repaste it with LM. It dropped my HotSpot temps by 10-12 degrees on stock XFX cooler on air.... you can push it more or get it even quieter and chilled 😉  If you do anything just share some pics and results - would be interested 🙂



Also wanted to ask for a longer time now, there are so few AIB models out there with the 7900XTX - are there planned to be any other models to come?

  • Thanks 1

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

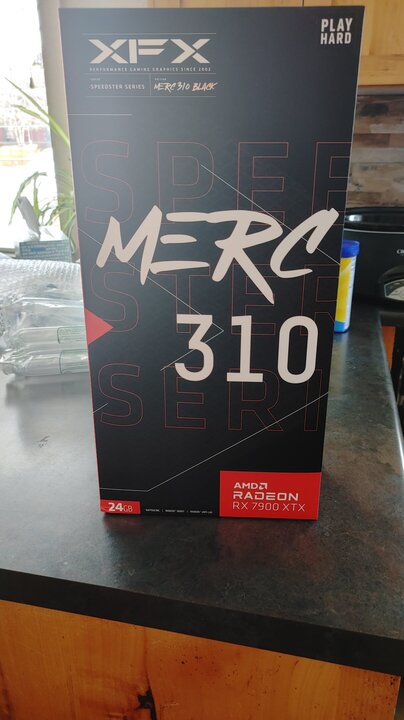

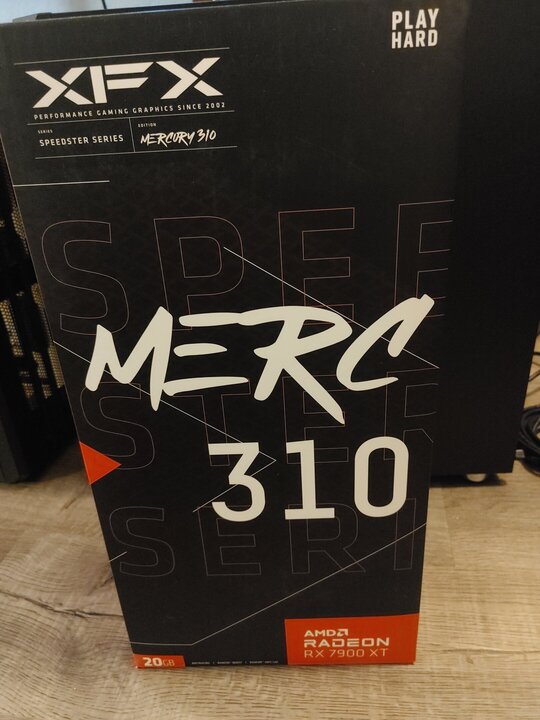

I bought the 7900XT first because I was desperate and couldn't find an XTX in stock.



The XT had issues with the 2nd display port being intermittent.  Basically after low/no power states it would fail to display.  I'd spend half an hour trying to force it to display, finally succeed only to come back after lunch to the same problem.  I sent it back, the new card has been a dream.



The XT was probably enough graphics card for me.  Coming from a GTX 970, I still haven't figured out what to do with all this card.  It's a beast.

  • Respect 3
Link to comment
Share on other sites

1 hour ago, Memmento Mori said:



Congrats!



To be honest im a bit jealous as im fighting my inner Daemon and trying to convince him and my self that i dont need an upgrade now .. :buttkick:



Having the XFX 6900 XT and as well happy with the card. But from the reviews i saw so far its basically the hotest (highest temps - but the design is hot) from all the AIB models which kinda surprised me... IDK what your plan is with it, if you gonna WC it or keep it on air - but if you write the customer support they give you the information of the thickens of every thermal pad there. Did it last year and this year finally ordered the pads.. have to replace the pads (or better i want to see if i can get more out of the cooler. And as it has a copper plate i can just recommend to repaste it with LM. It dropped my HotSpot temps by 10-12 degrees on stock XFX cooler on air.... you can push it more or get it even quieter and chilled 😉  If you do anything just share some pics and results - would be interested 🙂



Also wanted to ask for a longer time now, there are so few AIB models out there with the 7900XTX - are there planned to be any other models to come?

The cooler on this thing is huge, and the GPU temps are great. No need to water cool it but that's not something I do anyway. If I had money for water cooling I'd just get an even more powerful GPU instead.



14 minutes ago, Kaz said:




I bought the 7900XT first because I was desperate and couldn't find an XTX in stock.



The XT had issues with the 2nd display port being intermittent.  Basically after low/no power states it would fail to display.  I'd spend half an hour trying to force it to display, finally succeed only to come back after lunch to the same problem.  I sent it back, the new card has been a dream.



The XT was probably enough graphics card for me.  Coming from a GTX 970, I still haven't figured out what to do with all this card.  It's a beast.



Damn, from a 970 to a 7900XTX.. haha that's a massive upgrade. What kind of monitor do you game on? What res/refresh rate?







Just some thoughts on this GPU, I was really on the fence between the 4070Ti and the 7900XT. At first I was leaning a little more towards the 4070Ti because DLSS is more prevalent and pretty useful for 4K gaming. If not for the recent Harry Potter game and it's Vram scaling, I very likely would have ended up with the Nvidia card, but I don't think the 4070Ti will age well. On top of that, I looked up a list of FSR2 games and it's actually in a lot more games than I thought it was now (over 250) so I feel like AMD is actually getting closer and closer to parity with Nvidia all the time as far as upscaling goes. Of course, that leaves out frame generation but for me on a 4K/60hz screen frame generation would not really work anyway since it's more for high refresh rate screens. I just want to get a stable 4K60 with little to no compromises for anything less than heavy RT while still being able to play around with RT if I want to, and I feel like the 7900XT achieves that very well.

Edited by UltraMega

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3200mhz CL16
GPU: RX 6800
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

I bought 2 LG 32" 1440P 240hz monitors @$500 each.  I had some buyers regret until I figured out image sharpening is a thing.  (Text was fairly blurry without it.  Actual gameplay/image still looks good. Now I'm wishing I had a 3rd.  (Max resolution for the card!)  They went up in price about $180 since I bought them.  Makes it harder to justify buying a 3rd...



32" 4k 144hz was about double the price, ($800-1000) but arguably may have been a better choice.  I think 4k will age better...  The 240hz version was $1500 so...  I coupd buy 1 monitor or 3....



I think I'll make the jump to 4k when 240hz is more common/affordable, maybe in a few years.



Prior I was using a Yamakasi 27" 1440p. It used to overclock but started having issues displaying when it wasn't warmed up.  Stock refresh still works fine.



Sadly the Yamakasi is duel Dvi only, and active adaptor links seem to be close to $80-90. Feels bad to spend that on and old monitor that was $350 to begin with.



There's a noticeable sharpness difference between 27" and 32" at 1440p.  I think 32" 4k will be a nice sweet spot.



I'd like to get into VR, but I think waiting for a refresh of the Valve Index is the way to go.  Unless anyone has some good recommendations.

Link to comment
Share on other sites

16 minutes ago, Kaz said:

I bought 2 LG 32" 1440P 240hz monitors @$500 each.  I had some buyers regret until I figured out image sharpening is a thing.  (Text was fairly blurry without it.  Actual gameplay/image still looks good. Now I'm wishing I had a 3rd.  (Max resolution for the card!)  They went up in price about $180 since I bought them.  Makes it harder to justify buying a 3rd...



32" 4k 144hz was about double the price, ($800-1000) but arguably may have been a better choice.  I think 4k will age better...  The 240hz version was $1500 so...  I coupd buy 1 monitor or 3....



I think I'll make the jump to 4k when 240hz is more common/affordable, maybe in a few years.



Prior I was using a Yamakasi 27" 1440p. It used to overclock but started having issues displaying when it wasn't warmed up.  Stock refresh still works fine.



Sadly the Yamakasi is duel Dvi only, and active adaptor links seem to be close to $80-90. Feels bad to spend that on and old monitor that was $350 to begin with.



There's a noticeable sharpness difference between 27" and 32" at 1440p.  I think 32" 4k will be a nice sweet spot.



I'd like to get into VR, but I think waiting for a refresh of the Valve Index is the way to go.  Unless anyone has some good recommendations.

Oh nice, so high refresh rate then. You playing some competitive FPS or racing games?

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3200mhz CL16
GPU: RX 6800
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

29 minutes ago, UltraMega said:

I just want to get a stable 4K60 with little to no compromises for anything less than heavy RT while still being able to play around with RT if I want to, and I feel like the 7900XT achieves that very well.

I think you made the right choice.  7900xt was hitting 240hz+ (Often 260-280) @1440p in Shadow of the Tomb Raider.  It really is a good card.  I don't think it will bat an eye at 4k60.



I did notice some pretty bad stutters at times when the game drops to 10 fps, but after playing through, I'm convinced they made 0 effort to optimise for PC/AMD.  I had to force 60 fps to make some of the puzzles actually work.  Plus, trying to use mouse and keyboard on the Map is infuriating.



I liked previous Tomb Raiders, but Shadow of the Tomb raider will be the last one I buy.  Dev's just did a copy/paste of previous games.  It lacks love.

Link to comment
Share on other sites

1 minute ago, UltraMega said:

Oh nice, so high refresh rate then. You playing some competitive FPS or racing games?

I'm not actually good at competative FPS, I quit playing them when I felt disadvantaged.  Those moments when I know I clicked, but my shots never went off.



Playing siege now feels really fun.  If I die, it's because I legit screwed up.  Not because I lost the reaction game...  Guess I'll br trying to pick up more FPS games, might look into Quake Champions.



My true love is flying/space sims.  One day....  Star Citizen will exist...  I've played a Lot of Elite Dangerous, but I'm generally frusterated with the direction Frontier Development went.



I'm looking into Everspace 2, but my attempt to Calibrate my CH HOTAS was fraught with disaster.  Windows 11 isn't playing nice with their outdated drivers (have to disable core isolation if I want to use them....  Not sure I want to do that).  I need to take my pedals apart and clean the potentiometers my right toe brake takes a long time to reset to 0 after pressing it.

Link to comment
Share on other sites

57 minutes ago, Kaz said:

I'm not actually good at competative FPS, I quit playing them when I felt disadvantaged.  Those moments when I know I clicked, but my shots never went off.



Playing siege now feels really fun.  If I die, it's because I legit screwed up.  Not because I lost the reaction game...  Guess I'll br trying to pick up more FPS games, might look into Quake Champions.



My true love is flying/space sims.  One day....  Star Citizen will exist...  I've played a Lot of Elite Dangerous, but I'm generally frusterated with the direction Frontier Development went.



I'm looking into Everspace 2, but my attempt to Calibrate my CH HOTAS was fraught with disaster.  Windows 11 isn't playing nice with their outdated drivers (have to disable core isolation if I want to use them....  Not sure I want to do that).  I need to take my pedals apart and clean the potentiometers my right toe brake takes a long time to reset to 0 after pressing it.

I tried Elite Dangerous and it made me realize I wanted to play a space sim that allowed me to walk around in and out of my ship, so I got Star Citizen. If you like that type of game I strongly recommend you jump on Star Citizen with a cheap starter ship. So much to do, it's overwhelming.





Edited by UltraMega

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3200mhz CL16
GPU: RX 6800
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

11 hours ago, Kaz said:




I bought the 7900XT first because I was desperate and couldn't find an XTX in stock.



The XT had issues with the 2nd display port being intermittent.  Basically after low/no power states it would fail to display.  I'd spend half an hour trying to force it to display, finally succeed only to come back after lunch to the same problem.  I sent it back, the new card has been a dream.



The XT was probably enough graphics card for me.  Coming from a GTX 970, I still haven't figured out what to do with all this card.  It's a beast.



Echoing UltraMega's comments. That is a huge LEAP. Techpowerup shows it as 600% LOL.

In console context that would be similar to moving from a Base PS4 / Xbox One to a system that is ~2x faster than a PS5 / Series X.






Welcome to the club!  Maybe I can get a Google sheet going with club members if there is appetite.

Edited by Slaughtahouse
Link to comment
Share on other sites

Update: I've created a sheet up top (3rd post) which includes a live Google Sheet. The Google Sheet is directly embedded into the post (nice feature). See post above for more details and how it works. I may reposition it in the main OP as I find more content to fill the first few posts. TBD.

Edited by Slaughtahouse
  • Thanks 1
  • Respect 3
Link to comment
Share on other sites

11 hours ago, Slaughtahouse said:

Echoing UltraMega's comments. That is a huge LEAP. Techpowerup shows it as 600% LOL.

Yeah, I'm having trouble changing my gaming habits to actually use the new found power.  For so long I've gravitated away from stuff my system didn't run well.  Speaking of....



20 hours ago, UltraMega said:

I strongly recommend you jump on Star Citizen with a cheap starter ship. So much to do, it's overwhelming.

I own a Gladius, my friend bought me an upgrade back when there was no way in game to upgrade ships.  My old system complained a lot about Star Citizen so I quit playing, but that was supposedly before they fixed the netcode.  (Every computer was processing everything on the server).  The Caterpiller was guaranteed to crash a server.  The bugs, they were good times...  Like sending a ship into an endless spin by exiting, making the ship unrecoverable because it would whack the player and send them flying a looong ways away.



Hit me up sometime if you want to play.  It might take me an hour or two to get past the main boss *cough* keybinds *cough*

Link to comment
