Test and Experience with GPURisers 20 W/mK Thermal Pads on 6900XT


Recommended Posts

So again i had some fun with my 6900 XT and was curious if changing thermal pads will make a difference on my card (was just bored to be honest...)



I found this thermal pads - GPURisers 20 W/mK Thermal Pads and found as well just some information's or reviews on them like: Kritical 20W/mK pads vs GPUriser 20W/mK pads








Originally i wanted to buy the Kritical Pads, but they were sold out and the PGURISERS were on stock in UK so it was for me a clear decision...



As usual i made a temp testing before the change:




GPU Temp: 62 C

GPU Memory Junction: 64 C

GPU Hot Spot: 75 C

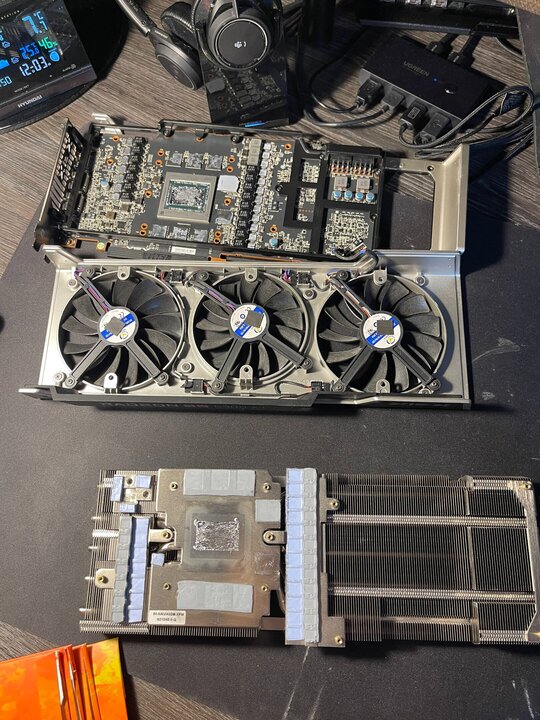

I forgot to get more pictures of the replacing at it self, as i was already to inpatient and wanted to see the results ASAP 😄  For this reason i could not do any kind of reviews, I'm not patient enough lol...  Respect to all reviewers on this place 🙂

E403F572-B5DF-4A94-ABBD-6F8F52F1BA9D.thumb.jpeg.67a6695d8ca93bae82e0c51a117440d9.jpeg81E98AEC-0872-4230-B3F4-8EA94BDFD7A6.thumb.jpeg.f594880eb00eef7ec4b6976d08c0a394.jpeg

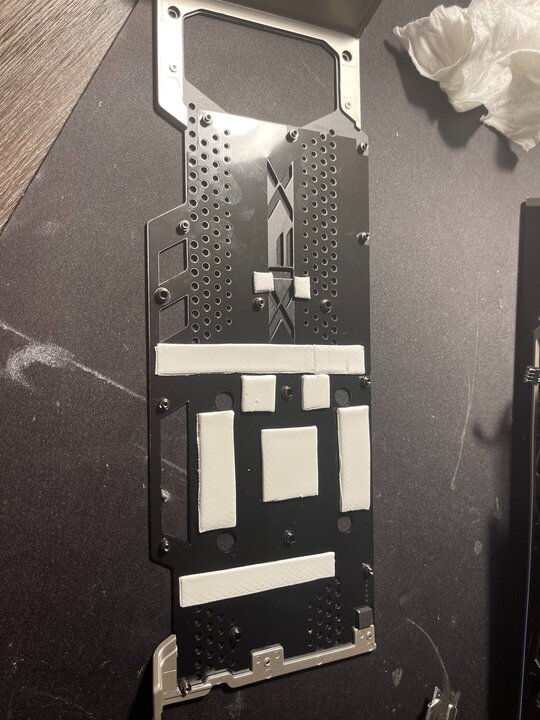

Just to explain, i got the following information's from XFX about the pads thickness:

Front:

VRM 1.5mm , 2mm

VRAM 1mm



Back

VRM 1.5 mm

GPU, VRAM 3mm

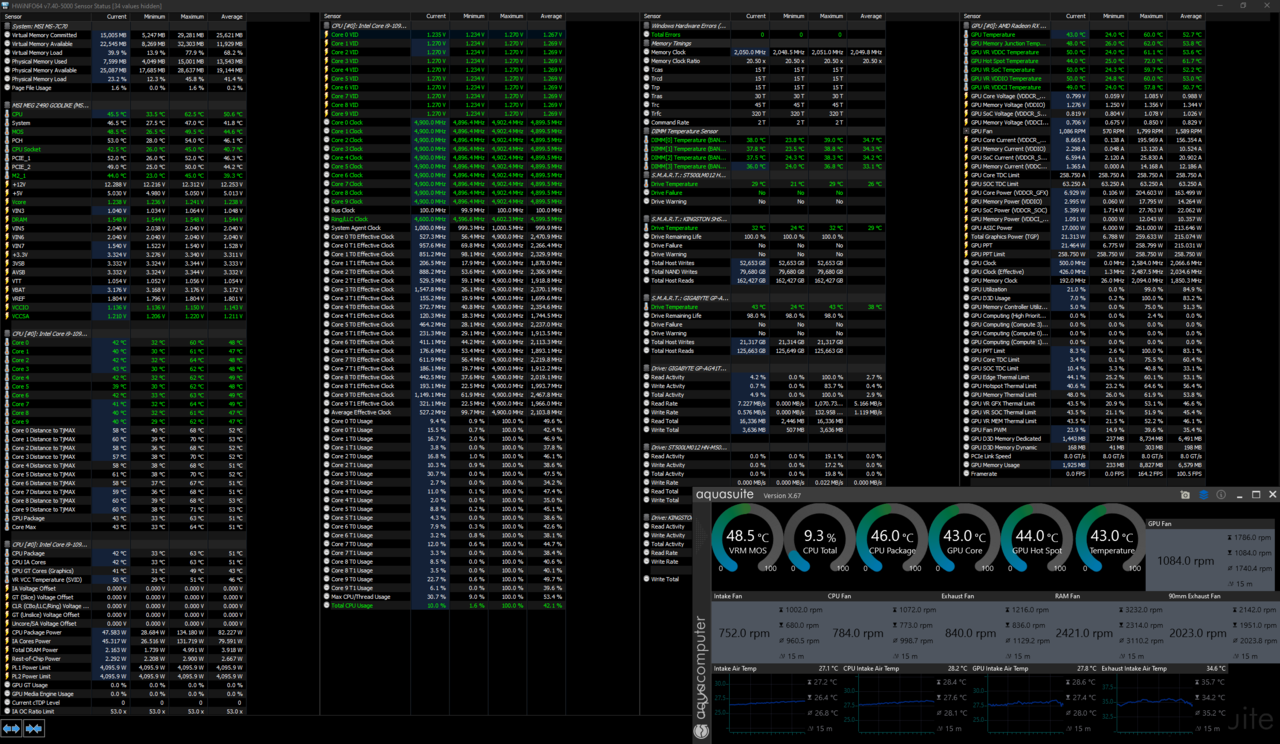

I as well repasted the GPU about 6-8 months ago with LM and as you can see there is no corrosion on the cooler at all which means its copper 😛  Anyway here are the results after the exchange of the pads:






GPU Temp: 59 C

GPU Memory Junction: 72 C

GPU Hot Spot: 71 C

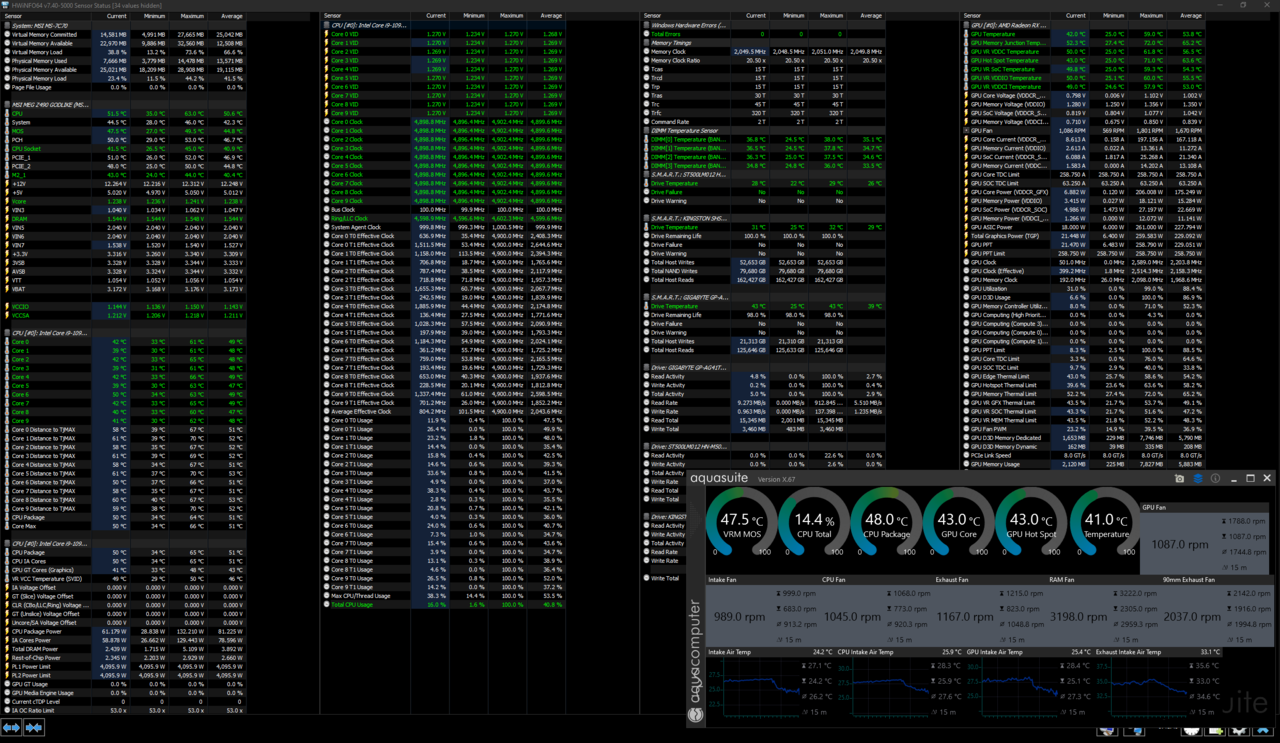

Compared after the test the results and noticed that the GPU Memory Junction temp increased by 8 degrees while all other temps were down by around 4 degrees on the GPU Hot Spot and  2 degrees on the rest. So i just took it appart and could see that on the Memory modules are no imprints on the Pads. So i just replaced the original 1mm thickness by 1,5mm pads and tested it again.






GPU Temp: 60 C

GPU Memory Junction: 62 C

GPU Hot Spot: 72 C



This time the temps looked OK and the final result is basically 2 - 2,4 degrees on the Memory and VRM... The decrease on the GPU hot spot could be a result of dipping a bit more LM on the cooler and I guess it has now a better contact with the chip...



So im happy with the result in the end, now i just hope they will not degrade that fast 😛  but time will show.



Any experience on your side ppl? in general what is a good result in Degrees for changing pads on the GPU?



Thanks for any input 😉





  • Respect 2

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

I haven't tried replacing pads on my card (yet).  What's interesting is the delta between core and hotspot temps.  You have about a 12*C delta.  I have over a 50*C delta on mine.  MSI says its fine.

I dunno man, your temperatures seem to be fantastic on your card.

Owned

 Share

CPU: Ryzen 7900x
GPU: Sapphire Pulse RX 7900XTX
PSU: Cooler Master 850w Platinum
CPU COOLER: Cooler Master MasterLiquid PL360 Flux
MOTHERBOARD: Gigabyte B650 Aorus AX
SSD/NVME: Solidigm P41 Plus 2TB Gen4 NVME
RAM: G.Skill Flare X DDR5-6000
CASE: HAF700 Berserker
Full Rig Info

Too much

Owned

 Share

CPU: AMD Opteron 180 @ 3.0GHz
MOTHERBOARD: Asus A8N SLI
RAM: 4x1GB Corsair XMS DDR400 @ 2.5-3-3-6
PSU: eVGA 600BQ
GPU: Sapphire HD5870
SOUNDCARD: Asus Xonar DG
OPTICAL: DVDRW with Lightscribe
SSD/NVME: 64GB HP 2.5" SSD
Full Rig Info

Too much

Owned

 Share

CPU: AMD Athlon 1100MHz
MOTHERBOARD: ECS K7S5A
RAM: 2x256MB Corsair XMS DDR400 @ 133MHz / CAS2
PSU: Antec 350w
GPU: ATI Radeon 9800 PRO
SOUNDCARD: Creative Live! 5.1
OPTICAL: LG 16x DVD-ROM
OPTICAL 2: IOMagic 48x16x48 CDRW
Full Rig Info
Link to comment
Share on other sites

13 hours ago, Memmento Mori said:

So again i had some fun with my 6900 XT and was curious if changing thermal pads will make a difference on my card (was just bored to be honest...)



I found this thermal pads - GPURisers 20 W/mK Thermal Pads and found as well just some information's or reviews on them like: Kritical 20W/mK pads vs GPUriser 20W/mK pads








Originally i wanted to buy the Kritical Pads, but they were sold out and the PGURISERS were on stock in UK so it was for me a clear decision...



As usual i made a temp testing before the change:




GPU Temp: 62 C

GPU Memory Junction: 64 C

GPU Hot Spot: 75 C



I forgot to get more pictures of the replacing at it self, as i was already to inpatient and wanted to see the results ASAP 😄  For this reason i could not do any kind of reviews, I'm not patient enough lol...  Respect to all reviewers on this place 🙂

E403F572-B5DF-4A94-ABBD-6F8F52F1BA9D.thumb.jpeg.67a6695d8ca93bae82e0c51a117440d9.jpeg81E98AEC-0872-4230-B3F4-8EA94BDFD7A6.thumb.jpeg.f594880eb00eef7ec4b6976d08c0a394.jpeg



Just to explain, i got the following information's from XFX about the pads thickness:

Front:

VRM 1.5mm , 2mm

VRAM 1mm



Back

VRM 1.5 mm

GPU, VRAM 3mm



I as well repasted the GPU about 6-8 months ago with LM and as you can see there is no corrosion on the cooler at all which means its copper 😛  Anyway here are the results after the exchange of the pads:






GPU Temp: 59 C

GPU Memory Junction: 72 C

GPU Hot Spot: 71 C



Compared after the test the results and noticed that the GPU Memory Junction temp increased by 8 degrees while all other temps were down by around 4 degrees on the GPU Hot Spot and  2 degrees on the rest. So i just took it appart and could see that on the Memory modules are no imprints on the Pads. So i just replaced the original 1mm thickness by 1,5mm pads and tested it again.






GPU Temp: 60 C

GPU Memory Junction: 62 C

GPU Hot Spot: 72 C



This time the temps looked OK and the final result is basically 2 - 2,4 degrees on the Memory and VRM... The decrease on the GPU hot spot could be a result of dipping a bit more LM on the cooler and I guess it has now a better contact with the chip...



So im happy with the result in the end, now i just hope they will not degrade that fast 😛  but time will show.



Any experience on your side ppl? in general what is a good result in Degrees for changing pads on the GPU?



Thanks for any input 😉







This is interesting stuff - I might give it that W/mK 20 a try in future builds !

FYI, I use a custom 3x8 PCI power 6900XT primarily on a 24/7/365 work machine, but I still 'tuned it' just the same with MPT bios tools, 10 W/mK thermal putty on the VRAM (+ Gelid GC Extreme paste on the front and back of the die) and a Bykski water-block back in the spring of 2021...still running strong and showing exactly the same temps now at a given ambient.



Stock 'air-cooled' on day one vs water-cooled with thermal putty w/ custom MPT, noting also the different core voltage and PL loads:













Edited by J7SC_Orion
  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

  • 2 weeks later...

I did new pads on my 6900XT, but it also got a full cover HeatKiller block at the same time.  The pads I used were the same pads I've been using for a very long time on all my cards, which are the Fujipoly ultra extreme.  I am just always on the look out for deals, since they are expensive pads.



The only card where I saw some major temp drops was with a bunch of highly OC'd 7970's.  The workload they were running was basically FurMark on the VRMs. I was able to lower VRM temps by more than 20°C after swapping in the higher quality pads.

  • Thanks 1
Link to comment
Share on other sites
