SFF mATX File Server


Recommended Posts

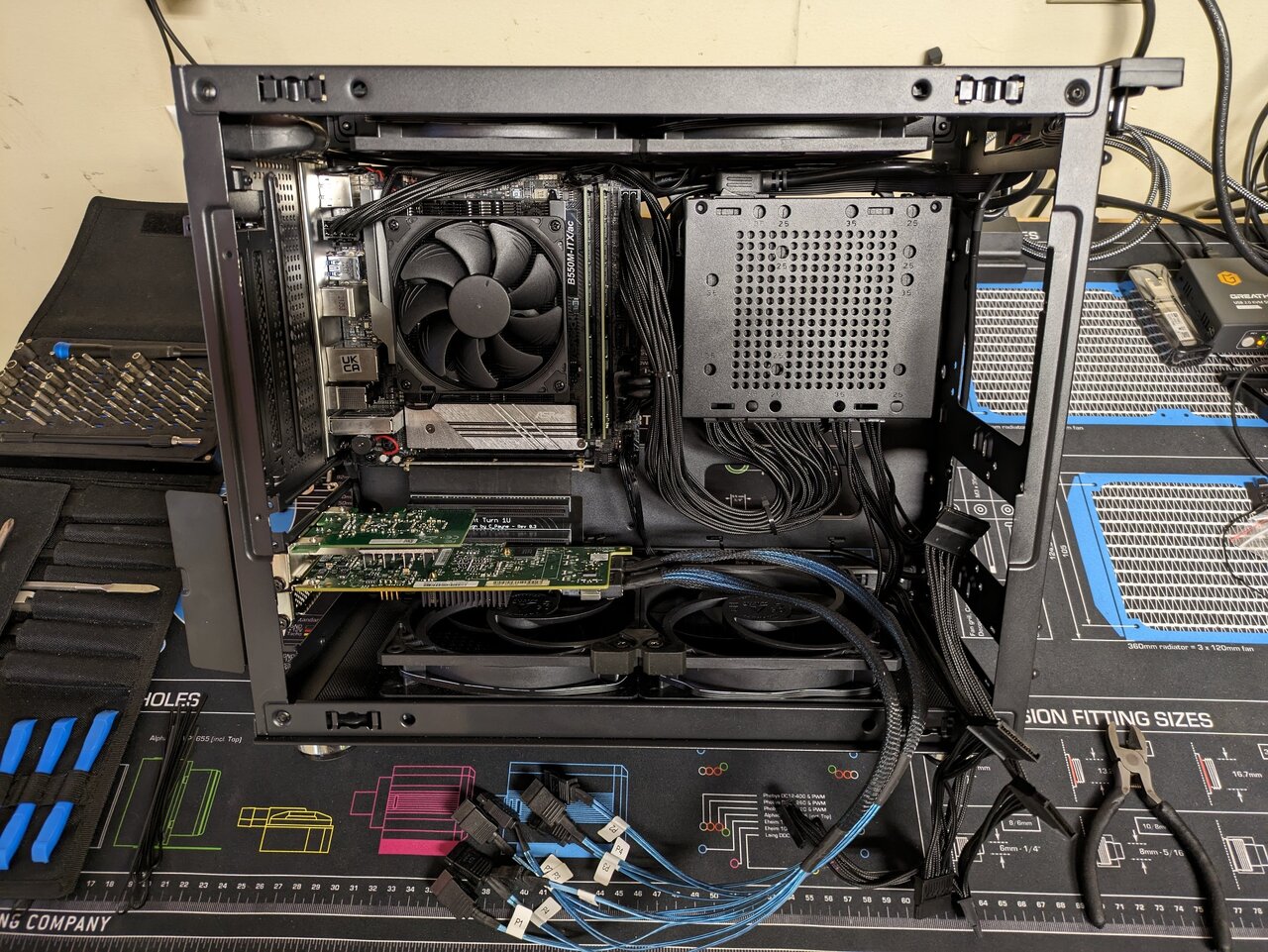

This build is a smallish backup file server that will be the final piece of kit downsizing from my 42U into a 12U rack and two desktop cases.

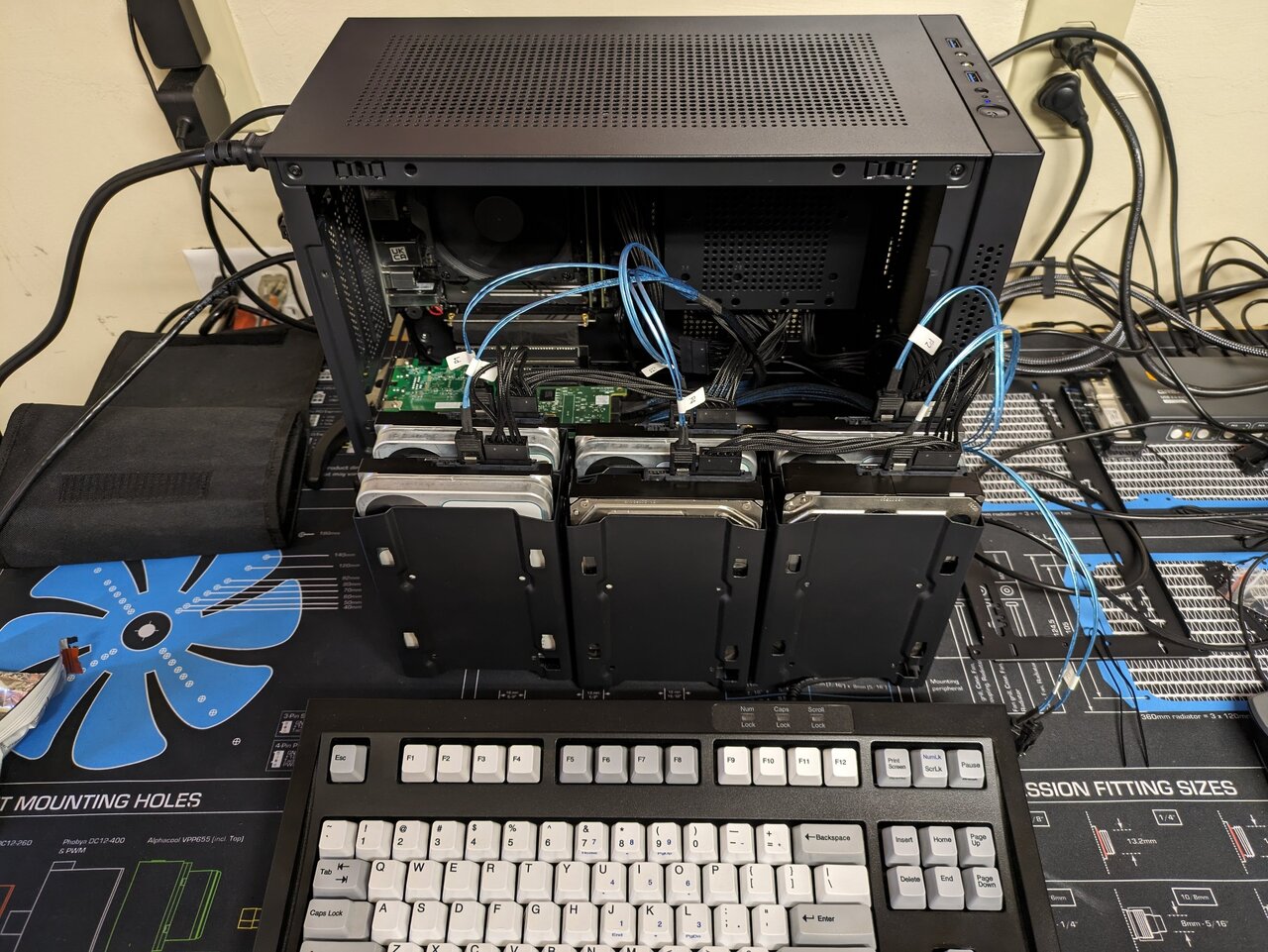

There are a number of similar sized or smaller NAS type chassis available, and the main reason for this build was the price of the case ($59 on NewEgg at purchase) and the fact that I thought I could shove 6 HDDs with little to no modding.  The case, motherboard, and CPU are the only parts I purchased for this build, and the rest of the parts are repurposed from other machines.

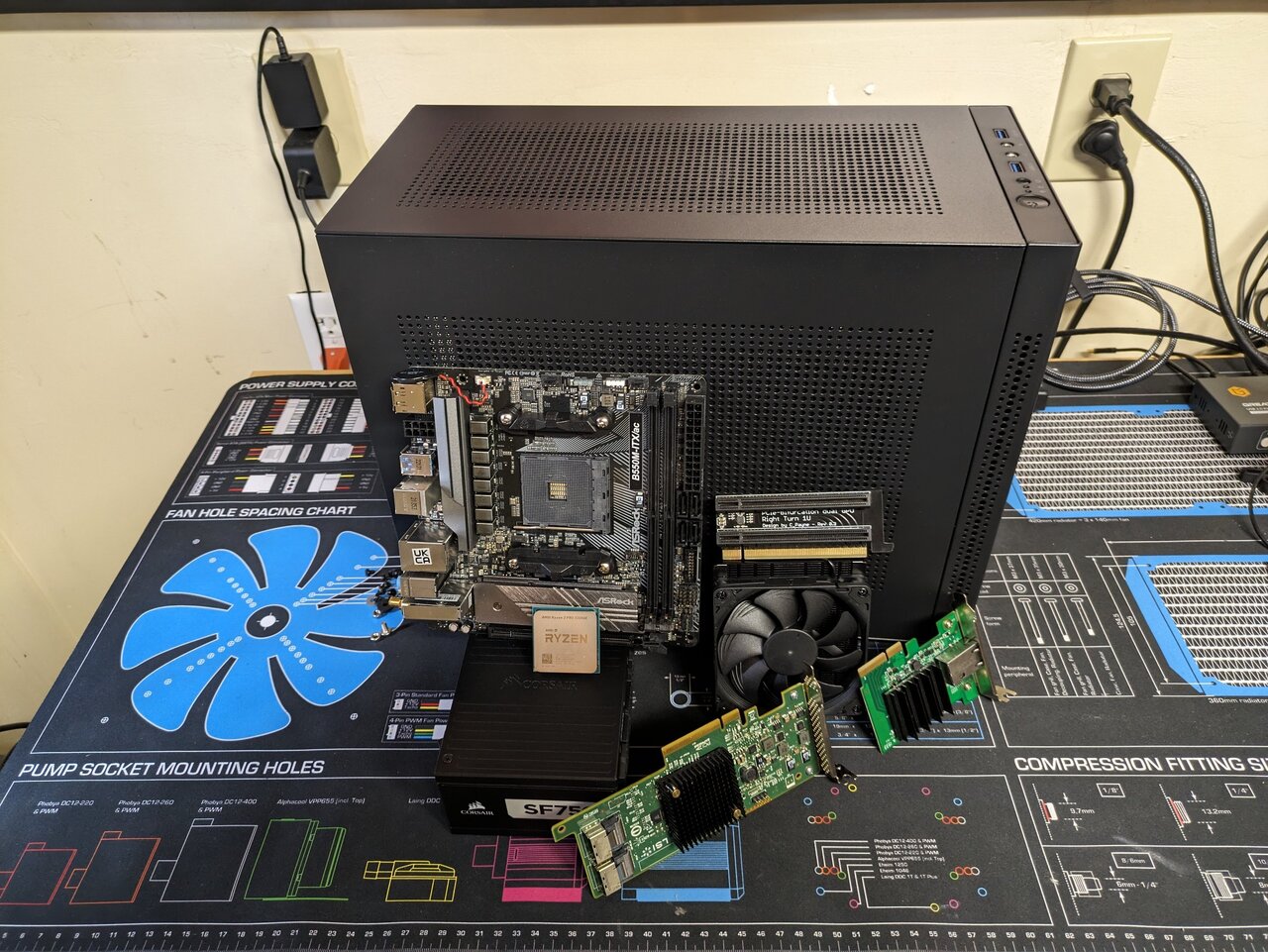

Hardware:

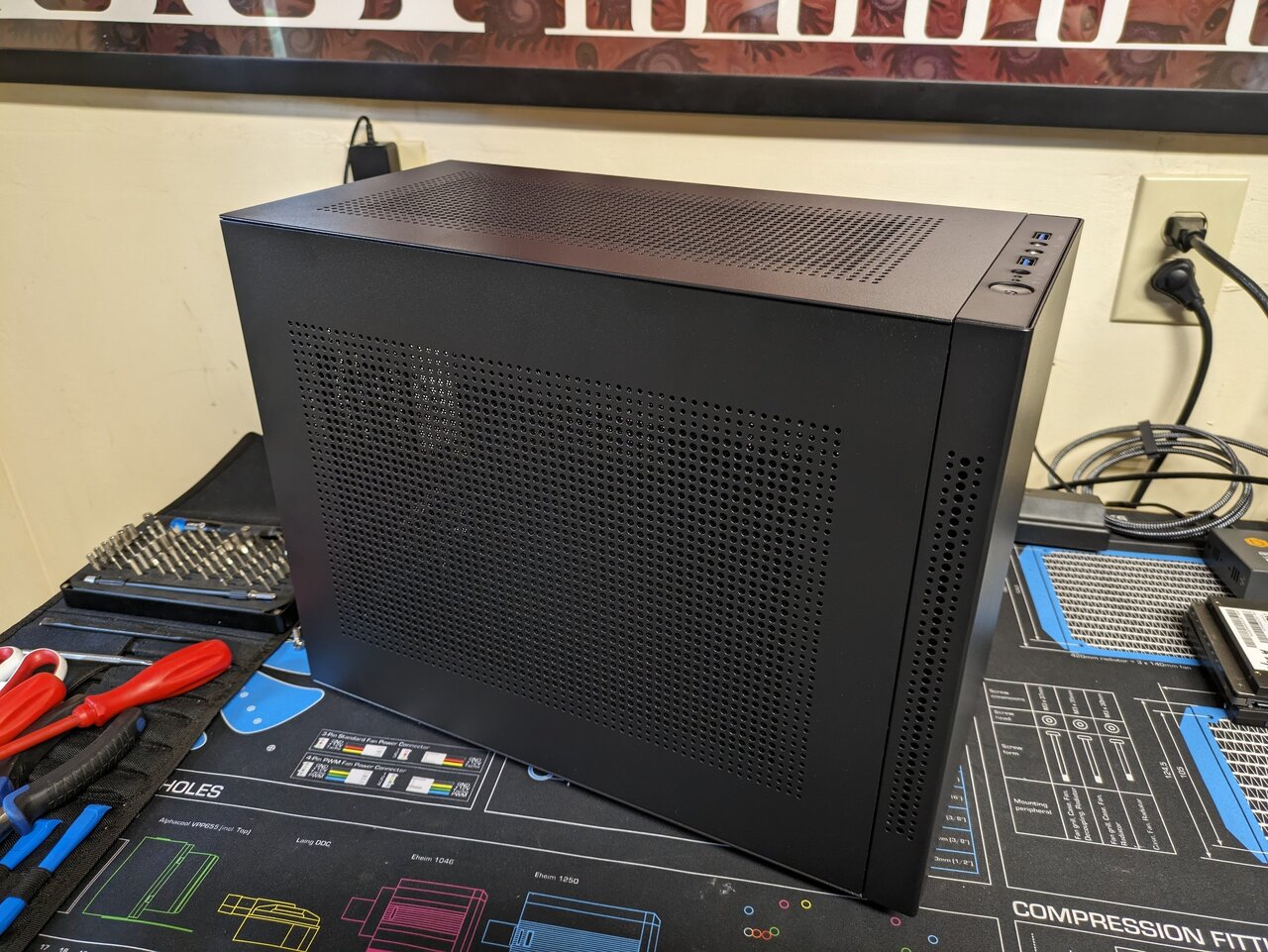

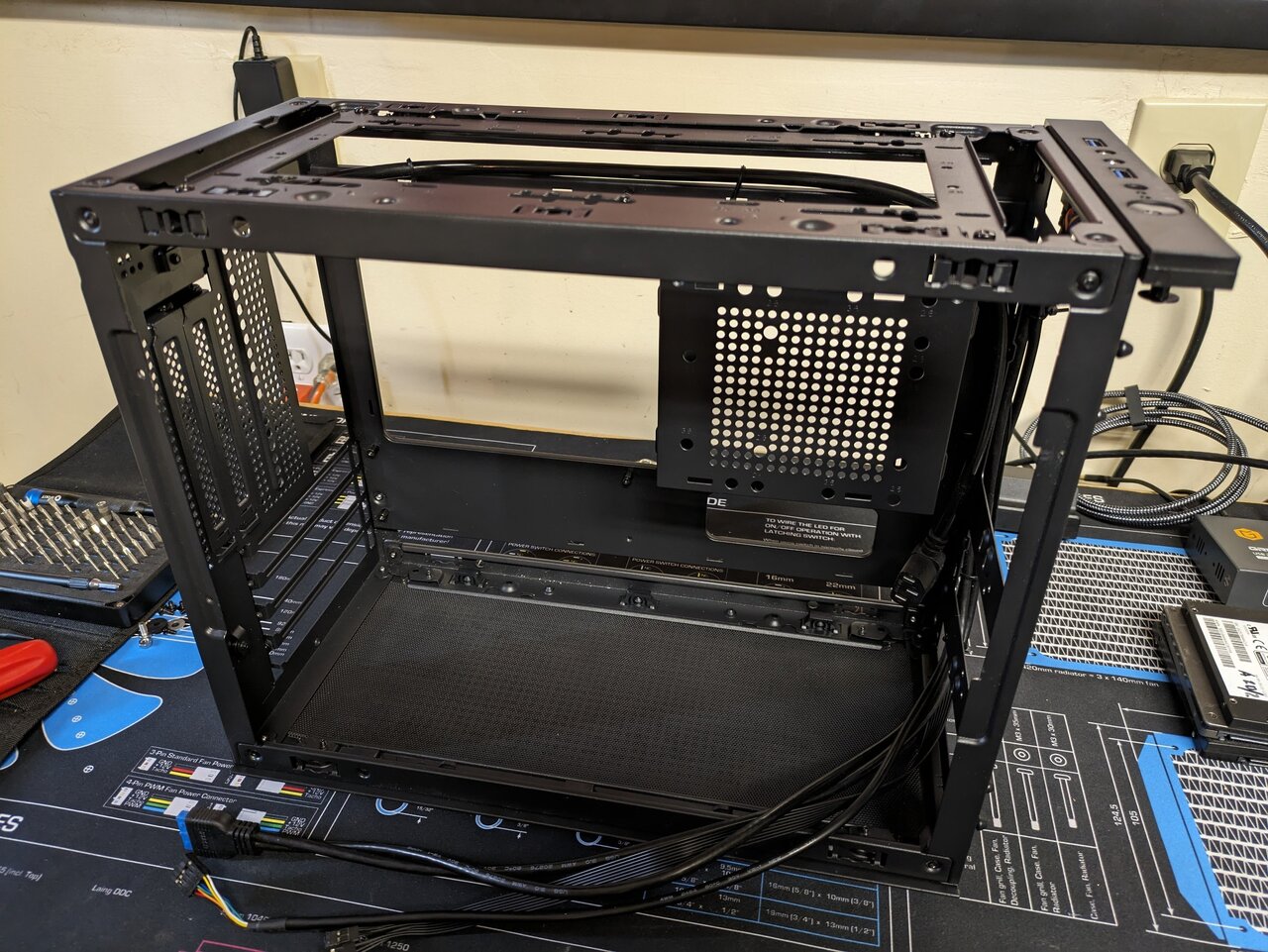

Case: Sama IM01

CPU: AMD Ryzen 3 Pro 5350GE

Motherboard: AsRock B550M-ITX/ac

RAM: 2x 16GB Micron DDR4 3200 ECC UDIMM

NIC: No name AQC113 based 10GBASE-T

HBA: LSI SAS 9207-8i

SSD: Inland Premium 512GB NVMe

HDD: 4x 16TB Seagate Exos X16, 1x 8TB Seagate Ironwolf Pro, 1x 8TB Seagate Exos 7E8

PSU: Corsair SF750





















  • Thanks 1
  • Respect 5
Link to comment
Share on other sites

Storage will be updated fairly soon, since I will be retiring a few 16TB drives out of my main server.



Server will be headless running Arch Linux, and will be mostly asleep using WOL to wake the server idle for backup tasks.

Edited by tictoc
see strikethrough :)
  • Thanks 1
Link to comment
Share on other sites

That is a nice build for the purpose, case looks like an awesome choice too. Out of interest, is this not going to be on 24/7 ? Only because I noted you saying you would use WOL.



My fileserver is on all the time but it runs more services than just file access.



I know back in the day it was less wearing on HDD's to leave them on rather than powering down/up all the time. Im not sure how 'Hardy' HDD's are these days in that respect, haven't kept up with the data om that.

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro SE Gen 5 4TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: 2x WD RED 1TB NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

On 09/08/2023 at 19:00, ENTERPRISE said:

That is a nice build for the purpose, case looks like an awesome choice too. Out of interest, is this not going to be on 24/7 ? Only because I noted you saying you would use WOL.



My fileserver is on all the time but it runs more services than just file access.



I know back in the day it was less wearing on HDD's to leave them on rather than powering down/up all the time. Im not sure how 'Hardy' HDD's are these days in that respect, haven't kept up with the data om that.



This is probably still true, if for no other reason than thermal cycling electronic components pretty much always hastens their eventual death.  How much it really matters is up for debate.  Exos drives are rated for 600k load/unload cycles and 50k start/stop cycles, so starting up and shutting down once a day wouldn't really put a dent in the rated lifespan.



This will likely not be the way I run this.  I was just fiddling around with further reducing power consumption.  The reduced power consumption is not really worth it to me, with the increased chance of a failed backup due to a start-up/shut-down or WOL packet error.



With zero tuning the system idles at 78W.  More than half of that power is the drives, nic, and HBA.

Edited by tictoc
typo
  • Respect 1
Link to comment
Share on other sites

I let my drives spin 24/7 just because I don't like the few seconds extra it takes to access a network share when the drives are spun down 🙃

  • Thanks 1

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
OPERATING SYSTEM 2: Debian 12.5 KDE
Full Rig Info
Link to comment
Share on other sites

13 hours ago, tictoc said:



This is probably still true, if for no other reason than thermal cycling electronic components pretty much always hastens their eventual death.  How much it really matters is up for debate.  Exos drives are rated for 600k load/unload cycles and 50k start/stop cycles, so starting up an shutting down once a day wouldn't really put a dent in the rated lifespan.



This will likely not be the way I run this.  I was just fiddling around with further reducing power consumption.  The reduced power consumption is not really worth it to me, with the increased chance of a failed backup due to a start-up/shut-down or WOL packet error.



With zero tuning the system idles at 78W.  More than half of that power is the drives, nic, and HBA.



Yeah totally, the likelihood YOU would experience drive degradation/death from power cycles is highly unlikely, especially with prosumer/enterprise rated drives.

  • Respect 1

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro SE Gen 5 4TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: 2x WD RED 1TB NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

  • 4 weeks later...
  • 3 weeks later...
On 06/09/2023 at 06:29, Northwave said:

Hey !

Im currently rearranging my server in the same case. Would love to see a photo taken from the top, to see how much space is behind the HDDs. Thank you ! I will print the hdd holder with 3d printer and to see this in before, would help me a lot.

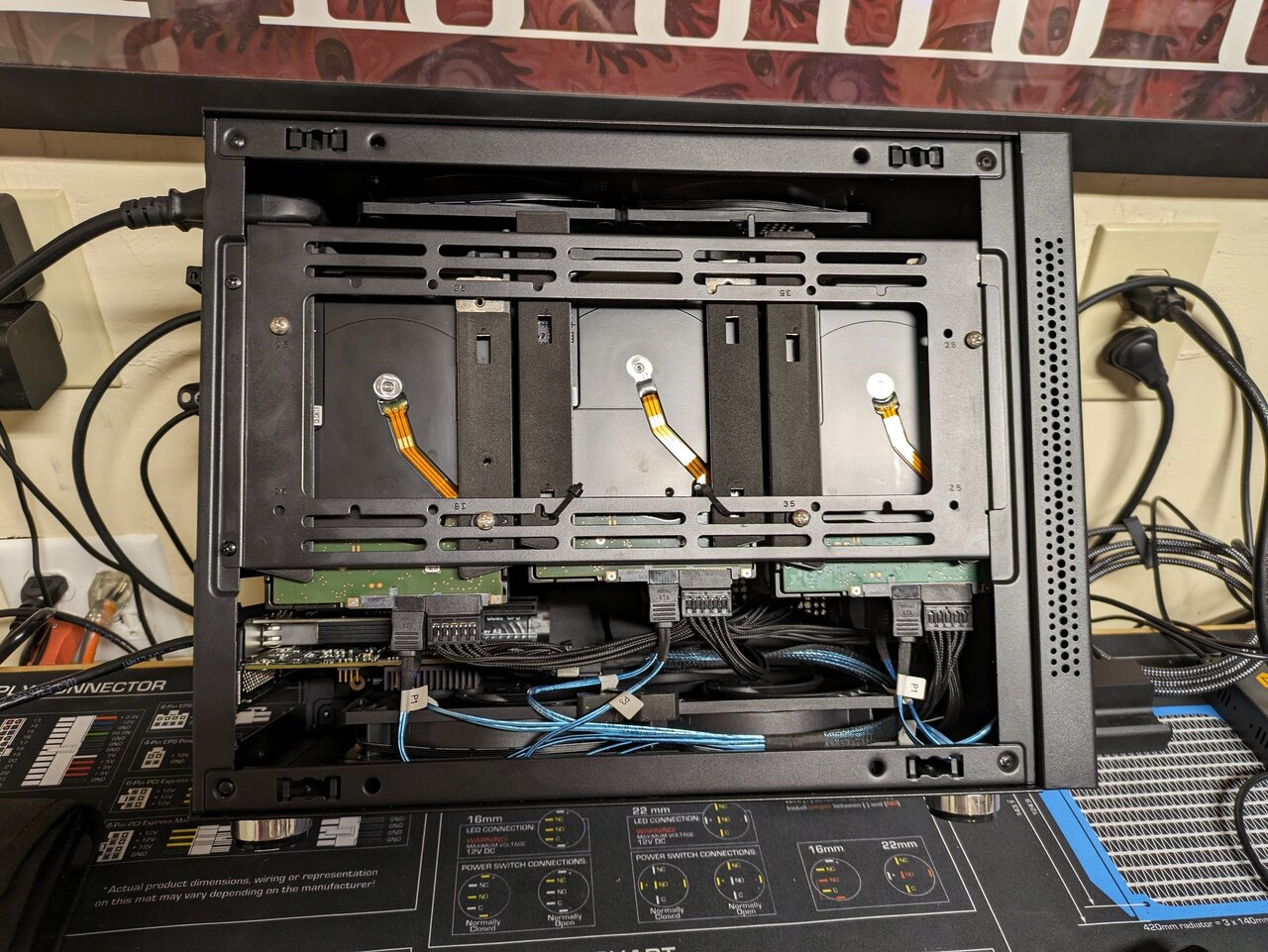

Sorry for the late reply, I've been out of town for the last couple of weeks.  Here's a shot from the top with the fans removed.




  • Thanks 1
  • Respect 3
Link to comment
