The ugly side

[tictoc]

Res is mounted with a fitting to the EK Dual-D5 top.



[Bastiaan_NL]

I can't even say that it looks bad, considering what's in that system! The only thing are those red PCI-e cables

But those waterblocks look so cool that they make up for every imperfection.

[OTHG_Chef]

Rebuilt same hardware into a new case, the Lian Li Lancool II Mesh Performance.  Cable management was breeze, Love the back cable covers and Suicide doors



[UltraMega]

46 minutes ago, OTHG_Chef said:

Rebuilt same hardware into a new case, the Lian Li Lancool II Mesh Performance.  Cable management was breeze, Love the back cable covers and Suicide doors





umm this is for UGLY pics, you're cheating!

[OTHG_Chef]

20 hours ago, UltraMega said:

umm this is for UGLY pics, you're cheating!

I know, lol!

[Zonalo]

On 3/7/2021 at 12:44 PM, Bastiaan_NL said:

I've done some things like that too, sometimes it's needed to make it work



This is the back side of the Main system. Not my cleanest job, but the Define 7XL has a lot of room so it's not needed to run everything really clean.
It has been taken apart a few times already, so it started really clean and organized and slowly became messy.





The front of "The Office", the little fan is there to support the 3090
I never took the time to hide the third 8pin cable. I've been swapping/adding/removing cards to this system a lot, that's why the other 2 8pin cables are twisted and messy.

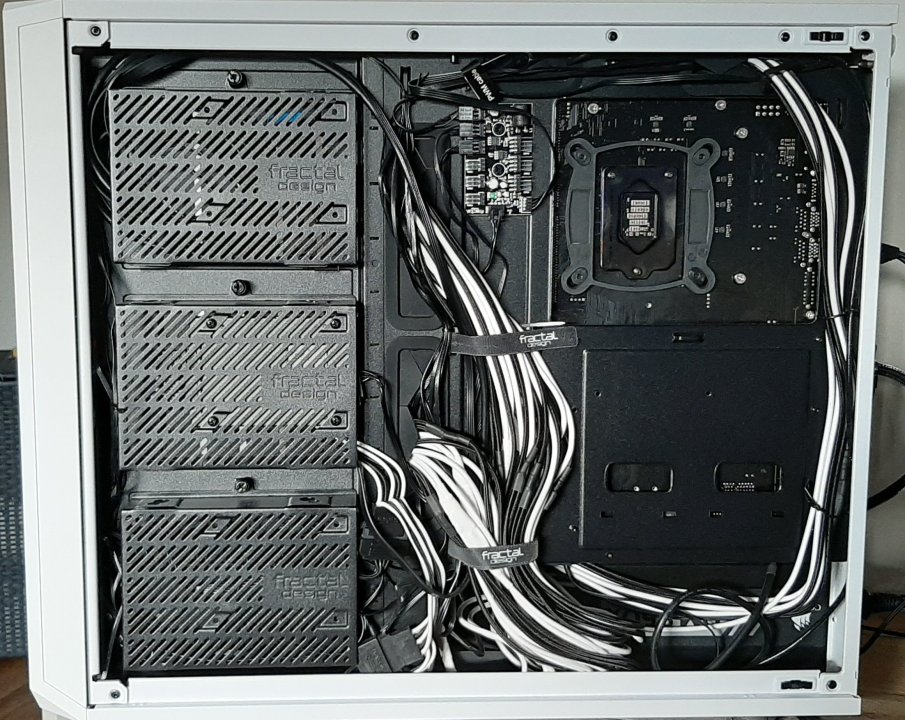

And the back side, way less room on this Meshify 2 case compared to the 7XL. So the cables are spread out to be able to close the back panel.

Again not the cleanest, but I know myself and how easy I can decide to switch out hardware between my systems so I'm not going to clean that up.



[edit]

And as some of you may notice, I'm a Fractal Design and Corsair fanboy

oh man! all coordinated on the ugly side is AWESOME. For some reason that never even occurred to me. Thanks for giving me something new top obsess over

[Sir Beregond]

Mine currently. All the cables are shoved behind the bar.







Edited March 28, 2021 by Sir Beregond

[tictoc]

On 3/21/2021 at 8:05 AM, Bastiaan_NL said:

I can't even say that it looks bad, considering what's in that system! The only thing are those red PCI-e cables

But those waterblocks look so cool that they make up for every imperfection.

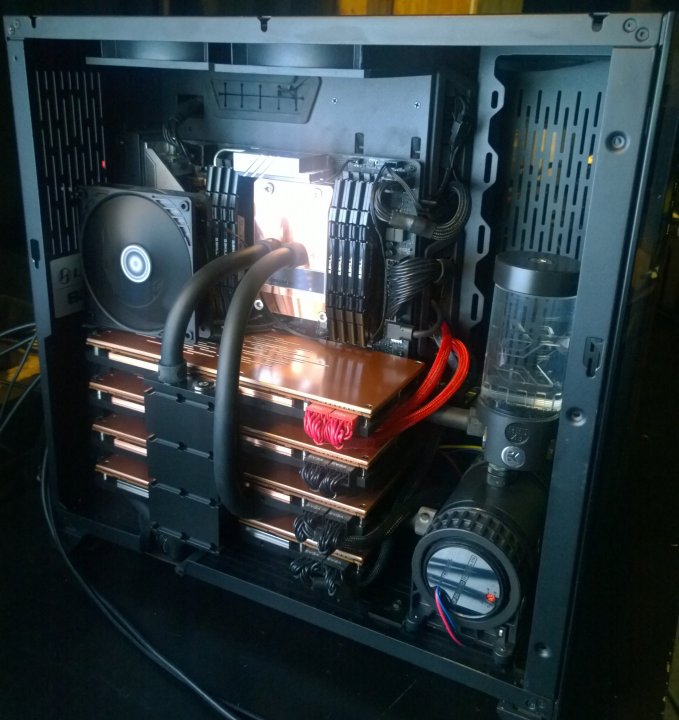

I was rebooting for an update, and made a little change just for @Bastiaan_NL

There is still one red cable hiding in there, but it's pretty much invisible since it's the auxillary PCIe power at the bottom of the board.



[schuck6566]

lol, U need 2 spraypaint those pump wires black so they'll match the decor...

[Sir Beregond]

Or a quick and dirty sleeve job. Have done that with a few fans and pumps.

[Bastiaan_NL]

17 hours ago, tictoc said:



I was rebooting for an update, and made a little change just for @Bastiaan_NL

There is still one red cable hiding in there, but it's pretty much invisible since it's the auxillary PCIe power at the bottom of the board.

Haha thanks! Even more reason to drool

[Diffident]

On 4/5/2021 at 11:18 PM, schuck6566 said:

lol, U need 2 spraypaint those pump wires black so they'll match the decor...

I just use a Sharpie marker.  It's quick and easy with no mess.

[Bastiaan_NL]

42 minutes ago, Diffident said:

I just use a Sharpie marker.  It's quick and easy with no mess.

Been there and done that a lot of times, works great

[iamjanco]

it's still a bit ugly and probably fits best here at the moment...



lighting setup works fine and i'll post another shot once it gets dark. dimmers have been added to most of the lighting, but i still have to add a dimmer to the one that's currently hidden in the far left.



my jury rigged test setup:





the bigger picture:





also going to throw an ammeter on it to see how much current the whole thing draws when fully powered; and I'm still waiting on fuses for the big knife switch.



Edited July 3, 2021 by iamjanco

[J7SC_Orion]

3 hours ago, iamjanco said:

it's still a bit ugly and probably fits best here at the moment...



lighting setup works fine and i'll post another shot once it gets dark. dimmers have been added to most of the lighting, but i still have to add a dimmer to the one that's currently hidden in the far left.



my jury rigged test setup:





the bigger picture:





also going to throw an ammeter on it to see how much current the whole thing draws when fully powered; and I'm still waiting on fuses for the big knife switch.





...ahem, which way is up ?

Also, I hope 'Frank' doesn't trip and fall into the spinning Noctuas

[Diffident]

4 hours ago, iamjanco said:

it's still a bit ugly and probably fits best here at the moment...



lighting setup works fine and i'll post another shot once it gets dark. dimmers have been added to most of the lighting, but i still have to add a dimmer to the one that's currently hidden in the far left.



my jury rigged test setup:





the bigger picture:





also going to throw an ammeter on it to see how much current the whole thing draws when fully powered; and I'm still waiting on fuses for the big knife switch.



 I picture Frankenstein laying on a table somewhere in that room.

[iamjanco]

thanks, guyz



here's an after dark shot with the one light in the far left turned off:



[J7SC_Orion]

23 minutes ago, iamjanco said:

thanks, guyz



here's an after dark shot with the one light in the far left turned off:





...wow !



Good thing your chair has pass-throughs for a safety harness coz that looks like a wild if gorgeous ride

[schuck6566]

15 hours ago, iamjanco said:

it's still a bit ugly and probably fits best here at the moment...



lighting setup works fine and i'll post another shot once it gets dark. dimmers have been added to most of the lighting, but i still have to add a dimmer to the one that's currently hidden in the far left.



my jury rigged test setup:





the bigger picture:





also going to throw an ammeter on it to see how much current the whole thing draws when fully powered; and I'm still waiting on fuses for the big knife switch.





11 hours ago, Diffident said:

 I picture Frankenstein laying on a table somewhere in that room.



[Minotaurtoo]

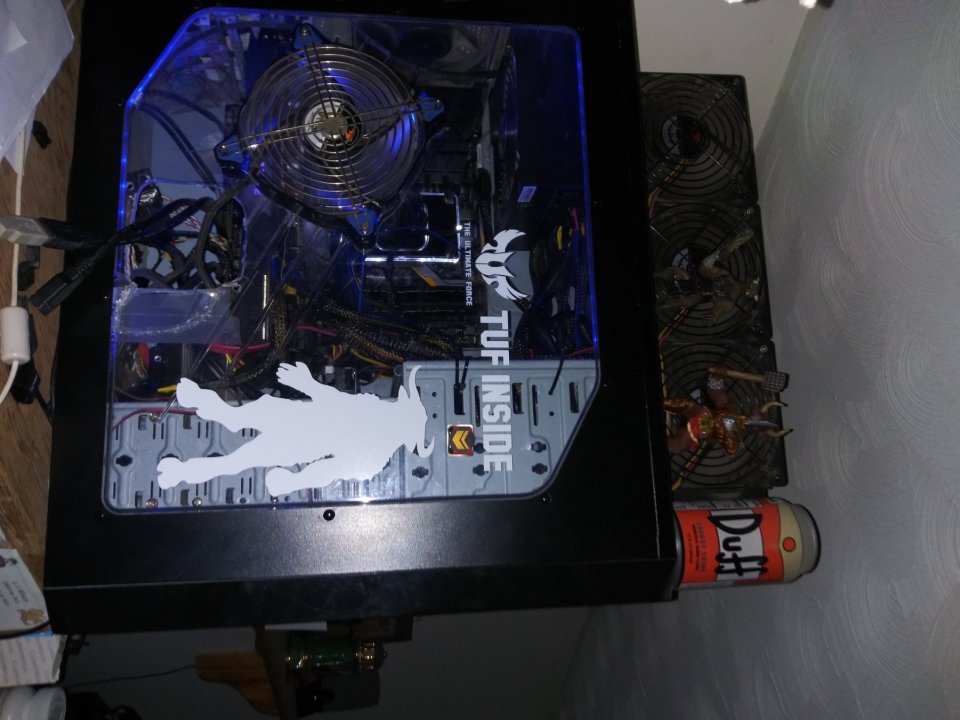

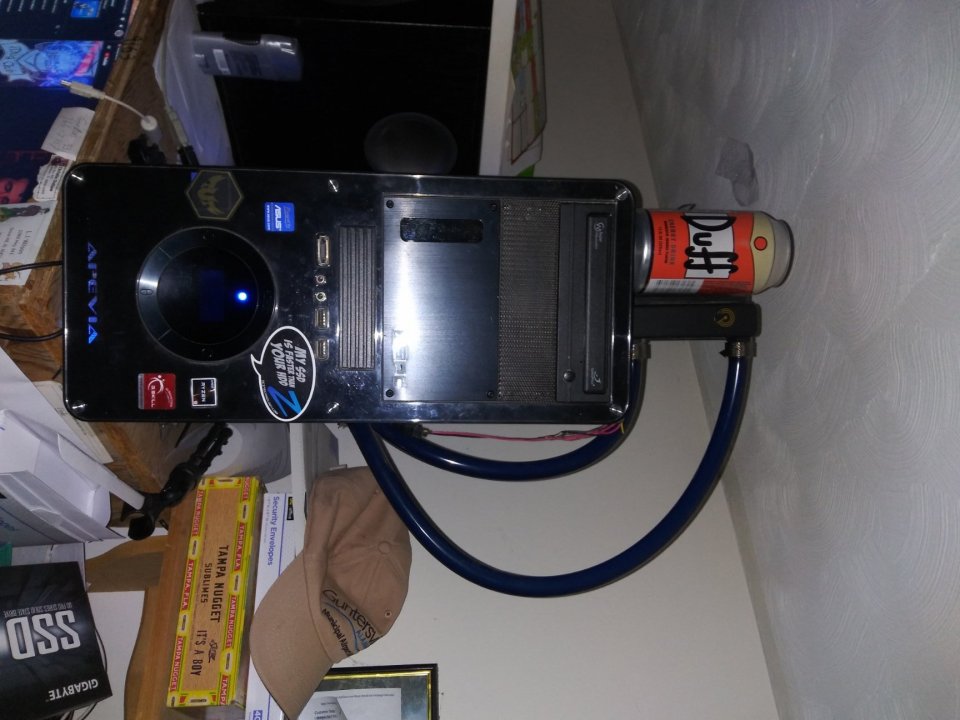

any side of my PC is the ugly side.... that's why it sits up on a shelf lol... the lights in it were there back when I actually tried... 4 or so builds later in the same box and I have completely abandoned all pretense of cable management, I just keep stuff out of the airflow and call it... what can I say, this is a working rig, not a glamourous model .... now my wifes PC, I kept neat, hers doesn't even have an ugly side, all cables stuffed into the bay area up top... and what do you know, you can't even see into hers ... somethings wrong with me lol.

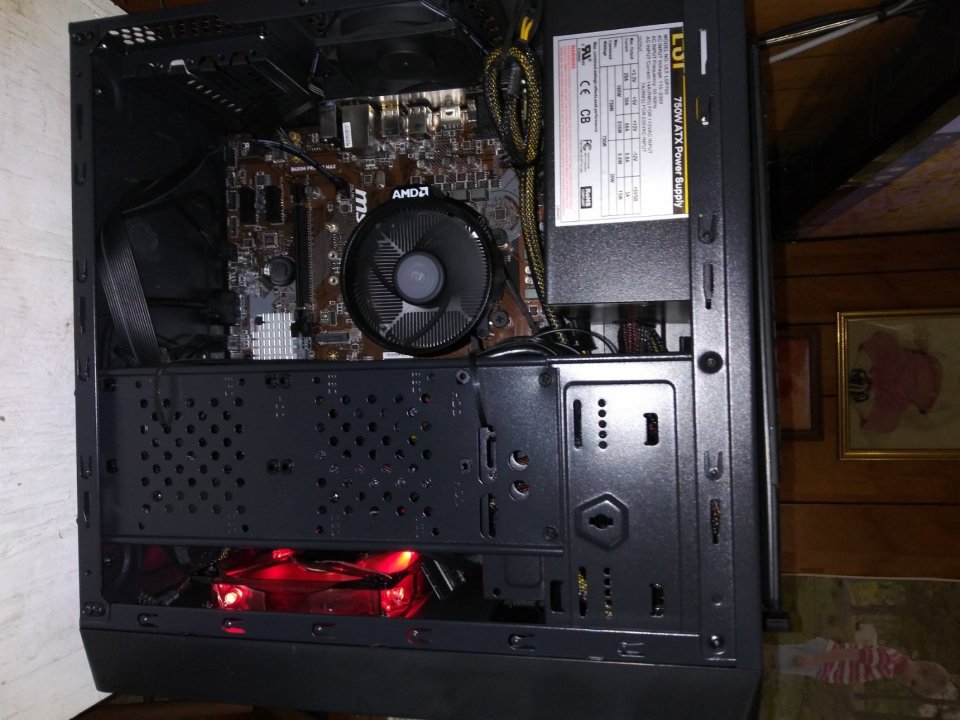

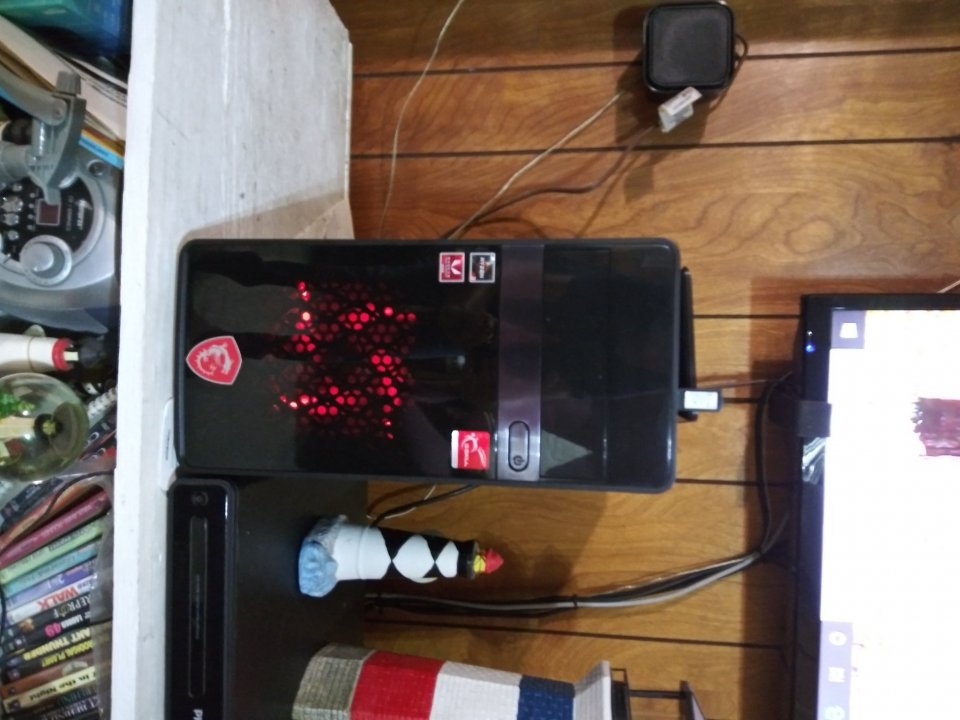

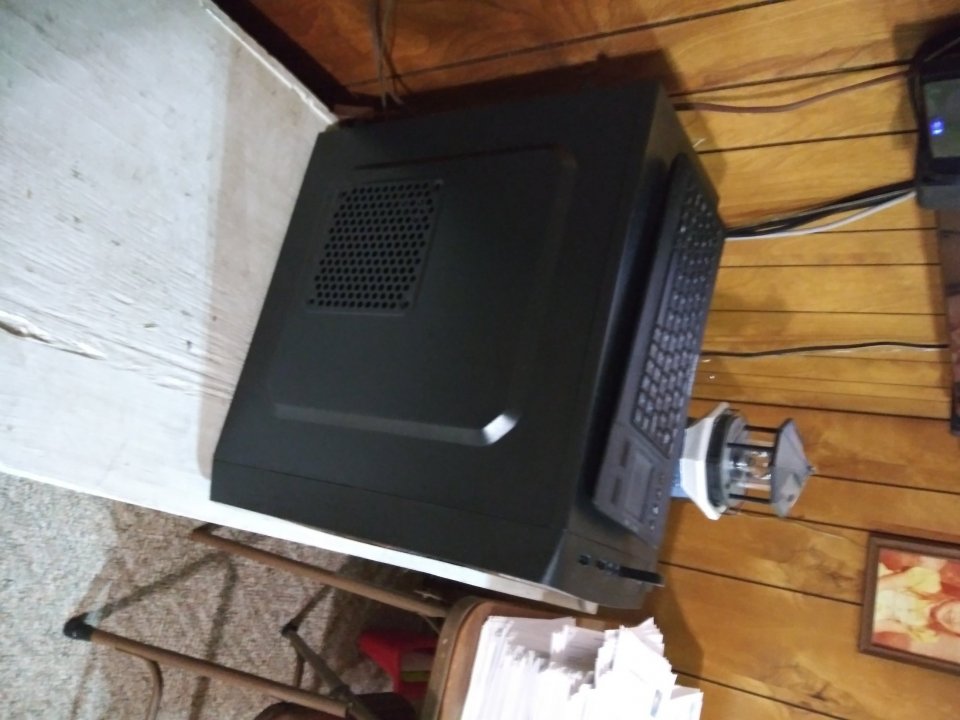

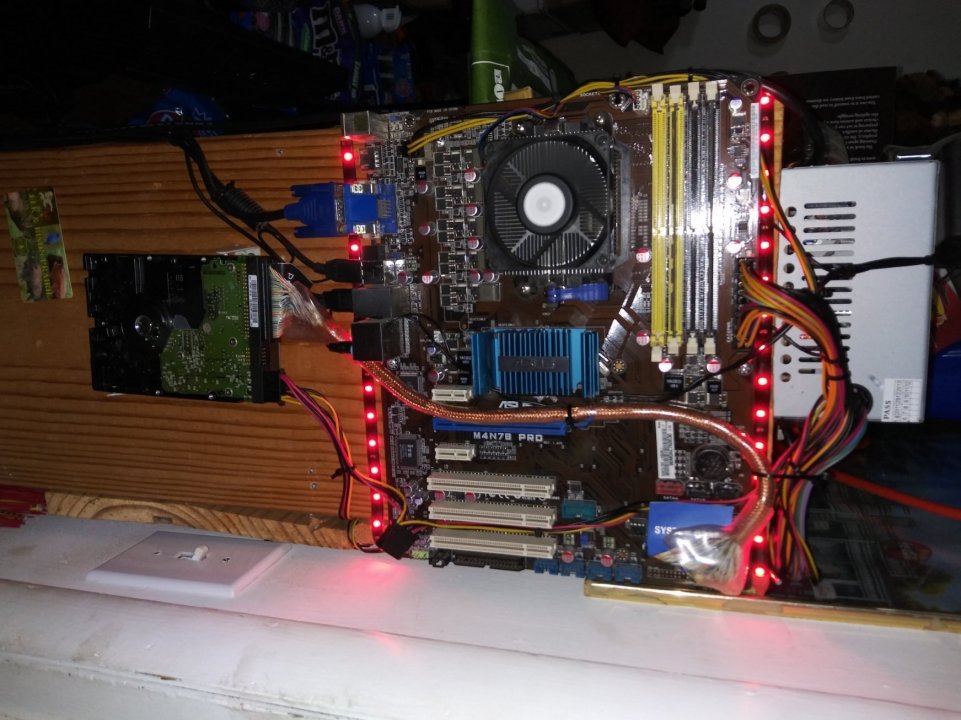

As you have guessed, the first two are my travesty... a real work horse, but ugly as sin.  The next 3 are my wife's dainty little HTPC, not the cleanest build (needs zip ties), but pretty clean for me.... the last picture is my retro PC build on a wall... I worked harder on the cable management on it than any computer I ever have and it's still a bit ugly, but still neat I think.



By now you know I don't do glamour builds, I just make it work and keep it's cool... ok, I suck at good looking builds so I gave up.



Edit: People always ask what's up with all the cables coming out of the side... well.. the PC is so far away from where I actually work, I ran some of the front panel stuff down to where I am... and just recently added the power button to the mix.

Edited April 12, 2021 by Minotaurtoo

[Sir Beregond]

12 hours ago, iamjanco said:

thanks, guyz



here's an after dark shot with the one light in the far left turned off:



Way too cluttered for my day to day, but my god, looks awesome. I like what you did with the place.

[Bastiaan_NL]

20 hours ago, iamjanco said:

it's still a bit ugly and probably fits best here at the moment...



lighting setup works fine and i'll post another shot once it gets dark. dimmers have been added to most of the lighting, but i still have to add a dimmer to the one that's currently hidden in the far left.



my jury rigged test setup:



the bigger picture:



also going to throw an ammeter on it to see how much current the whole thing draws when fully powered; and I'm still waiting on fuses for the big knife switch.



That is really cool, so much to look at and going on there!

But I've got to agree with @Sir Beregond that it would be a bit too much for my "office".

If you had to pick one thing you like the most on that wall, what would it be?



3 hours ago, Minotaurtoo said:

any side of my PC is the ugly side.... that's why it sits up on a shelf lol... the lights in it were there back when I actually tried... 4 or so builds later in the same box and I have completely abandoned all pretense of cable management, I just keep stuff out of the airflow and call it... what can I say, this is a working rig, not a glamourous model .... now my wifes PC, I kept neat, hers doesn't even have an ugly side, all cables stuffed into the bay area up top... and what do you know, you can't even see into hers ... somethings wrong with me lol.



As you have guessed, the first two are my travesty... a real work horse, but ugly as sin.  The next 3 are my wife's dainty little HTPC, not the cleanest build (needs zip ties), but pretty clean for me.... the last picture is my retro PC build on a wall... I worked harder on the cable management on it than any computer I ever have and it's still a bit ugly, but still neat I think.



By now you know I don't do glamour builds, I just make it work and keep it's cool... ok, I suck at good looking builds so I gave up.



Edit: People always ask what's up with all the cables coming out of the side... well.. the PC is so far away from where I actually work, I ran some of the front panel stuff down to where I am... and just recently added the power button to the mix.

If it works and doesn't overheat.. I do like spending a lot of time building something that looks good, but it does get out of control sometimes spending hours on something that doesn't improve temps or function. As long as the cables are not blocking any airflow and can't touch the fans it's not a big deal.

I like what you did with those cables out the side, I used to have a system on a shelf above me and it was hard to reach the power button and usb ports so I did the same

[iamjanco]

Again, thanks guyz



The clutter doesn't bother me in the least and when i started out with this wall display, I was going to squeeze as much as I could into it. There's actually a lot of social-psychology wrapped into its theme, which pretty much has to do with a lot of things that helped make me (and many others) what I/we are today.



Anyway...



For those who commented on the "Frankenstein" aspects of the display:





Still need to add fluids to the vessel holding the brain there.



On 12/04/2021 at 13:32, Bastiaan_NL said:

If you had to pick one thing you like the most on that wall, what would it be?



That would be what follows:





The two small bottles arrived today.



I also received a few other small bottles which I've added to the "radioactive" section of the display:





That's it for now.

Edited July 3, 2021 by iamjanco

[Bastiaan_NL]

11 minutes ago, iamjanco said:

That would be what follows:



The two small bottles arrived today.



I also received a few other small bottles which I've added to the "radioactive" section of the display:

Is there a story why you picked that one? Also, I love the radioactive section!

I keep asking myself the same question every time I look at one of your pictures: "what do I like the most?".
It's hard to answer, but I think I the knife switch is number 1. As I mentioned before, spending many hours in engine rooms I get to see a lot of switchboards and stuff like that. I should get something like that to turn on the light, will brighten up my day

[iamjanco]

On 12/04/2021 at 15:07, Bastiaan_NL said:

Is there a story why you picked that one? Also, I love the radioactive section!

I keep asking myself the same question every time I look at one of your pictures: "what do I like the most?".

It's hard to answer, but I think I the knife switch is number 1. As I mentioned before, spending many hours in engine rooms I get to see a lot of switchboards and stuff like that. I should get something like that to turn on the light, will brighten up my day



A story? More like a collection of stories culminating in something akin to Forrest Gump.



Life has been one huge box of chocolates

Edited July 3, 2021 by iamjanco
