The ugly side


Zonalo
6 Attachments

Recommended Posts

This may or may not be the correct place for this topic but I am curious... I want to see the ugly side!



It's easy to find super sexy glamour shots of PC builds with all the lights on and fancy camera settings. Not so much the side with all the cables. SO, I'll show you mine and you show me yours. Would also be curious to know how much crap's worth of wires you tucked, but I suppose some things should stay private.



Here's mine. Wired: AIO, 3 GPUs, water pump, fan/RGB hub, 7 fans, 2 SSDs, and front panel i/o

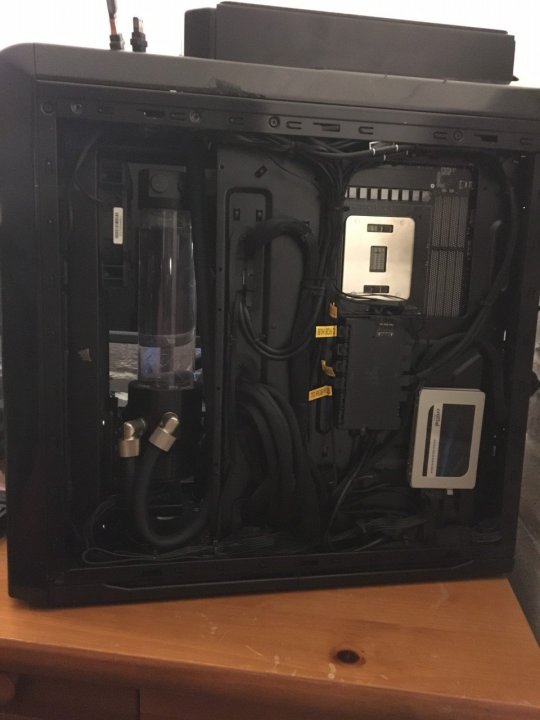

ugly side.jpg

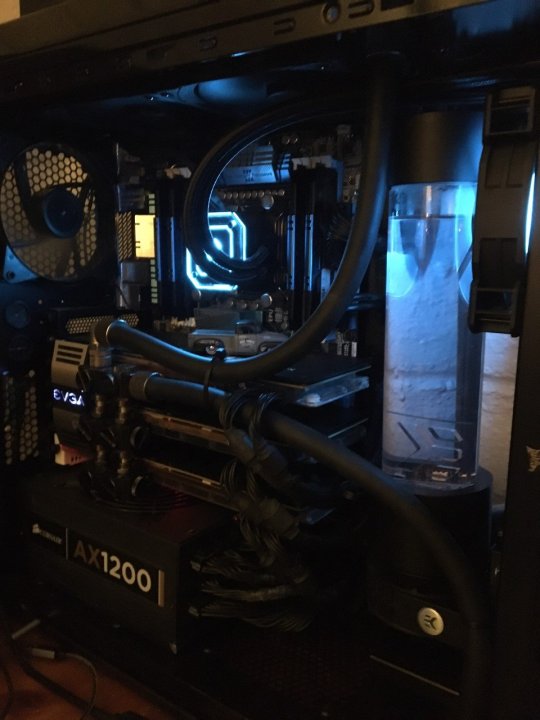

pc 3-4-21.jpg

  • Thanks 1
Link to comment
Share on other sites

I used to work at Digital storm, these are just a few pics from back then except for the last one which was a personal PC of mine back when I had a non modular 850 watt PSU and a small case that came with way too many cables.



WP_000113 (1).jpg

WP_000085 (1).jpg

WP_000201 (1).jpg


Edited by UltraMega

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

23 hours ago, Zonalo said:

This may or may not be the correct place for this topic but I am curious... I want to see the ugly side!



It's easy to find super sexy glamour shots of PC builds with all the lights on and fancy camera settings. Not so much the side with all the cables. SO, I'll show you mine and you show me yours. Would also be curious to know how much crap's worth of wires you tucked, but I suppose some things should stay private.



Here's mine. Wired: AIO, 3 GPUs, water pump, fan/RGB hub, 7 fans, 2 SSDs, and front panel i/o





ugly side.jpg

pc 3-4-21.jpg

Kills me to see an awesome 3-way SLI and then notice an AIO. Sigh, any reason you did not go all the way?

Link to comment
Share on other sites

I don't dare open up the ugly side on my rigs.  I have to literally sit on them to close the dang doors.  I'm actually amazed at how clean your ugly sides are though, wow.  I just let things dangle back there.

Pretty neat topic, subbed for more pics lol.

  • Thanks 1

Owned

 Share

CPU: Ryzen 7900x
GPU: Sapphire Pulse RX 7900XTX
PSU: Cooler Master 850w Platinum
CPU COOLER: Cooler Master MasterLiquid PL360 Flux
MOTHERBOARD: Gigabyte B650 Aorus AX
SSD/NVME: Solidigm P41 Plus 2TB Gen4 NVME
RAM: G.Skill Flare X DDR5-6000
CASE: HAF700 Berserker
Full Rig Info

Too much

Owned

 Share

CPU: AMD Opteron 180 @ 3.0GHz
MOTHERBOARD: Asus A8N SLI
RAM: 4x1GB Corsair XMS DDR400 @ 2.5-3-3-6
PSU: eVGA 600BQ
GPU: Sapphire HD5870
SOUNDCARD: Asus Xonar DG
OPTICAL: DVDRW with Lightscribe
SSD/NVME: 64GB HP 2.5" SSD
Full Rig Info

Too much

Owned

 Share

CPU: AMD Athlon 1100MHz
MOTHERBOARD: ECS K7S5A
RAM: 2x256MB Corsair XMS DDR400 @ 133MHz / CAS2
PSU: Antec 350w
GPU: ATI Radeon 9800 PRO
SOUNDCARD: Creative Live! 5.1
OPTICAL: LG 16x DVD-ROM
OPTICAL 2: IOMagic 48x16x48 CDRW
Full Rig Info
Link to comment
Share on other sites

I will take a pic of mine when I fit my GPU block. I actually have to force my side panel shut haha.



classic reaction abandon thread GIF

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

I've been looking through all my folders, on my phone, my main pc and my backup drive and I've only found one picture from "the ugly side" from all the systems I've build in the past 15 years..

So I'll take some pictures as soon as I've got my case open again, I don't like lifting/moving that thing cause of the weight :classic_laugh:



This is the only one I could find, a build for a friend from 03-2010.

CM Centurion 590 / Phenom II X4 965 / HD5770 and an overkill PSU (xfire plans, never happened)




And one from the somewhat better side:


Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

8 minutes ago, Bastiaan_NL said:

I've been looking through all my folders, on my phone, my main pc and my backup drive and I've only found one picture from "the ugly side" from all the systems I've build in the past 15 years..

So I'll take some pictures as soon as I've got my case open again, I don't like lifting/moving that thing cause of the weight :classic_laugh:



This is the only one I could find, a build for a friend from 03-2010.

CM Centurion 590 / Phenom II X4 965 / HD5770 and an overkill PSU (xfire plans, never happened)




And one from the somewhat better side:


Cleanest one so far. I don't think you have a big enough power supply for that beast though, def not overkill ?

Edited by UltraMega

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

3 hours ago, UltraMega said:

Cleanest one so far. I don't think you have a big enough power supply for that beast though, def not overkill ?

Thanks :)
Haha yes, I really don't know why we used that big boy. I know he had plans to use a second HD5770 but even with 2 of those 650w would have been more than enough...



1 hour ago, Diffident said:

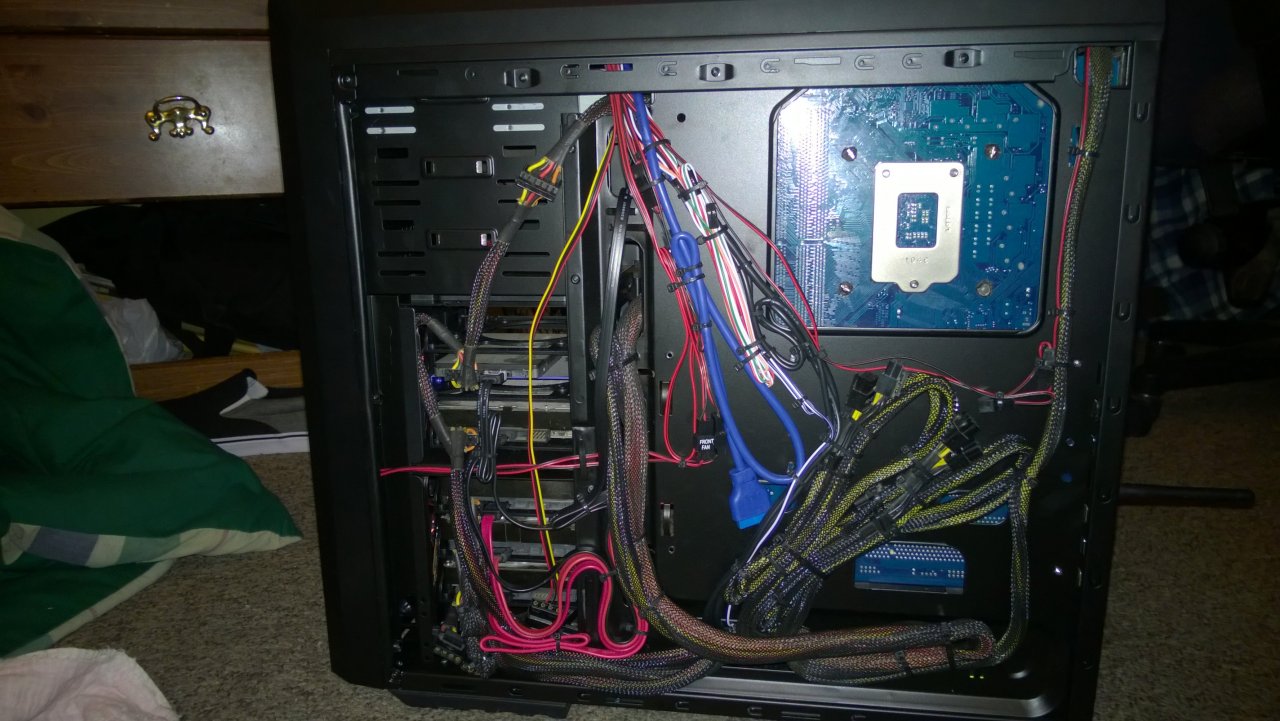

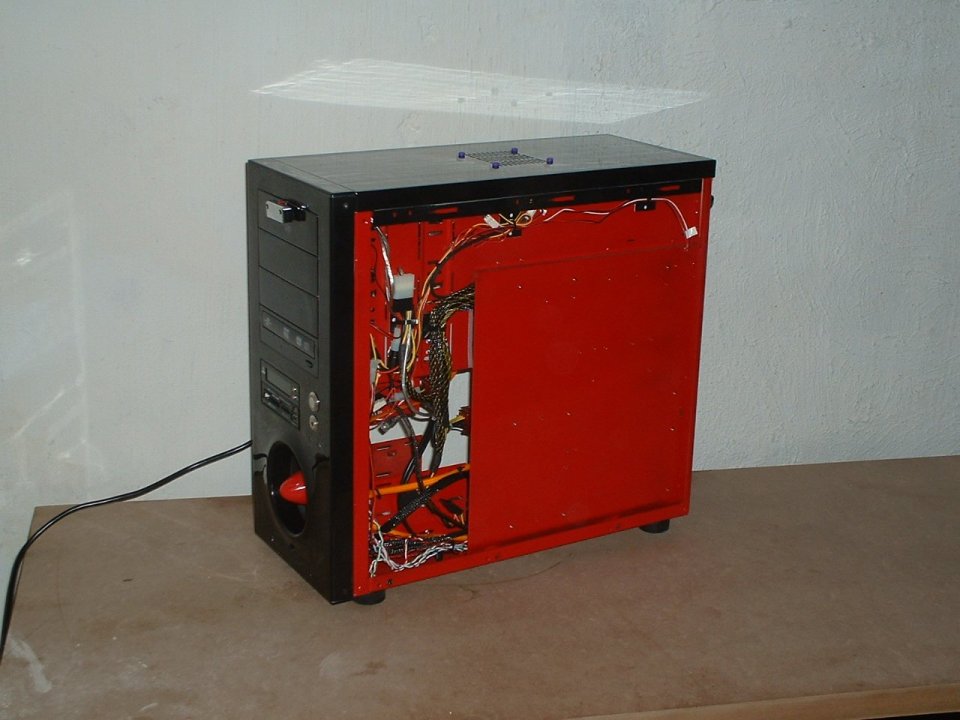

Here's an old one of mine.  I usually don't take "ugly side" pictures.  This was from 2008, an E8400 system in a Lian-Li something that I modded.  The other side is ugly too, considering the gawdy DFI Lanparty board that's in it. ?

That is not so bad, right? I like the jet intake on the front :classic_biggrin:



1 hour ago, Avacado said:

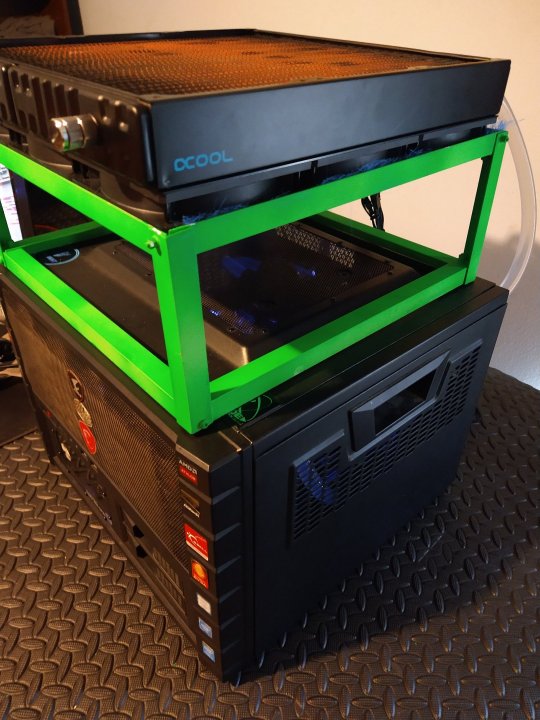

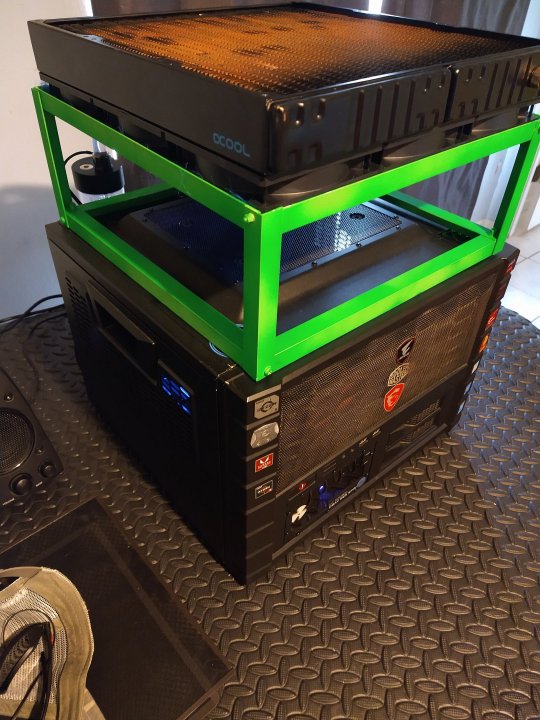

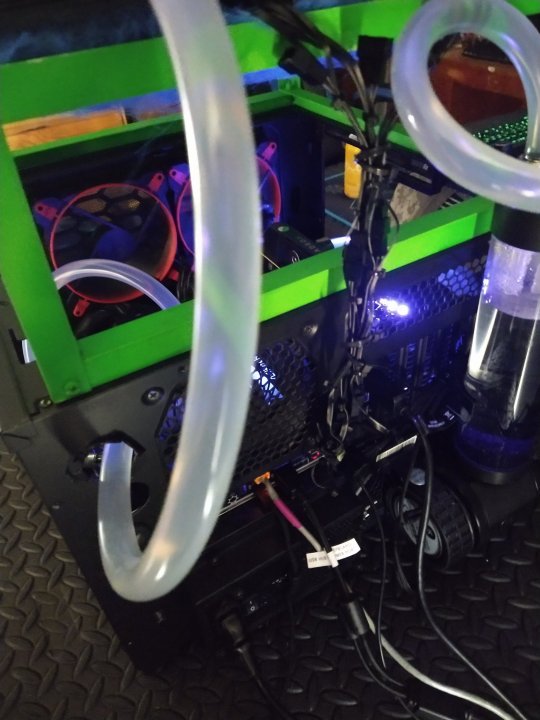

Here's my current "Ugly side". Both sides of this s8s are windowed. Cable management is sub-par.  Meh.



Folding Rig's U side.



For what you had to work with the result is pretty decent! Better than the Folding Rig.. :classic_tongue:



Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

ill take a picture of mine....when im shutting down for the  night so i can unplug it and turn it 180, heres the good side for now though. it is ITX., before anyone asks.

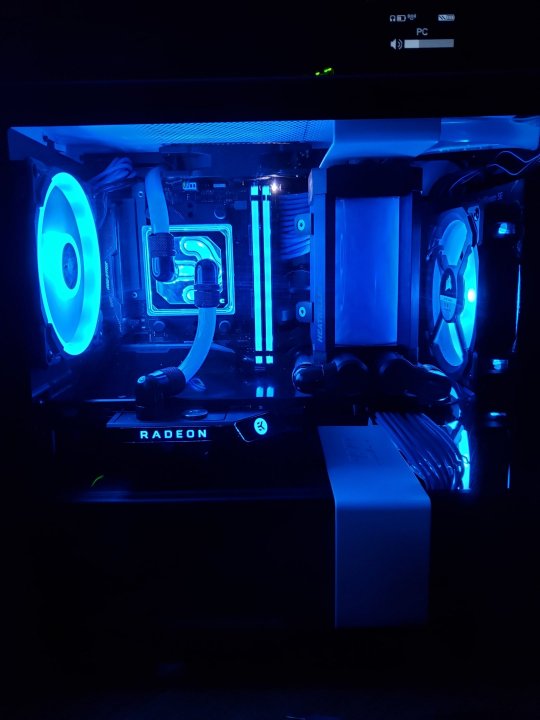

anim (3).jpg

Owned

 Share

CPU: AMD R7 7800X3D
GPU: AMD RX Sapphire 7800XT Pure
MOTHERBOARD: MSI B650M Project Zero
RAM: Corsair Dominator Platinum 64GB 32-38-38 @ 6200mhz
SSD/NVME: Sabrent Rocket NVMe 500GB (Windows)
SSD/NVME 2: WD Black SN850X 4TB (Games)
SSD/NVME 3: Cruicial MX 500 2TB (Programs)
SSD/NVME 4: Crucial MX 300 1TB (Documents/Downloads)
Full Rig Info

Owned

 Share

CPU: Xeon 5345 @ 2.3GHZ
CPU 2: Xeon 5345 @ 2.3GHZ
MOTHERBOARD: Intel S5000PSL E-ATX
RAM: 32GB Hynix ECC DDR2 667Mhz
CPU COOLER: 2x Dynatron 2U Heatsinks
SSD/NVME: Samsung 840 EVO 120GB
HDD: Seagate Firecuda Compute 2TB
OPERATING SYSTEM: Winodws Server 2019 Standard
Full Rig Info
Link to comment
Share on other sites

Folding@Home Staff


3.50

Owned

 Share

CPU: 5600x
GPU: EVGA RTX 3090 FTW3 Ultra
GPU 2: EVGA RTX 3080ti FTW3 Ultra
GPU 3: EVGA RTX 3080ti XC3 Hybrid
GPU 4: EVGA RTX 3070ti FTW3 Ultra
GPU 5: MSI RTX 3070 Gaming X Trio
GPU 6: Asus RTX 2080ti ROG STRIX
GPU 7: EVGA RTX 3080ti FTW3 Ultra
Full Rig Info
Link to comment
Share on other sites

13 hours ago, Avacado said:

Kills me to see an awesome 3-way SLI and then notice an AIO. Sigh, any reason you did not go all the way?


My CPU block had a bad mount and while it was apart for an extended amount of time while I was turning the SLI water bridges (stainless... bad choice) I came up on that Corsair AIO so I slapped it in. Long-term was to add a second custom loop for the cpu, but my stuff seldom stays together long enough for “long term” anything lol and I’m pretty sure that monsta rad is more than enough for 4 GPUs and a cpu



Pic before AIO


Link to comment
Share on other sites

Scrolling through this topic is so awesome. Just cruising a bunch of real computer pics. Keep em coming! I’ve been admitted to the hospital again and need some tech porn to keep me entertained. This time I planned for stay and brought some headphones and a long charging cable for my phone. You guys are awesome. Thanks for keeping me company. No visitors due to Covid restrictions

Link to comment
Share on other sites

6 hours ago, Zonalo said:

Scrolling through this topic is so awesome. Just cruising a bunch of real computer pics. Keep em coming! I’ve been admitted to the hospital again and need some tech porn to keep me entertained. This time I planned for stay and brought some headphones and a long charging cable for my phone. You guys are awesome. Thanks for keeping me company. No visitors due to Covid restrictions

Sorry to hear you are back there, I hope you'll feel better soon! I'll see if I can take a few pictures from the active systems today.
Good thing you have your headphones and cable with you, that's actually always the first thing I pack if I need to spend the night somewhere else.

  • Thanks 1

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

1 hour ago, schuck6566 said:

an example of why I don't post "ugly pics". My parts would die of shame and I might be reported for abuse....

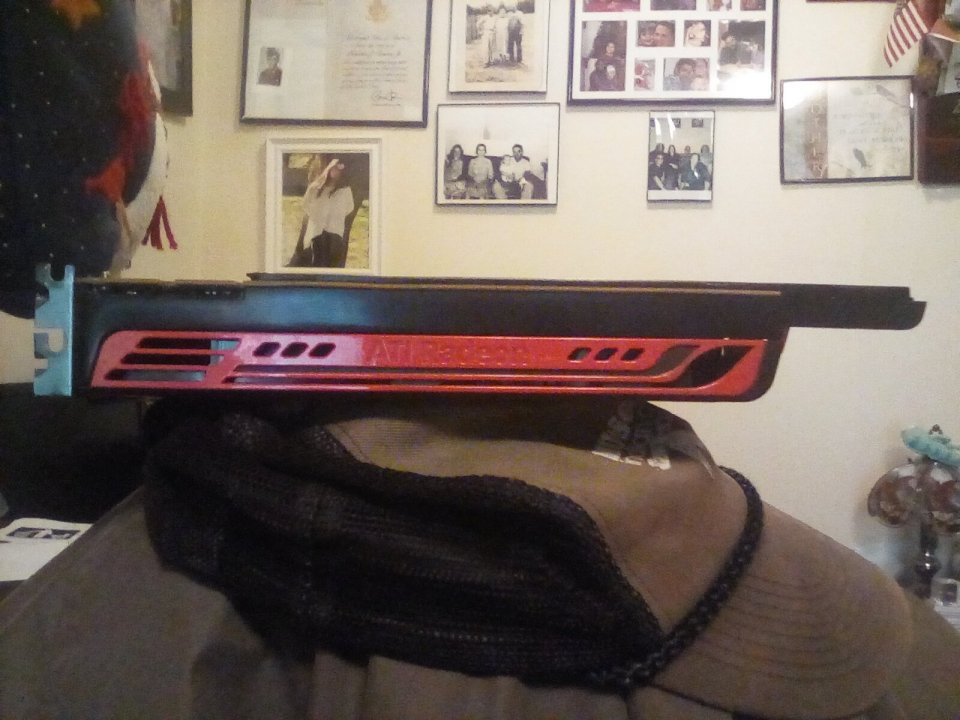

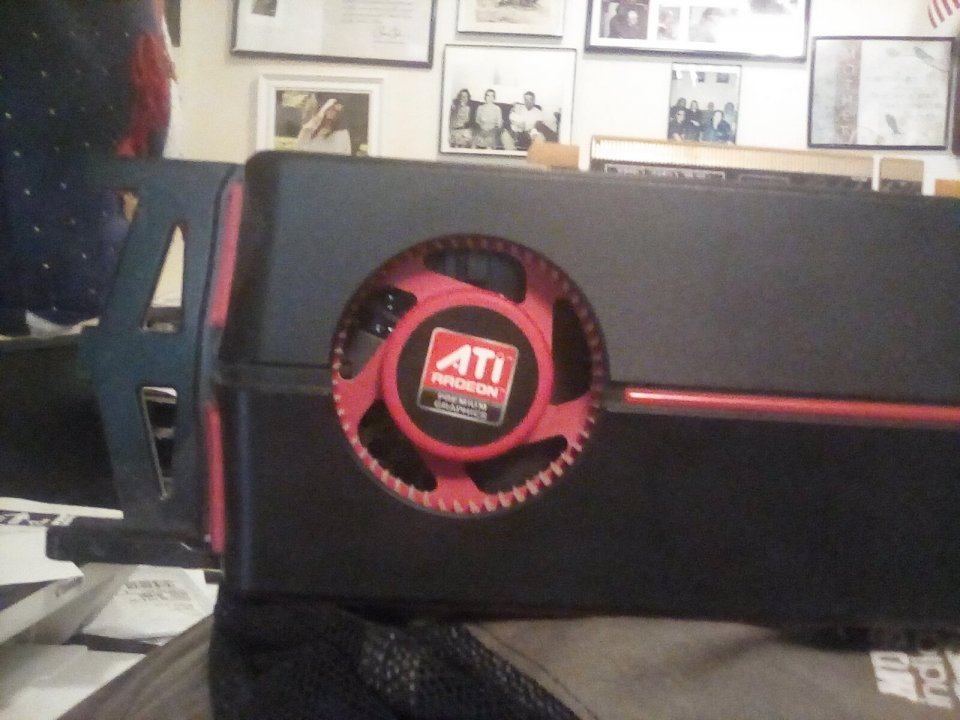

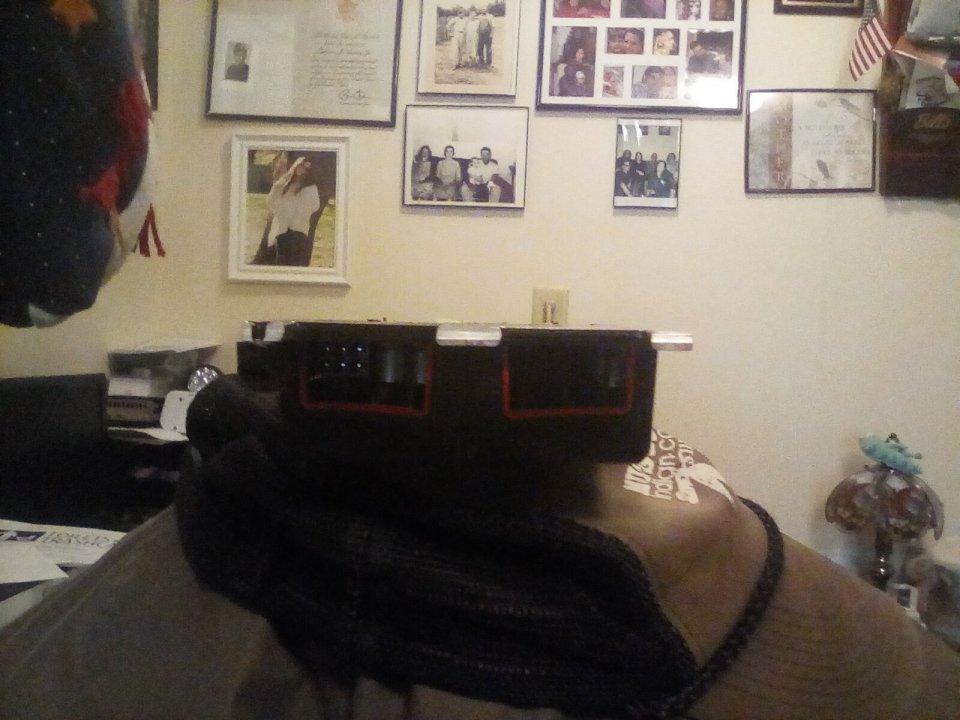

This is an HD 5770 with the metal back plate,I had to cut the end of the plate off because it wouldn't fit in 1 of my cases like it was.?

I've done some things like that too, sometimes it's needed to make it work :classic_tongue:



This is the back side of the Main system. Not my cleanest job, but the Define 7XL has a lot of room so it's not needed to run everything really clean.
It has been taken apart a few times already, so it started really clean and organized and slowly became messy.






The front of "The Office", the little fan is there to support the 3090 :classic_laugh:
I never took the time to hide the third 8pin cable. I've been swapping/adding/removing cards to this system a lot, that's why the other 2 8pin cables are twisted and messy.






And the back side, way less room on this Meshify 2 case compared to the 7XL. So the cables are spread out to be able to close the back panel.

Again not the cleanest, but I know myself and how easy I can decide to switch out hardware between my systems so I'm not going to clean that up.




[edit]

And as some of you may notice, I'm a Fractal Design and Corsair fanboy :classic_love:

Edited by Bastiaan_NL
  • Thanks 1

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

11 minutes ago, Bastiaan_NL said:












Damn, all very fancy looking except for that fan under the GPU. Have you ever thought about getting something like this:

Amazon.com: StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector (FANCASE), Black: Electronics

Amazon.com: GDSTIME Graphic Card Fans, Graphics Card Cooler, Video Card Cooler, PCI Slot Dual 90mm 92mm Fans, VGA Cooler: Computers & Accessories



Amazon.com: E-outstanding 1-Pack Dual Fan Mount Rack PCI Slot Bracket for Video Card DIY Support 9cm/12cm Fan Computer Radiator Holder: Computers & Accessories



I wouldn't be surprised if the 3000 series brings PCI fans back into style.

Edited by UltraMega
  • Thanks 1

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

1 minute ago, UltraMega said:

Damn, all very fancy looking except for that fan under the GPU. Have you ever thought about getting something like this:

Amazon.com: StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector (FANCASE), Black: Electronics

Amazon.com: GDSTIME Graphic Card Fans, Graphics Card Cooler, Video Card Cooler, PCI Slot Dual 90mm 92mm Fans, VGA Cooler: Computers & Accessories



I wouldn't be surprised if the 3000 series brings PCI fans back into style.

Thanks :)
I have a few of those Bykski videocard support brackets by the way, but that's not installed because of the hardware changes.



A single 3090 is alright for now, maxing out at about 48°C over ambient with 470w powerdraw. Inside the case it's not really needed to supply extra air to the card, the 3 fans on the cooler are pretty big and the heatsink is massive. Both those systems are positive pressure with dustfilters on all the intake fans which I clean once every 2 weeks. I do like that dual fan setup though, I'll keep that one in mind if I ever run into overheating problems!

I had a getto mounted exhaust fan on the dual 5700xt setup to suck away the hot air through the slot openings and 2 fans inside to feed the coolers, made a pretty big difference! Something like the CM ATCS 840 box with a fan on it.



Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

1 hour ago, schuck6566 said:

an example of why I don't post "ugly pics". My parts would die of shame and I might be reported for abuse....

This is an HD 5770 with the metal back plate,I had to cut the end of the plate off because it wouldn't fit in 1 of my cases like it was.?

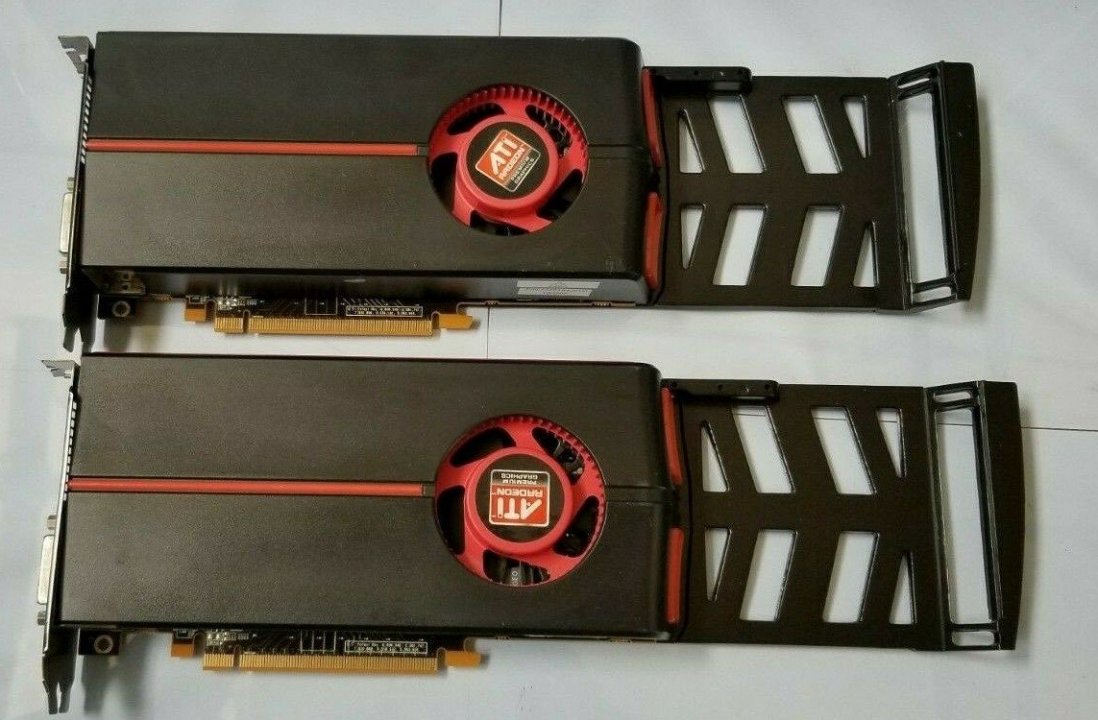

Was that one of those 5770's that had the bracket for Macs?



I have a couple 5770's still and they were just bare PCB on the back.

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1 OLED
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

22 hours ago, Sir Beregond said:



Was that one of those 5770's that had the bracket for Macs?



I have a couple 5770's still and they were just bare PCB on the back.

It came installed in my Dell XPS 8300. I should have gone with the nvidia card they offered,but I just waited and upgraded to a gtx 970 on that and used the 5770 on my xeon build before I got a nvidia card for it. ? It's the back that kinda looks like it's a carrying handle on the end.lol

Edit: I found a pair of them for sale just now on ebay for $60.00 lol here's a pic from there...


Edited by schuck6566
  • Thanks 1
Link to comment
Share on other sites

  • 2 weeks later...
Folding@Home Staff - Team Lead












Edited by damric
  • Thanks 1

Owned

 Share

CPU: Ryzen 9 5950x
MOTHERBOARD: B550 PG Velocita
RAM: 4x8GB Ballistix
GPU: RX 6900 XT
PSU: LEADEX V Platinum 1KW
CASE: QUBE 500
SSD/NVME: T-FORCE CARDEA A440 PRO
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 5 5500
MOTHERBOARD: X470 TAICHI
RAM: Crucial Ballistix MAX 2x8GB
PSU: EVGA SUPERNOVA P5
SSD/NVME: Silicon Power A60 256GB
GPU: Quadro M4000
GPU 2: Quadro M4000
GPU 3: Quadro M2000
Full Rig Info
Link to comment
Share on other sites

6 hours ago, tictoc said:

Here's my workstation.  Looks a bit dusty. :)







Wouldn't mind seeing the front too. How's that res currently mounted?

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1 OLED
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now



×
×
  • Create New...

Important Information

This Website may place and access certain Cookies on your computer. ExtremeHW uses Cookies to improve your experience of using the Website and to improve our range of products and services. ExtremeHW has carefully chosen these Cookies and has taken steps to ensure that your privacy is protected and respected at all times. All Cookies used by this Website are used in accordance with current UK and EU Cookie Law. For more information please see our Privacy Policy
