Optimal sound card/audio setup w Z-5500 Logitech sound system


Go to solution Solved by pio,

Recommended Posts

  On 10/02/2022 at 04:52, Storm-Chaser said:

Can you offer any recommendations for making it more boomy? It's superb right now, but I think I can make it even better with the right enclosure, or the right subwoofer positioning relative to walls or whatever. The subwoofers seem to kick harder when you have them positioned right. And on the desk and table is not ideal.

Expand



Yeah, here's a little trick to finding the right spot for the subwoofer.  Place your subwoofers, one at a time, on your chair.  Try to have them elevated so the port is near where your ears would be at when sitting and listening.  Play some bass.  Now......walk around your room and find your "hotspot", the wall or corner where the bass hits the hardest at with the sub in your chair.  That corner of your room is where the subwoofer should go.  You can do the same with the other subwoofer and put them in different corners or the same corner it really won't matter with those setups too much since they're different tuning frequencies anyway.

You can always do it the opposite.  Place your sub in a corner, sit and listen.  Place it in another corner and repeat, etc.  It's faster to put it in your chair and walk around the room though.  You can also play with port placement as well.  Firing the port AT the corner vs firing it out into the room.  If you fire it AT the corner, make sure its away from the wall so the air can get out and move.  The speaker cone itself in that type of enclosure doesn't make the sound, the port does.

  • Thanks 1

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites

  On 10/02/2022 at 04:38, pioneerisloud said:

Either way, should be a boomy setup.  Definitely consider a sound card for the EQ and crossover adjustments it provides for you, it'll help clean up the sound some.  If you're going optical, well nevermind.  Optical is optical regardless if its onboard or a sound card.  If you enjoy the Logitechs, that's what matters.

Expand

Definitely going to pick out a decent sound card here, if anything just for more control like you are saying. I can experiment and might as well have good equipment. However, my motherboard, MSI MEG Z390 ACE has a very good sound card but as far as I can tell, they don't really let you manipulate much. Like no tweaking the pre amp or equalizer. And no software to utilize for tweaking your audio stuff. Which is really annoying because like I said the board has a pretty good sound card built into it.



I will do some research the next couple days to make a decision.  I will run it by you guys before I pull the trigger on the new soundcard.

  • Thanks 1
Link to comment
Share on other sites

  On 10/02/2022 at 05:01, Storm-Chaser said:

Definitely going to pick out a decent sound card here, if anything just for more control like you are saying. I can experiment and might as well have good equipment. However, my motherboard, MSI MEG Z390 ACE has a very good sound card but as far as I can tell, they don't really let you manipulate much. Like no tweaking the pre amp or equalizer. And no software to utilize for tweaking your audio stuff. Which is really annoying because like I said the board has a pretty good sound card built into it.



I will do some research the next couple days to make a decision.  I will run it by you guys before I pull the trigger on the new soundcard.

Expand

I know for a fact Xonars have crossover capabilities for each analogue channel when using the Xonar as your "DAC" (running the analogue green, pink, blue wires out).  Crossovers adjust what frequency each speaker cuts off at.  You obviously cannot go beyond what the speakers can do, or the enclosure.  However you can tweak it some to the point where its beneficial.  For example, say the z5500 has a 150Hz crossover between the speakers and the sub.  You could try changing that down to say 120Hz or 100Hz, to bring some more of the directional sounding upper bass frequencies away from the sub, and up to your ears with the small speakers.  Or, you could change it upwards to 180-200Hz and let the more powerful subwoofer handle those frequencies.  The goal of a subwoofer, in most systems, is to BLEND in the lower octave or two of sound as these are frequencies your main front speakers generally just cannot produce.  In a perfect system, you should not be able to pinpoint exactly where the sub is at in the room, it should just "be there".  In GENERAL that frequency is around 80Hz or so.  It will vary room to room and setup to setup.  THX standard is 120Hz.  I'm not 100% sure you'll get there with the z5500 set, but you should be able to do fairly well.


The EQ would be a similar help, whereas you can lower certain frequencies that are too boosted as is.  NEVER boost frequencies.  Boosting causes distortion.  It's always better to take the rest of the frequencies DOWN instead of cranking the one lacking one up.  Say you find that 200Hz is extremely loud compared to 500Hz and 100Hz.  You could tone 200Hz down a little in the EQ to make that one frequency a little less loud.

TLDR:  We're all here to help you out.  The point, in my opinion, with audio....so long as YOU are happy with it, that's what matters.  If you want more, its just a question away.  You can have perfect, or you can have fun.  It's difficult to have both.

Edited by pioneerisloud

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites

  On 03/02/2022 at 18:46, Outsider said:

Skip the sound card





The Fulla is the cheaper model.



1/8 to triple RCA cables should work.



Sound cards are generally overpriced for what you get, if you really want or require onboard sound then next time plan ahead if possible and use the money you would spend on the sound card on a better MB with better onboard sound. Still you can't beat going with a USB DAC.

If you need soundsound then software should be good enough for that

Expand

Okay I'm listening... Tell me more about USB DAC and why I should go get one.



Maybe I will pick up a USB DAC and decent sound card as well.

Link to comment
Share on other sites

  On 10/02/2022 at 05:15, pioneerisloud said:

I know for a fact Xonars have crossover capabilities for each analogue channel when using the Xonar as your "DAC" (running the analogue green, pink, blue wires out).  Crossovers adjust what frequency each speaker cuts off at.  You obviously cannot go beyond what the speakers can do, or the enclosure.  However you can tweak it some to the point where its beneficial.  For example, say the z5500 has a 150Hz crossover between the speakers and the sub.  You could try changing that down to say 120Hz or 100Hz, to bring some more of the directional sounding upper bass frequencies away from the sub, and up to your ears with the small speakers.  Or, you could change it upwards to 180-200Hz and let the more powerful subwoofer handle those frequencies.  The goal of a subwoofer, in most systems, is to BLEND in the lower octave or two of sound as these are frequencies your main front speakers generally just cannot produce.  In a perfect system, you should not be able to pinpoint exactly where the sub is at in the room, it should just "be there".  In GENERAL that frequency is around 80Hz or so.  It will vary room to room and setup to setup.  THX standard is 120Hz.  I'm not 100% sure you'll get there with the z5500 set, but you should be able to do fairly well.


The EQ would be a similar help, whereas you can lower certain frequencies that are too boosted as is.  NEVER boost frequencies.  Boosting causes distortion.  It's always better to take the rest of the frequencies DOWN instead of cranking the one lacking one up.  Say you find that 200Hz is extremely loud compared to 500Hz and 100Hz.  You could tone 200Hz down a little in the EQ to make that one frequency a little less loud.

TLDR:  We're all here to help you out.  The point, in my opinion, with audio....so long as YOU are happy with it, that's what matters.  If you want more, its just a question away.  You can have perfect, or you can have fun.  It's difficult to have both.

Expand



Alright then I am going to have some fun with this little project. I think I am on the right track here with all this excellent advice. Generally speaking, I am not an audio expert (just an overclocking expert and tech enthusiast, CPU collector, etc), so this is all good stuff and good food for thought, at least from my perspective. But I've really been through rough seas here (who hasn't? lol) in the past year and music is really helping me get through the days. That's why I can afford to put some money and time into this one. I have my gallium based liquid metal loop on hold ATM, but eventually I will get another z820 and get that going as well but that's still a few months out.



And I'm not through adding more horse power to this sound system. It's going to get better from here. I have an analog splitter coming from amazon tomorrow. I can then (hope to) activate my third sub (sub only) which was from a Z-5300 series Logitech system. All of the small speakers are shot, but the sub is still okay. It should kick really hard with three subwoofers going.  It's not being used so I might as well throw it in the mix.

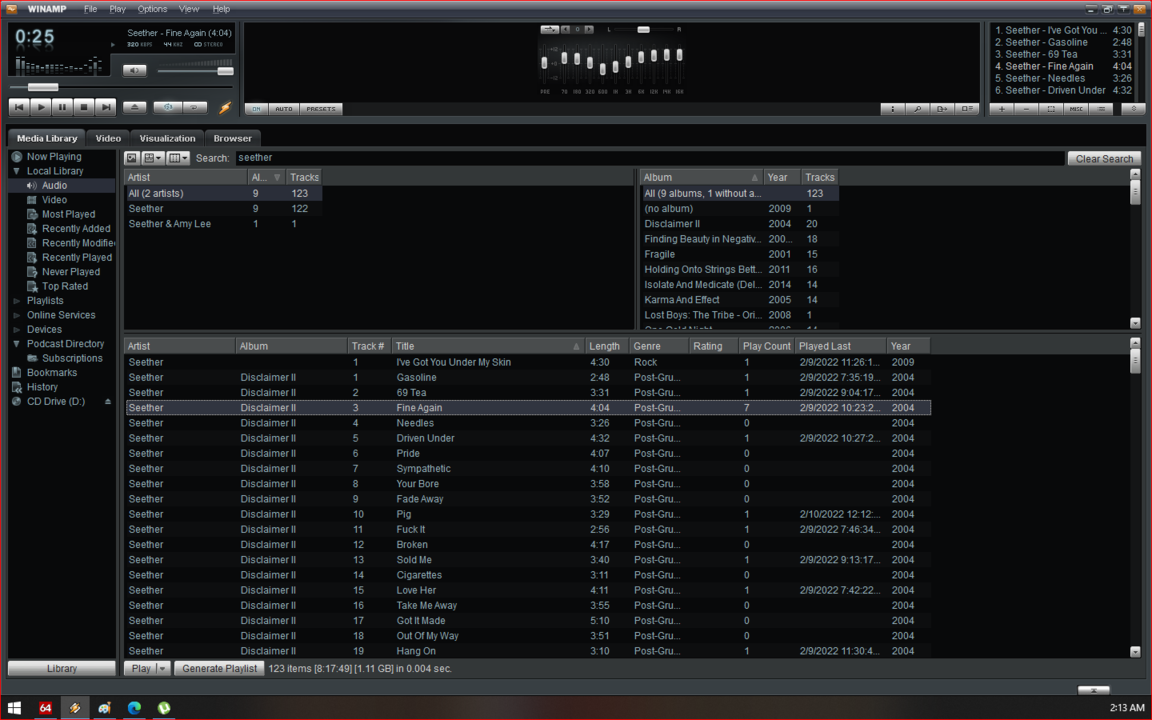

What I am reverting to for now is a program called winamp. Donno if you have used it, but the program is actually very useful. There is a built in EQ with a number of presets you can try out to dial in your speakers for your own preferences. When you say never boost frequencies, do you mean dont use pre-amp?




Link to comment
Share on other sites

  On 10/02/2022 at 07:54, Storm-Chaser said:



Alright then I am going to have some fun with this little project. I think I am on the right track here with all this excellent advice. Generally speaking, I am not an audio expert (just an overclocking expert and tech enthusiast, CPU collector, etc), so this is all good stuff and good food for thought, at least from my perspective. But I've really been through rough seas here (who hasn't? lol) in the past year and music is really helping me get through the days. That's why I can afford to put some money and time into this one. I have my gallium based liquid metal loop on hold ATM, but eventually I will get another z820 and get that going as well but that's still a few months out.



And I'm not through adding more horse power to this sound system. It's going to get better from here. I have an analog splitter coming from amazon tomorrow. I can then (hope to) activate my third sub (sub only) which was from a Z-5300 series Logitech system. All of the small speakers are shot, but the sub is still okay. It should kick really hard with three subwoofers going.  It's not being used so I might as well throw it in the mix.



What I am reverting to for now is a program called winamp. Donno if you have used it, but the program is actually very useful. There is a built in EQ with a number of presets you can try out to dial in your speakers for your own preferences. When you say never boost frequencies, do you mean dont use pre-amp?




Expand

Very familiar with Winamp, it really whips the llama's ash. 😄

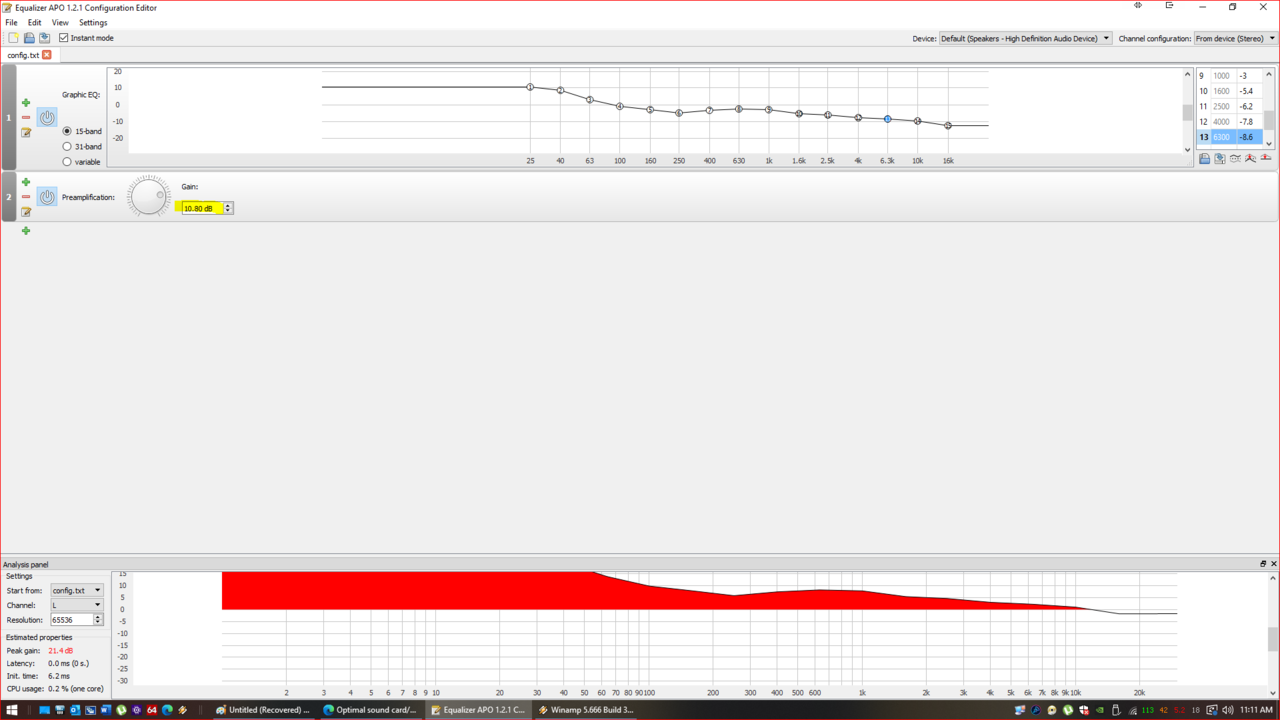

What I mean by don't boost, I mean leave the EQ at 0 for what you're wanting boosted, and turn everything else down.  For example, if you're wanting more bass, keep 60Hz and 31Hz at 0dB on the EQ, but turn all the rest of the EQ down to -6 or -12.  The preamp also should most of the time be at 0.  Of course it depends on the source, most of the stuff I listen to is bass heavy and recorded near clipping anyway.  Software is fine for EQ's.

Big long TLDR DAC explanation / My opinions on upgrades from where you are


  Reveal hidden contents



Edited by pioneerisloud

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites

  On 10/02/2022 at 04:55, pioneerisloud said:

Logitech made quite a few mistakes in those setups, but alas....they're "gaming" setups, not exactly "audiophile".  Completely different worlds there.  For a gaming speaker setup, they're fine.  The reason why the smaller sub "hits harder" is due to enclosure tuning, the z625 is tuned higher than the z5500 is.  The z5500 is tuned, I'm guessing, right around 40Hz or so from my last listen to a set.  The z625 is going to be tuned closer to the 50-60Hz range.  Higher bass frequencies "hit harder" with less power, so they sound "boomier" for music and gaming.  Lower frequencies require more power generally.  That's why a home theater subwoofer, like a 15" that extends down to say 18Hz, probably has a 500w-1000w RMS amplifier attached (real 1000w RMS).

It's just a different realm of audio than what I'm used to.  They're fine for their cost and their intended use.  I wouldn't do any critical listening on them without seriously fine tuning their EQ and crossovers, but for just blasting some music or enjoying explosions in a game......they'll work great for that.

Expand

Yeah I get that. It's a little annoying that Logitech makes this huge 10" subwoofer that weights as much as an engine block and then really limit control over it. But the tuning is definitely helping already. I'm also using Equalizer APO which is implemented mostly for playing music on youtube / songs on the internet to help with the bass / treble "situation". Other scenario is for that which whipps the llamas ass.



It sounds really good like this:






Ill be back with more updates later...

Link to comment
Share on other sites

  On 10/02/2022 at 19:51, Storm-Chaser said:

Finding a good balance so far... I will also upload another video with another song later with a little more thump to it.



Logitech hybrid sound system Z5500 and Z625 - YouTube





Expand

Video is private, will not allow us to watch it.  Change the privacy settings maybe to "unlisted" and share the link?  That way it still shouldn't show up publicly, but the link should still get to it.  I think.....I'm not a "youtuber", so I could be wrong.

I'd love to take a look and listen.

Edited by pioneerisloud
  • Thanks 1

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites

  On 10/02/2022 at 19:51, Storm-Chaser said:

Finding a good balance so far... I will also upload another video with another song later with a little more thump to it.



Logitech hybrid sound system Z5500 and Z625 - YouTube





Expand



Your video appears to be set to private.



Okay, so going back through the last several posts, here are some loosely connected thoughts of mine across those posts.



I never thought I would see the day when Winamp would need an introduction. I don’t know if that means Storm-Chaser is young or Storm-Chaser thinks pioneerisloud is young. 😄



I’m not sure if a small third sub is going to offer much. The Z-5300 sub is just 6.5”. You’ll have a legitimate-sized sub at 10” from the Z-5500 that in theory should do the heavy lifting, a Z625 sub for which I can’t find any published specs, and the Z-5300 sub will be a toy. Also, since they’re all going to be tuned differently, I don’t expect them to be very harmonious together. There’s going to be an artificial bump starting at the bottom end of the weakest sub’s frequency range.



Aside from the tuning issues of three non-tunable subs, I don't think the small sub will be able to provide anything other than the ability to show off. A 15” sub is not only able to hit lower frequencies, but has more surface area than a 10”, 8”, and a 6.5” combined. Meet my servo-based 14 Hz end table. Forget about the pounding in your chest. The real pounding is between your ears.

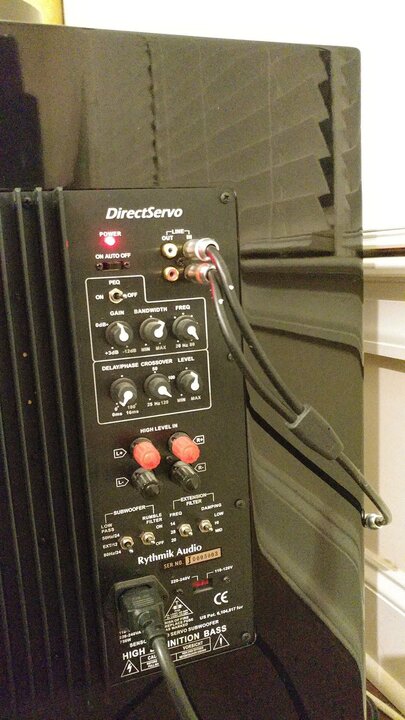

20160914_002536.thumb.jpg.3a6ec99df990c66b0f166403d295a06c.jpg 20220210_004026.thumb.jpg.8e9686fa33d792e55029f7dddcc152ba.jpg



As far as a DAC, there’s no need to get both a sound card and a DAC. The DAC would create an entirely different connectivity path than what you have now and be recognized as a separate sound output device by your operating system. It completely bypasses any internal hardware. It goes:



Motherboard  > USB DAC > Amplifier > Passive speakers/active subwoofer



The DAC and amplifier can be the same physical unit if you opt for an integrated solution.



Like other active speakers, the connectivity path for the Z-5500 is simple:



Onboard audio or sound card > Active speakers



The Z-5500 just gives you more options as far as what cables you use to make the connection.



As for onboard sound, a lot of onboard solutions are decent these days, but even those that have a dedicated audio path that measures well when the system is idle won’t stay that way under load. Noise and distortion levels will increase when the CPU/GPU load increases. To what degree and whether it’s noticeable to enough people is another matter, but a motherboard isn’t going to devote enough PCB space to audio hardware compared to a dedicated sound card.



A sound card provides better separation from the EMI coming from the motherboard, but to reach a palatable price point, most sound cards aren’t going to feature top-notch hardware either. The other issue is connectivity. USB has and will outlive ISA, PCI, and PCI-E slots. However, sound cards are the most straightforward add-on solution for active speakers.



Theoretically, external DACs would provide an even cleaner signal. They're far removed from the source of the EMI and aren't constrained by space restrictions imposed by a single motherboard slot when only video cards have de facto acceptance for being extra large. The next level is to separate the DAC and amp so they both have their own chassis and not be bound by sharing one smaller chassis.



Since the Z-5500 can do its own sound processing and has an optical input, I would initially be inclined to run an optical cable from the onboard audio S/PDIF out and let the speakers handle the rest. However, that would mean less fine tuning control and Logitech's hardware is almost certainly going to color the sound a certain way for better or worse. You can run analog from a sound card instead, but that would introduce more noise than a digital connection.



Ultimately, the conclusion is the same as what pioneerisloud said. If you’re happy with the sound, then that’s all that matters. But if you want, we can help fill in the technical background for the how and why.

  • Thanks 2
  • Respect 1

null

Owned

 Share

CPU: AMD Ryzen 9 7950X
MOTHERBOARD: Asus ROG Strix B650E-F Gaming WiFi
RAM: 96 GB (2x48 GB) Kingston Fury Renegade DDR5-6000
GPU: EVGA GeForce RTX 3080 Ti FTW3 Ultra Gaming
SSD/NVME: 1 TB WD_BLACK SN850X PCIe 4.0 NVMe
SSD/NVME 2: 2 TB WD_BLACK SN770 PCIe 4.0 NVMe
MONITOR: 38" LG UltraGear 38GN950-B 3840x1600 144 Hz
MONITOR 2: 55" Samsung Neo QLED QN85A 4K 120 Hz 4:4:4
Full Rig Info
Link to comment
Share on other sites

  On 10/02/2022 at 23:23, Snakecharmed said:



Your video appears to be set to private.



Okay, so going back through the last several posts, here are some loosely connected thoughts of mine across those posts.



I never thought I would see the day when Winamp would need an introduction. I don’t know if that means Storm-Chaser is young or Storm-Chaser thinks pioneerisloud is young. 😄



I’m not sure if a small third sub is going to offer much. The Z-5300 sub is just 6.5”. You’ll have a legitimate-sized sub at 10” from the Z-5500 that in theory should do the heavy lifting, a Z625 sub for which I can’t find any published specs, and the Z-5300 sub will be a toy. Also, since they’re all going to be tuned differently, I don’t expect them to be very harmonious together. There’s going to be an artificial bump starting at the bottom end of the weakest sub’s frequency range.



Aside from the tuning issues of three non-tunable subs, I don't think the small sub will be able to provide anything other than the ability to show off. A 15” sub is not only able to hit lower frequencies, but has more surface area than a 10”, 8”, and a 6.5” combined. Meet my servo-based 14 Hz end table. Forget about the pounding in your chest. The real pounding is between your ears.



20160914_002536.thumb.jpg.3a6ec99df990c66b0f166403d295a06c.jpg 20220210_004026.thumb.jpg.8e9686fa33d792e55029f7dddcc152ba.jpg



As far as a DAC, there’s no need to get both a sound card and a DAC. The DAC would create an entirely different connectivity path than what you have now and be recognized as a separate sound output device by your operating system. It completely bypasses any internal hardware. It goes:



Motherboard  > USB DAC > Amplifier > Passive speakers/active subwoofer



The DAC and amplifier can be the same physical unit if you opt for an integrated solution.



Like other active speakers, the connectivity path for the Z-5500 is simple:



Onboard audio or sound card > Active speakers



The Z-5500 just gives you more options as far as what cables you use to make the connection.



As for onboard sound, a lot of onboard solutions are decent these days, but even those that have a dedicated audio path that measures well when the system is idle won’t stay that way under load. Noise and distortion levels will increase when the CPU/GPU load increases. To what degree and whether it’s noticeable to enough people is another matter, but a motherboard isn’t going to devote enough PCB space to audio hardware compared to a dedicated sound card.



A sound card provides better separation from the EMI coming from the motherboard, but to reach a palatable price point, most sound cards aren’t going to feature top-notch hardware either. The other issue is connectivity. USB has and will outlive ISA, PCI, and PCI-E slots. However, sound cards are the most straightforward add-on solution for active speakers.



Theoretically, external DACs would provide an even cleaner signal. They're far removed from the source of the EMI and aren't constrained by space restrictions imposed by a single motherboard slot when only video cards have de facto acceptance for being extra large. The next level is to separate the DAC and amp so they both have their own chassis and not be bound by sharing one smaller chassis.



Since the Z-5500 can do its own sound processing and has an optical input, I would initially be inclined to run an optical cable from the onboard audio S/PDIF out and let the speakers handle the rest. However, that would mean less fine tuning control and Logitech's hardware is almost certainly going to color the sound a certain way for better or worse. You can run analog from a sound card instead, but that would introduce more noise than a digital connection.



Ultimately, the conclusion is the same as what pioneerisloud said. If you’re happy with the sound, then that’s all that matters. But if you want, we can help fill in the technical background for the how and why.

Expand

❤️

Very good points there.  Doesn't need to be a 15" monster sub though, a good 8" can fill the room just as easily.  But otherwise, absolutely spot on.  I think by adding the z625 sub to the z5500 sub, what you're noticing is that you're hitting the tuning frequency a little harder since both subs are tuned around the same octave.  Could also just be room placement causing that effect too.  There's a LOT of things to consider with audio.

By the way, consider me SUPER jealous of your 14Hz table.  Apartment living keeps me above 40Hz most of the time. :lachen:

Edited by pioneerisloud
  • Thanks 1

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites

  On 11/02/2022 at 00:11, Storm-Chaser said:

Okay video should be fixed now... give it whirl. Ill be back later with a more aggressive song to really push the system hard



so hang tight for that. But I used this one for now (Toby Keith) because it's super crisp and clear.





Expand

It has more thump than my setup.  🙂  I'm rocking a 6.5" Pioneer soundbar subwoofer that I scored at a thrift store for $7. :lachen:Only reason I don't have a giant sub is because neighbors.  If they keep pounding their little soundbar sub at 4am though.....I'll tell you what, they're going to wish they had a different neighbor after I bring in a real sub. :lachen:



As I said before though, if you're happy with it, that's what matters.  If you're after advice?  Get rid of the Logitech and step into some real speakers.  These types of setups can be anywhere from thrift store finds and ebay amp kits all the way up into the thousands of dollars.  Just like a PC.  However this time its not framerates you're after, but ease of listening on your ears.  You can start by using bits and pieces of the Logitech setup too.  Think about your speaker setup more as a long term enjoyment kind of thing.  You don't replace speakers every build if you have good ones.  You keep them for years and years.



The important thing to start off with is a good signal, whether its analogue or digital, doesn't matter.  To figure out what type of signal you need, you need an amp.  Choose one with however many channels you're wanting (good stereo will beat bad 5.1 anyday for sound quality).  Feed it the appropriate signal.  From there, its time to look at speakers and subs.  Again, you can piece together bits from your z5500's to make that happen, so I'd start at sub first if you're looking for "thump".  And again, a good base model home theater receiver would be an easy way to step into that area since even just adding a proper sub, its still going to need the right frequencies.

As is, you're making middle school me jealous.  Heck, even adult me kinda wants to take a critical listen again to the Logitech setups since its been 10 years since I've heard them lol.

Edited by pioneerisloud
  • Thanks 1

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites



  On 11/02/2022 at 07:30, pioneerisloud said:

As is, you're making middle school me jealous.  Heck, even adult me kinda wants to take a critical listen again to the Logitech setups since its been 10 years since I've heard them lol.

Expand

Here you go...



Sorry about the shaky camera, I've been chopping wood all morning and my wrists are feelin it.



This one you should be able to turn up a little bit. Comes through very crisp and clear on this side. There is a little distortion of the sub at the end of the video, but that's a simple EQ adjustment.







Edited by Storm-Chaser
Link to comment
Share on other sites

  On 11/02/2022 at 07:30, pioneerisloud said:

As I said before though, if you're happy with it, that's what matters.  If you're after advice?  Get rid of the Logitech and step into some real speakers.

Expand

Oh yeah no doubt and that's really the basic idea here. I'm just getting my feet wet and then probably doing a custom system once I feel confident. And build my own subwoofer enclosure. With everything you guys are telling me, that should be a fairly straightforward process in the quest for better audio once I do some "sound" research (pun intended). So I have a year to get all my ducks in a row.



Meanwhile, I will enjoy the logitech because as much as you are kinda knocking it, the sound quality is very good once you dial in the EQ as demonstrated by the second video. Also note, you can turn the volume up to it's highest setting (with 20db pre-amp gain to boot) and the speakers remain crisp and there is no distortion. That's one thing I was looking for because I usually play music with the volume cranked.


Edited by Storm-Chaser
Link to comment
Share on other sites

There's a lot to go through in this thread but I want to add some key points:

  1. Sound cards are useless these days, go stand-alone DAC, Amp or DAC+Amp.
  2. Schiit has been behind the curve for awhile, they are overpriced and have poor quality and QC. They are making strides in fixing this but for now avoid them. Go for something from Topping (DX3 Pro is very, very good if you want SE out and don't care about balanced) or SMSL.
  3. EQ Apo is great, but use the Peace GUI for it as it makes it a much easier to use tool.
  4. Not to gate-keep or anything but the Z-5500 is really not great. If I were to off the top of my head build out a quick 2.1 budget system it would be:
  • Thanks 2

Owned

 Share

CPU: AMD Ryzen 9 - 7950X3D
MOTHERBOARD: Asus X670E Hero (pls EVGA make an AMD mobo)
RAM: G.Skill 64GB @ 6000Mhz
GPU: RTX 4090 Strix OC
SSD/NVME: 2x SN850X 4TB | 1x 970 Pro 0.5TB
MONITOR: Something OLED, 120hz and 42-48"
WC RADIATOR: MO-RA3 420 | HeatKiller 360S
WC CPU BLOCK: Heatkiller IV Pro
Full Rig Info
Link to comment
Share on other sites

  On 11/02/2022 at 18:25, Alex said:

There's a lot to go through in this thread but I want to add some key points:

  1. Sound cards are useless these days, go stand-alone DAC, Amp or DAC+Amp.
  2. Schiit has been behind the curve for awhile, they are overpriced and have poor quality and QC. They are making strides in fixing this but for now avoid them. Go for something from Topping (DX3 Pro is very, very good if you want SE out and don't care about balanced) or SMSL.
  3. EQ Apo is great, but use the Peace GUI for it as it makes it a much easier to use tool.
  4. Not to gate-keep or anything but the Z-5500 is really not great. If I were to off the top of my head build out a quick 2.1 budget system it would be:
Expand

Thanks for the tips. So the optical cable arrived today and since I'm using two sound systems in this project, it looks less and less likely I will be able to use the digital source. Reason being, I need the analog output on the z5500 so I can use my Z625 with it. I can only pair the two through the analog connection. When I connect optical, I lose analog. And the inverse proportion to that, I can only enable one output at a time from the computer (so I cant have digital going to one sound system and analog to the other).



I suppose if they make an optical splitter, I could go that route? Is that even possible? I mean the sound is great as it is so I am not really losing much but Id still prefer digital.

Edited by Storm-Chaser
Link to comment
Share on other sites

  On 11/02/2022 at 23:49, Storm-Chaser said:

Thanks for the tips. So the optical cable arrived today and since I'm using two sound systems in this project, it looks less and less likely I will be able to use the digital source. Reason being, I need the analog output on the z5500 so I can use my Z625 with it. I can only pair the two through the analog connection. When I connect optical, I lose analog. And the inversely proportion to that, I can only enable one output at a time from the computer (so I cant have digital going to one sound system and analog to the other).



I suppose if they make an optical splitter, I could go that route? Is that even possible? I mean the sound is great as it is so I am not really losing much but Id still prefer digital.

Expand

You might get better sound out of just the z5500's honestly.  Might be worth a try to use optical to them, and actually place the speakers properly.  Subwoofer in a well insulated corner, preferably your "hot zone".  Speakers placed properly around you.  If you can't properly utilize the 5.1 with proper placement, you'll be much better off with a better 2.1 set.

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites

  On 11/02/2022 at 18:25, Alex said:

There's a lot to go through in this thread but I want to add some key points:

  1. Sound cards are useless these days, go stand-alone DAC, Amp or DAC+Amp.
  2. Schiit has been behind the curve for awhile, they are overpriced and have poor quality and QC. They are making strides in fixing this but for now avoid them. Go for something from Topping (DX3 Pro is very, very good if you want SE out and don't care about balanced) or SMSL.
  3. EQ Apo is great, but use the Peace GUI for it as it makes it a much easier to use tool.
  4. Not to gate-keep or anything but the Z-5500 is really not great. If I were to off the top of my head build out a quick 2.1 budget system it would be:
Expand

Yeah after the last couple days of using it I am not very impressed. It's marginally better than my z625, which only has two speakers. The subwoofer on the z625 also kicks harder, but to be honest both systems complement each other very well. So I can live with it for now. One advantage to the z5500 is you can push the speakers much harder without distortion, and the sub does better down low and that's a good thing. And brings me to my next question. Can you or @pioneerisloudrespond.



Given the z5500 has some trade offs, but both systems work well together, Im probably going to keep everything around for a year or so. But I still don't mind investing a little more money into this project.



Now that being said my complaints / comments are:

The 10" 188W sub on the z5500 doesn't have the punch of my other woofer, yet it's almost twice as big. For the super low tones it does to better, however. So I need to know how I can take advantage (exploit) the performance of the bigger 10" subwoofer because I can tell there is a lot more that Logitech left on the table. For example, the range of the subwoofer on the z625 is much wider than the z-5500. So you can have the volume relatively low and still here it thump. Versus the Z-5500, where you can get there with the sub, but the volume is going to have to be pretty loud as well which kind of pisses me off that they overlooked something so elementary. It's more "couped" up in my opinion. I think it could easily be pushed much harder, I just don't have the knowhow or the knowledge yet. Basically, I need a better way to "uncouple" the subwoofer so it can be boosted.



So here is a list:

1) Better performance / more control over the z5500 subwoofer.

2) I suitable amp to boost performance (should I get two amps, one for the speakers and one for the subs?)

3) Anything else you guys can think of.

4) After reading @pioneerisloudresponse I will not be using the third subwoofer. That will be re-purposed.





Link to comment
Share on other sites

  On 12/02/2022 at 00:24, pioneerisloud said:

You might get better sound out of just the z5500's honestly.  Might be worth a try to use optical to them, and actually place the speakers properly.  Subwoofer in a well insulated corner, preferably your "hot zone".  Speakers placed properly around you.  If you can't properly utilize the 5.1 with proper placement, you'll be much better off with a better 2.1 set.

Expand

I know, I don't have the speakers set up yet, I still need to mount them on the wall. I have them pointed away because it can get too loud lol





Link to comment
Share on other sites

  On 12/02/2022 at 00:24, pioneerisloud said:

You might get better sound out of just the z5500's honestly.

Expand

I did some testing earlier to see about that, but both systems really do complement each other quite well. It's definitely a better and more immersive experience with the full seven speakers and two subs.



I get more thump out of the z625, but the z5500 sub has it's place as well down load or from the second floor. It's like rolling thunder, and the z625 is more like lightning. You can push the speakers harder on the z5500, but not by much.



I think I might go with one of these so I can run both via digital interface. Only $20


Edited by Storm-Chaser
Link to comment
Share on other sites

  • Solution
  On 12/02/2022 at 00:48, Storm-Chaser said:

Yeah after the last couple days of using it I am not very impressed. It's marginally better than my z625, which only has two speakers. The subwoofer on the z625 also kicks harder, but to be honest both systems complement each other very well. So I can live with it for now. One advantage to the z5500 is you can push the speakers much harder without distortion, and the sub does better down low and that's a good thing. And brings me to my next question. Can you or @pioneerisloudrespond.



Given the z5500 has some trade offs, but both systems work well together, Im probably going to keep everything around for a year or so. But I still don't mind investing a little more money into this project.



Now that being said my complaints / comments are:

The 10" 188W sub on the z5500 doesn't have the punch of my other woofer, yet it's almost twice as big. For the super low tones it does to better, however. So I need to know how I can take advantage (exploit) the performance of the bigger 10" subwoofer because I can tell there is a lot more that Logitech left on the table. For example, the range of the subwoofer on the z625 is much wider than the z-5500. So you can have the volume relatively low and still here it thump. Versus the Z-5500, where you can get there with the sub, but the volume is going to have to be pretty loud as well which kind of pisses me off that they overlooked something so elementary. It's more "couped" up in my opinion. I think it could easily be pushed much harder, I just don't have the knowhow or the knowledge yet. Basically, I need a better way to "uncouple" the subwoofer so it can be boosted.



So here is a list:

1) Better performance / more control over the z5500 subwoofer.

2) I suitable amp to boost performance (should I get two amps, one for the speakers and one for the subs?)

3) Anything else you guys can think of.

4) After reading @pioneerisloudresponse I will not be using the third subwoofer. That will be re-purposed.





Expand

1.  You want better control over the subwoofer you'll have to change the amplifier. All sub controls are usually tied to the amp. Some are in the receiver or speaker amp / dac, but 90% of sub controls are on the sub amp. The z5500 doesn't have those controls on the stock amp. I would NOT recommend a new amp, instead I'd look at a proper sub. The z5500 doesn't extend very low to begin with. Changing amps will not fix the enclosure tuning.



2.  Make it easy on yourself and look at home theater receivers. Unless you have limited space, a receiver is the best bang for buck. Good dac, possible surround sound or 2.1 just depends on the amount of speakers you have, crossover controls, and good speaker power output. All in one package. If you have limited space and require a t amp we can figure that out too.



3.  Nope. I'd start at a receiver plus a proper sub and go from there.



4.  The reason the z625 sounds different is room placement and enclosure tuning. If it's tuned higher, which it is, it will sound louder at higher frequency than the one that's tuned lower since it's tuned higher. Your tuning frequency is where the sub sounds loudest at with same volume (most of the time). The z5500 needs a higher gain to get the 60hz range of the z625 set. Neither set is really proper since a sub should be 30hz or lower (lower the better) and upwards of 80-120hz on the high end. All those frequencies SHOULD be similar volume, but they're not in your instance. It's a fault of keeping the system stupid simple for gamers. A real sub fixes that.

  • Thanks 1

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites

  On 12/02/2022 at 01:00, Storm-Chaser said:

I did some testing earlier to see about that, but both systems really do complement each other quite well. It's definitely a better and more immersive experience with the full seven speakers and two subs.



I get more thump out of the z625, but the z5500 sub has it's place as well down load or from the second floor. It's like rolling thunder, and the z625 is more like lightning. You can push the speakers harder on the z5500, but not by much.



I think I might go with one of these so I can run both via digital interface. Only $20


Expand

This should do what you are wanting yes. It's not going to fix any inadequacies of the systems, but it will allow both to operate at the same time.



Again, I would not dump too much money into these setups. They're not worth it when a Dayton set up beats the snot out of them for $200-250 or so. Keep in mind that budget speakers, amps, and subwoofers do exist. They will beat the z5500 set in every way. Not trying to be mean about it, just honest.

null

Owned

 Share

CPU: Ryzen 7800 x3d
MOTHERBOARD: Gigabyte B650 Aorus Elite AX
RAM: 64GB Patriot Viper DDR5 @ 6200, 28-36-34-70, 1.50v
PSU: Seasonic Focus Gold 1000w
GPU: Sapphire Pulse 7900XTX Nitro+ Flashed
SOUNDCARD: Asus Xonar DGX
OPTICAL: USB Pioneer DVD-RW + Lightscribe
SSD/NVME: 118GB Intel Optane x2
Full Rig Info
Link to comment
Share on other sites

Alright.



So I can sell my Z625 sub and my z5500 sub and probably make back $150 or something like that.

And retain the small speakers though? Do they have any redeeming value in a new custom system?



That sounds like more fun anyway, and I will be able to customize it exactly to my needs / specifications.

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now



×
×
  • Create New...

Important Information

This Website may place and access certain Cookies on your computer. ExtremeHW uses Cookies to improve your experience of using the Website and to improve our range of products and services. ExtremeHW has carefully chosen these Cookies and has taken steps to ensure that your privacy is protected and respected at all times. All Cookies used by this Website are used in accordance with current UK and EU Cookie Law. For more information please see our Privacy Policy
