8700K Overclocking


Calyso

Recommended Posts

Might as well start here. I just recently got back into the enthusiast end of the spectrum and want to overclock my setup moderately. The last time I futzed with OCing was back with my i7 920. I don't see a reason for me, personally, to go out and buy new CPU/Mobo when I really don't need to do so.

So my setup:
i7 8700K
Asus ROG Strix Z370-G Gaming
4 x 8GB Corsair Vengeance LPX 3000MHz C15



I'm rusty, where should I start. Any ideal places to start and what to expect, approximately? I know all chips and setups are different.

  • Thanks 2
Link to comment
Share on other sites

What kind of heatsink do you have?

Start by running a stability test like prime95 and checking your temps to see what kind of headroom you have. If you have headroom, it should be pretty easy to get to 5ghz or close on your CPU.



Looks like your ram is at 2933mhz instead of 3000mhz.

Edited by UltraMega

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

You'll probably have to dig up the old site (overclock.net) for methodology and more samples, but when I had mine, it took about 1.376v to reach 5GHz stable.  And mine was water-cooled, so either I got a dud or they didn't clock very far beyond that.



Just watch out for AVX stress tests that will give unrealistic temperatures and hamper your work.

Link to comment
Share on other sites

2 minutes ago, Calyso said:

Interesting. I'll slog through the now insanely slow OCN. I'll post results here. Might as well make it more than a "Help me re-learn this" post and contribute some actual content.

IMO there's no real need to look up anything. Just check your temps and go from there. Try setting the multiplier to 50 and vcore to 1.4 and then just lower the voltage until it's no longer stable.

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

  • 1 year later...
On 08/10/2020 at 21:09, Calyso said:

Might as well start here. I just recently got back into the enthusiast end of the spectrum and want to overclock my setup moderately. The last time I futzed with OCing was back with my i7 920. I don't see a reason for me, personally, to go out and buy new CPU/Mobo when I really don't need to do so.

So my setup:
i7 8700K
Asus ROG Strix Z370-G Gaming
4 x 8GB Corsair Vengeance LPX 3000MHz C15



I'm rusty, where should I start. Any ideal places to start and what to expect, approximately? I know all chips and setups are different.

Nice setup. When I abandoned laptop garbage in 2018, my first build upon returning to desktops was an 8700K.

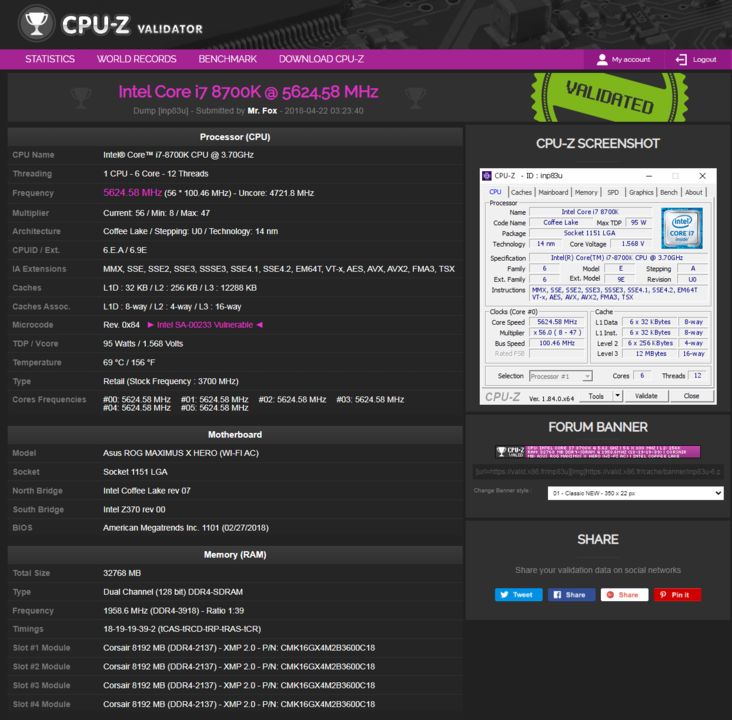

VALID.X86.FR

[inp83u] Validated Dump by Mr. Fox (2018-04-22 03:23:40) - MB: Asus ROG MAXIMUS X HERO (WI-FI AC) - RAM: 32768 MB


Edited by Mr. Fox
  • Respect 2

Owned

 Share

CPU: Intel Core i9-14900KF - Bare Die
MOTHERBOARD: ASUSTeK ROG Maximum Z790 Apex
RAM: G.SKILL Trident Z5 48GB DDR5 @ 8600 - On Water
GPU: MSI RTX 4090 Suprim-X + Byski Block
PSU: Thermaltake Toughpower GF3 1650W
SSD/NVME: NVMe x9 (11TB), SATA SSD x1 (1TB), HDD x1 (4TB)
CPU COOLER: MO-RA 360, D5 x4, 5 Gal Reservoir, Hailea HC-500A
CASE: Lian Li O11 Dynamic XL EVO
Full Rig Info

Owned

 Share

CPU: Intel Core i9-13900KS - Bare Die
MOTHERBOARD: ASUSTeK ROG Maximum Z790 Apex Encore
RAM: G.SKILL Trident Z5 48GB DDR5 @ 8600 - On Water
GPU: Gigabyte RTX 4090 Gaming OC + Alphacool Block
PSU: Corsair RM1200x Shift
SSD/NVME: NVMe x8 (11.5TB), SATA SSD x2 (3TB), HDD x1 (2TB)
CPU COOLER: Alphacool NexXxoS XT45 1080 Nova, D5 x2
CASE: be quiet! Dark Base Pro 901
Full Rig Info

Owned

 Share

CPU: Intel Core i9-14900K - Delidded
MOTHERBOARD: MSI MPG Z790i Edge WiFi (ITX)
RAM: G.SKILL Trident Z5 32GB DDR5 @ 8000
GPU: ASROCK Arc A770 Phantom Gaming OC
PSU: GameMax 850W Gold ARGB
SSD/NVME: NVMe x3 (4TB), SATA SSD x4 (4TB)
CPU COOLER: EK Nucleus CR360 Dark AIO
CASE: ASUS Prime AP201 Micro Tower TG
Full Rig Info
Link to comment
Share on other sites

You shouldn't need to upgrade unless you want. 8700k's are still very good, but run very hot. You should easily be able to achieve 5GHz with adequate cooling.



I would set 5GHz in BIOS at 1.3-1.35v, VCCIO/SA 1.2v/ LLC4 or 5 and back off from there if stable. Again, what is your cooling solution?



Wait, did you necro a post from 2020?

Edited by Avacado
  • Thanks 1
Link to comment
Share on other sites

3 hours ago, Avacado said:

You shouldn't need to upgrade unless you want. 8700k's are still very good, but run very hot. You should easily be able to achieve 5GHz with adequate cooling.



I would set 5GHz in BIOS at 1.3-1.35v, VCCIO/SA 1.2v/ LLC4 or 5 and back off from there if stable. Again, what is your cooling solution?



Wait, did you necro a post from 2020?

I guess I did, LOL. It was near the top of the list of recent posts for some reason. I did not pay attention to the original post date.

  • Thanks 1

Owned

 Share

CPU: Intel Core i9-14900KF - Bare Die
MOTHERBOARD: ASUSTeK ROG Maximum Z790 Apex
RAM: G.SKILL Trident Z5 48GB DDR5 @ 8600 - On Water
GPU: MSI RTX 4090 Suprim-X + Byski Block
PSU: Thermaltake Toughpower GF3 1650W
SSD/NVME: NVMe x9 (11TB), SATA SSD x1 (1TB), HDD x1 (4TB)
CPU COOLER: MO-RA 360, D5 x4, 5 Gal Reservoir, Hailea HC-500A
CASE: Lian Li O11 Dynamic XL EVO
Full Rig Info

Owned

 Share

CPU: Intel Core i9-13900KS - Bare Die
MOTHERBOARD: ASUSTeK ROG Maximum Z790 Apex Encore
RAM: G.SKILL Trident Z5 48GB DDR5 @ 8600 - On Water
GPU: Gigabyte RTX 4090 Gaming OC + Alphacool Block
PSU: Corsair RM1200x Shift
SSD/NVME: NVMe x8 (11.5TB), SATA SSD x2 (3TB), HDD x1 (2TB)
CPU COOLER: Alphacool NexXxoS XT45 1080 Nova, D5 x2
CASE: be quiet! Dark Base Pro 901
Full Rig Info

Owned

 Share

CPU: Intel Core i9-14900K - Delidded
MOTHERBOARD: MSI MPG Z790i Edge WiFi (ITX)
RAM: G.SKILL Trident Z5 32GB DDR5 @ 8000
GPU: ASROCK Arc A770 Phantom Gaming OC
PSU: GameMax 850W Gold ARGB
SSD/NVME: NVMe x3 (4TB), SATA SSD x4 (4TB)
CPU COOLER: EK Nucleus CR360 Dark AIO
CASE: ASUS Prime AP201 Micro Tower TG
Full Rig Info
Link to comment
Share on other sites

Folding@Home Staff - Team Lead

Damn necros, now I'll be laying awake all night not knowing if he could hit 5GHz 🤯

Owned

 Share

CPU: Ryzen 9 5950x
MOTHERBOARD: B550 PG Velocita
RAM: 4x8GB Ballistix
GPU: RX 6900 XT
PSU: LEADEX V Platinum 1KW
CASE: QUBE 500
SSD/NVME: T-FORCE CARDEA A440 PRO
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 5 5500
MOTHERBOARD: X470 TAICHI
RAM: Crucial Ballistix MAX 2x8GB
PSU: EVGA SUPERNOVA P5
SSD/NVME: Silicon Power A60 256GB
GPU: Quadro M4000
GPU 2: Quadro M4000
GPU 3: Quadro M2000
Full Rig Info
Link to comment
Share on other sites
