Memmento Mori

poor mans AC it is but just not able to place properly the ice behind the fans. But if i would be able then i would turn it in an defrost / AC device 2in1 to be honest it was my first idea/conclusion with the 20 cm fans but after properly cleaning the notebook cooler its working like a charm again. But yeah will work for sure especially if you have a cooler like the cooler master notepal U2 /U3 which i bought today (used on a secondhand shop) and it will be easy to replace the fans there as it is just a bend aluminium and in the end even a crappy fan will cool a notebook better then nothing and for a distance of 1-2 cm you dont need a expensive fan to get the job done...

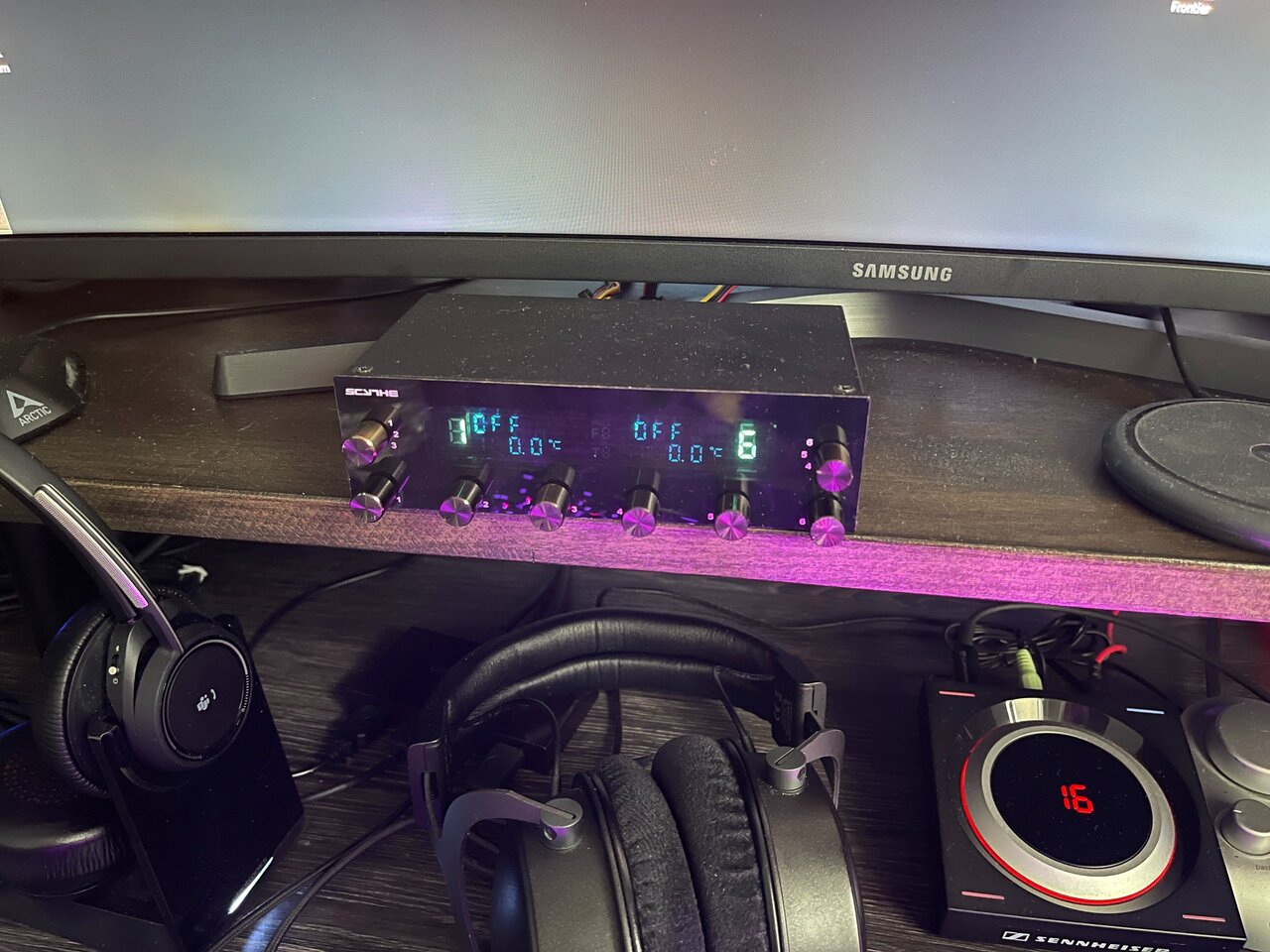

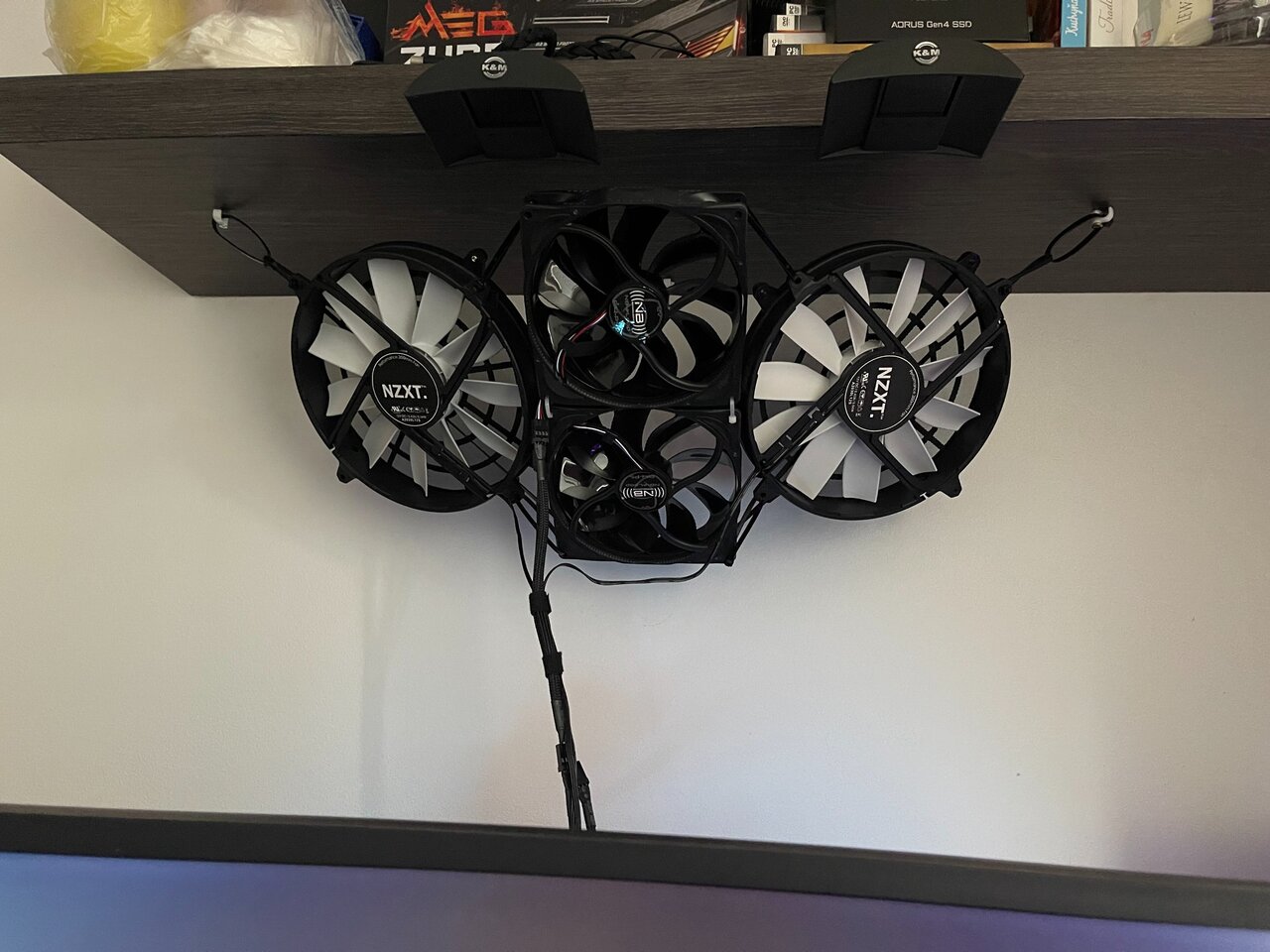

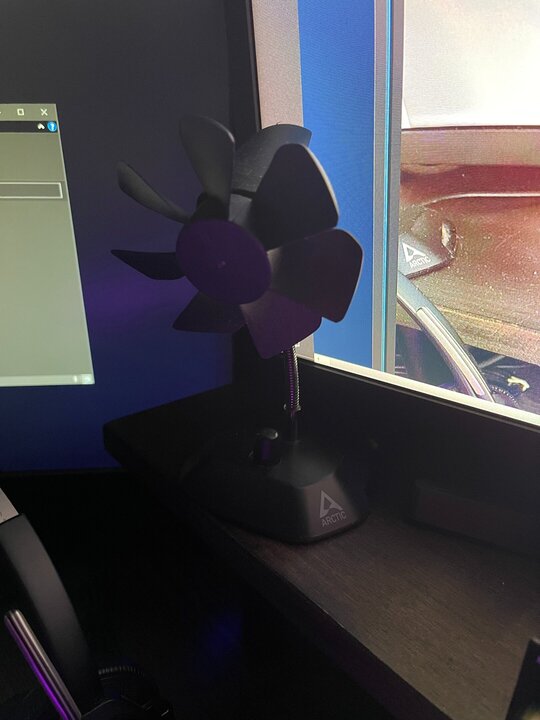

Just wanted to share Well i still have some stock fans which are just in the box and ofc after some years of "building" computers you gather a fair amount of HW which becomes kind of obsolete but you don't want to throw it away as it works. Trying to sell it is mostly an effort which turns out to be a energy and time burner. So i just thought what to do out of it.... And hey Fans are meant to cool HW - so why it could not cool me? Not having an AC bcs i get mostly a cold from it... And a classic fan has a problem that even on the slowest speed it becomes kind of too much "wind" after a while and annoying (mostly in smaller rooms).... I got 1 desk fan powered by USB - its not bad but not enough when the summer hits my HO/Gamer room which is just 3mx3m ... : So i dusted my old Fan controller: Connected it to a molex extendercable to my PC and some fan extension cables and biuld my first "Drone-like" personal FAN: Now to be honest im rly very positive how it turned out, it does not blows you away but its makes a gentle breeze. An here is a Pros vs Cons summary: Pros: 1, upcycling - not creating unnecessary E-waste 2, It fulfills my expectations way better then expected 3, its not louder then my case 4, the energy consumption is around 12W (don't have a way to separate the measurement just on the Molex and measured it with a watt meter on the whole case - idle turned on and off - difference is the result) 5, its one of its kind 6, - just my personal thing - but i like the ghetto look and anyway i like to watch fans spinning Cons: 1, DIY P.S. - would be here enough brains for a upcycling thread?

well this is the biggest fail .. i could give it back and get the money back.. i decided to mod it, and moded just my pocket in the end

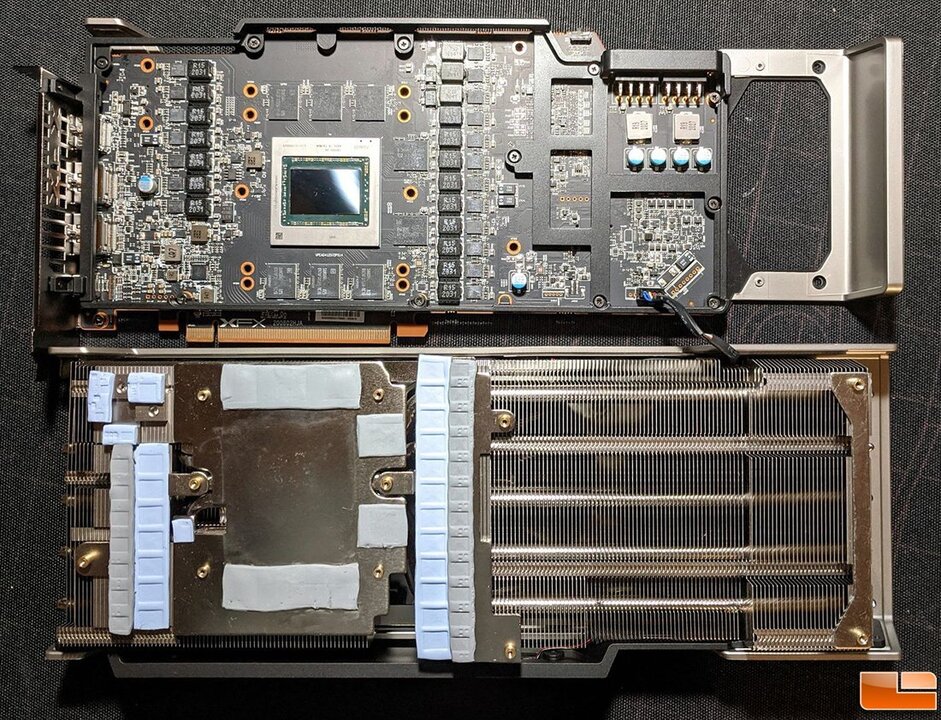

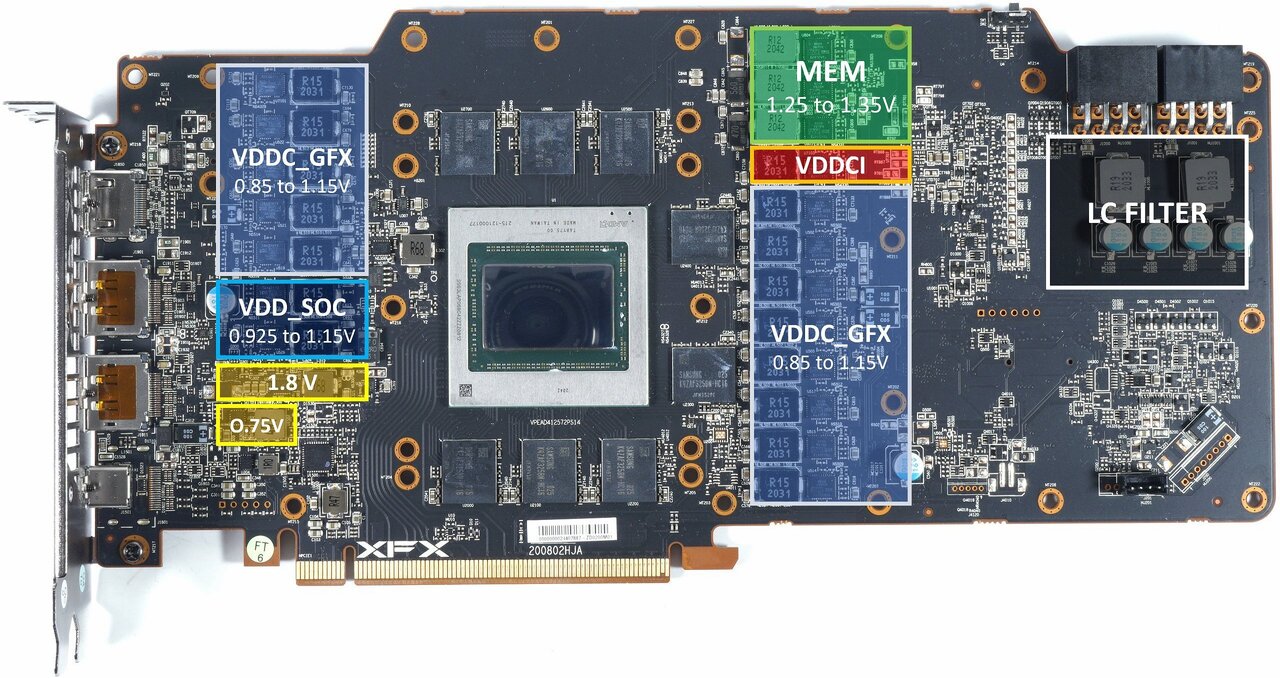

yes exactly the "flaps" are new. but what irritates me is that the R68 module is the same as on the reference card but i suppose its "higher" and blocking the Morpheus flaps... Dont know its simply preventing the cooler to "sit down" to make contact on this side.... here is the reference PCB: Here the XFX PCB: and here the teardown with the XFX cooler and take a look there is a "cutout" for the module in the cooling plate...

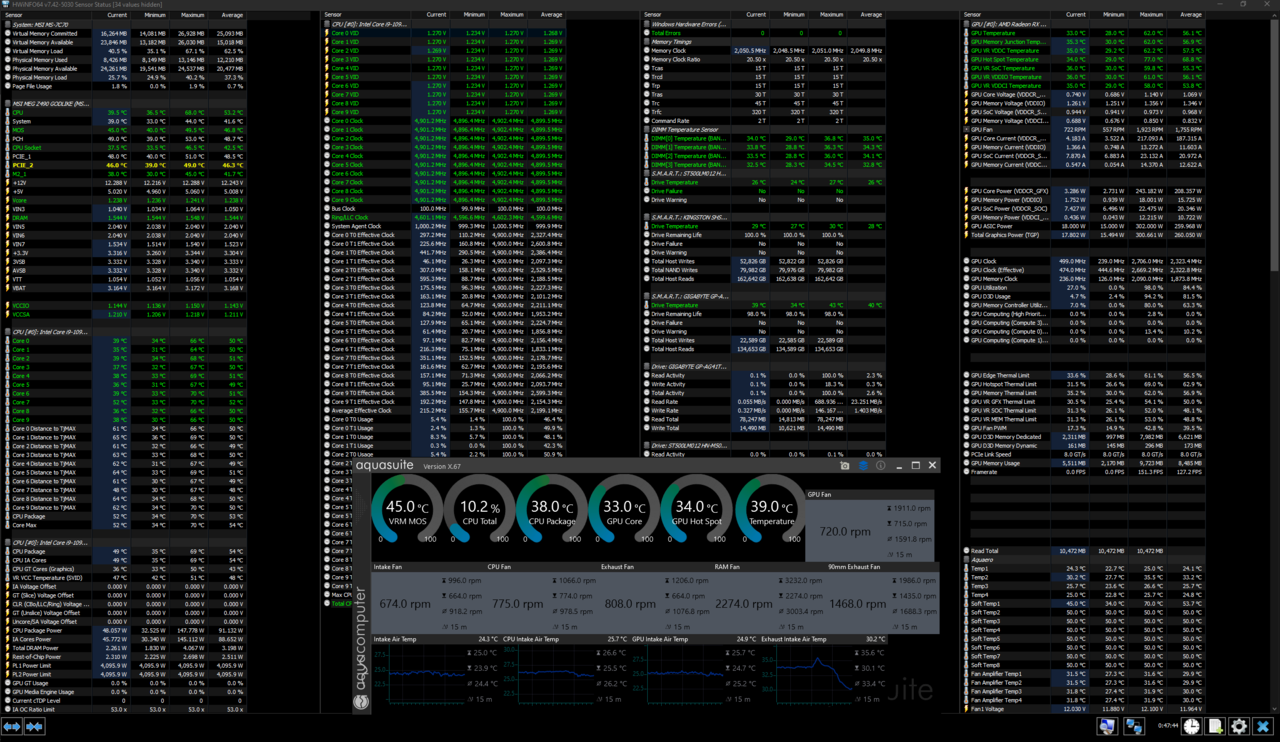

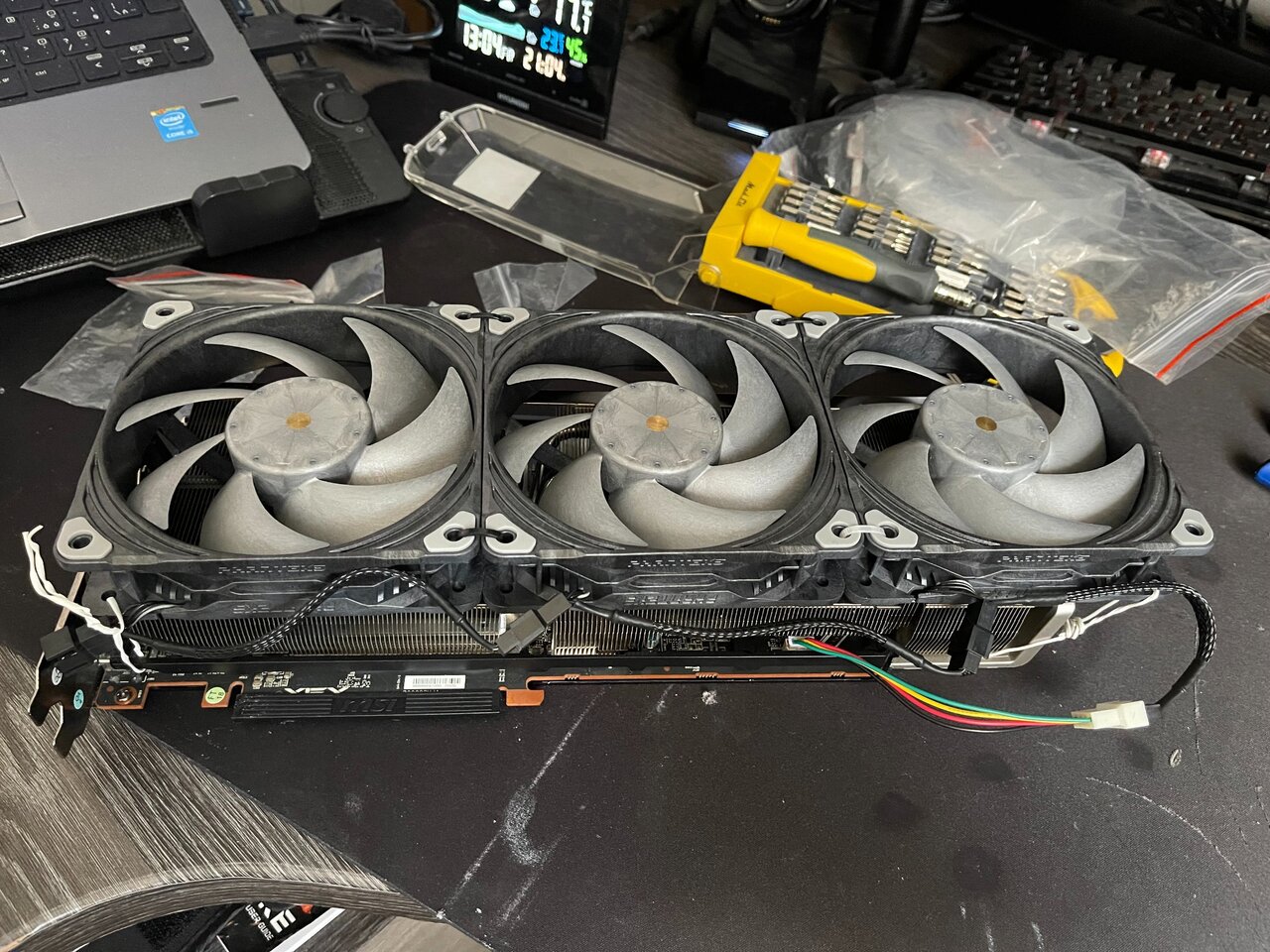

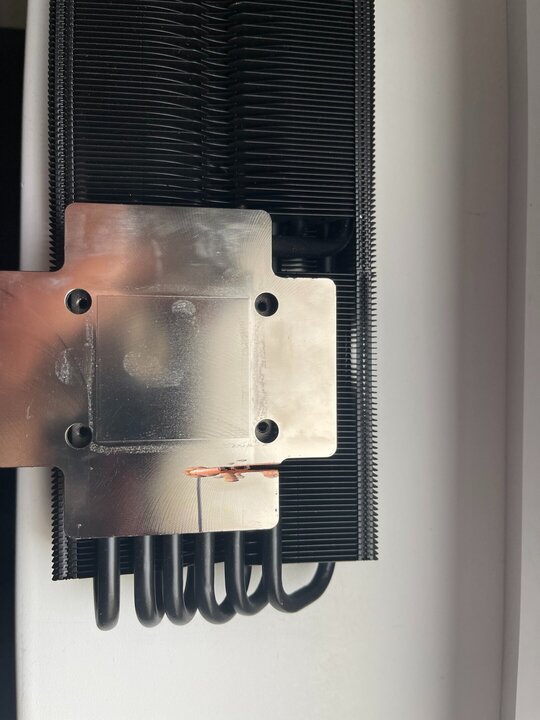

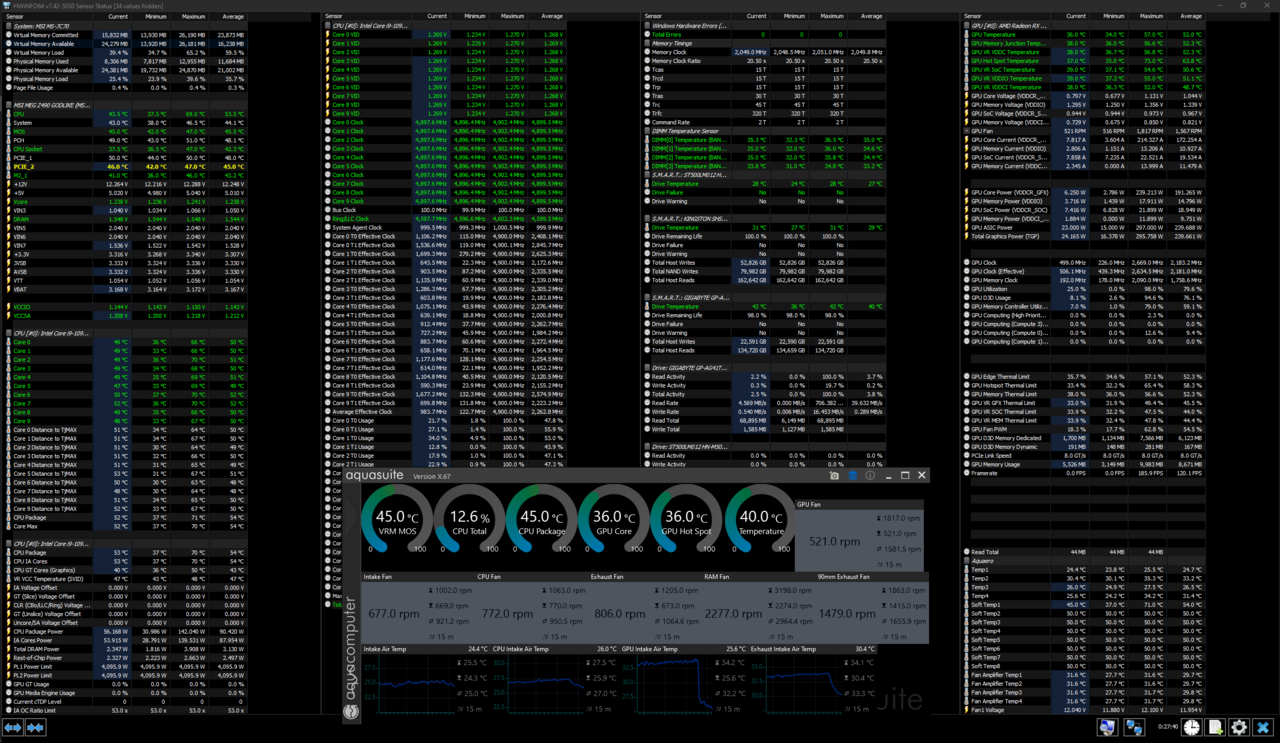

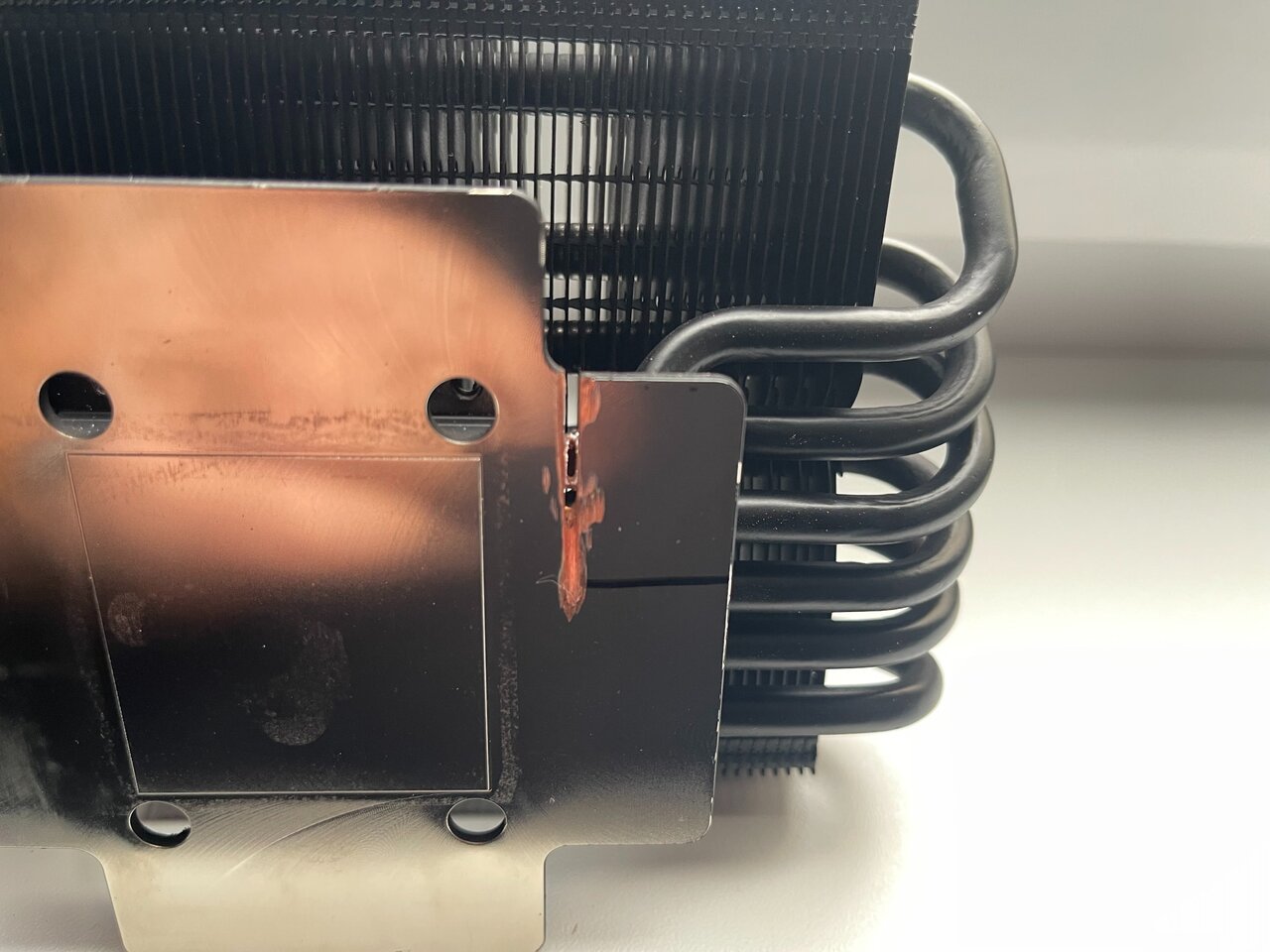

So im reporting back... Its as well like in RL - one success and one fail.. Im going to share both of them.... The success is that first i tried just to replace the stock fans, did it a bit Ghetto style as a first prove of concept: and here are the results: stock fan temps and Ghetto mod temps: Difference of 4-6 degrees with the same RPM and way more quiet? Jackpot! Summer can come lol.... Next to the Morpheus - it doesn't fit ... One module is in the way of the IHS of the cooler as its as well cooling the ram modules and 1 specific module R68 is blocking to fit there.... So i thought OK then lets cut of the unnecessary piece of copper with the motto "what doesn't fit, you make fit" but yeah fail... i came to a conclusion to fast, should have take better look at it...its exactly the point where the heat pipes are melted to the plate and i cut in to 2 heat pipes.. so after i can look at it again i will probably cut it in half and make a nice decoration out of it lol.... "Memmento Mori" i just killed a new cooler lol... At least i can confirm the Quality of the cooler and that the plate is pure copper

I’m already up and running… lets see what it will create

thanks for the explanation.. another "Virgin" question : will it be OK if i start the folding 2H sooner as im in EU and wont be until 2 AM.. so my intention is to start the folding before i go sleep and leave it running...

In : Memmento-Mori But pls explain me what i need to change? " Note: Extreme Team Members remember to use a different pass key than your ETF key." ETF KEY?

Just noticed that TR released a new fan: Thermalright TL-S12 FAN TL-S12 – Thermalright WWW.THERMALRIGHT.COM

dont know guys if you remember transport tycoon and rail road tycoon .. this is looking amazing

Well i understand your point, but i paid back in 2017 for my SM8 650usd and 250 for shipping. So in my eyes the 800 usd for a SMA8 in gunmetal is a not that bad price as it bigger and in a wanted colour…. Just my opinion. and once you have a caselabs case you understand what it is about…. Its incomparable with other cases… at least thats my feeling even today…

CaseLabs Magnum SMA-8 GunMetal Gray WWW.EBAY.COM Find many great new & used options and get the best deals for CaseLabs Magnum SMA-8 GunMetal Gray at the best online... Just wanted to share that another interesting case for sale on ebay showed up ….

Hi Guys, looking for some information's, advice, experience about the MORPHEUS 8069. Im tempted to pull the trigger on it with a pair of Phanteks T30... But as it is not cheap (more than 200 EUR) i wanted to throw in the room the following: 1, Compatibility - Classic layout of PCB - as the XFX is not the standard AMD layout it should not be fitting, but as the cooler is mounted just with the 4 screws and the positioning of the wholes look the same it could work? Any thoughts? 2, Back-plate - there is a recommendation to keep the original one but i assume it would be looking like a ship from Star trek Enterprise look. (which could be cool or as well not idk..) But are there any aftermarket back-plates made for the XFX 6900 XT Merc 319 ? 3, Would be the Phanteks T30 the best you can put on it? I watched some reviews and im kind of surprised that there are not more information's about it... I found it just by coincidence as i was wondering if there are any third party air coolers out there and have to say that Raijintek is the only i found... Had one back in the day with my R9 290 and was happy with he performance but it looks that there are not much interest in it.. Thought as well to buy a XFX 7900 cooler from someone who would WC his card, as they changed/improved the vapor chamber of the cooler. But the wholes are not fitting.. Would be interested to see if the "Improvement" improves anything at all in regards to the old design.. So yeah if you have any advice/information/recommendation or experience to share, then please do so.. Looking forward to it. Wish you all a nice day ahead.. BR, MM

And I thought that noctua will be the first with this technology

Cooler Master's 2022 Case Mod World Series Winners Stun with Innovative and Artful PC Designs WWW.TECHPOWERUP.COM Cooler Master, the global frontrunner in PC components and peripherals, proudly reveals the triumphant entries of the Case Mod World Series 2022. This annual contest, which began in 2009... Didn't knew there is such a thing, but i rly like it ... are there more competitions like that? Not to take part but to get inspired (at least for me )

Hi there, got an update on the stands, but dont want to hijack this thread anymore - Custom case stands for Caselabs SM8 Sorry for being off-topic before

Dear "DoItYourSelf" corner as you know or saw in a different thread (Caselabs: CaseLabs is back) i was thinking of replacing the original rubber/plastic case stands. They were for my taste to short and in my opinion the case deserves nicer stands. Asking for some recommendations lead me to the same results i saw already many times in different variants. Thank you all for the recommendations but it was not fulfilling my expectations/needs. All are to like 20mm i wanted like 40mm. You get some versions for the "Audiophile" equipment - but it is either with spikes ( which would be a pain in the ass if you try to position the case on a desk on the platforms) or with like balls - but its always like 2 pieces of 1 stand. Not mentioning the price tags of 80 - 500 USD/EUR which is insane ( at least in my opinion ). So I started to ask around if someone in my surroundings could produce me some stands out of Aluminium billets. Was as well asking for copper version which could be interesting, but the material is to expensive.... I just defined the measurements and design and here is the raw product: As you can see on the bottom is as well the funnel shape of the hole, so the screws hide inside of the stand. The cost for that was 40 EUR. Here is an pic next to the case, as you can see they are a bit more massive Anyway i was thinking if i keep them as they were (matt and 2 shiny lines) or to polish them or make any texture/pattern on them... So i was youtube-googling for inspirations and looking for something i like but as well enough skilled to do it my self. And i came across to a swirl pattern i liked. Never done it, had many test attempts but finally found a working way and the result is as follow: As the stands are solid Alluminium, and i dont want to have my table full of scratches i put on the bottom some sticker fleece which you can buy in any hobby-market where one side is glued like a sticker. Had to cut it round and did as well a cross cut in the middle for the screws. And here is the final Product: And here you can see before and after I have to say they are really "BIG", maybe they could be a bit shorter, but ill keep them for now. I can cut them anytime Anyway, regarding the investement it was 40 EUR for the stands, like 4 EUR for the fleece (but i got a big sheet so have for future use for chairs or as an isolation material for the sub woofer ), about 50 cent for 4 screws, some gas and some time invested. So in total lets round it up to 50-55 EUR max? But im kinda happy with he result! Had some fun with it and you know what is the best on custom? Its unique bcs its yours! Let me know what you think about it, or if you have any advice Thanks, MM

Exactly what i thought... just wanted you to inform all.... Better safe then sorry...

Linus Media Group YouTube Channels Hacked WWW.TECHPOWERUP.COM The popular tech YouTube channel Linus Tech Tips, along with its associated YouTube channel Techquickie, has been hijacked by crypto scammers. Techquickie has been renamed to "Tesla" and is currently...

So again i had some fun with my 6900 XT and was curious if changing thermal pads will make a difference on my card (was just bored to be honest...) I found this thermal pads - GPURisers 20 W/mK Thermal Pads and found as well just some information's or reviews on them like: Kritical 20W/mK pads vs GPUriser 20W/mK pads Originally i wanted to buy the Kritical Pads, but they were sold out and the PGURISERS were on stock in UK so it was for me a clear decision... As usual i made a temp testing before the change: GPU Temp: 62 C GPU Memory Junction: 64 C GPU Hot Spot: 75 C I forgot to get more pictures of the replacing at it self, as i was already to inpatient and wanted to see the results ASAP For this reason i could not do any kind of reviews, I'm not patient enough lol... Respect to all reviewers on this place Just to explain, i got the following information's from XFX about the pads thickness: Front: VRM 1.5mm , 2mm VRAM 1mm Back VRM 1.5 mm GPU, VRAM 3mm I as well repasted the GPU about 6-8 months ago with LM and as you can see there is no corrosion on the cooler at all which means its copper Anyway here are the results after the exchange of the pads: GPU Temp: 59 C GPU Memory Junction: 72 C GPU Hot Spot: 71 C Compared after the test the results and noticed that the GPU Memory Junction temp increased by 8 degrees while all other temps were down by around 4 degrees on the GPU Hot Spot and 2 degrees on the rest. So i just took it appart and could see that on the Memory modules are no imprints on the Pads. So i just replaced the original 1mm thickness by 1,5mm pads and tested it again. GPU Temp: 60 C GPU Memory Junction: 62 C GPU Hot Spot: 72 C This time the temps looked OK and the final result is basically 2 - 2,4 degrees on the Memory and VRM... The decrease on the GPU hot spot could be a result of dipping a bit more LM on the cooler and I guess it has now a better contact with the chip... So im happy with the result in the end, now i just hope they will not degrade that fast but time will show. Any experience on your side ppl? in general what is a good result in Degrees for changing pads on the GPU? Thanks for any input

Hi All is there any third party comparission of the RX7900xtx cards? Are you guys happy with the XFX cards you got? Did someone repaste/re-pad them? Results?

Guys have fun and good luck on this one cant join you as you picked exactly the timeframe where im out of town anyway looking forward to be more present on the monthly ones….

Alphacool Announces ES Orbiter External Cooling System WWW.TECHPOWERUP.COM Excellent cooling for industrial applications! With the ES Orbiter 360 TS, Alphacool introduces a compact external cooling system. The powerful ES Orbiter is equipped with two NexXxoS Full Copper radiators of the... Back to the future # Zalman Reserator & Zalman Reserato XT It was an old wish / dream / idea to have the side panel same as the front panel of the reserator XT - the black smoked chrome of the gauges and the brushed aluminium If you guys by any chance have the panel somewhere and dont need it, then let me know would gladly buy it!

first of all thank you for stopping by and honoring my request Yes i tried the new toys and installed they look as follow: Now to the data of the measurement's: The default was this time the old model of the 3D printed Ducs presented in the posts before: CPU package MAX: 77 C GPU Hotspot MAX: 65 C DIMMS MAX: 34.3 C M2 SSD: 38 C Now with new design with the "bite outs" : CPU package MAX: 77 C GPU Hotspot MAX: 63 C DIMMS MAX: 34 C M2 SSD: 37 C And Finally the new design with the linear bottom: CPU package MAX: 75 C GPU Hotspot MAX: 63 C DIMMS MAX: 33,8 C M2 SSD: 37 C So yes the last Test has the best results but it could be as well based on the coldest intake temps. Anyway the biggest impact are not on the temps but on the noise. Noise of the turbulences went significantly down, you can still hear them on the higher fan speeds but its not much louder as the airflow or the fan noise at it self. I dont have any data or measurement results on this topic as I'm lacking the right instruments. Still have to try out the case split - GPU part from the CPU part... But it will take a bit more time as got a bit busy lately.... Now am i missing something here? Any recommendations? Please let me know. - any idea, recommendation or advice is very welcomed
