NVIDIA GeForce RTX 4090-class GPU with 600W TGP has reportedly been confirmed


Recommended Posts

Quote

There is yet another report that next-gen NVIDIA series will require lots of power.



Granted, we are only talking about the flagship models for now, but 600W graphics cards are still something that many of us simply cannot comprehend. The latest tweet from a reliable NVIDIA leaker kopite7kimi appears to confirm that next-gen XX90 class GPU is to feature TGP (total graphics power) of 600W.

Source



With utilities costs going up, we won't be able to afford to run them...let alone buy them lol.





  • Thanks 1

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

Premium Platinum - Lifetime
335 298

Anyone have time to explain the steps required to correctly (if possible) run dual PSUs in a single system (specifically a single motherboard, not one of the "2 systems in one box" builds)?  Say, GPU on its own dedicated PSU and the rest of the system on the "primary" PSU.  I can envision splitting the output from the "power on/reset/etc." buttons no problem, but do we run into issues with "desynchronized" signals from the two PSUs?  I wouldn't think so but can't be 100% sure by force of imagination alone.

TDM

Owned

 Share

CPU: 5950x
MOTHERBOARD: Dark Hero
GPU: Aorus 6900XT Extreme WF
RAM: G. Skill Ripjaws V 64GB 3600 14-14-14-34
WC CPU BLOCK: Watercool Heatkiller IV
WC PUMP: XTOP Revo / FLT 120 + 3 D5's
SSD/NVME: Samsung 980 Pro
CASE: Gutted Enthoo Pro 2
Full Rig Info
Link to comment
Share on other sites

6 hours ago, ENTERPRISE said:

Source



With utilities costs going up, we won't be able to afford to run them...let alone buy them lol.







Yeah, apart from running costs, some GPU vendors is also a bit tone deaf re. the times. Even my 3090 Strix OC pulled over 500W straight out of the box already (before custom vbios). I haven't bought a PSU with less than 1300W for my systems for a decade, and sill live of a pile of those which used to do Quad-SLI for HWBot in multi-format way back. I can only imagine 2x of the upcoming 4090 KPEs slurping the juice; even the rumoured KPE 3090 Ti is apparently > 600W w/ full PL on its own...



Where I live, 98% of our electricity comes from hydro, and electricity costs are 'reasonable' - but costs are certainly not going down.

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

2 hours ago, ArchStanton said:

Anyone have time to explain the steps required to correctly (if possible) run dual PSUs in a single system (specifically a single motherboard, not one of the "2 systems in one box" builds)?  Say, GPU on its own dedicated PSU and the rest of the system on the "primary" PSU.  I can envision splitting the output from the "power on/reset/etc." buttons no problem, but do we run into issues with "desynchronized" signals from the two PSUs?  I wouldn't think so but can't be 100% sure by force of imagination alone.



The 2x PSU's run independently from each other.  The only signal they share is On/Off when the system is turning on and off. I had used dual PSU setups for years back in the day and nothing has really changed, all you need in the 24PIN Splitter cable.



WWW.AMAZON.CO.UK

Xiatiaosann Dual PSU Power Supply 24 Pin 20+4 Pin Male, Main Second ATX Adapter Extension Cable Multiple Power Supply Splitter For ATX Motherboard : Amazon.co.uk: Business, Industry & Science



You will note that the spit off 24pin connector only has two actual cables going into it, that is because the second PSU as I mentioned just needs the On/Off signals.



I used to run my SLI setup off the second PSU and my primary took care of the system itself and overclocking.

  • Respect 2

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

4 hours ago, ArchStanton said:

Anyone have time to explain the steps required to correctly (if possible) run dual PSUs in a single system (specifically a single motherboard, not one of the "2 systems in one box" builds)?  Say, GPU on its own dedicated PSU and the rest of the system on the "primary" PSU.  I can envision splitting the output from the "power on/reset/etc." buttons no problem, but do we run into issues with "desynchronized" signals from the two PSUs?  I wouldn't think so but can't be 100% sure by force of imagination alone.





I've been using the Add2PSU boards for a long time. https://www.amazon.com/Multiple-Adapter-Connector-Genetek-Electric/dp/B0711WX9MC



Below is the small add-on-board in my workstation. The top 1000W PSU powers two GPUs and the bottom 1300W PSU powers the rest of the system.  Absolutely zero issues.




Edited by tictoc
  • Thanks 2
Link to comment
Share on other sites

5 hours ago, tictoc said:





I've been using the Add2PSU boards for a long time. https://www.amazon.com/Multiple-Adapter-Connector-Genetek-Electric/dp/B0711WX9MC



Below is the small add-on-board in my workstation. The top 1000W PSU powers two GPUs and the bottom 1300W PSU powers the rest of the system.  Absolutely zero issues.

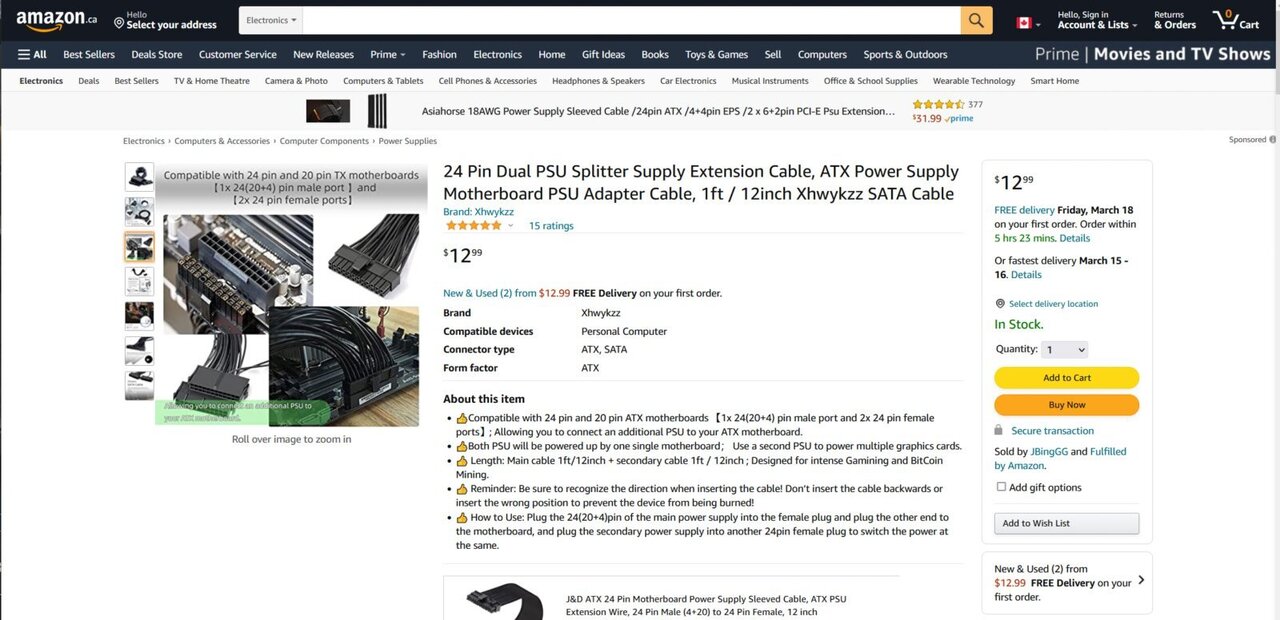

I normally use either 2x Antec 1300W HPC which have a proprietary OClink to each other (for an easy 2600W), or heavy-gage multi- PSU cable trees - like the ones below but better wiring...probably what you need if you want to run dual upcoming dual 4090 Tis 😂




  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

Why do I see a return of these horrible things in the near future? :lachen:



WWW.AMAZON.COM



  • Thanks 2

Owned

 Share

CPU: Ryzen 7900x
GPU: Sapphire Pulse RX 7900XTX
PSU: Cooler Master 850w Platinum
CPU COOLER: Cooler Master MasterLiquid PL360 Flux
MOTHERBOARD: Gigabyte B650 Aorus AX
SSD/NVME: Solidigm P41 Plus 2TB Gen4 NVME
RAM: G.Skill Flare X DDR5-6000
CASE: HAF700 Berserker
Full Rig Info

Too much

Owned

 Share

CPU: AMD Opteron 180 @ 3.0GHz
MOTHERBOARD: Asus A8N SLI
RAM: 4x1GB Corsair XMS DDR400 @ 2.5-3-3-6
PSU: eVGA 600BQ
GPU: Sapphire HD5870
SOUNDCARD: Asus Xonar DG
OPTICAL: DVDRW with Lightscribe
SSD/NVME: 64GB HP 2.5" SSD
Full Rig Info

Too much

Owned

 Share

CPU: AMD Athlon 1100MHz
MOTHERBOARD: ECS K7S5A
RAM: 2x256MB Corsair XMS DDR400 @ 133MHz / CAS2
PSU: Antec 350w
GPU: ATI Radeon 9800 PRO
SOUNDCARD: Creative Live! 5.1
OPTICAL: LG 16x DVD-ROM
OPTICAL 2: IOMagic 48x16x48 CDRW
Full Rig Info
Link to comment
Share on other sites

It's actually a question that's been asked many times over the years. Using linkable power supplies like J7SC mentions above will work, where that possibility exists. There's also what follows, which provides a bit more clarification about using dual psus to boost available power (see the answers in the linked content):



Using multiple power supplies in one PC



Also see dual pc power supplies avoiding ground loops for its SERP (About 106,000,000 results).



Ground loops can actually cause damage if not properly mitigated.

  • Thanks 2
