Build Log - Sir B's Black/White/Gold O11-Dynamic

[Avacado]

1 hour ago, iamjanco said:



That's a real shame after all that work--sorry to see that



Here's some info about ModWater that's a couple of years old now, but may still be relevant: ModMyMods.com premix Fluids is made from Mayhems concentrate



Also see:  Tons of flakey debris in loop



Mick, the original owner of Mayhems, sold the brand not too long back. Hard to say if the new owners might have screwed something up.





Awe, I had a post on that thread. 2020 keks.

[Sir Beregond]

I finished draining the loop tonight. There seems to be approximately 150ml of fluid left in the loop, I'm guessing stuck in the rads at this point. Will be doing a very thorough flushing and a blitz part 2 run when I get some more distilled water.



Anyway, here's what the drained fluid looks like. I think a lot of the big particles either broke up or lodged in the Optimus block which appears very gunked up. But you can still see some floaties.



For comparison the second image is another bottle after vigorous shaking and it's full of this gunk too.









Edited June 8, 2022 by Sir Beregond

[Avacado]

Well, you learned a lesson and taught me one. Always check new coolant before filling. Not something I ever did before.

[Sir Beregond]

4 hours ago, Avacado said:

Well, you learned a lesson and taught me one. Always check new coolant before filling. Not something I ever did before.

Ditto. I also should have just stopped filling it the second I noticed something, but part of me thought, "oh maybe the pump will mix it up". Honestly was just ready to be done with this prolonged project PC.



Current plan is to rip everything back out (not sure I am going to take the block off the GPU though) and run a bathroom loop to Blitz part 2 it again and then do subsequent flushes. I want to be thorough. Also need to take the CPU block off and probably clean it manually first. The GPU block by comparison does not have as small a jet plate and microfin structure, so I don't see any gunk stuck in it. Really not sure about the radiators.

[J7SC_Orion]

This must be very frrrrrustrating  ! Instead of tuning, oc'ing and playing some games, it's back to loop cleaning...but hang in there - it's a gorgeous build and soon all this little setback will be forgotten.



For the two Ravens' Nests builds and their expansive cooling volume, I had picked up one of these (below, 'a bucket for monsieur') but 'cut it' with 30% deionized water...almost a year later, everything is still pristine, per acrylic view windows on CPUs and GPUs. Next time around, I'll likely just go for pure deionized water with some antifungal / anticorrosive drops.



[Sir Beregond]

The two bottles of Mayhems XT-1 Nuke I ordered arrived today and look to be perfect, no particles floating around. I also emailed MMM support to see what they say about the Mod Water.



I still need to grab some more distilled water to re-clean the loop, but alas, difficult to find around here for some reason. There is one store I can usually find a couple of gallons (which is all I should need) that I'll be by later today or tomorrow. I think I have enough on hand still to make another batch of Blitz Part 2 tonight and get that going at least.



EDIT: Just got a call from MMM, they stated they had some bad batches from the Mayhems switchover when Mick stepped down with the additive packs, and that likely is what my bottles are from. Since they don't serialize the bottles, was hard to track who got what when they fixed the issue. They have assured me that those initial pains from the Mayhems transition are resolved and are sending me 3 new bottles of Mod Water clear. Huge props to MMM for the quick response. They also asked if I needed a Blitz kit, but as I already have one, said I was good there.

Edited June 9, 2022 by Sir Beregond

[J7SC_Orion]

4 hours ago, Sir Beregond said:

The two bottles of Mayhems XT-1 Nuke I ordered arrived today and look to be perfect, no particles floating around. I also emailed MMM support to see what they say about the Mod Water.



I still need to grab some more distilled water to re-clean the loop, but alas, difficult to find around here for some reason. There is one store I can usually find a couple of gallons (which is all I should need) that I'll be by later today or tomorrow. I think I have enough on hand still to make another batch of Blitz Part 2 tonight and get that going at least.



EDIT: Just got a call from MMM, they stated they had some bad batches from the Mayhems switchover when Mick stepped down with the additive packs, and that likely is what my bottles are from. Since they don't serialize the bottles, was hard to track who got what when they fixed the issue. They have assured me that those initial pains from the Mayhems transition are resolved and are sending me 3 new bottles of Mod Water clear. Huge props to MMM for the quick response. They also asked if I needed a Blitz kit, but as I already have one, said I was good there.



It's good that MMM is stepping up, but still, there's the time lost (never mind disappointment), and the disassembly and reassembly....

[Sir Beregond]

1 hour ago, J7SC_Orion said:



It's good that MMM is stepping up, but still, there's the time lost (never mind disappointment), and the disassembly and reassembly....

Yeah, I'm tearing down as I write this and its not fun...

[Sir Beregond]

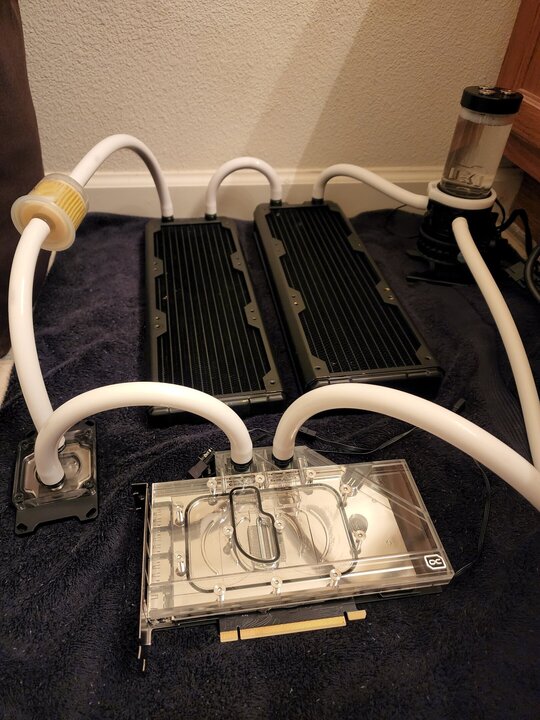

And back to the Blitz part 2 run in the bathroom...

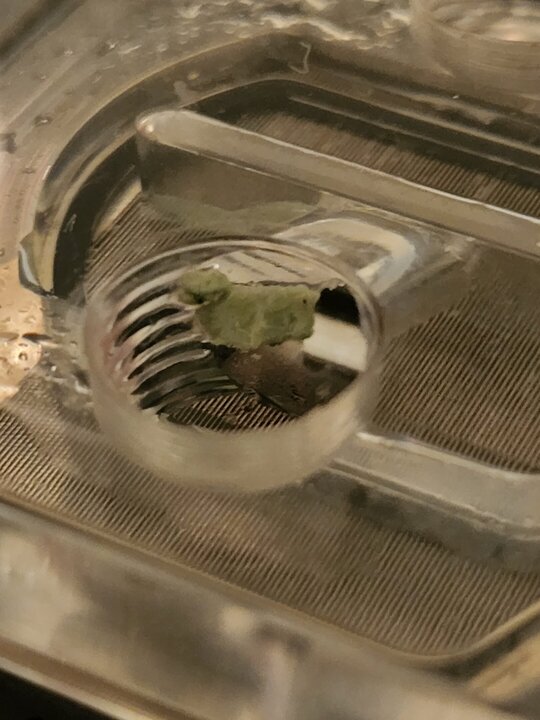

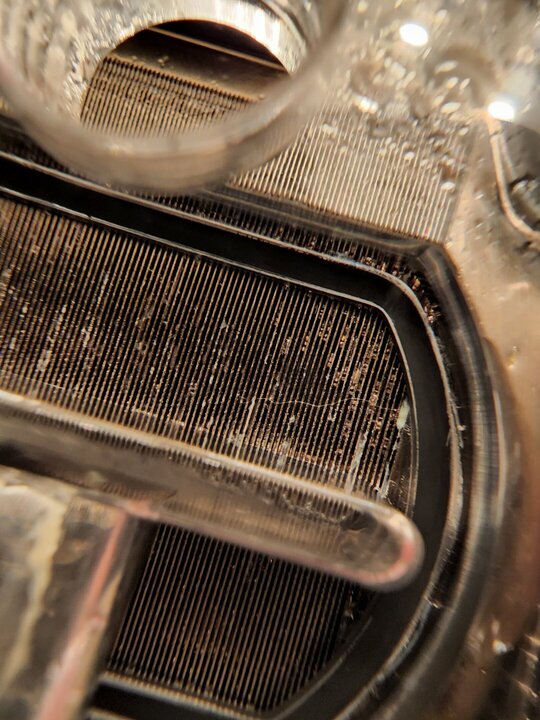

I did manually clean the Optimus block.









[J7SC_Orion]

4 hours ago, Sir Beregond said:

And back to the Blitz part 2 run in the bathroom...



I did manually clean the Optimus block.











Wow - that was significant contamination !

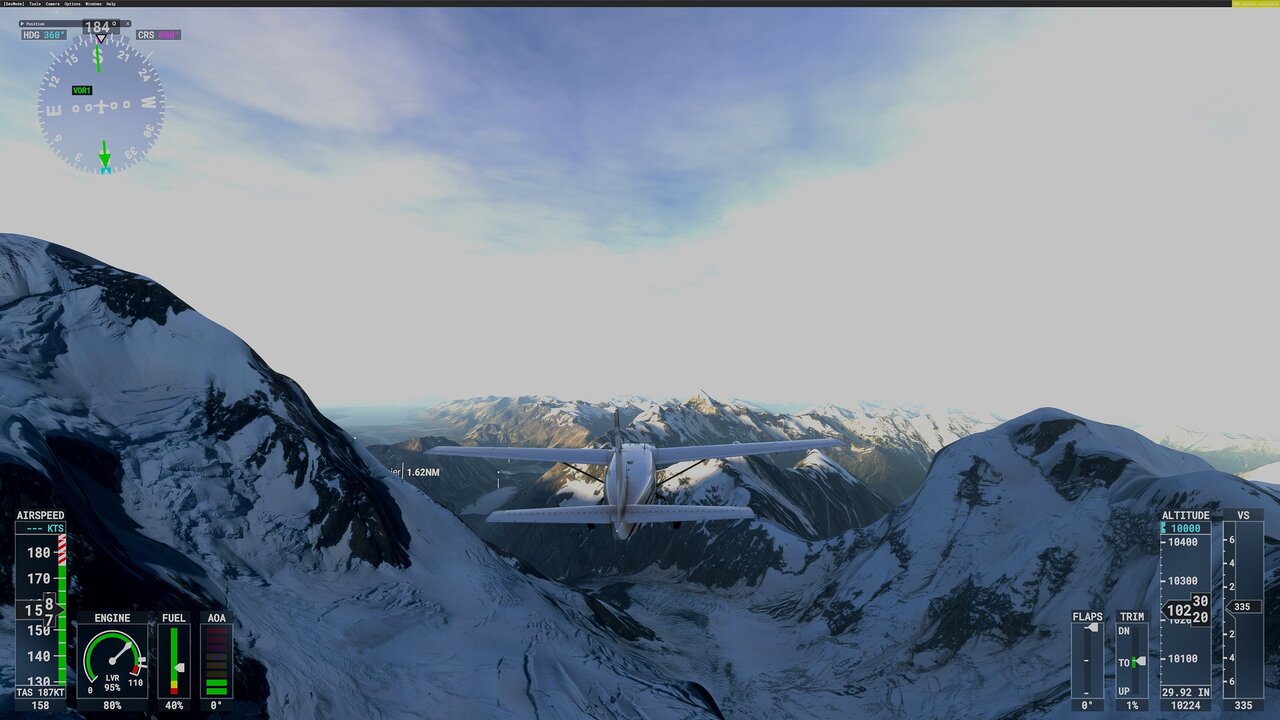

Ed.: ...but once you're done, max your 5900X, pick a medium level oc for the 3080 Ti for FS2020 and go flying in the New Zealand mountains for some reward !



Edited June 10, 2022 by J7SC_Orion

[Sir Beregond]

11 hours ago, J7SC_Orion said:



Wow - that was significant contamination !



Ed.: ...but once you're done, max your 5900X, pick a medium level oc for the 3080 Ti for FS2020 and go flying in the New Zealand mountains for some reward !



Yeah I should probably start reading up on how to even OC on AMD because I do not even know. It was pretty simple on the 4790k - but was sadly a bad overclocker.

[J7SC_Orion]

48 minutes ago, Sir Beregond said:

Yeah I should probably start reading up on how to even OC on AMD because I do not even know. It was pretty simple on the 4790k - but was sadly a bad overclocker.



...more complex now - especially w/ all the AMD tuning options - than w/ 4790K, but a ton of fun, really. First decision: What bios to run (I use 3801 for Win11 CH8 DarkH). If that bios gives you no troubles re. USB etc, keep it. Next, max RAM speed / timing. Once those are settled, feel free to ask for advice...

[Sir Beregond]

45 minutes ago, J7SC_Orion said:



...more complex now - especially w/ all the AMD tuning options - than w/ 4790K, but a ton of fun, really. First decision: What bios to run (I use 3801 for Win11 CH8 DarkH). If that bios gives you no troubles re. USB etc, keep it. Next, max RAM speed / timing. Once those are settled, feel free to ask for advice...

I've never really messed with RAM before aside from just setting the XMP profile to the appropriate speed for what the kit was on my Intel rigs. So yeah will probably have to read up on that too. I have this kit I just picked up from Micro Center:



https://www.microcenter.com/product/610708/gskill-trident-z-neo-series-rgb-32gb-(2-x-16gb)-ddr4-3600-pc4-28800-cl16-dual-channel-memory-kit-f4-3600c16d-32gtznc-black

[J7SC_Orion]

39 minutes ago, Sir Beregond said:

I've never really messed with RAM before aside from just setting the XMP profile to the appropriate speed for what the kit was on my Intel rigs. So yeah will probably have to read up on that too. I have this kit I just picked up from Micro Center:



https://www.microcenter.com/product/610708/gskill-trident-z-neo-series-rgb-32gb-(2-x-16gb)-ddr4-3600-pc4-28800-cl16-dual-channel-memory-kit-f4-3600c16d-32gtznc-black



...tuning RAM can be a dark art, but it is worth it for Ryzen as it reacts really well to it re. fps etc. A MUST HAVE is > this if you're new to it in the Ryzen RAM context - just plug in your RAM specs and select 'safe' or' fast'...this is of course after you turned PBO/2 on but leave values on default. Also, the DynamicOC option in CH8 DarkH is great but should come later / after everything else has been made 'max stable'.

[Sir Beregond]

Ok, finished the Blitz Part 2 run and 3 flushes with distilled water. PH testing is coming out a solid 7 after last run. Parts are drying now. Also cleaned all fittings and the tubing.



This gives me an opportunity to think about my fans again. I previously had it where the side is intaking and both radiators are exhausting. Wondering if it makes sense to intake both radiators and exhaust side? I don't know. This case still confuses the hell out of me when it comes to airflow. I definitely think that custom PPCs front panel is in my future.

[Avacado]

38 minutes ago, Sir Beregond said:

Ok, finished the Blitz Part 2 run and 3 flushes with distilled water. PH testing is coming out a solid 7 after last run. Parts are drying now. Also cleaned all fittings and the tubing.



This gives me an opportunity to think about my fans again. I previously had it where the side is intaking and both radiators are exhausting. Wondering if it makes sense to intake both radiators and exhaust side? I don't know. This case still confuses the hell out of me when it comes to airflow. I definitely think that custom PPCs front panel is in my future.

Go bottom rad intake/sides intake. Top exhaust



[Sir Beregond]

37 minutes ago, Avacado said:

Go bottom rad intake/sides intake. Top exhaust



Cool, will do. I usually like doing push, but will probably be in pull since the tube runs are already done.

Edited June 12, 2022 by Sir Beregond

[Sir Beregond]

Looky what I'm doing today.  I did take @Avacado advice and flip the bottom rad fans to intake (in pull). Still working on bleeding air out for now, then will hook it all up and see how things are looking.



Edit: ok all the big air is bled out now, just will work out the micro bubbles over time. Total coolant usage was approximately 850-900ml.



Edited June 13, 2022 by Sir Beregond

[J7SC_Orion]

1 hour ago, Sir Beregond said:

Looky what I'm doing today.  I did take @Avacado advice and flip the bottom rad fans to intake (in pull). Still working on bleeding air out for now, then will hook it all up and see how things are looking.



Edit: ok all the big air is bled out now, just will work out the micro bubbles over time. Total coolant usage was approximately 850-900ml.





...time to oc, bench and game !

[Sir Beregond]

Gotta figure out what's going on with this flow meter. It is reading coolant temp, but flow is showing as 0.00L/min. It didn't come with any instructions, so perhaps I need to do something.

[Mr. Fox]

37 minutes ago, Sir Beregond said:

Gotta figure out what's going on with this flow meter. It is reading coolant temp, but flow is showing as 0.00L/min. It didn't come with any instructions, so perhaps I need to do something.

It may only measure flow with coolant flowing one direction. I think some of them have a removable insert that can be removed and flipped 180° if coolant needs to flow in the opposite direction.



Edited June 13, 2022 by Mr. Fox

[Sir Beregond]

9 minutes ago, Mr. Fox said:

It may only measure flow with coolant flowing one direction. I think some of them have a removable insert that can be removed and flipped 180° if coolant needs to flow in the opposite direction.



Hmm well crap. Hope that's not it since I filled it up. But will take a look.



Another thing I will have to figure out...I noticed the Dark Hero RGB remains on after the PC is powered off. I am going to have to figure out how to turn that off as when in Windows I used OpenRGB to turn all of that off.

[Avacado]

5 hours ago, Sir Beregond said:

Hmm well crap. Hope that's not it since I filled it up. But will take a look.



Another thing I will have to figure out...I noticed the Dark Hero RGB remains on after the PC is powered off. I am going to have to figure out how to turn that off as when in Windows I used OpenRGB to turn all of that off.

That is a setting in bios. You can set it to off when powerd down. And +1 to what Fox said. Those meters have a one way impellor. You would need to switch it.

Edited June 13, 2022 by Avacado

[Mr. Fox]

Yeah, it sucks to have to drain the loop to open it up and start the process over again due to simple human error--been there, done that, more often than I would like to admit--but, that would be better than having a defective part and having to deal with an RMA mess right now.

[Sir Beregond]

True. Ok will take a look at doing that tonight.
