RyzenRouter


tictoc
8 Attachments

Recommended Posts

The gem of this build is the 1.5U chassis.  This oddball chassis size will allow for quiet 60mm fans, and a dead silent cooler for the CPU.



This router will slot right into the top of my quiet networking/power rack.  The switches and UPS's in the rack have already had transplant surgery to swap out the stock 40mm and 80mm fans for some quieter Noctua fans.

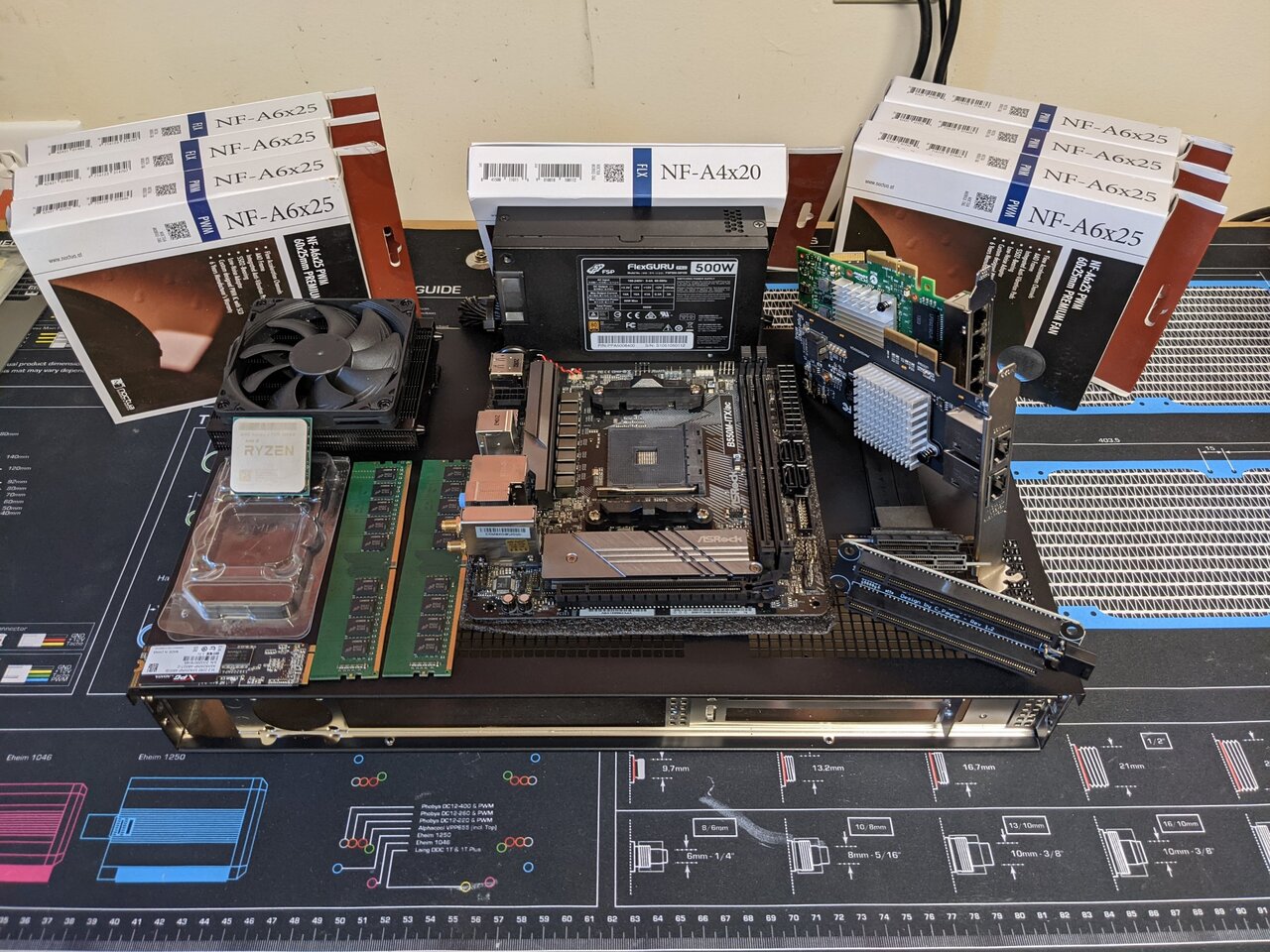

Parts List:

CPU: AMD Ryzen 3 Pro 4350G

Motherboard: AsRock B550M-ITX/ac

RAM: 2x 16GB Micron DDR4 3200 ECC UDIMM

SSD: ADATA XPG SX8200 Pro 500GB

NICs: Intel X550-AT2 10GBASE-T; Intel E1G44HT 10/100/1000

PSU: FSP FlexGURU 500W

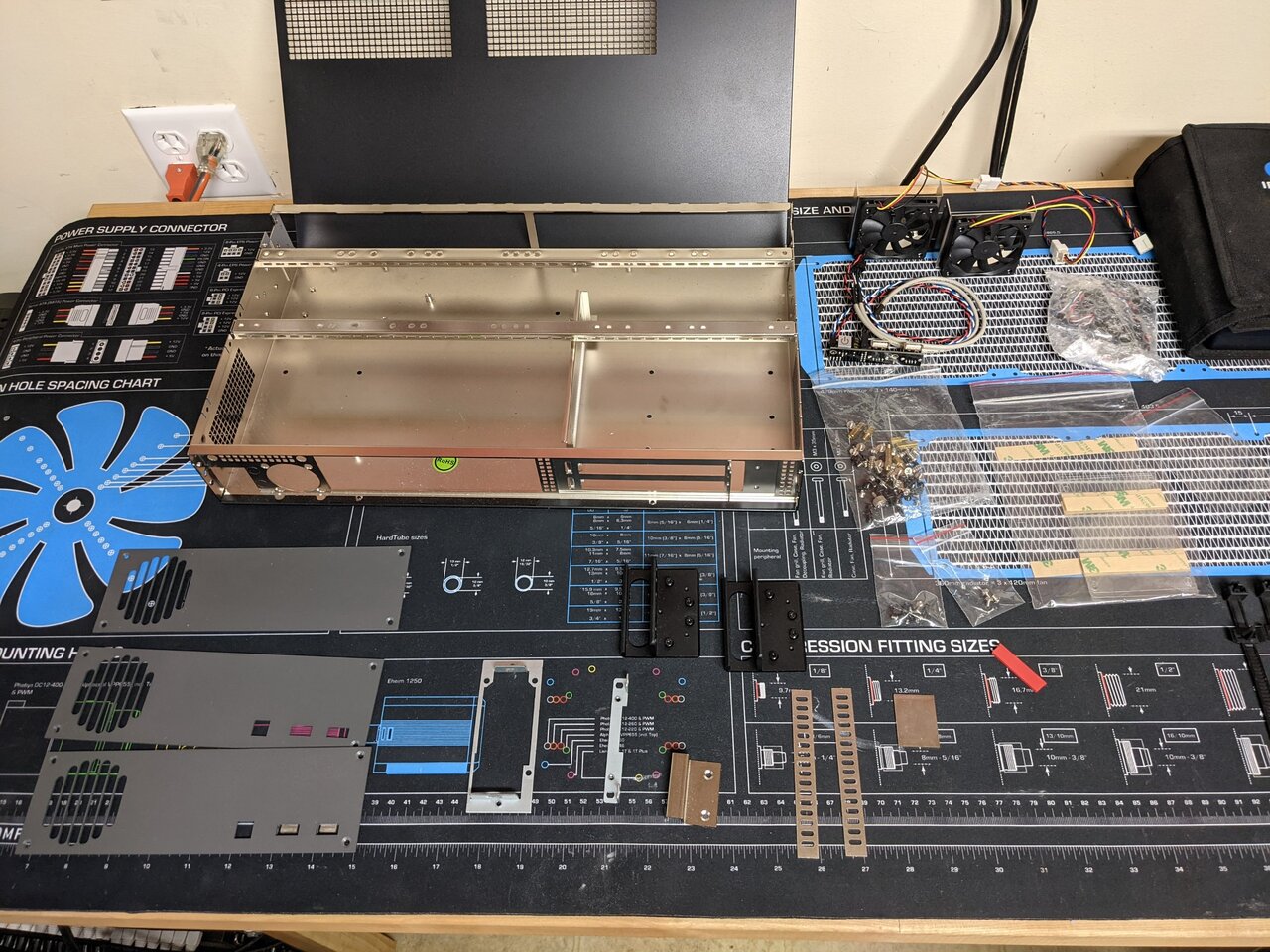

The stripped down chassis.




There will be some mods to the chassis.

  • IO will be facing the front along with the 2 NICs, and the provided plates don't have provisions for that setup.
  • PSU will also be relocated to what will now be the rear for tidy power cable management.
  • Add a filtered intake to the top for the CPU cooler



I am also going to try and stuff one of my PiKVMs into the chassis.  I'm not sure if I'll be able to squeeze it between the PSU and the front of the chassis, but there should be just enough room to get it in there.

Edited by tictoc
  • Thanks 1
  • Respect 2
Link to comment
Share on other sites

one pci-e but two cards?

Owned

 Share

CPU: 10900k
MOTHERBOARD: EVGA z490 DARK
RAM: 32GB 3600mhz G.Skill
GPU: EVGA 2080 SUPER
SSD/NVME: 970 EVO plus 1TB
CASE: Thermaltake Core x71
Full Rig Info

Owned

 Share

CPU: Intel® Core™ i7-11700K
MOTHERBOARD: ASUS PRIME Z590-P WIFI
RAID CONTROLLER: Dell H200E
HDD: 15x4TB MD1000
SSD/NVME: 10x512GB Samsung SSD (Cache) MD1000
OPERATING SYSTEM: Unraid 6.11.5
Full Rig Info
Link to comment
Share on other sites

30 minutes ago, Cerberus said:

one pci-e but two cards?



assuming he's going the bifurcation route?






¯\_(ツ)_/¯

  • Thanks 2

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
MONITOR: 14" 1080p IPS 60hz @ 72hz
Full Rig Info
Link to comment
Share on other sites

31 minutes ago, The Pook said:



assuming he's going the bifurcation route?






¯\_(ツ)_/¯

*hey, eyes, look more better*

  • Thanks 2

Owned

 Share

CPU: 10900k
MOTHERBOARD: EVGA z490 DARK
RAM: 32GB 3600mhz G.Skill
GPU: EVGA 2080 SUPER
SSD/NVME: 970 EVO plus 1TB
CASE: Thermaltake Core x71
Full Rig Info

Owned

 Share

CPU: Intel® Core™ i7-11700K
MOTHERBOARD: ASUS PRIME Z590-P WIFI
RAID CONTROLLER: Dell H200E
HDD: 15x4TB MD1000
SSD/NVME: 10x512GB Samsung SSD (Cache) MD1000
OPERATING SYSTEM: Unraid 6.11.5
Full Rig Info
Link to comment
Share on other sites

28 minutes ago, Cerberus said:

*hey, eyes, look more better*

Glasses Seinfeld GIF

  • Thanks 1

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Ventura
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

Moar!  🙃

Owned

 Share

CPU: Ryzen 7900x
GPU: Sapphire Pulse RX 7900XTX
PSU: Cooler Master 850w Platinum
CPU COOLER: Cooler Master MasterLiquid PL360 Flux
MOTHERBOARD: Gigabyte B650 Aorus AX
SSD/NVME: Solidigm P41 Plus 2TB Gen4 NVME
RAM: G.Skill Flare X DDR5-6000
CASE: HAF700 Berserker
Full Rig Info

Too much

Owned

 Share

CPU: AMD Opteron 180 @ 3.0GHz
MOTHERBOARD: Asus A8N SLI
RAM: 4x1GB Corsair XMS DDR400 @ 2.5-3-3-6
PSU: eVGA 600BQ
GPU: Sapphire HD5870
SOUNDCARD: Asus Xonar DG
OPTICAL: DVDRW with Lightscribe
SSD/NVME: 64GB HP 2.5" SSD
Full Rig Info

Too much

Owned

 Share

CPU: AMD Athlon 1100MHz
MOTHERBOARD: ECS K7S5A
RAM: 2x256MB Corsair XMS DDR400 @ 133MHz / CAS2
PSU: Antec 350w
GPU: ATI Radeon 9800 PRO
SOUNDCARD: Creative Live! 5.1
OPTICAL: LG 16x DVD-ROM
OPTICAL 2: IOMagic 48x16x48 CDRW
Full Rig Info
Link to comment
Share on other sites

Nice. I love small compact builds. Always gives me inspiration for my next pfsense build, though that is a little way off at the moment.



Is that a Noctua low profile CPU cooler in the picture?

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

6 minutes ago, ENTERPRISE said:

Is that a Noctua low profile CPU cooler in the picture?

Looks like a NH-L9i in black.

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 14-8-14-14-21-35 1T GDM)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 48" C1
Full Rig Info

Owned

 Share

CPU: Intel Core i7-4790K, Core i9-10900K, Core i3-13100, Core i9-13900KS
GPU: various
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Ventura
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

1 hour ago, Sir Beregond said:

Looks like a NH-L9i in black.

That's what I was thinking to be honest. The low profile coolers from Noctua are awesome.

  • Thanks 1

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

  • 2 months later...

Things have been busy, but I had some time over the weekend to get this partially up and running.









I'm leaving the PCIe cables just in case this chassis gets repurposed some day.  The rest of the cables are stashed under the PSU.



Currently stress testing (mprime, y-cruncher, and stressapptest) on a minimal Arch install.

At stock clocks, CPU boosts to 4050MHz all-core while running mprime blend, with CPU fan set to "Standard" mode in BIOS.  Looks like there is quite a bit of headroom on the CPU, so I will be OCing the CPU on the overkill router.  Currently power usage is sitting at 85W at the wall while running mprime.

Both NICs detected and all ports are working with the PCIe slot set to x8 x8.  Bifurcation options in the BIOS are x8 x8, x8 x4 x4, and x4 x4 x4 x4.

ECC UDIMMs booted right up at 3200MHz, and can be monitored for errors via rasdaemon.  Totally unnecessary for a router, but I have a bunch of extra ECC UDIMMs, so into the router they go.  No issues at 3200 with jedec timings, so it looks like I will also be OC'ing the RAM.



List of things still to complete:

  • Fab custom top panel with filtered cut-outs for cooler intake and intake above the NICs
  • Replace secondary 8-pin EPS with custom length 4-pin EPS for the bifurcation card
  • Fab/install power switch, power LED, and activity LED
  • Install and wire up remote power break-out board for PiKVM



Once I finish the rest of the build, then it will be on to testing VyOS.

Edited by tictoc
  • Respect 2
Link to comment
Share on other sites

  • 8 months later...

Life got in the way over the last many months, and I haven't put this router in to production.  I am currently just running off of my old EdgeRouter, but I will be putting this build online in the next month or so...

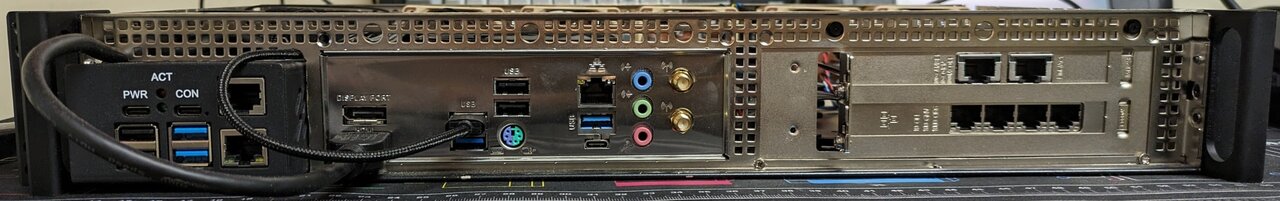

Here are some final pics with everything installed and wired up.

  • PiKVM tested and fully functional with the ability to power on/off and access the UEFI remotely. 🙂
  • Hardware power and reset buttons are installed behind the front mesh, to the right of the NICs, just to make sure I can't accidentally hit the buttons if I am working on the rack.



ryzenRouter5_final.thumb.jpg.263167f465833fab369f6a045782c5f9.jpg ryzenRouter6_final.thumb.jpg.ba50c325f9fa703f203b33f378bd168d.jpgryzenRouter7_final.thumb.jpg.eb13162179516233223b8c1bba92bf18.jpg



I am still leaning towards VyOS, but I might ultimately go with OPNSense.  I'll post some final pics after it is up and running in the rack.



Edited by tictoc
typos
  • Thanks 1
  • Respect 1
Link to comment
Share on other sites

I considered building something like this when I did the last network refresh, but I knew I wouldn't spend the time to get it right and implemented so I went the easy route and just dropped in a UDM Pro.



Build came out nice though. It's cool that you were able to stuff the PiKVM into the chassis.

Owned

 Share

CPU: 5900X + Optimus block
MOTHERBOARD: MSI X570 Ace
GPU: EVGA RTX 3090 FTW3 Ultra + Optimus block
RAM: 32GB Oloy Blade 3600CL14
SSD/NVME: 1TB SN750 Black
SSD/NVME 2: 1TB SN750 Black
SSD/NVME 3: 2TB Samsung 970 Evo Plus
CASE: LD PC-V7
Full Rig Info

Owned

 Share

CPU: 7800X3D
MOTHERBOARD: B650E-I Strix
RAM: G.Skill Flare X5
GPU: Reference 6950 XT
CASE: InWin D-Frame Mini
WC RADIATOR: MO-RA3 with 4x180mm Silverstone fans
FAN CONTROLLER: Aquaero
Full Rig Info

Owned

 Share

CPU: 12600KF
MOTHERBOARD: Z790I Strix
RAM: G.Skill Trident Z5 Neo
GPU: RTX 2080
CASE: Sliger SM580
WC RESEVOIR: Phanteks R160C
WC RADIATOR: XSPC TX240 Ultrathin
FANS: Phanteks T30
Full Rig Info
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
×
×
  • Create New...

Important Information

This Website may place and access certain Cookies on your computer. ExtremeHW uses Cookies to improve your experience of using the Website and to improve our range of products and services. ExtremeHW has carefully chosen these Cookies and has taken steps to ensure that your privacy is protected and respected at all times. All Cookies used by this Website are used in accordance with current UK and EU Cookie Law. For more information please see our Privacy Policy
