Lenovo Ideapad 110-15ACL cannot enter the BIOS setup, it always reboots. Advice?


HeyItsChris
Go to solution Solved by HeyItsChris,

Recommended Posts

Lenovo Ideapad 110-15ACL cannot enter the BIOS setup, it always reboots.  Advice?



I guess my ultimate question is does anyone have experience with Lenovo laptops, getting into the BIOS?



Also how to reset CMOS battery, because I didn't see it on the back side of the motherboard where the APU and ram sits.



Thanks





Edited by HeyItsChris
  • Respect 1
Link to comment
Share on other sites



¯\_(ツ)_/¯

  • Thanks 1

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
MONITOR: 14" 1080p IPS 60hz @ 72hz
Full Rig Info
Link to comment
Share on other sites

Is there a beep code?

  • Thanks 1

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

7 minutes ago, The Pook said:



¯\_(ツ)_/¯

Thanks ill try it out now.

1 minute ago, UltraMega said:

Is there a beep code?

No beep code.  Thanks for the comment.

Link to comment
Share on other sites

1 minute ago, HeyItsChris said:

Thanks ill try it out now.

No beep code.  Thanks for the comment.

Flashing lights?

If you turn it on and basically nothing happens, there's probably not a lot you can do.

You can try resetting the motherboard by removing the mobo battery if there is one, maybe try one stick of ram at a time but it sounds like the motherboard is probably the issue so short of replacing it, you might have a paperweight on your hands.

  • Thanks 1

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

I think I accidentally locked myself out because the Novo button doesn't work, well it does and I press ENTER on BIOS Setup & it reboots and doesn't do anything same with Fn F2 or F2 alone.



How do I reset the CMOS?

Thanks



I think the easiest way is through the Pheonix SCT Flash tool & reset the CMOS.  I need to learn the commands from command prompt.  Any ideas?




Edited by HeyItsChris
Link to comment
Share on other sites

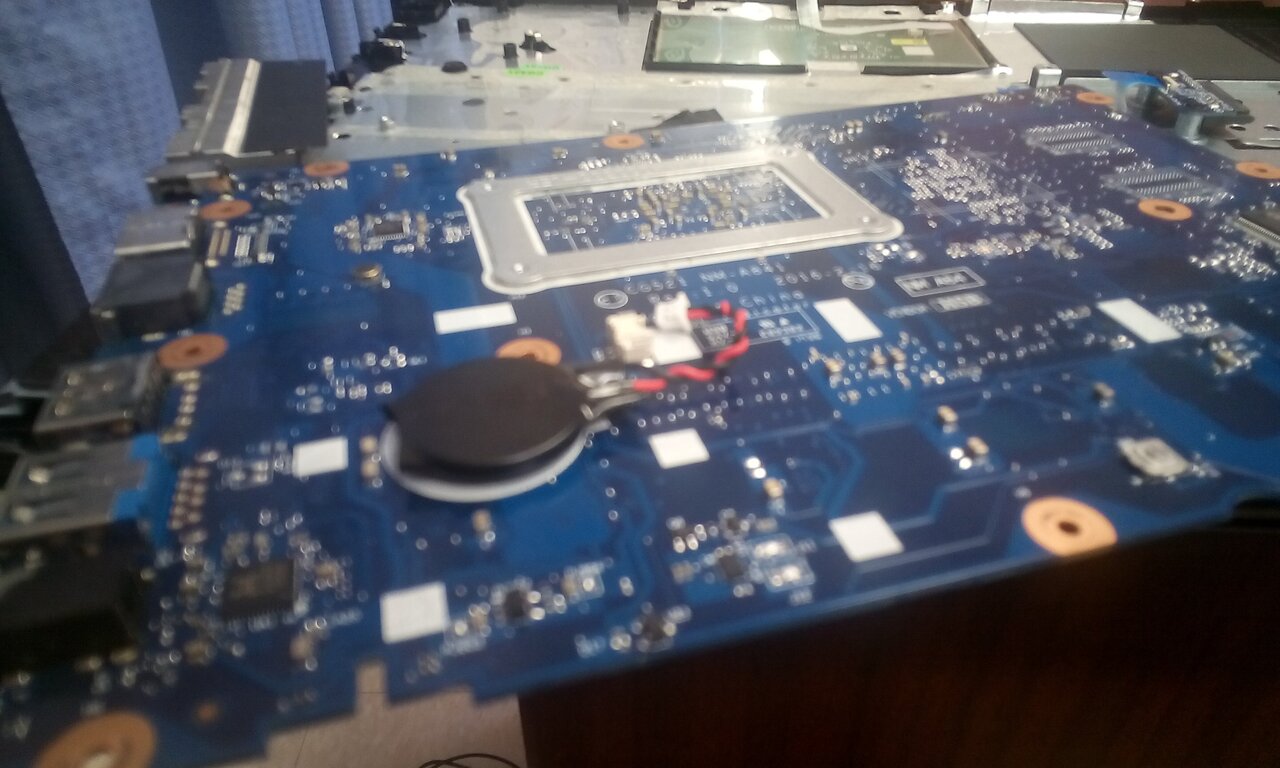

Take it apart and look for a battery on the motherboard. Take the battery out for one minute and then put it back in. Make sure the main battery is disconnected first. Just like you would do on a desktop, this will reset the CMOS/BIOS/UEFI whatever.



Newer laptops don't usually have this battery, but your probably does if it's DDR3.

Edited by UltraMega
  • Thanks 1

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

are you able to boot into Windows?



Settings -> Update & Security -> Recovery -> "Restart Now" under Advanced Startup



when it reboots: Troubleshoot -> Advanced Options -> UEFI Firmware

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
MONITOR: 14" 1080p IPS 60hz @ 72hz
Full Rig Info
Link to comment
Share on other sites

...this may / may not be related, but Lenovo likes to lock down certain AMD chips which theoretically could be triggered by a combo of prior bios changes, a dead / disconnected battery and other changes. I realize this doesn't fit your issue dead on, but worth thinking about.





  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

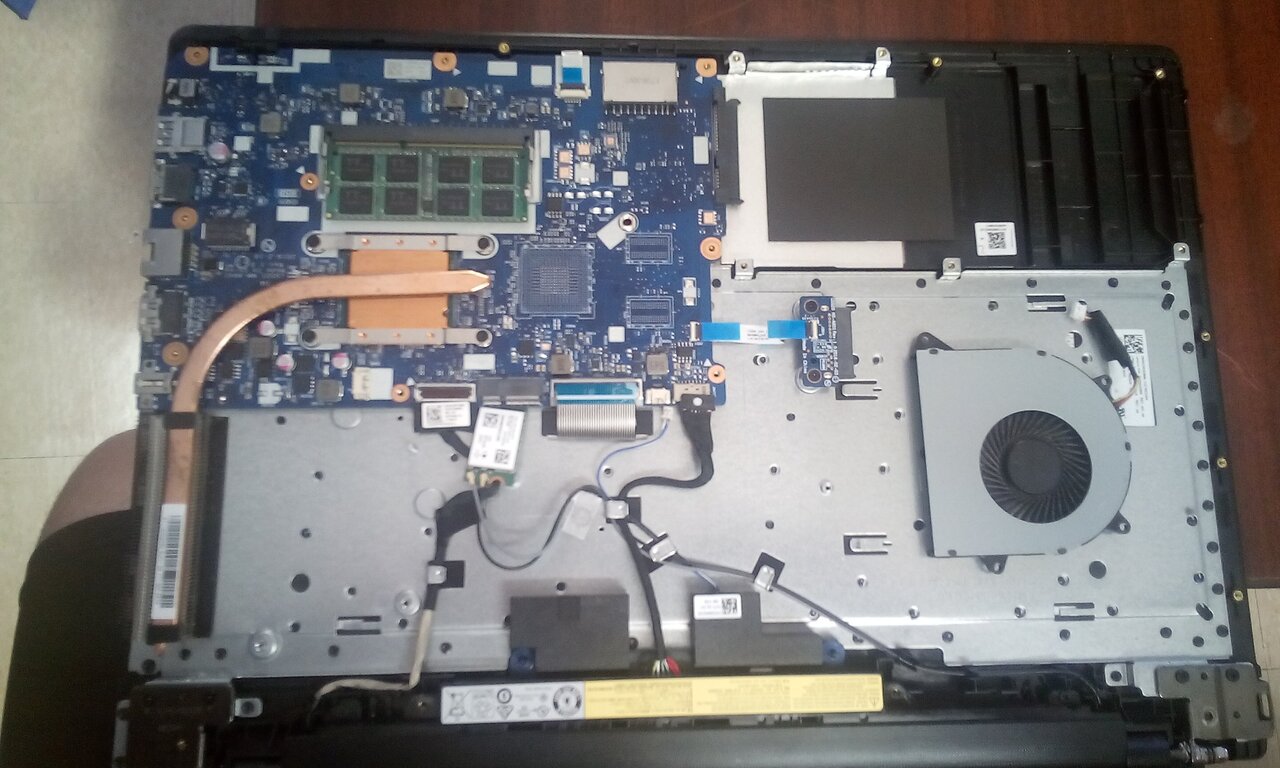

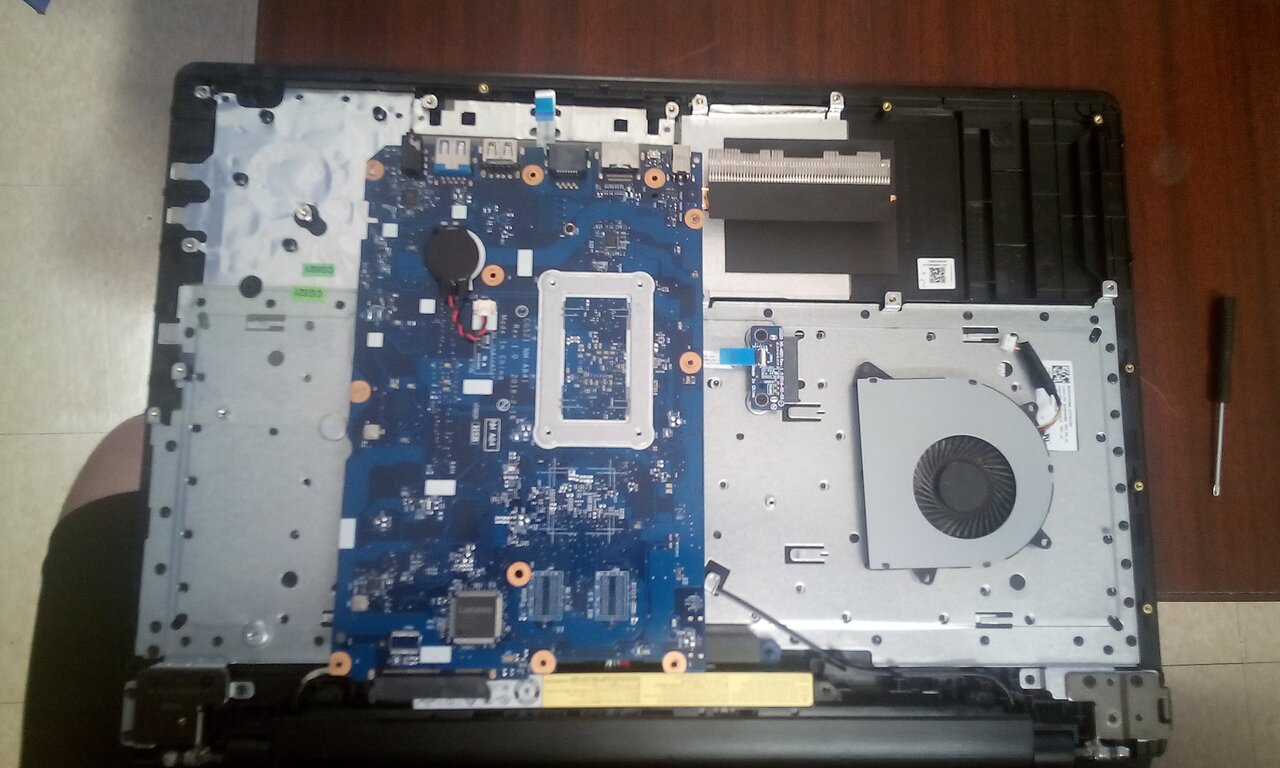

So I put it back together after now charging led is blinking orange idk why it appears to be charging in windows.



Anyway yeah I cant get into the bios, fn f2 doesn't work and f2 just keeps rebooting every time i press f2 on boot up it restarts over and over and over again never going into the bios.

Link to comment
Share on other sites

8 minutes ago, HeyItsChris said:

So I put it back together after now charging led is blinking orange idk why it appears to be charging in windows.



Anyway yeah I cant get into the bios, fn f2 doesn't work and f2 just keeps rebooting every time i press f2 on boot up it restarts over and over and over again never going into the bios.

Does it boot up and work normally otherwise? Does it only crash when you try to get into the bios menu?



What do you need to get into the bios for?



Have you checked the manufacture's website for a bios update?

Edited by UltraMega
  • Respect 1

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

5 minutes ago, UltraMega said:

Does it boot up and work normally otherwise? Does it only crash when you try to get into the bios menu?



What do you need to get into the bios for?



Have you checked the manufacture's website for a bios update?

Yes it boots and runs fine.



Yes only boot loops when trying to enter bios.  According to my every button press does it reboot.



I want to attempt to gain access to the advanced debug bios menu and just generally just wanna get into the bios menu.



Thank you





Link to comment
Share on other sites

5 minutes ago, HeyItsChris said:

Yes it boots and runs fine.



Yes only boot loops when trying to enter bios.  According to my every button press does it reboot.



I want to attempt to gain access to the advanced debug bios menu and just generally just wanna get into the bios menu.



Thank you





If you tried the bios update from the manufacturers website already, then there probably isn't anything else you can do. If you are getting a checksum error, try the automatic update option from the manufacturers website.

On an older laptop like that I can't think of much you would need to do in the bios. Whatever you are trying to do, there are probably other ways to do it.

What do you need to debug?

  • Thanks 1

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

Overclocking the Radeon R4 graphics beyond 800Mhz would be sick and possibly the CPU as well.  At full tilt because of TDP limitations, the APU limits the CPU portion to 1.4Ghz under load while the GPU maintains 800Mhz.  If I could at least adjust the TDP, I'd be in business.



It's the AMD A6-7310 APU boosts up to 2.4Ghz on all 4 cores only if TDP is turned up, by stock the 15W TDP limit limits the performance tremendously.



I modified the fan profile on the laptop so its load temperature is 40°C.  So I have a ton of overhead.

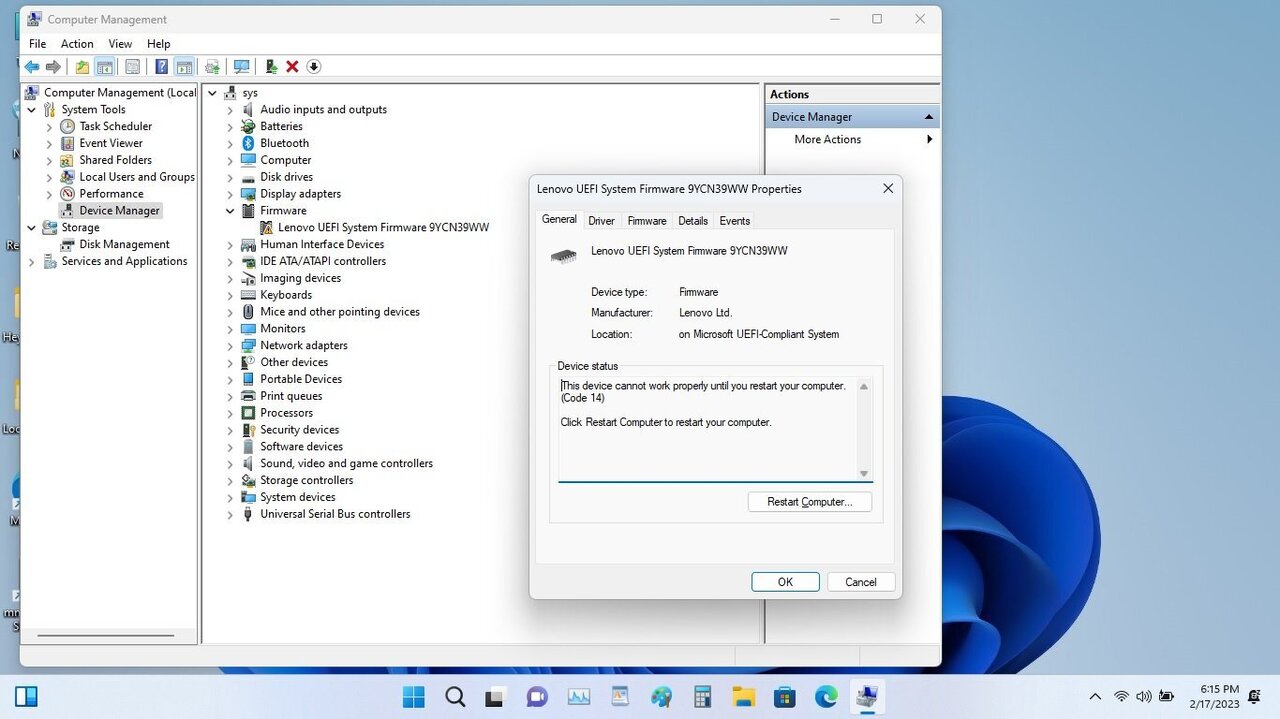

Well I updated the firmware via Windows Update & it reports an error in device manager and won't apply the system update which is reported in the BIOS.







Edited by HeyItsChris
Link to comment
Share on other sites

5 hours ago, HeyItsChris said:

Overclocking the Radeon R4 graphics beyond 800Mhz would be sick and possibly the CPU as well.  At full tilt because of TDP limitations, the APU limits the CPU portion to 1.4Ghz under load while the GPU maintains 800Mhz.  If I could at least adjust the TDP, I'd be in business.



It's the AMD A6-7310 APU boosts up to 2.4Ghz on all 4 cores only if TDP is turned up, by stock the 15W TDP limit limits the performance tremendously.



I modified the fan profile on the laptop so its load temperature is 40°C.  So I have a ton of overhead.



Well I updated the firmware via Windows Update & it reports an error in device manager and won't apply the system update which is reported in the BIOS.







It is HIGHLY unlikely you will have any Overclocking or tweaking options in the BIOS anyway. Custom laptops/ enthusiast laptops usually do but a run of the mill Lenovo,Dell,HP etc, they lock all of that out.



I would suggest at this point there is something wrong with the BIOS. It is functioning enough to allow you to POST and get into the OS. But it seems it has been messed with and locked out.



I think your only other option is to use a flash tool outside of the Windows environment and use a flag in the command that forces the flash regardless if it is the same version.



JACKSTROMBERG.COM

This tutorial will review how to create a bootable USB drive to flash the fimrware/bios on your...

This would get you started and may work without any further intervention.







  • Thanks 1

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

On 18/02/2023 at 01:43, ENTERPRISE said:

It is HIGHLY unlikely you will have any Overclocking or tweaking options in the BIOS anyway. Custom laptops/ enthusiast laptops usually do but a run of the mill Lenovo,Dell,HP etc, they lock all of that out.



I would suggest at this point there is something wrong with the BIOS. It is functioning enough to allow you to POST and get into the OS. But it seems it has been messed with and locked out.



I think your only other option is to use a flash tool outside of the Windows environment and use a flag in the command that forces the flash regardless if it is the same version.



JACKSTROMBERG.COM

This tutorial will review how to create a bootable USB drive to flash the fimrware/bios on your...

This would get you started and may work without any further intervention.

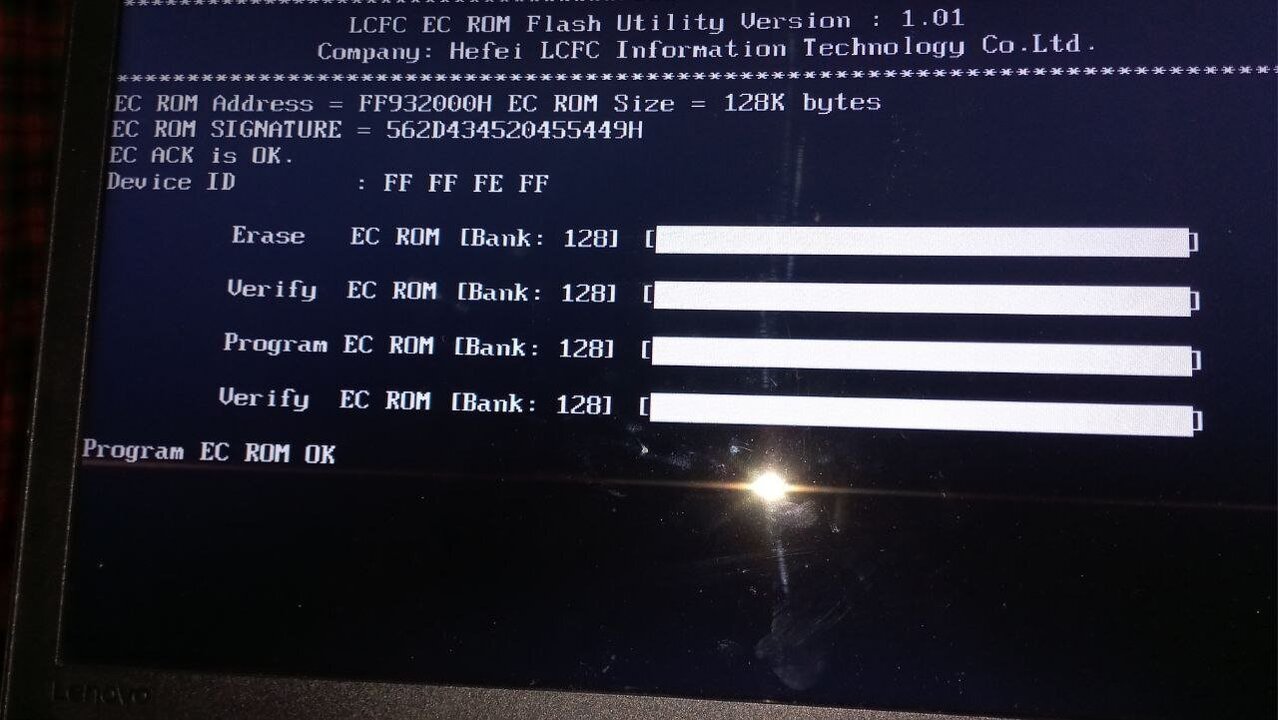

Thanks so I am working on it now and it says Rollback flash is disabled in the BIOS so I am hoping I can bypass it.  I'm reading this content here but the commands aren't working.  May you advise how and which command to use to skip the bios version?



D:\Drivers\Lenovo Ideapad 110-15ACL\BIOS\ExtactTemp>winflash32 -help

Phoenix SCT Flash for Windows V2.4.0.0, Build 140502
Copyright (c) 2011-2014 Phoenix Technologies Ltd.

Usage: Flash [COMMAND]

bak      [filename]       Backup BIOS ROM before flash.
bbl                       Flash boot block.
bcp      [EVSA binary]    Overwrite BCP data.
bcplogo  [BCP name] [file name] [Image ID] Replace logo image stored in BCP.
cac                       Check AC power is on.
cbp      threshold        Check battery power in percentage.
cvar                      Clear variables.
dat      string           Specify the asset tag DMI string.
dmc      string           Specify the chassis manufacturer DMI string.
dmm      string           Specify the motherboard manufacturer DMI string.
dks      string           Specify the SKU number DMI string.
dms      string           Specify the system manufacturer DMI string.
dos      [string;string2;...]|[index1 string1 ...] Specify the OEM DMI strings.
dpc      string           Specify the chassis asset tag number DMI string.
dpm      string           Specify the motherboard product ID DMI string.
dps      string           Specify the system product ID DMI string.
dsc      string           Specify the chassis serial number DMI string.
dsm      string           Specify the motherboard serial number DMI string.
dss      string           Specify the system serial number DMI string.
dus      [uuid]           Specify the UUID DMI string.
dvc      string           Specify the chassis version DMI string.
dvm      string           Specify the motherboard version DMI string.
dvs      string           Specify the system version DMI string.
endkey                    Required key press after flashing.
ese                       Enable security examiner.
exit                      Exit program after flash completed.
file     filename         Indicate BIOS image file for flash.
help                      Show command list.
ipf      [region name]|all Flash specific region
logo     filename [ImageId] [filename] [ImageId] ... Replace logo.
ls       [ImageId] ...    Reserve logo in BIOS ROM.
mod      filename         Replace a FFS module.
nodelay                   No delay after flash.
noerror                   Do not display error messages.
nowarn                    Do not display warning messages.
oc       string           Specify the OEM command line.
p                         Production mode. Disable simple text output.
prog     start size       Flash specific area. Both parameters in hexadecimal.
patch                     Patch mode. To patch particular data to current BIOS.
raw      GUID filename [Index] Replace raw section of FFS module.
rsbr     GUID1 GUID2 ...  Reserve sub-regions with specified GUIDs.
sd                        Skip BIOS build date time checking.
silent                    Silent operation (no beeps).
slp      filename         Replace SLP marker or MSDM key.
spu      filename 20|21   Replace SLP public key.
ss                        Skip all SLP sub-regions.
sn                        Skip part number checking.
shutdown                  Shutdown after flash completed instead of reboot.
v                         Enable flash verification.
vbl                       Enable Microsoft Bit-locker check.
vcpu     [filename]       Update variable size CPU microcode.
wb                        Flash without skipping same content blocks.
write    filename start [fdla] Write a binary file to specific physical address or FDLA.
wsbr     GUID filename    Write a binary file to specific sub-region.




Link to comment
Share on other sites

Just now, HeyItsChris said:

Thanks so I am working on it now and it says Rollback flash is disabled in the BIOS so I am hoping I can bypass it.  I'm reading this content here but the commands aren't working.  May you advise how and which command to use to skip the bios version?



D:\Drivers\Lenovo Ideapad 110-15ACL\BIOS\ExtactTemp>winflash32 -help

Phoenix SCT Flash for Windows V2.4.0.0, Build 140502
Copyright (c) 2011-2014 Phoenix Technologies Ltd.

Usage: Flash [COMMAND]

bak      [filename]       Backup BIOS ROM before flash.
bbl                       Flash boot block.
bcp      [EVSA binary]    Overwrite BCP data.
bcplogo  [BCP name] [file name] [Image ID] Replace logo image stored in BCP.
cac                       Check AC power is on.
cbp      threshold        Check battery power in percentage.
cvar                      Clear variables.
dat      string           Specify the asset tag DMI string.
dmc      string           Specify the chassis manufacturer DMI string.
dmm      string           Specify the motherboard manufacturer DMI string.
dks      string           Specify the SKU number DMI string.
dms      string           Specify the system manufacturer DMI string.
dos      [string;string2;...]|[index1 string1 ...] Specify the OEM DMI strings.
dpc      string           Specify the chassis asset tag number DMI string.
dpm      string           Specify the motherboard product ID DMI string.
dps      string           Specify the system product ID DMI string.
dsc      string           Specify the chassis serial number DMI string.
dsm      string           Specify the motherboard serial number DMI string.
dss      string           Specify the system serial number DMI string.
dus      [uuid]           Specify the UUID DMI string.
dvc      string           Specify the chassis version DMI string.
dvm      string           Specify the motherboard version DMI string.
dvs      string           Specify the system version DMI string.
endkey                    Required key press after flashing.
ese                       Enable security examiner.
exit                      Exit program after flash completed.
file     filename         Indicate BIOS image file for flash.
help                      Show command list.
ipf      [region name]|all Flash specific region
logo     filename [ImageId] [filename] [ImageId] ... Replace logo.
ls       [ImageId] ...    Reserve logo in BIOS ROM.
mod      filename         Replace a FFS module.
nodelay                   No delay after flash.
noerror                   Do not display error messages.
nowarn                    Do not display warning messages.
oc       string           Specify the OEM command line.
p                         Production mode. Disable simple text output.
prog     start size       Flash specific area. Both parameters in hexadecimal.
patch                     Patch mode. To patch particular data to current BIOS.
raw      GUID filename [Index] Replace raw section of FFS module.
rsbr     GUID1 GUID2 ...  Reserve sub-regions with specified GUIDs.
sd                        Skip BIOS build date time checking.
silent                    Silent operation (no beeps).
slp      filename         Replace SLP marker or MSDM key.
spu      filename 20|21   Replace SLP public key.
ss                        Skip all SLP sub-regions.
sn                        Skip part number checking.
shutdown                  Shutdown after flash completed instead of reboot.
v                         Enable flash verification.
vbl                       Enable Microsoft Bit-locker check.
vcpu     [filename]       Update variable size CPU microcode.
wb                        Flash without skipping same content blocks.
write    filename start [fdla] Write a binary file to specific physical address or FDLA.
wsbr     GUID filename    Write a binary file to specific sub-region.






From the flag list, I would try using the following



Quote

sd                        Skip BIOS build date time checking.



  • Thanks 1

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

winflash /nodate

  • Thanks 1

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
MONITOR: 14" 1080p IPS 60hz @ 72hz
Full Rig Info
Link to comment
Share on other sites

It is saying the usage is:



winflash32 sd



Don't use a / or - prior to the command, just a space.

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

11 minutes ago, ENTERPRISE said:

It is saying the usage is:



winflash32 sd



Don't use a / or - prior to the command, just a space.

still receiving the error message.  I am looking all over for how to enter the command.


5 minutes ago, ivebeenmemed said:

This is a corrupted firmware update pushed by Lenovo to Windows Update and Linux fwupd. Unfortunately I also don't have backflash on so the Phoenix flash utility is no use to me, i havent tried winflash yet though.

Hopefully we can help you out.  I know I never updated my BIOS and I was able to get in there at one time and now I can't.



Thanks

Link to comment
Share on other sites

So I was poking around & I found this thread which is pointing me the right direction, not to mention I opened this file which gives me some juicy information as well.

COMMUNITY.ACER.COM

So I wanted to set up a dual-boot between Windows 8.1 (With update 1) and Ubuntu for Android development on my Acer Aspire V5-571P-6429, rather than using a Vitual Machine and having to share resources.




I am closer to getting it.  I ran this command and it almost worked but errored out instead.



Just copy the BIOS.cap & WinFlash32.exe to C:\ and try some commands out... lol I'll let u know what works.



C:/WinFlash32.exe /bcp /sd /ver /cvar /v /endkey /silent /bbl /cac /cbp 30 /file C:/BIOS.cap




Edited by HeyItsChris
  • Respect 1
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now



×
×
  • Create New...

Important Information

This Website may place and access certain Cookies on your computer. ExtremeHW uses Cookies to improve your experience of using the Website and to improve our range of products and services. ExtremeHW has carefully chosen these Cookies and has taken steps to ensure that your privacy is protected and respected at all times. All Cookies used by this Website are used in accordance with current UK and EU Cookie Law. For more information please see our Privacy Policy
