6900 XT vs 7900 XT


Recommended Posts

Can someone explain in detail how much faster a 7900 XT is than the 6900 XT on Topaz Video Ai software?



Currently going from 1080p to 4K, I get like if I get lucky 2 fps on my Vega 56 with Vega 64 BIOS, thoroughly optimized for this task because it's insanely demanding.



It hits the 3D engine hard, not the compute.  So what kind of fps would I get with a 6900 XT vs 7900 XT?



If my math is correct, with my Vega 56 3584 shader units, I get 2 fps, then a 6900 XT would be 5120 which is 42.86% more so that could yield 2.8572 fps but I guess with architectural & clock improvements it should yield 3-4 fps?



Then we get to the 7900 XT @ 5376 shader units which may yield 3 fps, but with architectural improvements from RDNA 2 to RDNA 3, could see possibly 5-6 fps?



Or am I nuts & I'm looking at my original calculations?

Thanks




Link to comment
Share on other sites

Premium Bronze
154
Posted (edited)

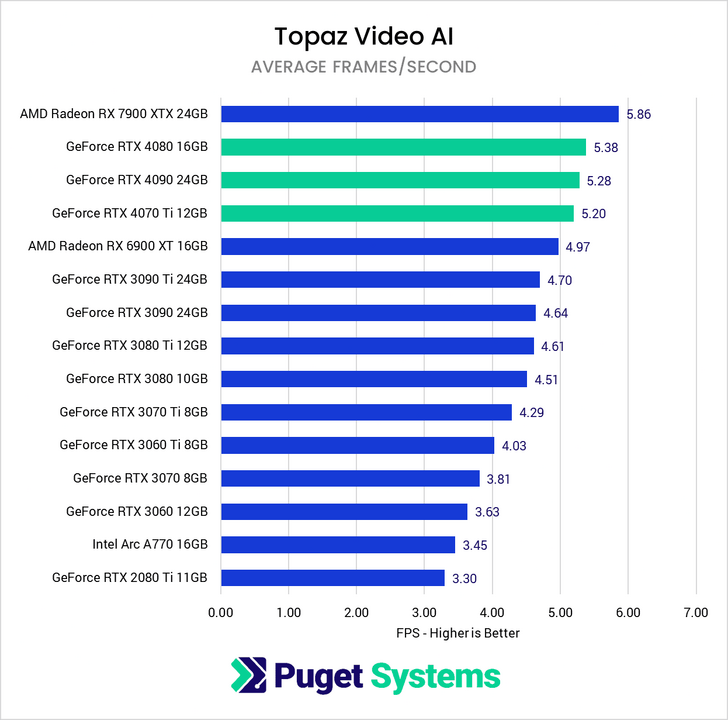

Not a big difference between the two considering the 7900XTX was barely faster... if you already have the 6900XT I wouldn't bother with the upgrade to a 7900XT and that includes for every task outside of Topaz as well.   That said if you are considering both of these over your current Vega 56, I'd go with the one you can get at a better cost/performance.   7900XT does have other benefits though such as AV1 encoding and newer features plus the extra 4gb of vram.





Topaz-Video-AI-Benchmark-NVIDIA-GeForce-RTX-40-Series-vs-30-Series-vs-AMD-Radeon-RX-Score.png

Edited by SoloCamo
  • Thanks 1

Owned

 Share

CPU: 11900k 5.4 single / 4.9 all core
MOTHERBOARD: Asus TUF Z590
RAM: 32gb G.Skill DDR4-4000 CL16 @ 3733 14-14-14-32 2T 1.49v
GPU: AMD 6900XT 2500/2100 1.115mV
CPU COOLER: Noctua NH-D15 Chromax
SOUNDCARD: Creative Sound Blaster Z
PSU: 750w Evga SuperNOVA p2
CASE: Fractal Torrent Black
Full Rig Info

Owned

 Share

CPU: i9 10900
MOTHERBOARD: Asrock Steel Legend Z590
RAM: 64gb T-Force Vulcan Z 3600 c18
GPU: Asrock Challenger Arc A380
PSU: 850w NZXT Hale-82
Full Rig Info

Owned

 Share

CPU: Ryzen 7 4700U
RAM: 32gb Kingston Fury c20 3200
GPU: Vega 7 APU
Full Rig Info
Link to comment
Share on other sites

Premium Bronze
154
13 hours ago, HeyItsChris said:

Thanks for the chart bro!  That makes it so clear to me.  Yeah I can get the 6900 xt for 449 or the 7900 xt for 799, i guess its quite clear 6900 xt is better for the price.



All good.  6900XT's are getting hard to find so do consider the 6950XT's as well, they will close the gap even further on the 7900XT.

  • Thanks 1
  • Respect 2

Owned

 Share

CPU: 11900k 5.4 single / 4.9 all core
MOTHERBOARD: Asus TUF Z590
RAM: 32gb G.Skill DDR4-4000 CL16 @ 3733 14-14-14-32 2T 1.49v
GPU: AMD 6900XT 2500/2100 1.115mV
CPU COOLER: Noctua NH-D15 Chromax
SOUNDCARD: Creative Sound Blaster Z
PSU: 750w Evga SuperNOVA p2
CASE: Fractal Torrent Black
Full Rig Info

Owned

 Share

CPU: i9 10900
MOTHERBOARD: Asrock Steel Legend Z590
RAM: 64gb T-Force Vulcan Z 3600 c18
GPU: Asrock Challenger Arc A380
PSU: 850w NZXT Hale-82
Full Rig Info

Owned

 Share

CPU: Ryzen 7 4700U
RAM: 32gb Kingston Fury c20 3200
GPU: Vega 7 APU
Full Rig Info
Link to comment
Share on other sites

Premium Bronze
154
15 minutes ago, HeyItsChris said:

Whats the shader core difference between 6900xt and 6950xt?  I thought that were essentially the same card.



No difference aside from higher clock speeds for the core and different memory which gives a nice bandwidt bump.  I'd imagine that would help with this type of work but I'm talking minuscule numbers here.  I only bring it up because 6950xt's are usually around the same price.

  • Thanks 1
  • Respect 2

Owned

 Share

CPU: 11900k 5.4 single / 4.9 all core
MOTHERBOARD: Asus TUF Z590
RAM: 32gb G.Skill DDR4-4000 CL16 @ 3733 14-14-14-32 2T 1.49v
GPU: AMD 6900XT 2500/2100 1.115mV
CPU COOLER: Noctua NH-D15 Chromax
SOUNDCARD: Creative Sound Blaster Z
PSU: 750w Evga SuperNOVA p2
CASE: Fractal Torrent Black
Full Rig Info

Owned

 Share

CPU: i9 10900
MOTHERBOARD: Asrock Steel Legend Z590
RAM: 64gb T-Force Vulcan Z 3600 c18
GPU: Asrock Challenger Arc A380
PSU: 850w NZXT Hale-82
Full Rig Info

Owned

 Share

CPU: Ryzen 7 4700U
RAM: 32gb Kingston Fury c20 3200
GPU: Vega 7 APU
Full Rig Info
Link to comment
Share on other sites

Posted (edited)

Yep exactly.



WWW.TECHPOWERUP.COM

AMD Navi 21, 2250 MHz, 5120 Cores, 320 TMUs, 128 ROPs, 16384 MB GDDR6, 2000 MHz, 256 bit
WWW.TECHPOWERUP.COM

AMD Navi 21, 2310 MHz, 5120 Cores, 320 TMUs, 128 ROPs, 16384 MB GDDR6, 2250 MHz, 256 bit



Same shader count, but you can see the boost to the base, game, boost clocks, as well as the memory clock on the 6950 XT to 18Gbps up from 16Gbps on the 6900 XT.

Edited by Sir Beregond
  • Agreed 1

Showcase

 Share

CPU: AMD Ryzen 9 5900X
GPU: Nvidia RTX 3080 Ti Founders Edition
RAM: G.Skill Trident Z Neo 32GB DDR4-3600 (@ 3733 CL14)
MOTHERBOARD: ASUS Crosshair VIII Dark Hero
SSD/NVME: x2 Samsung 970 Evo Plus 2TB
SSD/NVME 2: Crucial MX500 1TB
PSU: Corsair RM1000x
MONITOR: LG 42" C4 OLED
Full Rig Info

Owned

 Share

CPU: E8400, i5-650, i7-870, i7-960, i5-2400, i7-4790k, i9-10900k, i3-13100, i9-13900ks
GPU: many
RAM: Corsair 32GB DDR3-2400 | Oloy Blade 16GB DDR4-3600 | Crucial 16GB DDR5-5600
MOTHERBOARD: ASUS P7P55 WS SC | ASUS Z97 Deluxe | EVGA Z490 Dark | EVGA Z790 Dark Kingpin
SSD/NVME: Samsung 870 Evo 1TB | Inland 1TB Gen 4
PSU: BeQuiet Straight Power 12 1500W
CASE: Cooler Master MasterFrame 700 - bench mode
OPERATING SYSTEM: Windows 10 LTSC
Full Rig Info

Owned

 Share

CPU: M1 Pro
RAM: 32GB
SSD/NVME: 1TB
OPERATING SYSTEM: MacOS Sonoma
CASE: Space Grey
Full Rig Info
Link to comment
Share on other sites

Posted (edited)

So, thats gonna help a lot with more memory bandwidth, from 16 to 18 giga bits per second, that's a big jump not obtainable from overclocking the memory on the 6900 xt?



I see the 6900 xt red devil ultimate for 449 & they didn't make a red devil 6950 xt, i don't think?  I prefer the red devil as its the heaviest coolest running heatsink with the lowest load temps on the core & hotspot.



Can someone find proof of the exact hotspot temp on the 6900 xt red devil & compare it to the 6950 xt & the memory temps?



Thanks



Nevermind I found the red devil 6950 xt for 499 vs the 6900 xt for 449.... might as well pay 50 bucks for the faster ram and faster stock clocks...

Edited by HeyItsChris
Link to comment
Share on other sites

Premium Bronze
154
19 hours ago, HeyItsChris said:

So, thats gonna help a lot with more memory bandwidth, from 16 to 18 giga bits per second, that's a big jump not obtainable from overclocking the memory on the 6900 xt?



Max overclock on the 6900XT (non liquid cooled versions as the LC versions had 18gbps) is 550GB/s  stock being 512GB/s.  However, most people usually only get it stable around 537GB/s.  The 6950XT can be pushed over 600GB/s which helps a lot in some instances, especially higher resolution gaming.



That said, another card you may want to consider is the 7900GRE if it's in your price range.  16gb also with comparable performance, less power use and newer features.

  • Thanks 1
  • Respect 1
  • Great Idea 1

Owned

 Share

CPU: 11900k 5.4 single / 4.9 all core
MOTHERBOARD: Asus TUF Z590
RAM: 32gb G.Skill DDR4-4000 CL16 @ 3733 14-14-14-32 2T 1.49v
GPU: AMD 6900XT 2500/2100 1.115mV
CPU COOLER: Noctua NH-D15 Chromax
SOUNDCARD: Creative Sound Blaster Z
PSU: 750w Evga SuperNOVA p2
CASE: Fractal Torrent Black
Full Rig Info

Owned

 Share

CPU: i9 10900
MOTHERBOARD: Asrock Steel Legend Z590
RAM: 64gb T-Force Vulcan Z 3600 c18
GPU: Asrock Challenger Arc A380
PSU: 850w NZXT Hale-82
Full Rig Info

Owned

 Share

CPU: Ryzen 7 4700U
RAM: 32gb Kingston Fury c20 3200
GPU: Vega 7 APU
Full Rig Info
Link to comment
Share on other sites

  • 2 weeks later...
Posted (edited)

I'm really looking for 128 ROPs at the bare minimum though on my next upgrade from my late 6600 XT & Vega 56 on Vega 64 BIOS.



Do you honestly think I can power a 6800 xt or 6900 xt or 6950 xt with this psu?  It powers my Vega at 250W without breaking a sweat, and can also handle as much as 350W TDP 350A TDC, although the cooler can only handle 250W max on my Powercolor Red Dragon Vega 56 cooler with fresh hi-perf pads & paste.  Temps are solid at 250W.  Its that I bought this case, the Silverstone Milo 12 to stuff everything into & I see the 6800 XT+ is expecting 950W recommended.  I have a very reliable 1000W Kingwin, but space is limited in the case.



Your thoughts?



OUTERVISION.COM

AMD Ryzen 7 3700X AMD Radeon RX 6950 XT - Power Supply Calculator Build XAWn9p



WWW.EVGA.COM

Precision is power, as the EVGA BP power supplies add another affordable option to EVGA's 80PLUS Bronze-certified lineup, while reducing the overall length to 120mm - EVGA's shortest ATX power...



Edited by HeyItsChris
Link to comment
Share on other sites

Many people tend to go way overboard on PSUs. I have a reference 6950 XT under a custom waterblock that I run on an AX760. I haven't had any issues with it. It's paired with a 7800X3D. I also briefly ran it on an SF600 with a 7900X and had a couple shutdowns until I put CPU in eco and did a mild undervolt and capped FPS on the GPU.



The reason people recommend 1000w PSU for these cards is the transient power spikes. Higher quality PSUs do a better job of handling spikes without tripping OCP. The 650 BP will be a little iffy but you can try it and if you have issues try and shoehorn your 1000w into that system.

  • Thanks 1
  • Agreed 3

Owned

 Share

CPU: 5900X + Optimus block
MOTHERBOARD: MSI X570 Ace
GPU: EVGA RTX 3090 FTW3 Ultra + Optimus block
RAM: 32GB Oloy Blade 3600CL14
SSD/NVME: 1TB SN750 Black
SSD/NVME 2: 1TB SN750 Black
SSD/NVME 3: 2TB Samsung 970 Evo Plus
CASE: LD PC-V7
Full Rig Info

Owned

 Share

CPU: 7800X3D
MOTHERBOARD: B650E-I Strix
RAM: G.Skill Flare X5
GPU: Reference 6950 XT
CASE: InWin D-Frame Mini
WC RADIATOR: MO-RA3 with 4x180mm Silverstone fans
FAN CONTROLLER: Aquaero
Full Rig Info

Owned

 Share

CPU: 12600KF
MOTHERBOARD: Z790I Strix
RAM: G.Skill Trident Z5 Neo
GPU: RTX 2080
CASE: Sliger SM580
WC RESEVOIR: Phanteks R160C
WC RADIATOR: XSPC TX240 Ultrathin
FANS: Phanteks T30
Full Rig Info
Link to comment
Share on other sites

24 minutes ago, Fluxmaven said:

The reason people recommend 1000w PSU for these cards is the transient power spikes. Higher quality PSUs do a better job of handling spikes without tripping OCP. The 650 BP will be a little iffy but you can try it and if you have issues try and shoehorn your 1000w into that system.



I still feel salty about retiring my 750W because my 3080 Ti's transient spikes. Total power consumption was never an issue 😞

  • Thanks 1

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
OPERATING SYSTEM 2: Debian 12.5 KDE
Full Rig Info
Link to comment
Share on other sites

Premium Bronze
154
2 hours ago, Fluxmaven said:

Many people tend to go way overboard on PSUs. I have a reference 6950 XT under a custom waterblock that I run on an AX760. I haven't had any issues with it. It's paired with a 7800X3D. I also briefly ran it on an SF600 with a 7900X and had a couple shutdowns until I put CPU in eco and did a mild undervolt and capped FPS on the GPU.



The reason people recommend 1000w PSU for these cards is the transient power spikes. Higher quality PSUs do a better job of handling spikes without tripping OCP. The 650 BP will be a little iffy but you can try it and if you have issues try and shoehorn your 1000w into that system.



This...



Though I must admit my EVGA SuperNOVA 750 P2 has done an absolutely excellent job handling a 11900k and 6900XT...  No issues whatsoever and I know the spikes are a real problem for this generation of cards from both Nvidia and AMD.





12 hours ago, HeyItsChris said:

Do you honestly think I can power a 6800 xt or 6900 xt or 6950 xt with this psu?





Keep in mind, the 6900XT is actually more efficient than the 6800XT and power use between the two is near identical.

Edited by SoloCamo
  • Thanks 1

Owned

 Share

CPU: 11900k 5.4 single / 4.9 all core
MOTHERBOARD: Asus TUF Z590
RAM: 32gb G.Skill DDR4-4000 CL16 @ 3733 14-14-14-32 2T 1.49v
GPU: AMD 6900XT 2500/2100 1.115mV
CPU COOLER: Noctua NH-D15 Chromax
SOUNDCARD: Creative Sound Blaster Z
PSU: 750w Evga SuperNOVA p2
CASE: Fractal Torrent Black
Full Rig Info

Owned

 Share

CPU: i9 10900
MOTHERBOARD: Asrock Steel Legend Z590
RAM: 64gb T-Force Vulcan Z 3600 c18
GPU: Asrock Challenger Arc A380
PSU: 850w NZXT Hale-82
Full Rig Info

Owned

 Share

CPU: Ryzen 7 4700U
RAM: 32gb Kingston Fury c20 3200
GPU: Vega 7 APU
Full Rig Info
Link to comment
Share on other sites

I cannot wait to buy a 6950XT that's gonna be so flippin wicked broskis!



I wish you guys had some good gameplay videos of your 6900XT or 6950XT in action.



Don't bother if you can't keep the Hotspot below 84C.  I only want to see the people who monitor their hotspot & keep it in check, below 84C.  When I see above 90C, that hurts my heart because that poor masterpiece of a GPU is getting hurt.  The silicon will fail above 90C, particularly above 84C, damage occurs.  That's why so many people have only received a matter of short few years or months of use even.



I wanna see peoples videos of them fine-tuning their MorePowerTool with 84C temp limits & 88C shutdown & fans kick in to full speed at 40C, to keep the dreaded Hotspot in check.



Cya guys

Link to comment
Share on other sites

Premium Platinum
1,881

The 6900XT is on one of my machines - got it back in the spring of 2021, mostly for productivity as my gamer system runs a w-cooled 4090. Still, the 6900XT is also w-cooled (Bykski block) and with that I can let MorePowerTool/ MPT do its thing per sample below (Geekbench GPU run). MPT is great for a 6900 XT or 6950 XT as it allows them to get close to a 7900  XT - and MPT does not work with the Radeon 7K series anymore. As long as you can properly cool the 6900/6950, it has a lot of headroom. Its only real drawback is its 4K performance...but at 1440, it is a charm and still one of the best deals out there, IMO.




  • Thanks 1

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

7 hours ago, J7SC_Orion said:

The 6900XT is on one of my machines - got it back in the spring of 2021, mostly for productivity as my gamer system runs a w-cooled 4090. Still, the 6900XT is also w-cooled (Bykski block) and with that I can let MorePowerTool/ MPT do its thing per sample below (Geekbench GPU run). MPT is great for a 6900 XT or 6950 XT as it allows them to get close to a 7900  XT - and MPT does not work with the Radeon 7K series anymore. As long as you can properly cool the 6900/6950, it has a lot of headroom. Its only real drawback is its 4K performance...but at 1440, it is a charm and still one of the best deals out there, IMO.




My experience was quite the opposite with my 6900XT.  Mine is an MSI design, which uses direct touch heatpipe cooling.  As such, there's too many gaps I think on the die, which results in waaay higher hotspot temps.  That's my theory, because cards that seem to have a solid coldplate APPEAR to do better with hotspot temperatures.  My card has been repasted with PTM7950, and used putty in place of the pads.  It helped, but my hotspot is STILL hitting 95*C and there's nothing I can do short of lowering the power limit on the card to like -15% or something.  Core hardly ever even breaks 50*C.

So if you're stuck to using the stock cooler, look for teardown reviews and make sure its got a solid coldplate first on the cooler.  If you're planning on aftermarket cooling it, by all means they should all be pretty fair game I'd imagine then (depending on the cooling method / block of choice).  They really are GREAT cards, I run mine 1440p for game recording all the time.

Edited by pio
  • Thanks 1
  • Respect 1

Owned

 Share

CPU: Ryzen 7900x
GPU: Sapphire Pulse RX 7900XTX
PSU: Cooler Master 850w Platinum
CPU COOLER: Cooler Master MasterLiquid PL360 Flux
MOTHERBOARD: Gigabyte B650 Aorus AX
SSD/NVME: Solidigm P41 Plus 2TB Gen4 NVME
RAM: G.Skill Flare X DDR5-6000
CASE: HAF700 Berserker
Full Rig Info

Too much

Owned

 Share

CPU: AMD Opteron 180 @ 3.0GHz
MOTHERBOARD: Asus A8N SLI
RAM: 4x1GB Corsair XMS DDR400 @ 2.5-3-3-6
PSU: eVGA 600BQ
GPU: Sapphire HD5870
SOUNDCARD: Asus Xonar DG
OPTICAL: DVDRW with Lightscribe
SSD/NVME: 64GB HP 2.5" SSD
Full Rig Info

Too much

Owned

 Share

CPU: AMD Athlon 1100MHz
MOTHERBOARD: ECS K7S5A
RAM: 2x256MB Corsair XMS DDR400 @ 133MHz / CAS2
PSU: Antec 350w
GPU: ATI Radeon 9800 PRO
SOUNDCARD: Creative Live! 5.1
OPTICAL: LG 16x DVD-ROM
OPTICAL 2: IOMagic 48x16x48 CDRW
Full Rig Info
Link to comment
Share on other sites

Thanks guys Im gonna buy the Powercolor Red Devil RX 6950 XT hopefully.  Its a copper plate that the silicon touches from what I've seen from teardowns.  Its the heaviest of all heatsinks & runs the coolest amongst all the others.  Hopefully i can find one at a good price.

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
×
×
  • Create New...

Important Information

This Website may place and access certain Cookies on your computer. ExtremeHW uses Cookies to improve your experience of using the Website and to improve our range of products and services. ExtremeHW has carefully chosen these Cookies and has taken steps to ensure that your privacy is protected and respected at all times. All Cookies used by this Website are used in accordance with current UK and EU Cookie Law. For more information please see our Privacy Policy
