Airflow optimization - Duct/AF- straighteners? TEST :P - any advice welcome ;)


Memmento Mori

Recommended Posts

Hello there...



As i like to try some ridiculous things and im always thinking about optimizing the AF in my case so one day i came up with an idea of changing the flow of my bottom and top intake fans in a way it will be more in harmony to the front to back direction. And so before i just asked my friend to print me something i decided to make an POC just for the bottom fans.






OFC my aim was to gem more air to the GPU, and i have to say it worked not bad... I saw rly a 4 degree decline at the GPU hotspot... So i decided to get some proper "straighteners" and got them printed....

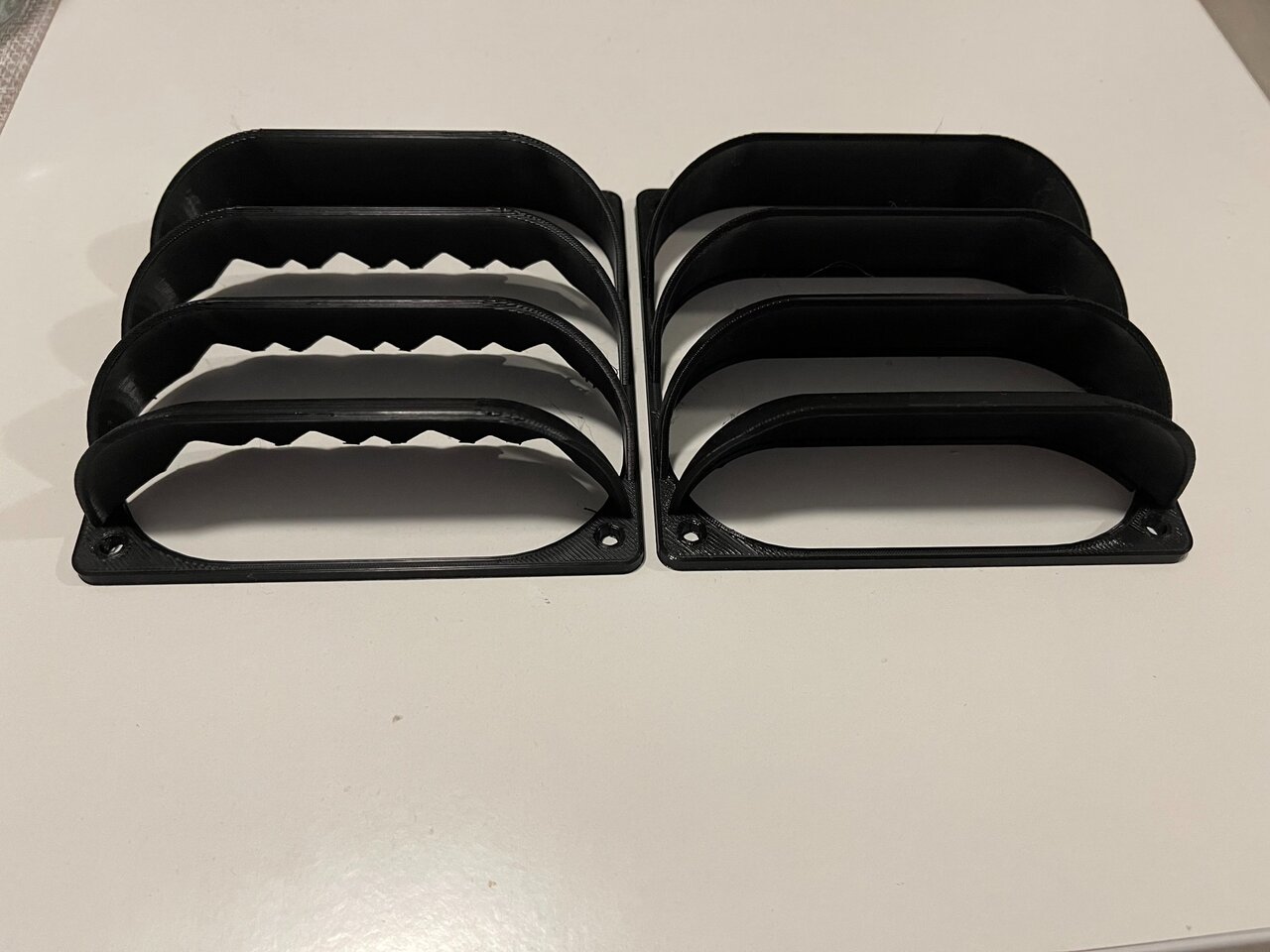

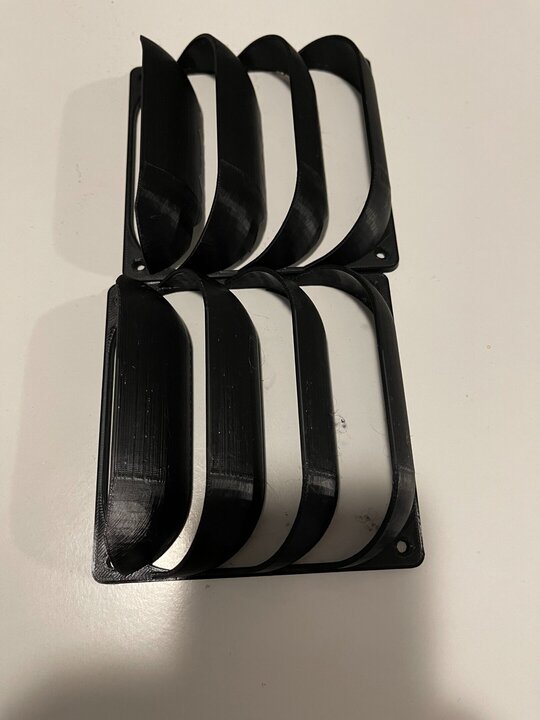

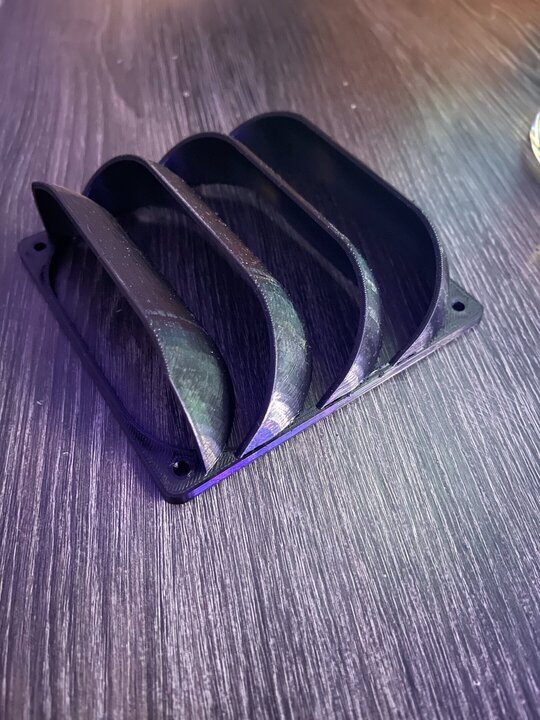

Well Printed version is a bit a different shape but not looking bad at all:

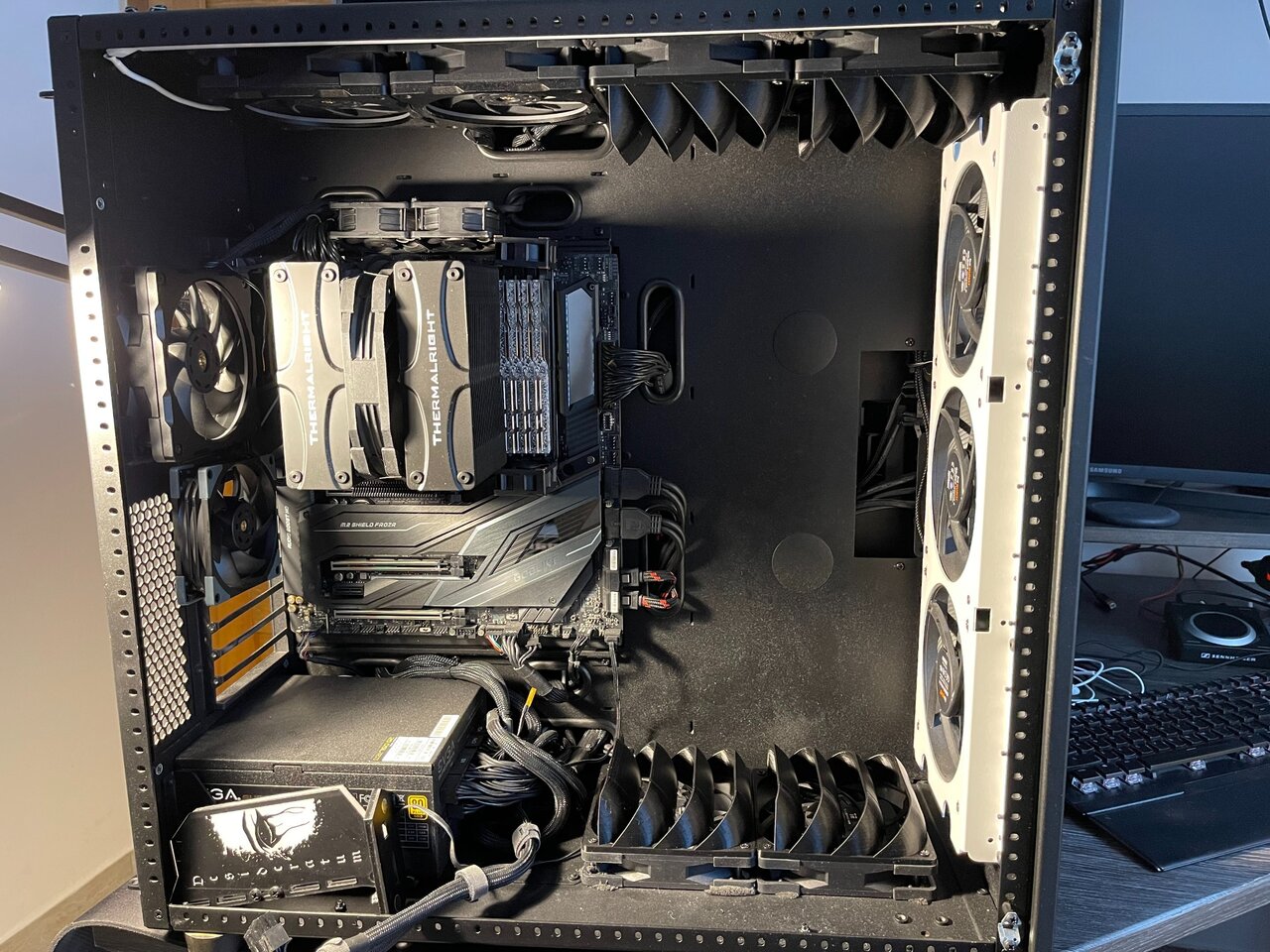

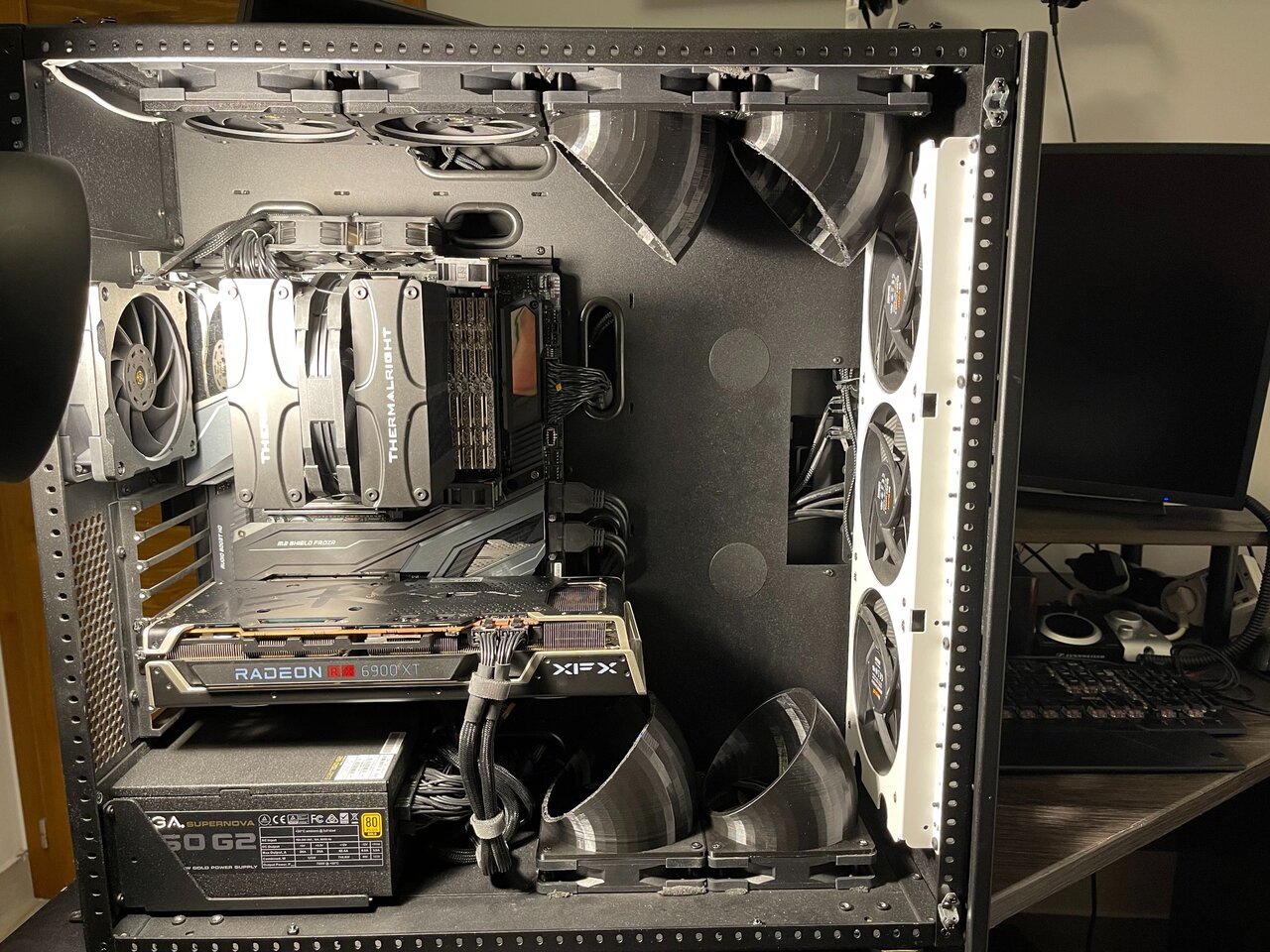

Finally mounted in the case it looks in my opinion not bad at all. A  bit "SteamPunkLike" 😄






Well now lets talk about some numbers and test scenarios...



System Specification:

MOBO: MSI Z490 Godlike

CPU: i9-10900K @ 4.9Ghz

GPU: XFX Radeon 6900 XT - Merc 319 a bit underwolt and a bit OC

DIMMS: G Skill GTRS 3200 CL14 @ 4100 CL 15-15-15-30 T2

Case: Caselabs  SM8

CPU Cooler: Thermalright FC140

Front Fans: 3x 140mm Be Quiet Silent wings 3

All other case fans are Thermalright TL-C12 Pro



For stress testing i chose to fold for 20 min on my CPU with 10 threads and as well with the GPU. At least the energy will not go totally waste 😛



And here are some scenarios and results:

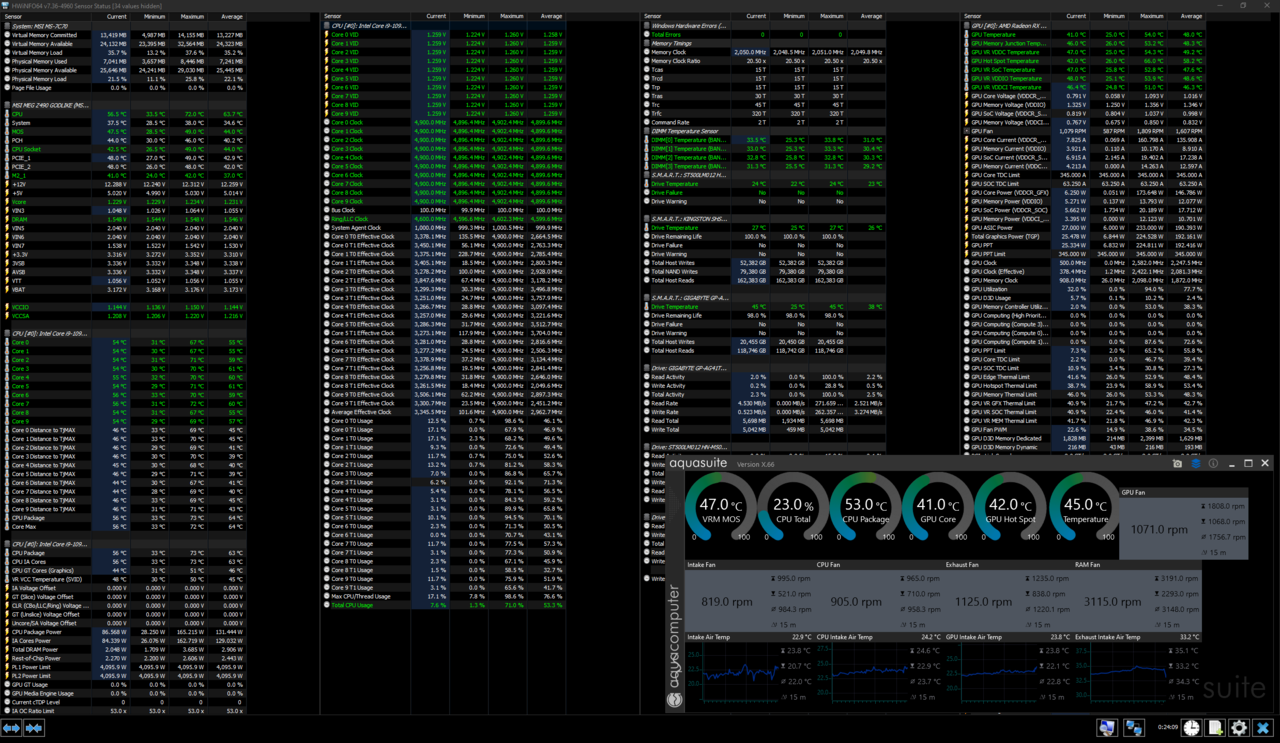

Scenario NR.1 - was the traditional front to back airflow, so i just turned off the intakes upper and bottom and tested:


CPU package MAX: 71 C

GPU Hotspot MAX:  68 C

DIMMS MAX: 36.3 C

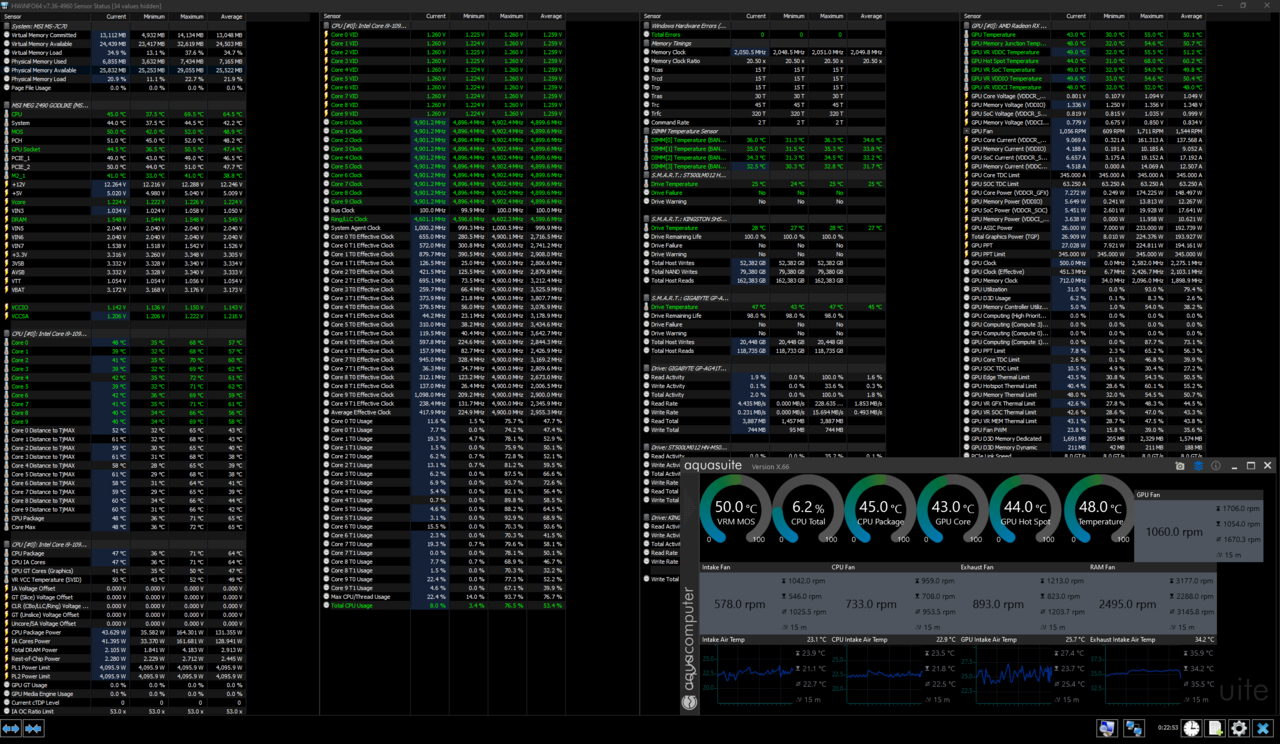

Scenario NR.2 - was with the  intakes upper and bottom as well on:


CPU package MAX: 70 C

GPU Hotspot MAX:  65 C

DIMMS MAX: 35.5 C

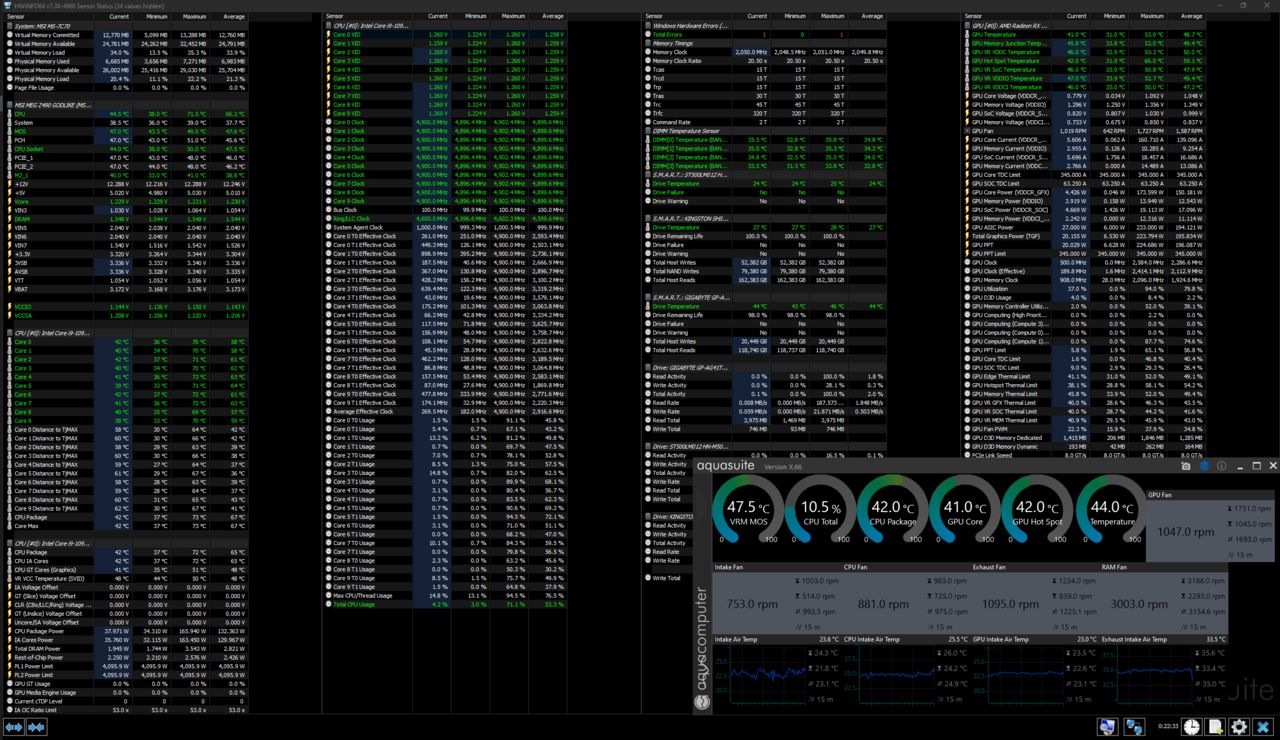

Scenario NR.3 - was the paper POC 😄


CPU package MAX: 72 C

GPU Hotspot MAX:  66 C

DIMMS MAX: 35.8 C





Scenario NR.4 - is the final way i wanted to test - with the "straighteners" installed on the top and bottom intake fans..


CPU package MAX: 73 C

GPU Hotspot MAX:  66 C

DIMMS MAX: 33.8 C



I will for sure take some more time to try to play around with the  fan speeds if I will see any improvement or not.



If you have any advice or idea how to get better temps or optimizing the Airflow in this case I'm  open to anything. One thing is for me atm not workable and to make it custom WC and as well AIO are not my thing.. Air-cooled is the way i want to go for now.... 🙂



So please to all Air-cooled Gods and Daemons out there - feel free to take part...  :friends_gathering:

Edited by Memmento Mori
  • Thanks 3
  • Respect 3

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

You better finish those work units 🧐

Owned

 Share

CPU: Ryzen 9 5950x
MOTHERBOARD: X470 Taichi
RAM: 4x8GB VIPER STEEL
GPU: RX 6900 XT
PSU: LEADEX III 850W
CASE: HAF XB
SSD/NVME: Silicon Power A80 1TB
SSD/NVME 2: Silicon Power A80 1TB
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 7 2700x
MOTHERBOARD: MSI X470 Pro Carbon
RAM: Crucial Ballistix MAX 2x8GB
GPU: Quadro M4000
GPU 2: Quadro M4000
PSU: SUPERNOVA P5 650W
SSD/NVME: Samsung PM981 256GB
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 5 1600 AF
MOTHERBOARD: ASRock B450M Pro4
RAM: Patriot Viper Steel 2x8GB
PSU: LEADEX III 550W
CPU COOLER: TPC 612
OPERATING SYSTEM: Windows 10 Pro
SSD/NVME: Silicon Power A60 256GB
GPU: Quadro M2000
Full Rig Info
Link to comment
Share on other sites

🤔



Spoiler




bisect into two different compartments? likely won't help GPU temp much on its own but it might drop CPU/RAM temps when you've got a high GPU load.






could test with cardboard and do something more a e s t h e t i c if it actually improves anything.

  • Thanks 2

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: ADATA SX8200 Pro NVMe 2TB
SSD/NVME 2: Western Digital Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 w/ iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 64GB @ 3200 16-20-20-38 1T 1.45v
SSD/NVME: WD Black SN850 1TB 4.0 NVMe
SSD/NVME 2: HP EX950 2TB 3.0 NVMe
HDD: 4x Seagate Exos X16 14TB
OTHER: LSI Logic 9207-8i
OPERATING SYSTEM: Windows Server 2022 Datacenter
Full Rig Info

9001.69

Owned

 Share

CPU: Ryzen 5 Pro 4650G
MOTHERBOARD: Asrock X300
RAM: Crucial Ballistix DDR4-3200 SODIMM @ 3566 16-17-18-36 1T 1.35v
GPU: Vega 7 @ 2300mhz
SSD/NVME: Sandisk Ultra II 480GB
CPU COOLER: Noctua L9a
NETWORK: StarTech 5 GbE NIC
OPERATING SYSTEM: Windows 11 Education
Full Rig Info
Link to comment
Share on other sites

1 hour ago, The Pook said:

🤔



  Reveal hidden contents




bisect into two different compartments? likely won't help GPU temp much on its own but it might drop CPU/RAM temps when you've got a high GPU load.






could test with cardboard and do something more a e s t h e t i c if it actually improves anything.

have to say you got a sharp eye.... 😄 edited😉



But with the cardboard your right.. will try it out and report back.. I have as well another type to try.. just need to tell my friend to print at least 1 more as i have just 1 as a sample...

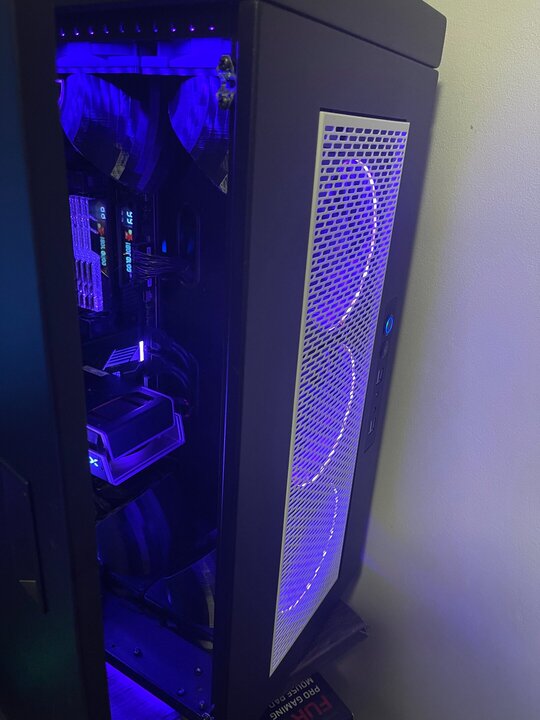

forgot as well to post a pic of how it looks in the case luminated 😛










1 hour ago, damric said:

You better finish those work units 🧐

Yes Sir! Will do Sir!

  • Respect 1

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

Small update… the other design went in to production! :wheee:







curious about the outcome… will definitely report back ….:velo:

Edited by Memmento Mori

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

I came here expecting dryer hose and duct tape...

  • Thanks 1
  • Respect 1

Owned

 Share

CPU: 5900x
MOTHERBOARD: MSI X570 Ace
GPU: EVGA RTX 3090 FTW3 Ultra
RAM: 64GB of TridentZ B-die 3400cl14
SSD/NVME: 1TB SN750 Black
SSD/NVME 2: 1TB SN750 Black
SSD/NVME 3: 2TB Samsung 970 Evo Plus
CASE: LD PC-V7
Full Rig Info

Owned

 Share

CPU: Delidded i9-10850k
MOTHERBOARD: z490i Aorus Ultra
RAM: OLOy Blade 32GB 3600cl14
GPU: MSI RTX 2080
CASE: InWin D-Frame Mini
WC RADIATOR: MO-RA3 with 4x180mm Silverstone fans
FAN CONTROLLER: Aquaero
Full Rig Info

Owned

 Share

CPU: i5-11500
MOTHERBOARD: MSI B560i Gaming Edge
RAM: Geil EVO Potenza 32GB
GPU: EVGA 1080ti
CASE: Sliger SM580
WC RESEVOIR: Phanteks R160C
WC RADIATOR: XSPC TX240 Ultrathin
FANS: Phanteks T30
Full Rig Info
Link to comment
Share on other sites

On 11/02/2023 at 16:04, Memmento Mori said:

Hello there...



As i like to try some ridiculous things and im always thinking about optimizing the AF in my case so one day i came up with an idea of changing the flow of my bottom and top intake fans in a way it will be more in harmony to the front to back direction. And so before i just asked my friend to print me something i decided to make an POC just for the bottom fans.






OFC my aim was to gem more air to the GPU, and i have to say it worked not bad... I saw rly a 4 degree decline at the GPU hotspot... So i decided to get some proper "straighteners" and got them printed....

Well Printed version is a bit a different shape but not looking bad at all:




Finally mounted in the case it looks in my opinion not bad at all. A  bit "SteamPunkLike" 😄






Well now lets talk about some numbers and test scenarios...



System Specification:

MOBO: MSI Z490 Godlike

CPU: i9-10900K @ 4.9Ghz

GPU: XFX Radeon 6900 XT - Merc 319 a bit underwolt and a bit OC

DIMMS: G Skill GTRS 3200 CL14 @ 4100 CL 15-15-15-30 T2

Case: Caselabs  SM8

CPU Cooler: Thermalright FC140

Front Fans: 3x 140mm Be Quiet Silent wings 3

All other case fans are Thermalright TL-C12 Pro



For stress testing i chose to fold for 20 min on my CPU with 10 threads and as well with the GPU. At least the energy will not go totally waste 😛



And here are some scenarios and results:



Scenario NR.1 - was the traditional front to back airflow, so i just turned off the intakes upper and bottom and tested:


CPU package MAX: 71 C

GPU Hotspot MAX:  68 C

DIMMS MAX: 36.3 C





Scenario NR.2 - was with the  intakes upper and bottom as well on:


CPU package MAX: 70 C

GPU Hotspot MAX:  65 C

DIMMS MAX: 35.5 C



Scenario NR.3 - was the paper POC 😄


CPU package MAX: 72 C

GPU Hotspot MAX:  66 C

DIMMS MAX: 35.8 C





Scenario NR.4 - is the final way i wanted to test - with the "straighteners" installed on the top and bottom intake fans..


CPU package MAX: 73 C

GPU Hotspot MAX:  66 C

DIMMS MAX: 33.8 C



I will for sure take some more time to try to play around with the  fan speeds if I will see any improvement or not.



If you have any advice or idea how to get better temps or optimizing the Airflow in this case I'm  open to anything. One thing is for me atm not workable and to make it custom WC and as well AIO are not my thing.. Air-cooled is the way i want to go for now.... 🙂



So please to all Air-cooled Gods and Daemons out there - feel free to take part...  :friends_gathering:












On 11/02/2023 at 16:29, The Pook said:

🤔



  Reveal hidden contents




bisect into two different compartments? likely won't help GPU temp much on its own but it might drop CPU/RAM temps when you've got a high GPU load.






could test with cardboard and do something more a e s t h e t i c if it actually improves anything.

I agree with Pook,possibly raise the divider and angle it some so as to take advantage of 1 more open slot and second front fan.

Another idea would be to put a short angled shroud facing the back on the BACK TOP fan and have it be an exhaust also.That would give you 6 intake and 3 exhaust fans along with the passive exhaust slots.(I think.)

Also,maybe add something like this with the suggested 3 pin power to molex  adapter that allows speed control?

WWW.STARTECH.COM

StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector - PC Case Exhaust Fan/Video Card Cooler Fan - System...

Cheaper on Amazon and that's where I saw the suggestions for the adaptor. 🙂

Link to comment
Share on other sites

On 14/02/2023 at 14:26, Avacado said:

I like the second version better. Have to say this is a really cool project. You could easily market those on Amazon.



well could be but the design is not mine and i just downloaded it and used it to get it printed. But the original thought of this was as an cover for the back exhaust fan to use it as intake and get some cool air to the VRM of an water-cooled setup..



here the Link to it  there are as well some pictures. And to be honest with an printing time of 8h I'm not sure if it would pay out in the end 🙂



On 14/02/2023 at 15:17, Fluxmaven said:

I came here expecting dryer hose and duct tape...



well that would be truly Extreme i guess 😄 but i hope your not disappointed in the end 🙂





On 14/02/2023 at 15:58, schuck6566 said:



I agree with Pook,possibly raise the divider and angle it some so as to take advantage of 1 more open slot and second front fan.

Another idea would be to put a short angled shroud facing the back on the BACK TOP fan and have it be an exhaust also.That would give you 6 intake and 3 exhaust fans along with the passive exhaust slots.(I think.)

Also,maybe add something like this with the suggested 3 pin power to molex  adapter that allows speed control?

WWW.STARTECH.COM

StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector - PC Case Exhaust Fan/Video Card Cooler Fan - System...

Cheaper on Amazon and that's where I saw the suggestions for the adaptor. 🙂

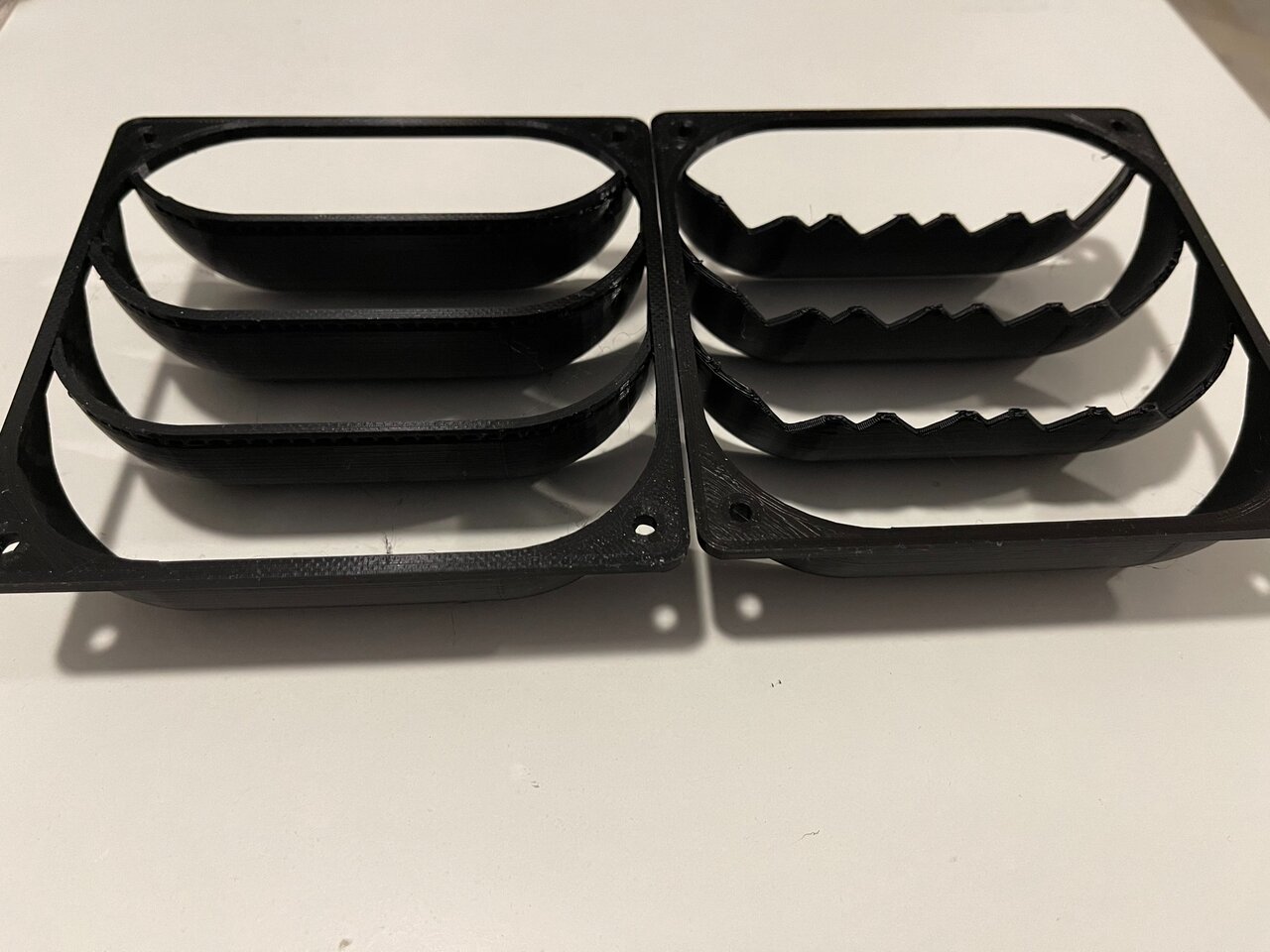

Exactly what i thought could be improved, i just thought about an different solution. As there should be enough space for an 90mm fan i ordered the  Thermalright TL-B9 should be delivered soon and lets see if makes any difference, but what I'm expecting from it, is an better ventilated backplate of the GPU and this way would less heat be going up to the CPU and RAM cooler... If it will make any real difference i will measure as soon i get it delivered 🙂.



Anyway next week Monday should be send to me the second model in 2 variants so im looking forward to test them ... And as well have to test the "Case split" recommended by @The Pook

Edited by Memmento Mori
  • Thanks 2

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

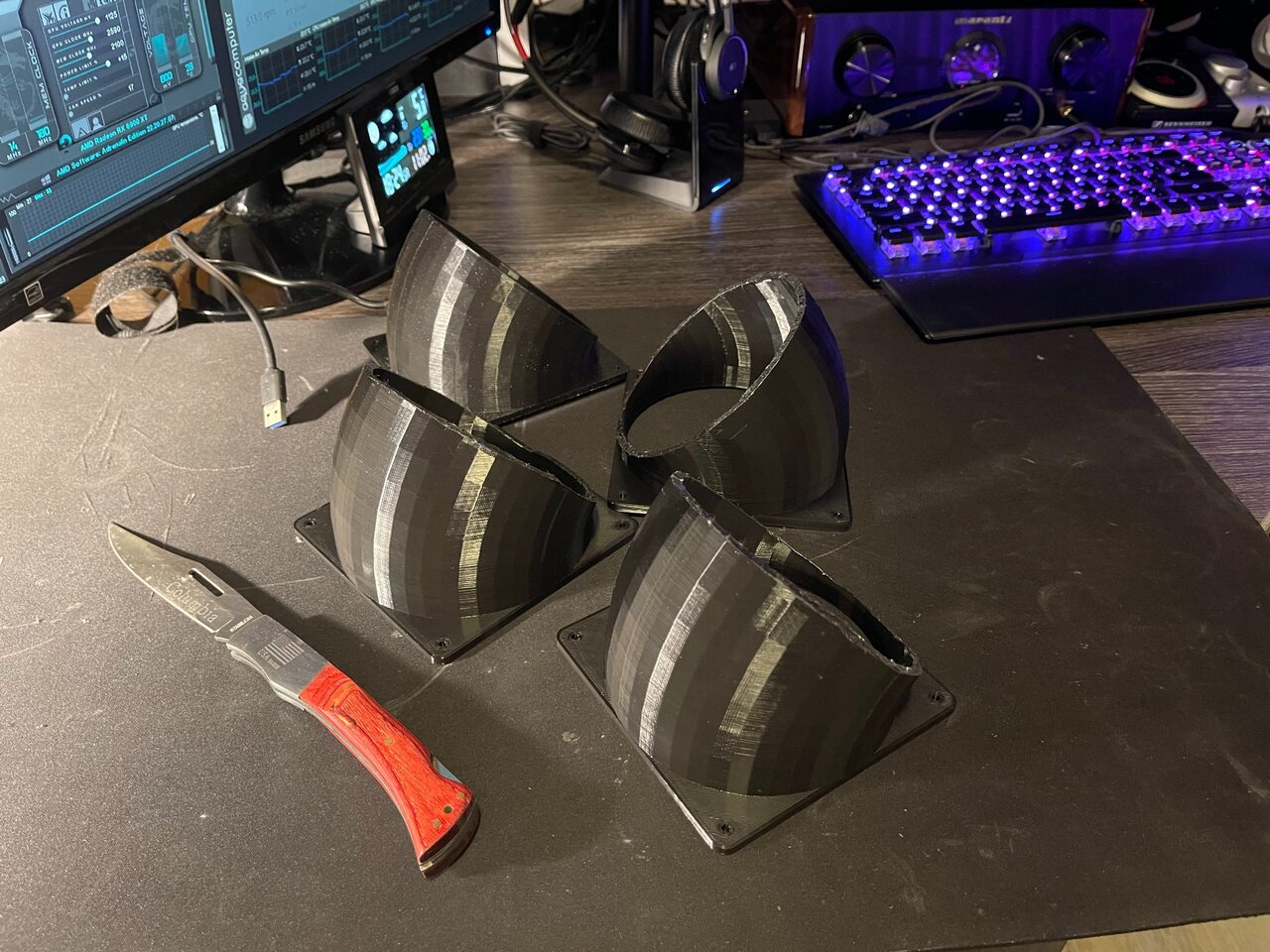

So having some updates in the work in progress.. New toys finally arrived 🙂

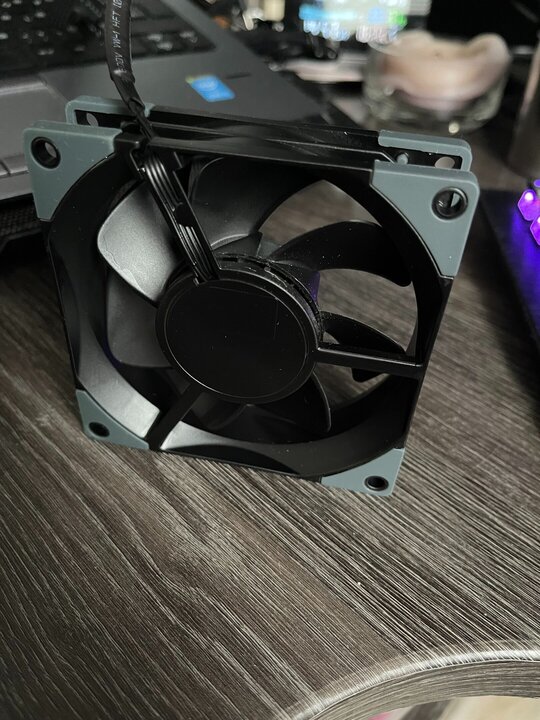

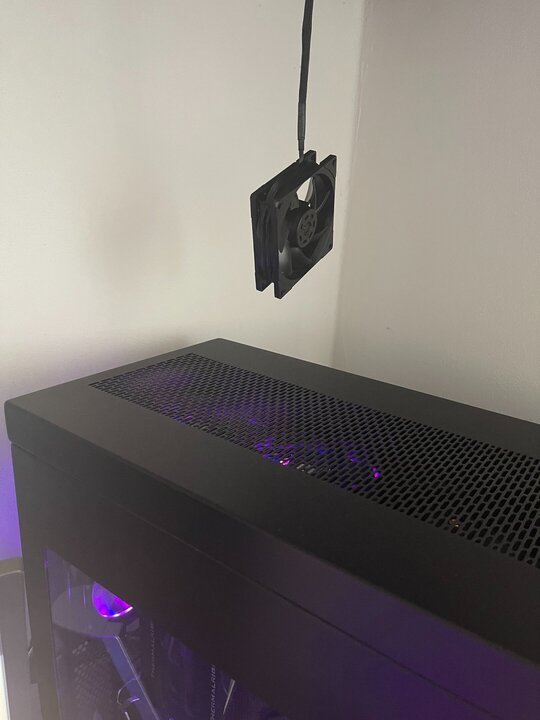

but first the paint job 😛



2F97F41B-2A59-45A1-8A4E-CF4DCF056227.thumb.jpeg.2111016fd6827273d052e1db86670c0a.jpeg896BF4F2-0F36-4606-8AC8-EF987C8BD6A4.thumb.jpeg.dd22410311d483d57a9fbfd78b7ced81.jpeg



Drying it with [email protected] 😄

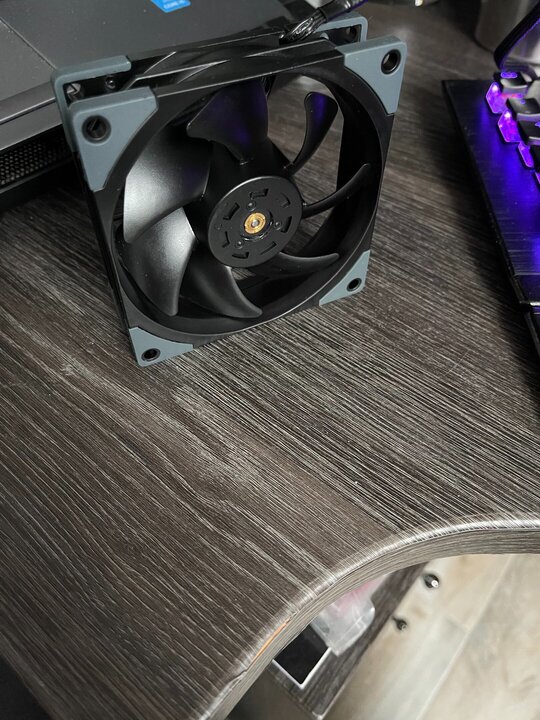

Final Product....



FBDC2487-F031-4E8B-9467-AD89BDC89DBF.thumb.jpeg.60962347671cce422d5e82f33cc39735.jpeg907B4D49-69F6-4F18-86A0-7021065037A8.thumb.jpeg.ad9f6b59abc665e9102c02cc29b4b8f5.jpeg



Yes the corners are made of silicone so the paint chipped off (was a bit naïve here:confused_frusty2:) and could as well cover with scotch tape the back labeling but forgot it... Anyway im ok with the result...

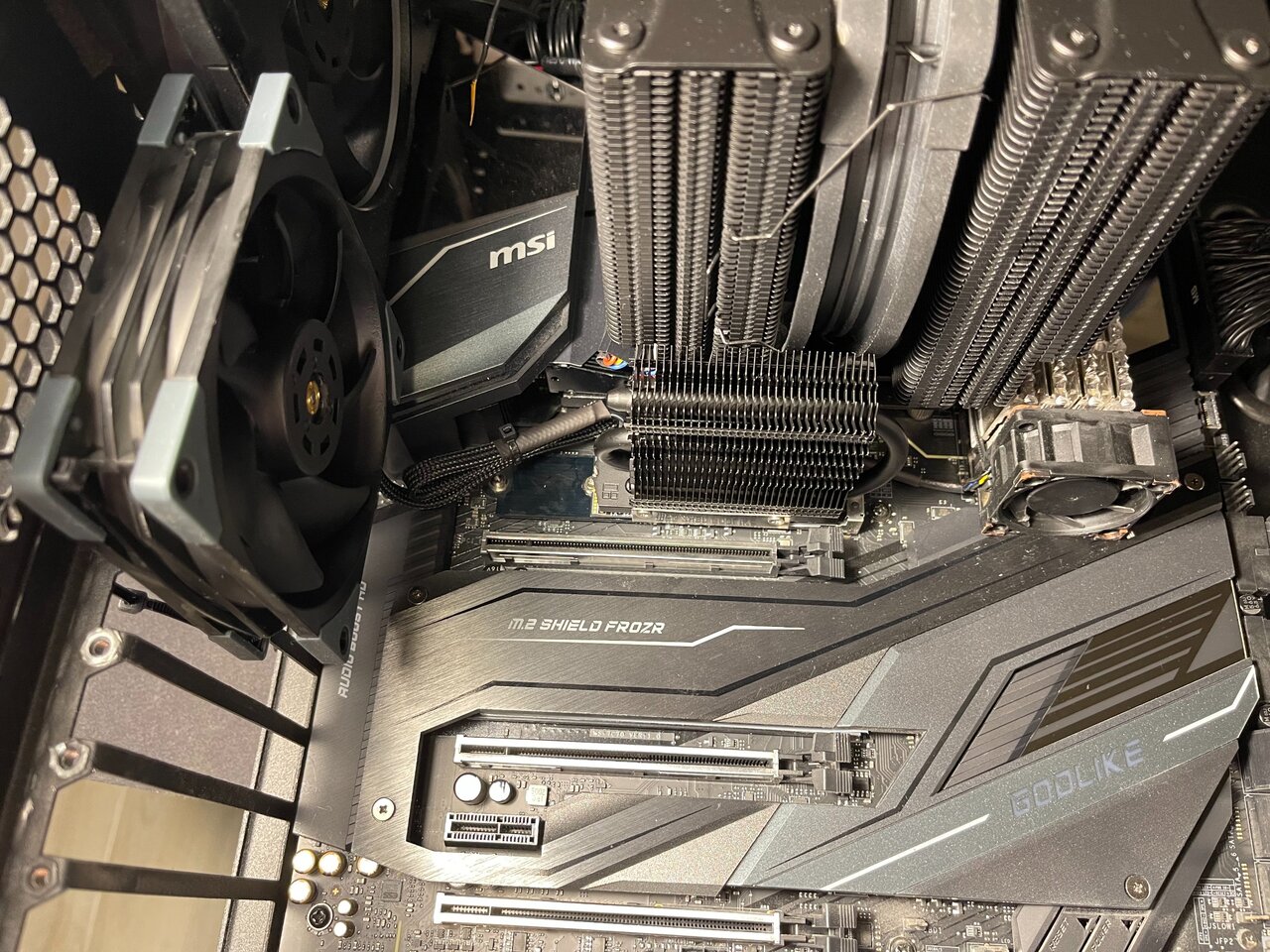

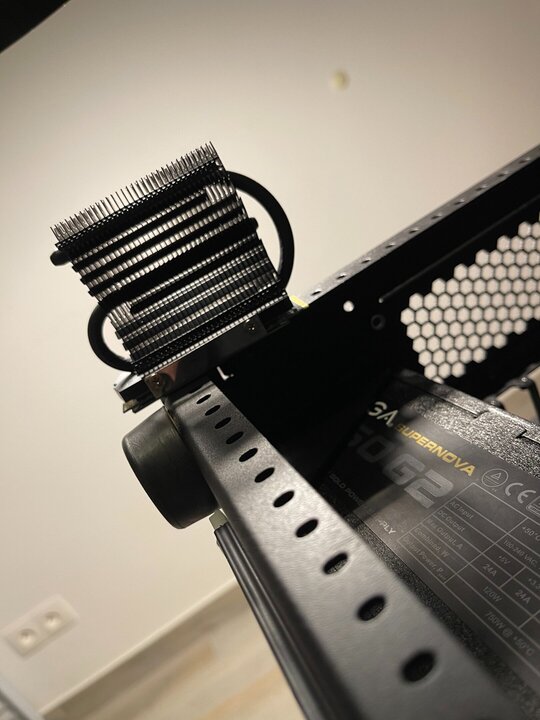

Finally the installation..:wheee:



401A44CA-F48E-482E-B0D4-26DE8D44BA7B.thumb.jpeg.1d99487d73b2ed144695a779a7293183.jpeg21B6F0EA-E032-4516-90D4-EF4D8113F65C.thumb.jpeg.8845cc3531e6628bbe71d195b5e3c5ad.jpeg2B5DF6F6-6660-4FAF-9088-0D3A4E86ABAF.thumb.jpeg.a7f8735ff7ba2fff3055a64e01a4d707.jpeg

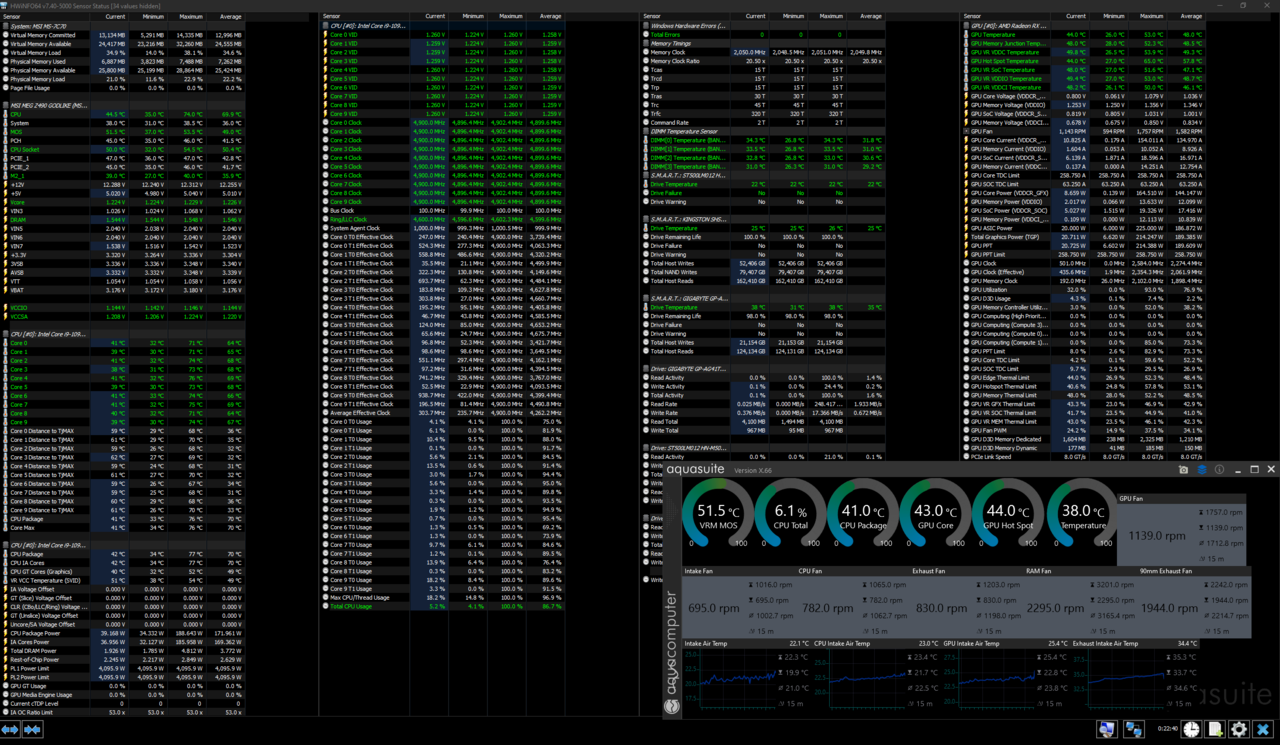

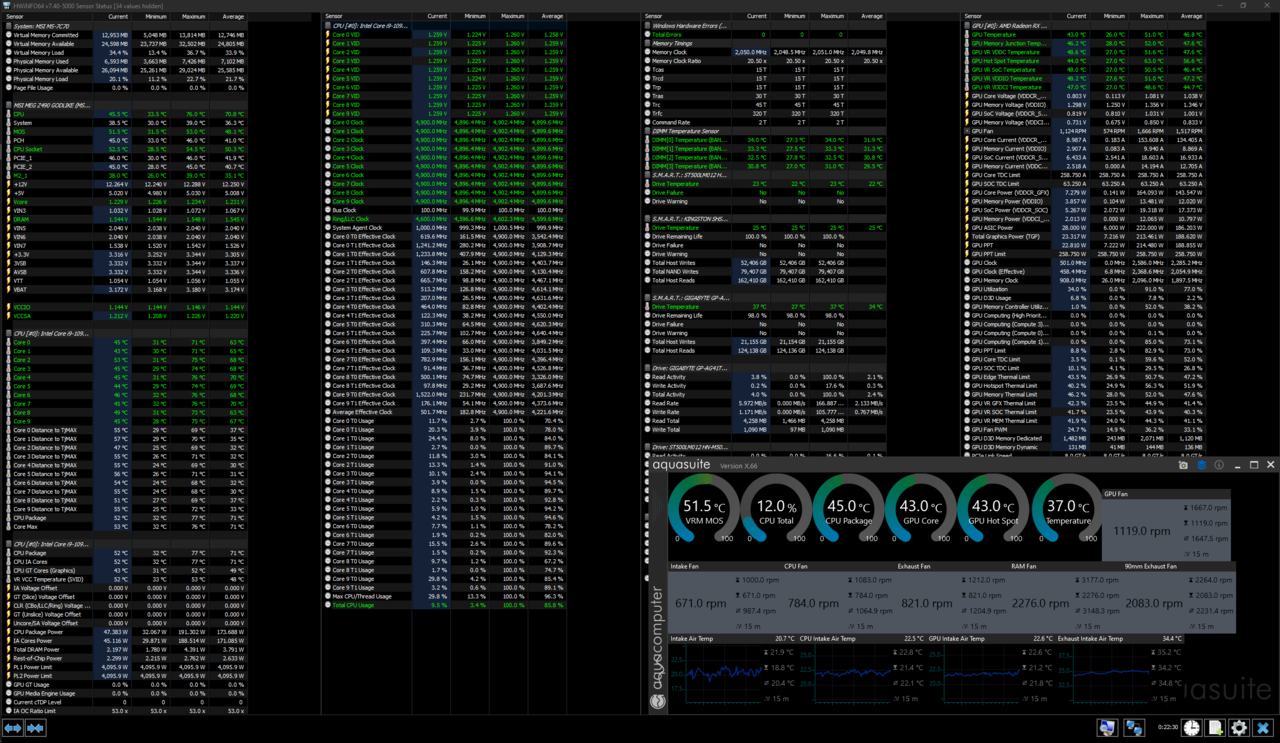

Now to the analytics: With 45 min. [email protected] both CPU and GPU.

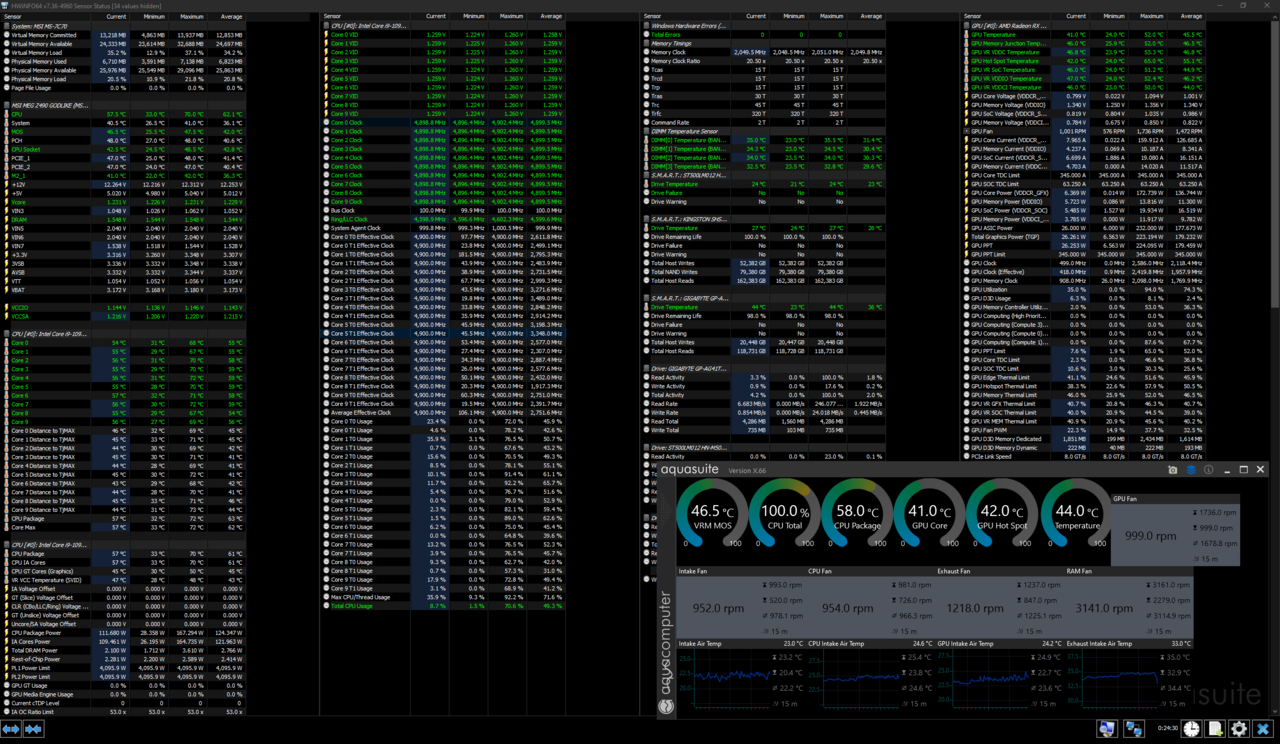

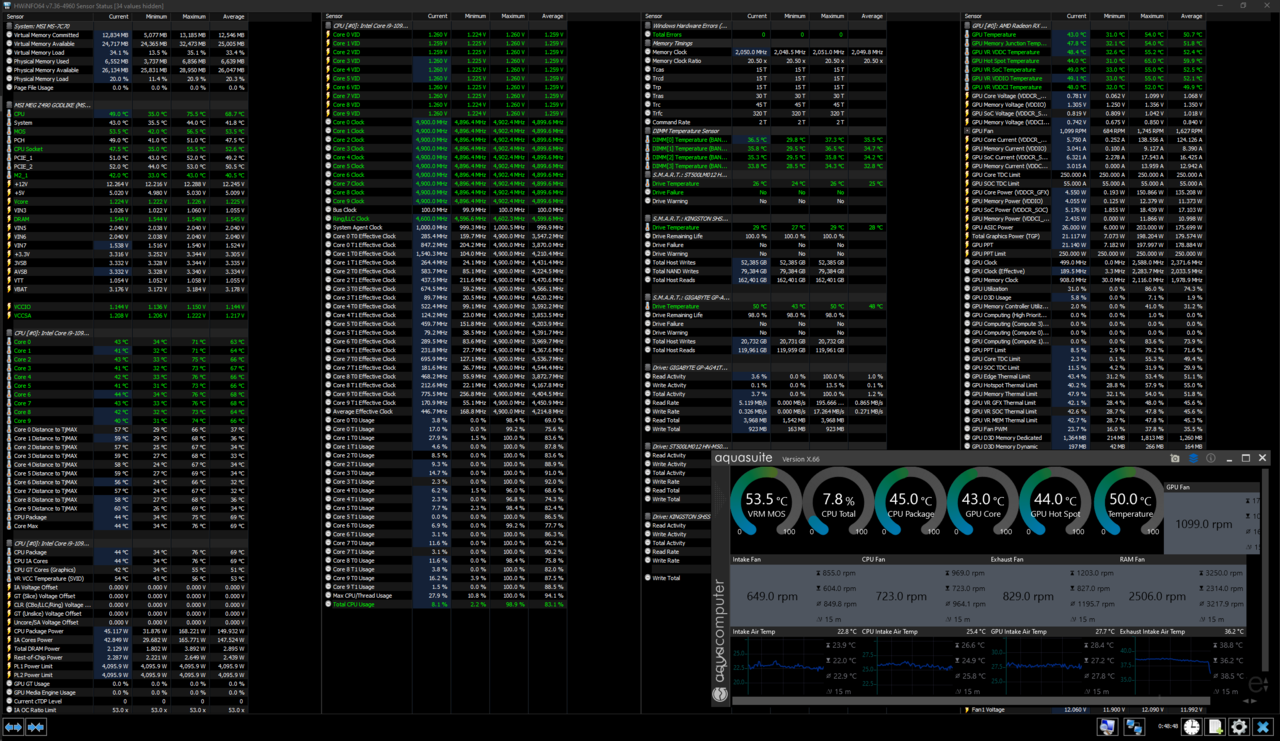

Before :

modedfirstsettingatempt2beforeGPUbackfan.thumb.PNG.c80d00b8b1c6a45007c23c6be6333b49.PNG

CPU package MAX: 76 C

GPU Hotspot MAX:  65 C

DIMMS MAX: 37.3 C

M2 SSD: 50 C

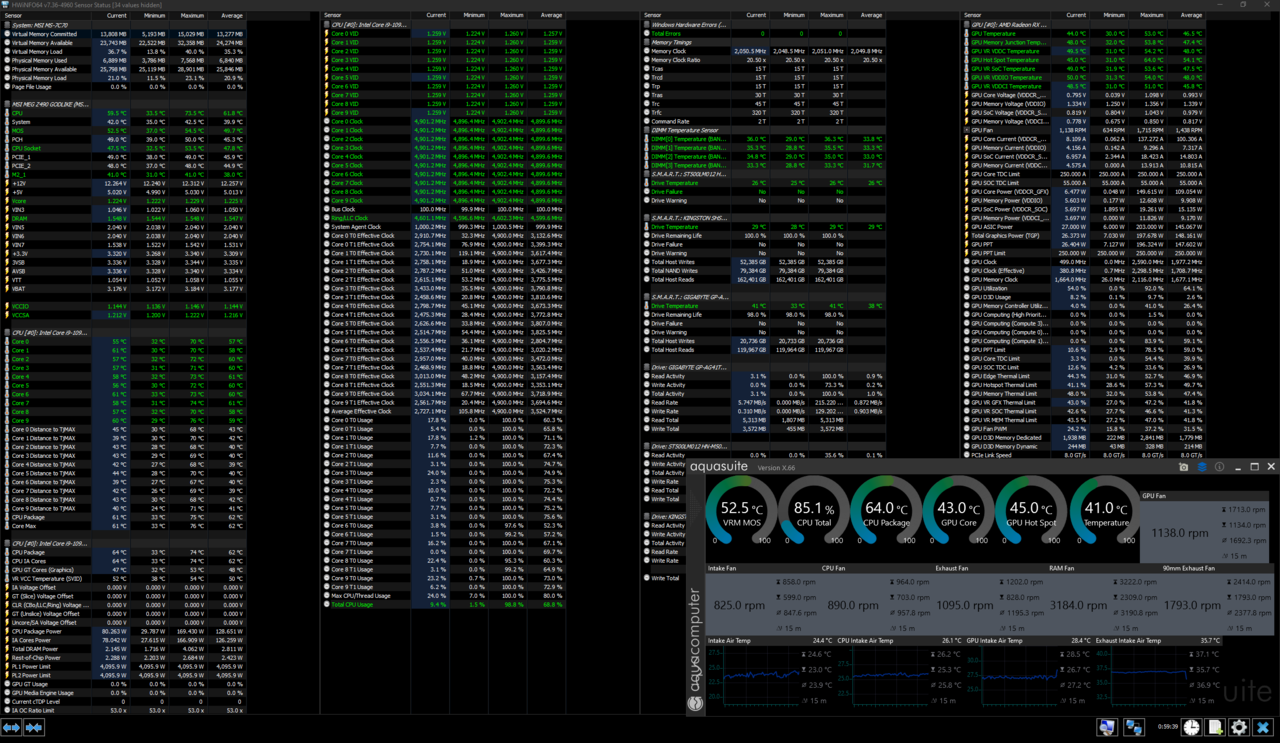

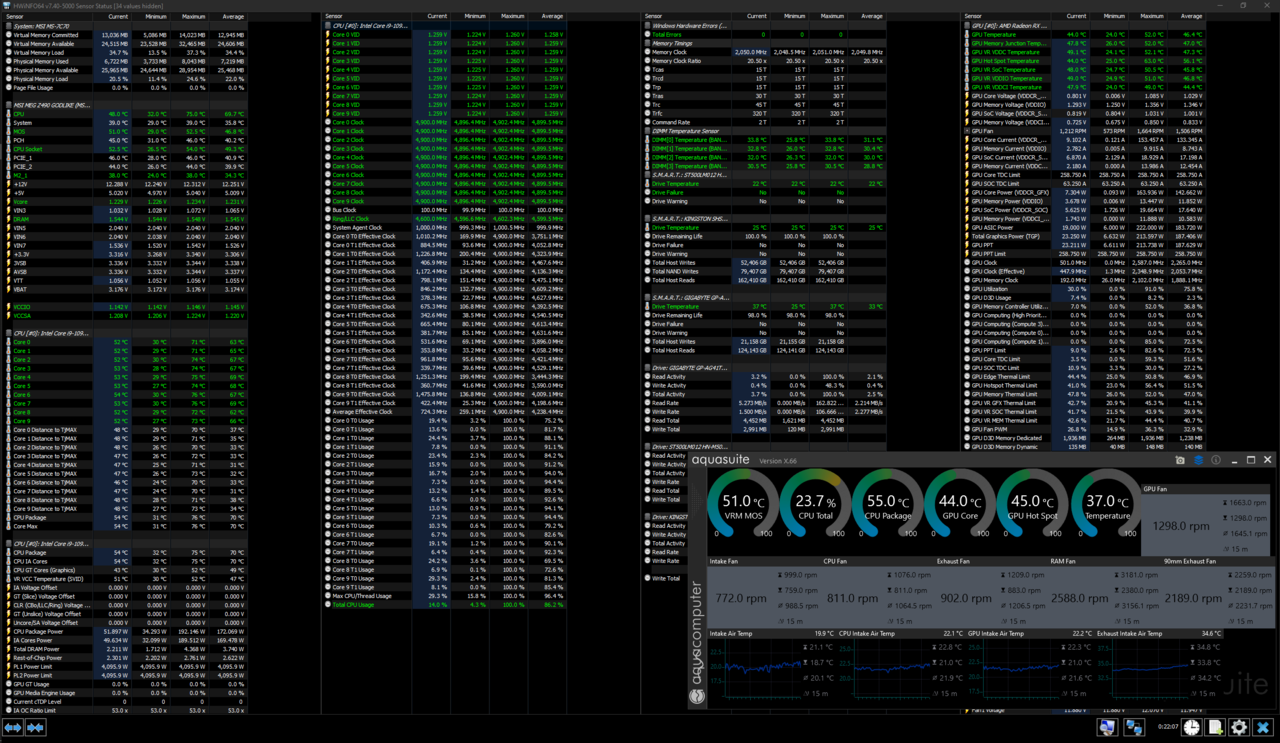

Now with the installed new HW:


CPU package MAX: 74 C

GPU Hotspot MAX:  64 C

DIMMS MAX: 36.3 C

M2 SSD: 40 C



The main gain is here the M2SSD - with -10 C on the max temp.. Got a difference as well on the CPU by -2 C and DIMMS -1 C.... But could be the tolerance in measurements so not rly a prove of a big improvement..  Will test it a bit further in some Gaming sessions and report back... As well waiting for the new design of the "straightener's" ...  Let me know if you have any advice to improve or idea to try out 😉



Thanks..



MM..

Edited by Memmento Mori
  • Thanks 2
  • Respect 1

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

Looks awesome!



Dust problem can be solved with



https://www.amazon.com/Precisionaire-Hammock-Filter-Media-Ft/dp/B000LNP7IG/ref=sr_1_7?crid=390FC14CPH5K1&keywords=fiberglass+nest+filter+roll&qid=1676747886&sprefix=fiberglass+nest+filter+roll%2Caps%2C92&sr=8-7



You cut it and put it in front of your intakes. On a lot of cases you can put it directly behind the front panel. Wear gloves.

  • Thanks 1

Owned

 Share

CPU: Ryzen 9 5950x
MOTHERBOARD: X470 Taichi
RAM: 4x8GB VIPER STEEL
GPU: RX 6900 XT
PSU: LEADEX III 850W
CASE: HAF XB
SSD/NVME: Silicon Power A80 1TB
SSD/NVME 2: Silicon Power A80 1TB
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 7 2700x
MOTHERBOARD: MSI X470 Pro Carbon
RAM: Crucial Ballistix MAX 2x8GB
GPU: Quadro M4000
GPU 2: Quadro M4000
PSU: SUPERNOVA P5 650W
SSD/NVME: Samsung PM981 256GB
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 5 1600 AF
MOTHERBOARD: ASRock B450M Pro4
RAM: Patriot Viper Steel 2x8GB
PSU: LEADEX III 550W
CPU COOLER: TPC 612
OPERATING SYSTEM: Windows 10 Pro
SSD/NVME: Silicon Power A60 256GB
GPU: Quadro M2000
Full Rig Info
Link to comment
Share on other sites

On 18/02/2023 at 20:21, damric said:

Looks awesome!



Dust problem can be solved with



https://www.amazon.com/Precisionaire-Hammock-Filter-Media-Ft/dp/B000LNP7IG/ref=sr_1_7?crid=390FC14CPH5K1&keywords=fiberglass+nest+filter+roll&qid=1676747886&sprefix=fiberglass+nest+filter+roll%2Caps%2C92&sr=8-7



You cut it and put it in front of your intakes. On a lot of cases you can put it directly behind the front panel. Wear gloves.

Thanks for the recomendation but to be honest, been on this road before and its just a trade of for higher temps and rpm on fans. I took out what i could to make it airflow friendly as possible.  I radher invested the money in the DataVac and once in a month i just blow the dust out…  in the end everyone has to decide for them self :hair_afro:

Edited by Memmento Mori
  • Respect 1

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

Ladies and Gentleman (always were just approaching the Gents here... this way i want to make it up Ladies, you are as well invited to the conversation...sorry for that 🙂 )



New toys arrived 🙂








NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

  • 3 weeks later...
4 hours ago, doyll said:

Have you tried your new toys?   How are you using them?



first of all thank you for stopping by and honoring my request 🙂

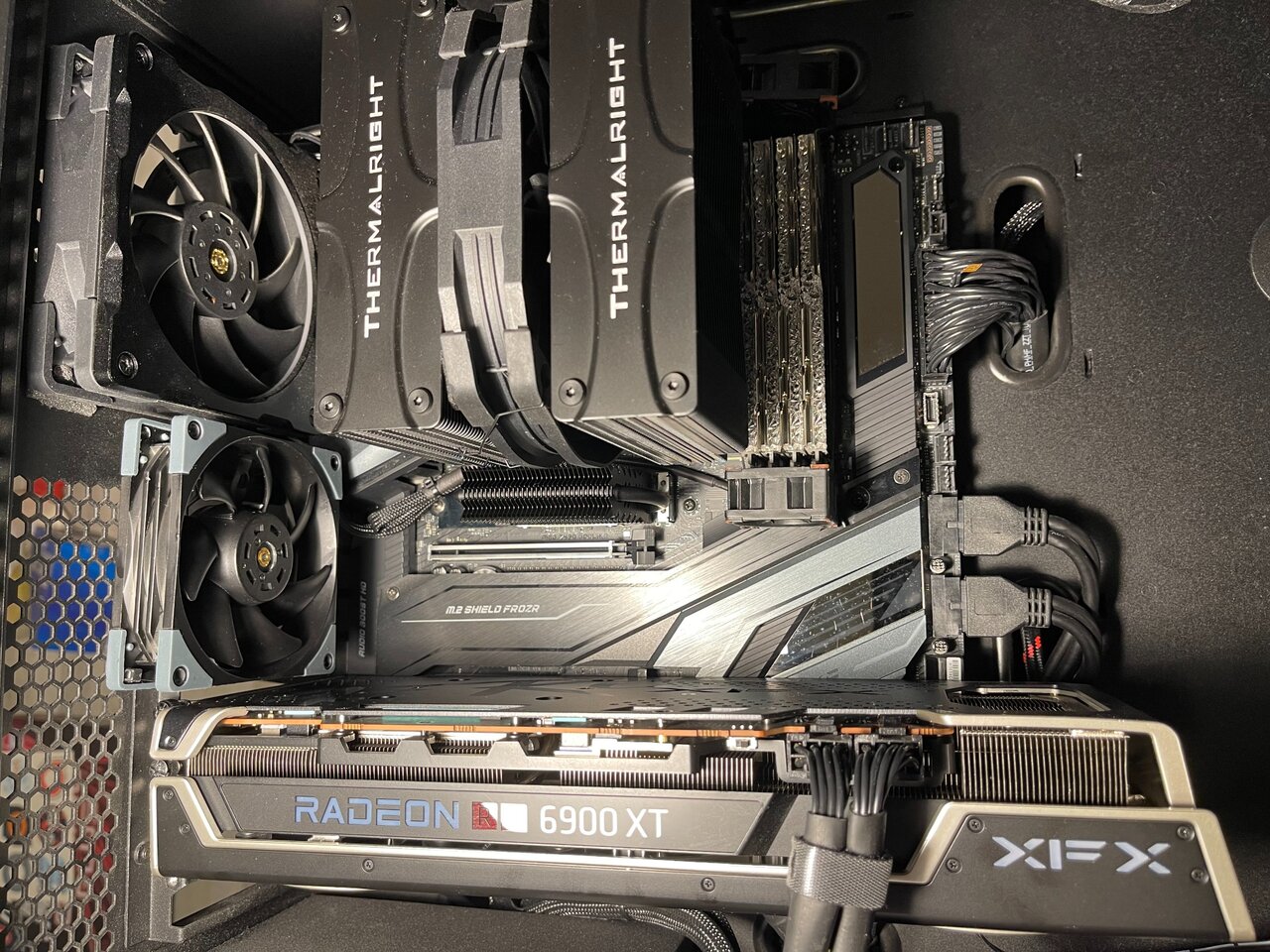

Yes i tried the new toys and installed they look as follow:






Now to the data of the measurement's:



The default was this time the old model of the 3D printed Ducs presented in the posts before:




CPU package MAX: 77 C

GPU Hotspot MAX:  65 C

DIMMS MAX: 34.3 C

M2 SSD: 38 C





Now with new design  with the "bite outs"






CPU package MAX: 77 C

GPU Hotspot MAX:  63 C

DIMMS MAX: 34 C

M2 SSD: 37 C







And Finally the new design with the linear bottom:






CPU package MAX: 75 C

GPU Hotspot MAX:  63 C

DIMMS MAX: 33,8 C

M2 SSD: 37 C





So yes the last Test has the best results but it could be as well based on the coldest intake temps. Anyway the biggest impact are not on the temps but on the noise. Noise of the turbulences went significantly down, you can still hear them on the higher fan speeds but its not much louder as the airflow  or the fan noise at it self. I dont have any data or measurement results on this topic as I'm lacking the right instruments.



Still have to try out the case split - GPU part from the CPU part... But it will take a bit more time as got a bit busy lately....



Now am i missing something here? Any recommendations? Please let me know. - any idea, recommendation or advice is very welcomed 🙂





  • Thanks 1

NoBodyKnow

Owned

 Share

CPU: Intel i9-10900K @ 4.9 Ghz
MOTHERBOARD: MSI MEG Z490 Godlike
RAM: 32 GB - G Skill Trident GTRS (15-15-15-30 @2050 T2)
SSD/NVME: GIGABYTE GP-AG41TB 1TB
CASE: CaseLabs SM8
GPU: Radeon RX 6900 XT - XFX Merc 319
CPU COOLER: Thermalright Frost Comander 140
Full Rig Info
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
×
×
  • Create New...

Important Information

This Website may place and access certain Cookies on your computer. ExtremeHW uses Cookies to improve your experience of using the Website and to improve our range of products and services. ExtremeHW has carefully chosen these Cookies and has taken steps to ensure that your privacy is protected and respected at all times. All Cookies used by this Website are used in accordance with current UK and EU Cookie Law. For more information please see our Privacy Policy
