21 minutes ago, Avacado said:

I'm giving you a hard time about how much you have on your desktop.



...oh I see, the desktop / Raven_B... Believe  it or not, some of the icons go back to Windows 2000 Professional, via Windows XP 64, Windows 7 Pro and so on

[J7SC_Orion]

...finally hooked up all the components for the TT Core P8 dual work-play system for the home office (3950X, 6900XT, Philips 40VA 4K + 5950X, 3090 Strix, LG C1 OLED). That was a complex project , what with two of everything, ie. start / reset, USB etc. Quick peek below, before final RGB clean-up and better pics...



[Avacado]

8 hours ago, J7SC_Orion said:

...finally hooked up all the components for the TT Core P8 dual work-play system for the home office (3950X, 6900XT, Philips 40VA 4K + 5950X, 3090 Strix, LG C1 OLED). That was a complex project , what with two of everything, ie. start / reset, USB etc. Quick peek below, before final RGB clean-up and better pics...



I know how much work complex WC builds can be and yours was on crack. So, much respect and glad everything is working with no snafu's.

[J7SC_Orion]

4 hours ago, Avacado said:

I know how much work complex WC builds can be and yours was on crack. So, much respect and glad everything is working with no snafu's.



Thanks ! ...it was a complex build and as such, there actually were some snafus along the way...



For example, the Bykski block for the 6900 XT was 'mis-advertised' re. applicability for my (3x8 pin) custom card w/ a bigger VRM, ergo 'Dremel cutter and Bosch grinder' operations on that block. Bykski had offered free exchange (others customers had the same problem) but had none in stock w/ no ETA. On the Strix 3090 and the Phanteks Glacier block, I got frustrated chasing an air bubble in the block and ended up dripping coolant between the PCB and block



Alas everything worked out in the end. Temps are fantastic, and so they should be w/ Gelid OC on the GPU dies, TGP thermal putty on the VRAMs and Thermalright pads w/MX5 on the phases. Extra-large heatsink on the backs of both GPUs have a helper fan on the side(s) though downdraft from 4x InWin 120s (which I had since 2012...) at the top of the case is good at the GPU zones as well.



I will update the build-log w/ plenty of pics starting next week; here are a couple of close-ups. BTW, those LinkUp PCIe 4.0 16X risers weren't cheap, but they perform great; no loss in before-and-after 3DM tests.











[J7SC_Orion]

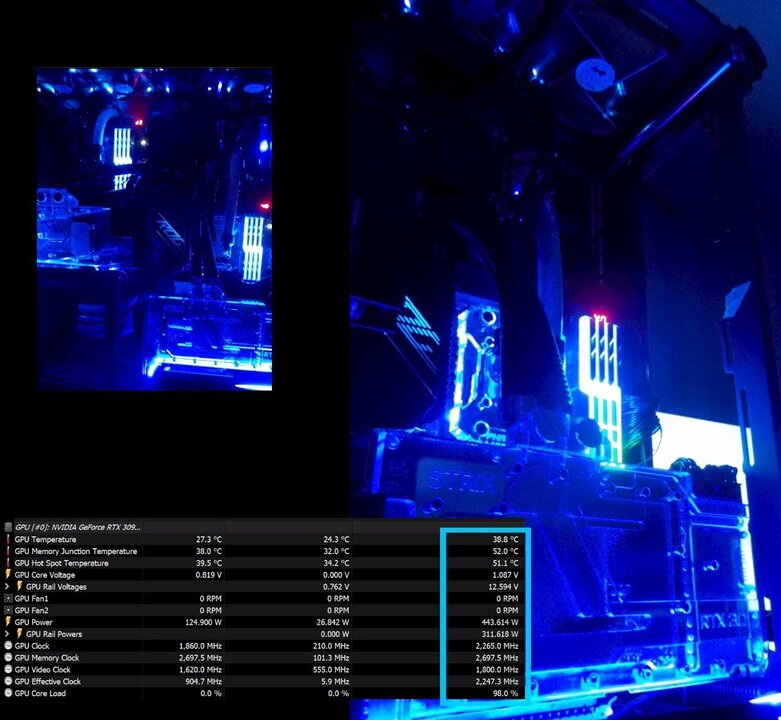

...stress-testing the 5950X / 3090 combo; clocks and temps per insert pic (23 C ambient)









Edited November 20, 2021 by J7SC_Orion

[PCSarge]

in before pro watercooling. (before the comment happens, yes i fixed my 24 pin, it was bugging me too)

Edited November 27, 2021 by PCSarge

[J7SC_Orion]

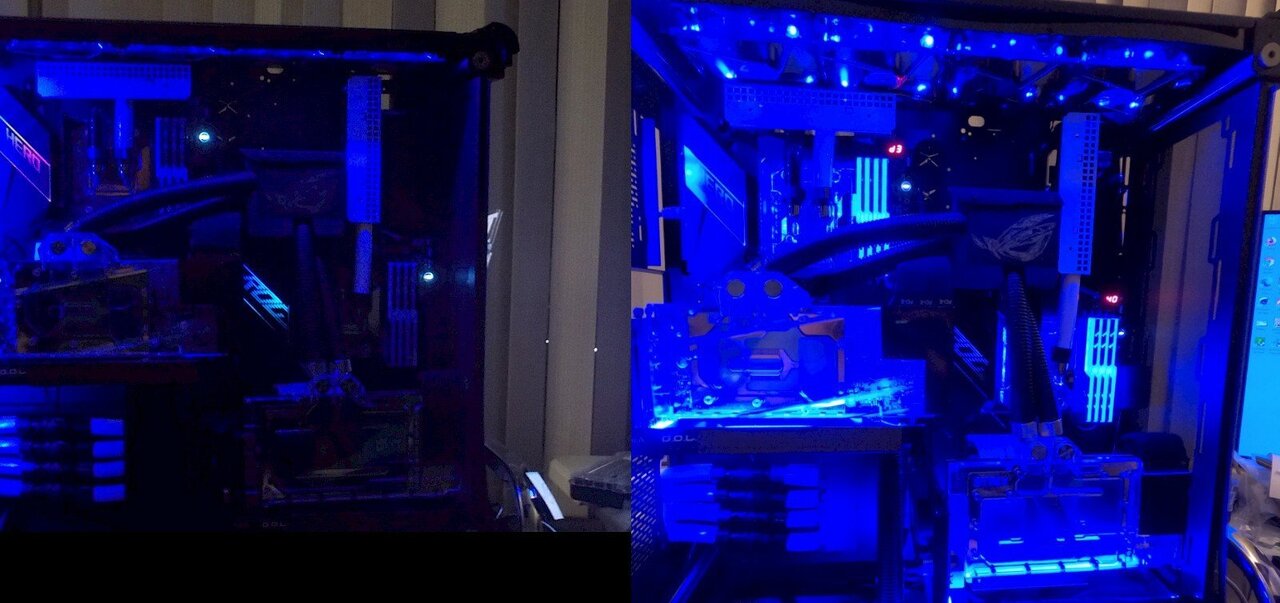

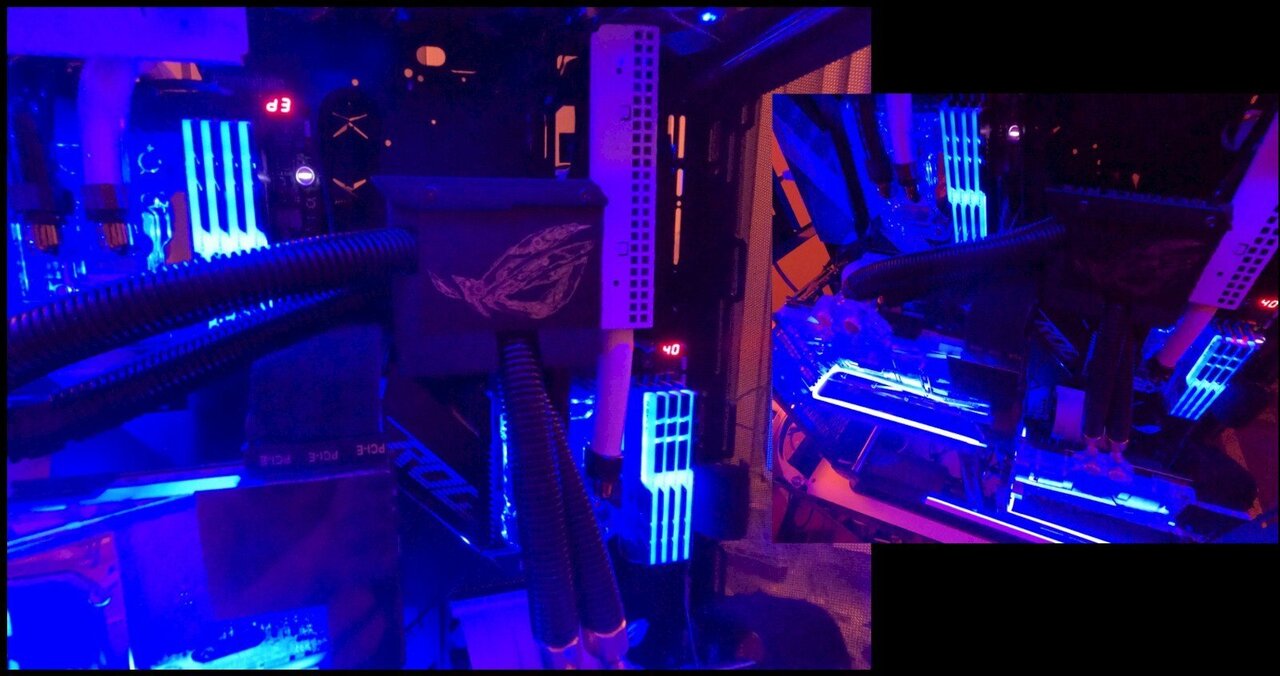

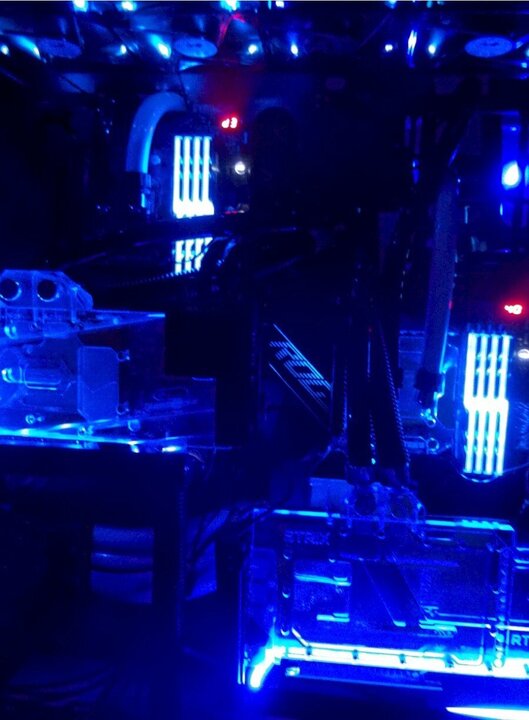

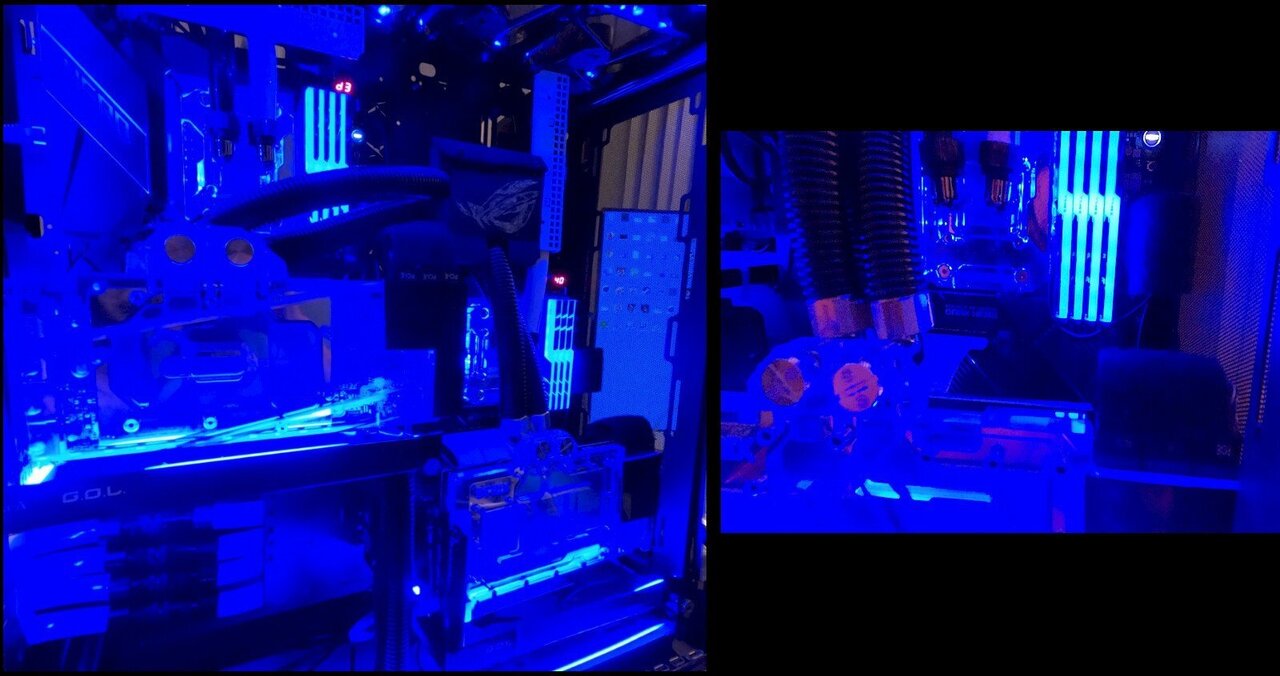

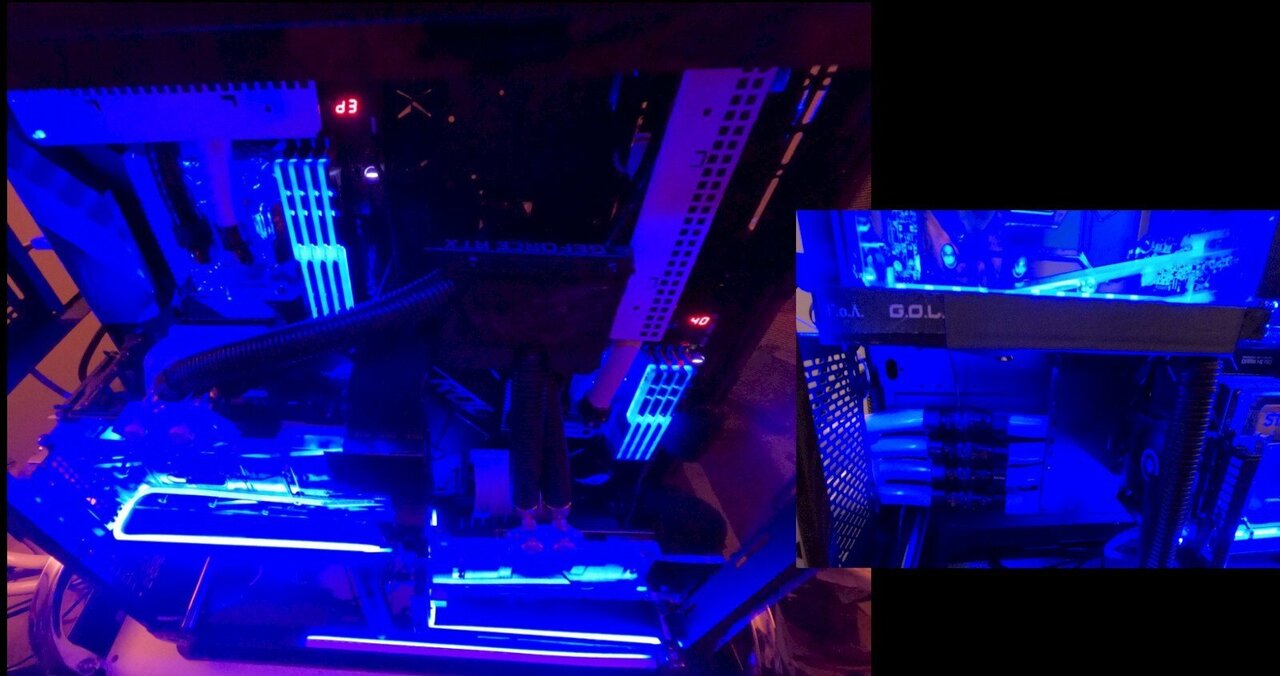

I finally completed 'Raven_A', a work-play dual mobo project in a TT Core P8 case I showed bits about before. It took a long time, but it was a complex build that required a fair amount of custom fabrication.



@ENTERPRISE ...this is one of two Ravens (both dual-mobo). How do I put a single case / dual system into the rig creator ?



"Top Left":
Asus CH8 Hero Wifi - 32 GB DDR4 CL14 3800 - Gigabyte 6900XT / 430 W - 1200mm x 63mm rads, 2x D5 pumps, Philips 40 inch VA panel



"Bottom right":
Asus CH8 Dark - 32 GB DDR4 CL14 3800 - Asus RTX 3090 / 520W - 1320 x 63 mm rads, 3x D5 pumps, LG OLED C1 48 panel











[ENTERPRISE]

10 hours ago, J7SC_Orion said:

I finally completed 'Raven_A', a work-play dual mobo project in a TT Core P8 case I showed bits about before. It took a long time, but it was a complex build that required a fair amount of custom fabrication.



@ENTERPRISE ...this is one of two Ravens (both dual-mobo). How do I put a single case / dual system into the rig creator ?



"Top Left":
Asus CH8 Hero Wifi - 32 GB DDR4 CL14 3800 - Gigabyte 6900XT / 430 W - 1200mm x 63mm rads, 2x D5 pumps, Philips 40 inch VA panel



"Bottom right":
Asus CH8 Dark - 32 GB DDR4 CL14 3800 - Asus RTX 3090 / 520W - 1320 x 63 mm rads, 3x D5 pumps, LG OLED C1 48 panel











Rig Creator allows you to create a rig with multiple of the same component type, so I would imagine that will cover it. Any other more in depth description can be added as well.

[J7SC_Orion]

4 hours ago, ENTERPRISE said:

Rig Creator allows you to create a rig with multiple of the same component type, so I would imagine that will cover it. Any other more in depth description can be added as well.



Thanks - I'll give rig creator a try again once Raven_B 'is ready for its closeup' as well (adding a new Phanteks TR block tomorrow)

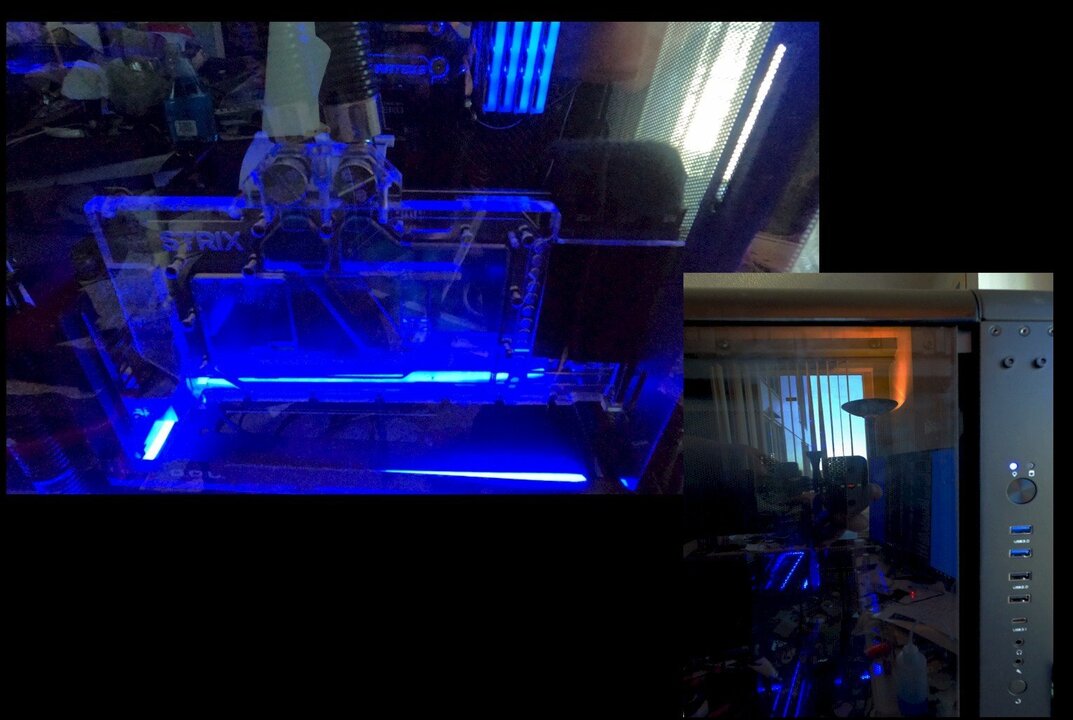

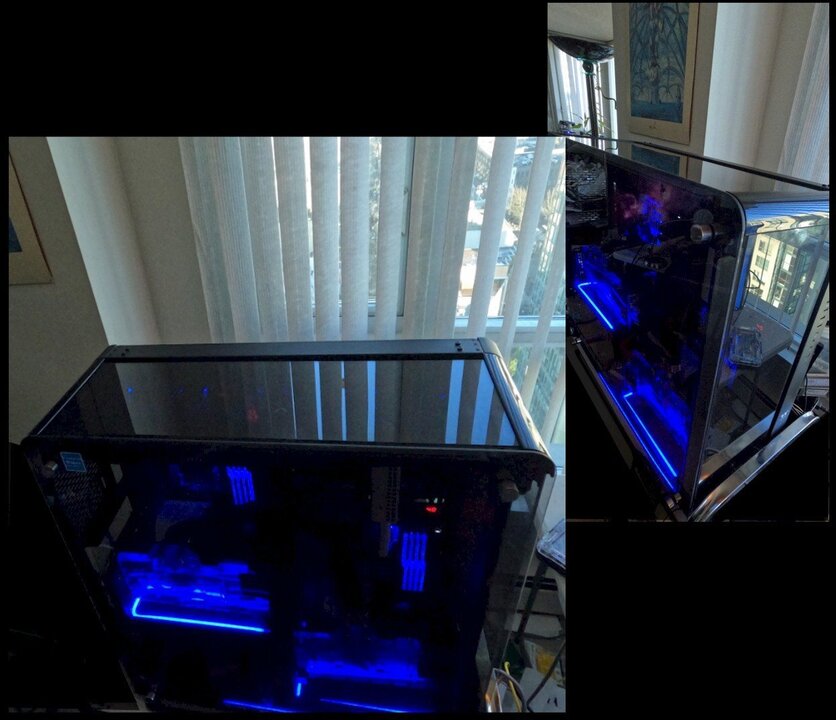

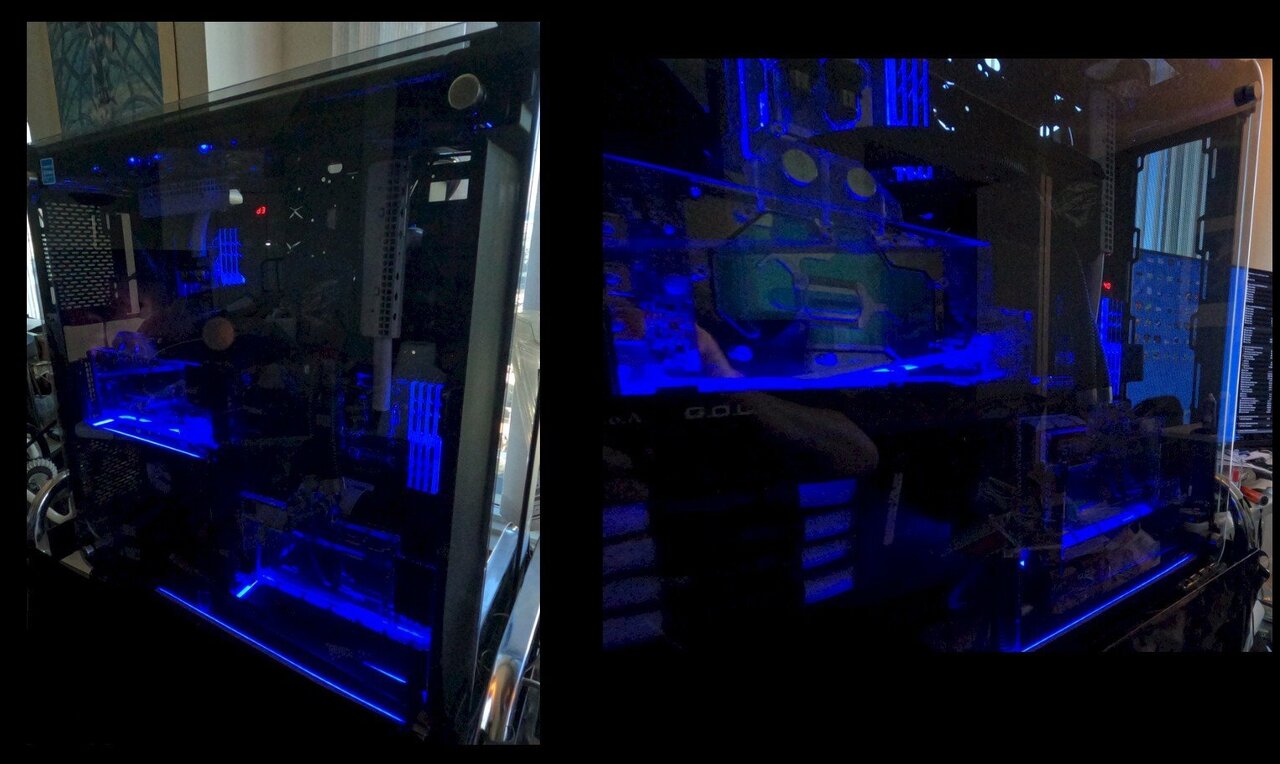

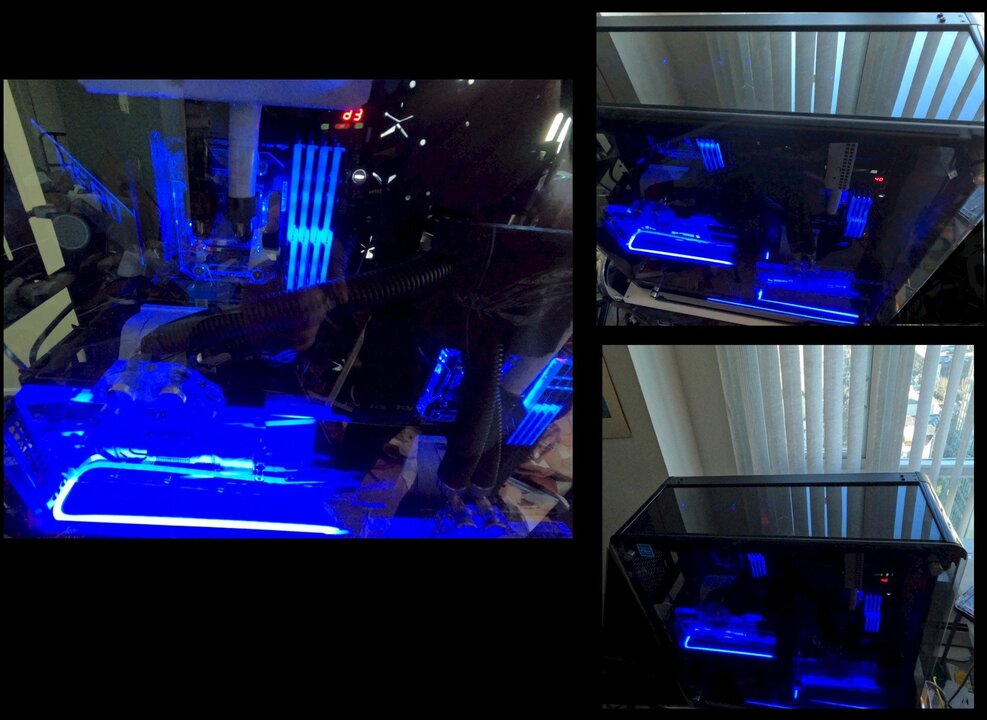

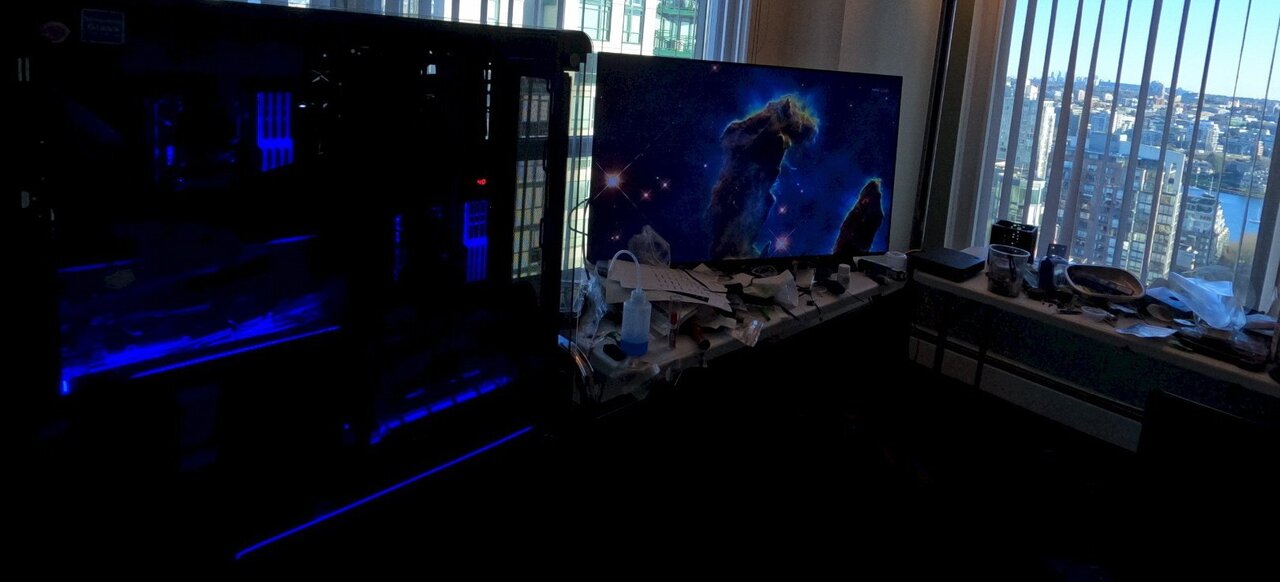

In the meantime, so pics with the glass panels on...fyi, first full day with a GoPro Hero 10, don't quite know what the heck I'm doing yet re. lighting and focus zone quirks















Edited December 19, 2021 by J7SC_Orion

[mouacyk]

Anyone got advice for making the D5 pump last as long as possible in this combo unit? I've had a new unit grind to a halt in about 3 years time, exhibiting increasing vibrations towards the end. The replacement with a used D5 also grinded to a halt within a few months.  Is this thing just prone to vibration wear-down, due to its vertical orientation and inadequate load balancing? I've securely screwed the attachment holes to the case and placed styrofoam pads below the pump.

[J7SC_Orion]

1 hour ago, mouacyk said:

Anyone got advice for making the D5 pump last as long as possible in this combo unit? I've had a new unit grind to a halt in about 3 years time, exhibiting increasing vibrations towards the end. The replacement with a used D5 also grinded to a halt within a few months.  Is this thing just prone to vibration wear-down, due to its vertical orientation and inadequate load balancing? I've securely screwed the attachment holes to the case and placed styrofoam pads below the pump.

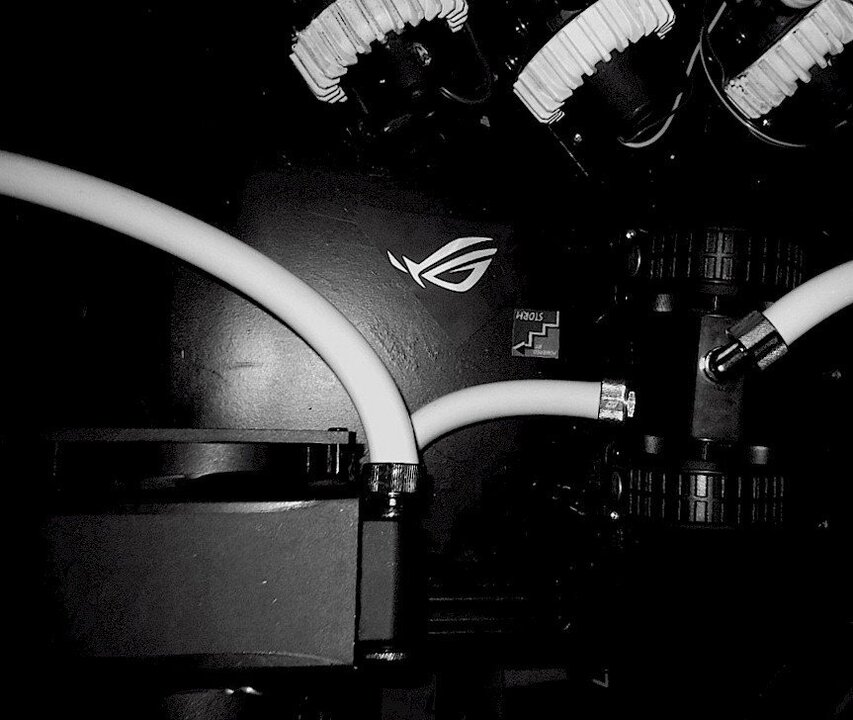

I tend to use free-standing D5s (Swiftech, XSPC) which I rubber-mount to absorb vibration, either in/on a case or a mobile cooling table setup, like below. With something like 10x D5s in use for multiple builds over the years and some as old as 9 years, I only ever lost 1x D5...and that was my own fault for accidentally running it dry while trying to test out fan Molex cable trees (those were the days I hate Molex).



I'm not sure yet about the EKWB XTop Revo 2x D5 setup as it is only in use for about four months, but so far, so good...











[mouacyk]

Pic is too dark. Can't really see what's going on.

[J7SC_Orion]

1 hour ago, mouacyk said:

Pic is too dark. Can't really see what's going on.



...pic is just right, for a 'film noir' fan like myself

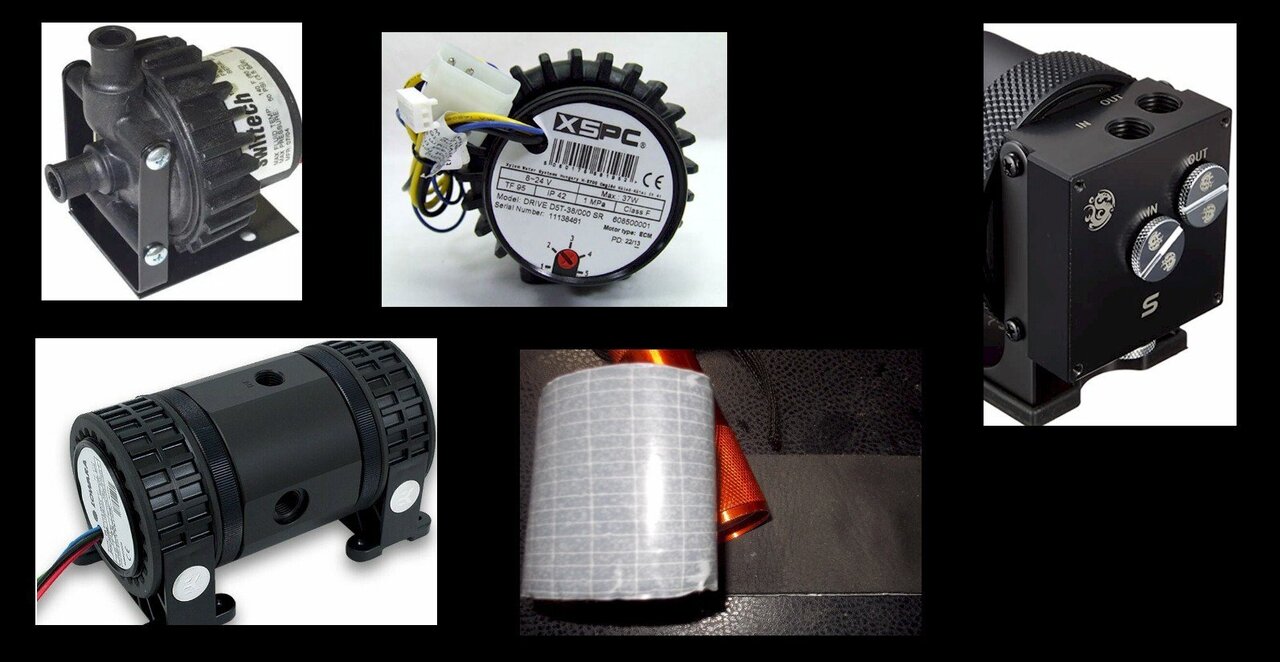

...below are the individual bits I used:: Swiftech D5 / MPC 655 (w/ Molex, pwm and speed adjustment screw on the back), XSPC D5 (w/ Molex, pwm and speed adjustment screw on the back), EK XTop Revo Dual D5 (pwm, Molex) w/ housing and a stand-alone D5 housing from Bitspower (5 inlets / outlets). Not sure about the EK Revo D5 ones, but the Swiftech and XSPC D5s are interchangeable re. housings, distros etc.





The black tape strip is neoprene (w/ glue on one side) which I use to mount the pumps on and insulate re. vibrations (and thus also any kind of noise)

[Storm-Chaser]

Build Specs

Heatkiller IV all copper water block

MSI MEG Z390 ACE motherboard
two alphacool bay reservoirs 5.25 (approx 1.5 quarts total)
two freezemod 800L/H PWM pumps (after waterblock)

one barrow 450L/H PWM pump (before waterblock)
One 360mm rad
One 240mm rad (passive)
One 120mm rad
One 80mm deep alphacool monsta 120mm rad (essentially two 120mms in one)
Mostly noctua PWM fans running about 800 rpm (set static)
Pumps running about 3000rpm each
9600KF @ 5.2Ghz @ 1.373 volts 24/7

Old version:



new version:





















































Edited December 23, 2021 by Storm-Chaser

[Avacado]

24 minutes ago, Storm-Chaser said:

Old version (single pump)





current version (7th iteration of the cooling system)

-two freezemod 800L/H PWM pumps

-note the baby chiller that doesnt stand a chance (but the 60 plate heat exchanger to it's left has worked out very well so far)





After D5 450L/H pwm pump install (3rd pump, one before two after waterblock)

-approx 1000mm of radiator if placed end to end (240mm is passive)



didnt like the jellyfish look to the new D5 pump so I painted it black to match the radiators



the two freezemod pumps fit perfect behind the lower reservoir



Ghetto chiller w/ liquid to liquid heat exchanger (actually had the loop start to slush up on me last night)



See what I am doing here? I'm "chilling" the "chiller" LOL

(primitive form of pre-cooling)





at night itlooks like this:



Build Specs

Heatkiller IV all copper water block

MSI MEG Z390 ACE motherboard
two alphacool bay reservoirs 5.25 (approx 1.5 quarts total)
two freezemod 800L/H PWM pumps (after waterblock)

one barrow 450L/H PWM pump (before waterblock)
One 360mm rad
One 240mm rad (passive)
One 120mm rad
One 80mm deep alphacool monsta 120mm rad (essentially two 120mms in one)
Mostly noctua PWM fans running about 800 rpm (set static)
Pumps running about 3000rpm each
9600KF @ 5.2Ghz @ 1.373 volts 24/7

















Image links appear broken to me. Did you cut and paste the text from another site to here without loading the images in?

[Storm-Chaser]

can u guys see the pics now? sorry IMGBB has really been getting on my nerves lately.

[tictoc]

On 21/12/2021 at 10:32, mouacyk said:

Anyone got advice for making the D5 pump last as long as possible in this combo unit? I've had a new unit grind to a halt in about 3 years time, exhibiting increasing vibrations towards the end. The replacement with a used D5 also grinded to a halt within a few months.  Is this thing just prone to vibration wear-down, due to its vertical orientation and inadequate load balancing? I've securely screwed the attachment holes to the case and placed styrofoam pads below the pump.





Maybe just bad luck on the pumps.



Both of my test benches have D5s mounted vertically using the EK fan mounting bracket. One is an older EK combo unit that is basically the same as what you have, and the other has an EK top with a male-male fitting attaching the pump top to the reservoir.

I also ran a D5 with the XSPC Photon pump top/reservoir combo, for a number of years without issue.



I guess that pump top could be causing some sort of weird cavitation, but that seems pretty unlikely since I see quite a few rigs using those pump/res combos.





17 minutes ago, Storm-Chaser said:

can u guys see the pics now? sorry IMGBB has really been getting on my nerves lately.

Looks like the pics are visible now.

Edited December 22, 2021 by tictoc

[Storm-Chaser]

The chiller has been pretty effective today





If you are wondering why my chiller is so effective... lol its half frozen (these images are from imgbb as well so they might not work until I go back later and manually copy and paste them into the thread)







Edited December 24, 2021 by Storm-Chaser

[J7SC_Orion]

17 hours ago, Storm-Chaser said:

The chiller has been pretty effective today





If you are wondering why my chiller is so effective... lol its half frozen (these images are from imgbb as well so they might not work until I go back later and manually copy and paste them into the thread)









Nice !
FYI, we've got a snow storm and - 10 C coming up in the next few days, but I probably just stay cozy warm inside  and avoid benching...coldest thing I'll touch (hopefully) will be our fridge.

[Storm-Chaser]

On 24/12/2021 at 16:39, J7SC_Orion said:



Nice !
FYI, we've got a snow storm and - 10 C coming up in the next few days, but I probably just stay cozy warm inside  and avoid benching...coldest thing I'll touch (hopefully) will be our fridge.

This is the best of both worlds. Im inside by the wood stove and I have lines running under the garage door so the entire computer is outside and I'm nice and warm inside the house.

[EHW Ai]

This is my latest build. Drying out a pump so not installed. Also installed the pedestal top backwards so need to swap that out.

haven’t booted, still bleeding





[J7SC_Orion]

10 minutes ago, Outsider said:

This is my latest build. Drying out a pump so not installed. Also installed the pedestal top backwards so need to swap that out.

haven’t booted, still bleeding







The 'standard Noctua colour scheme' actually works very well here as contrast !

[Supercrumpet]

5 hours ago, Outsider said:

This is my latest build. Drying out a pump so not installed. Also installed the pedestal top backwards so need to swap that out.

haven’t booted, still bleeding







Absolutely absurd, and there's no kill like overkill. What will you be using it for?

[Avacado]

8 hours ago, Outsider said:

This is my latest build. Drying out a pump so not installed. Also installed the pedestal top backwards so need to swap that out.

haven’t booted, still bleeding





Better than v1.0 with the duct tape on the bottom rad.

[J7SC_Orion]

3 hours ago, Avacado said:

Better than v1.0 with the duct tape on the bottom rad.



...personally, I prefer industrial Velcro over duct tape...

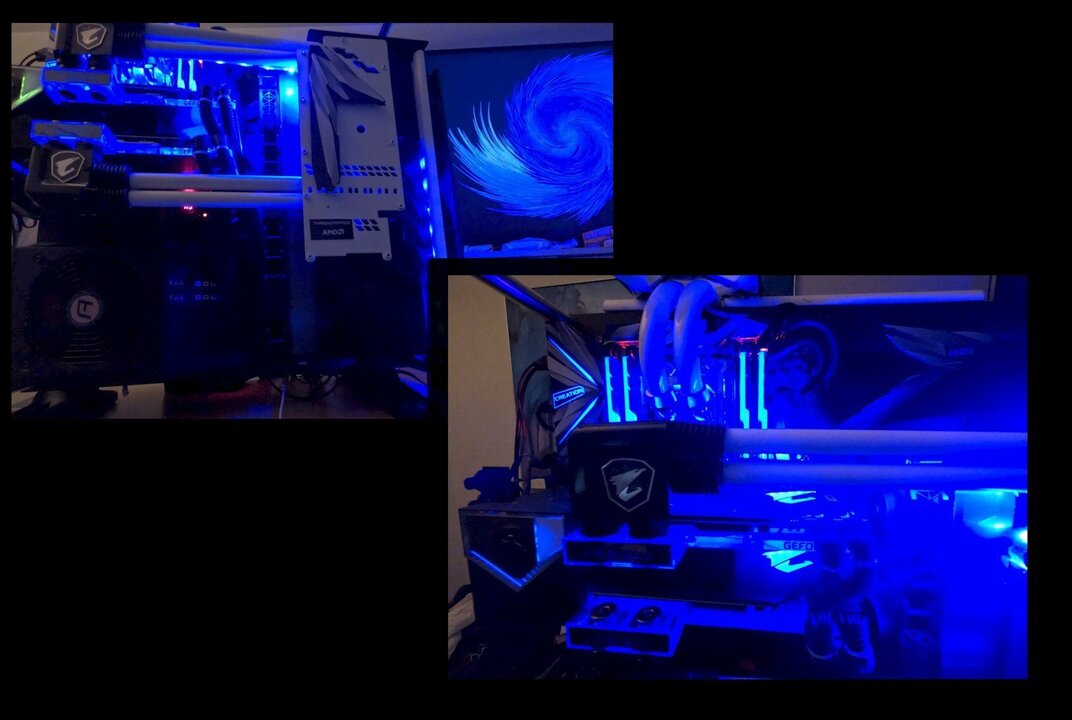

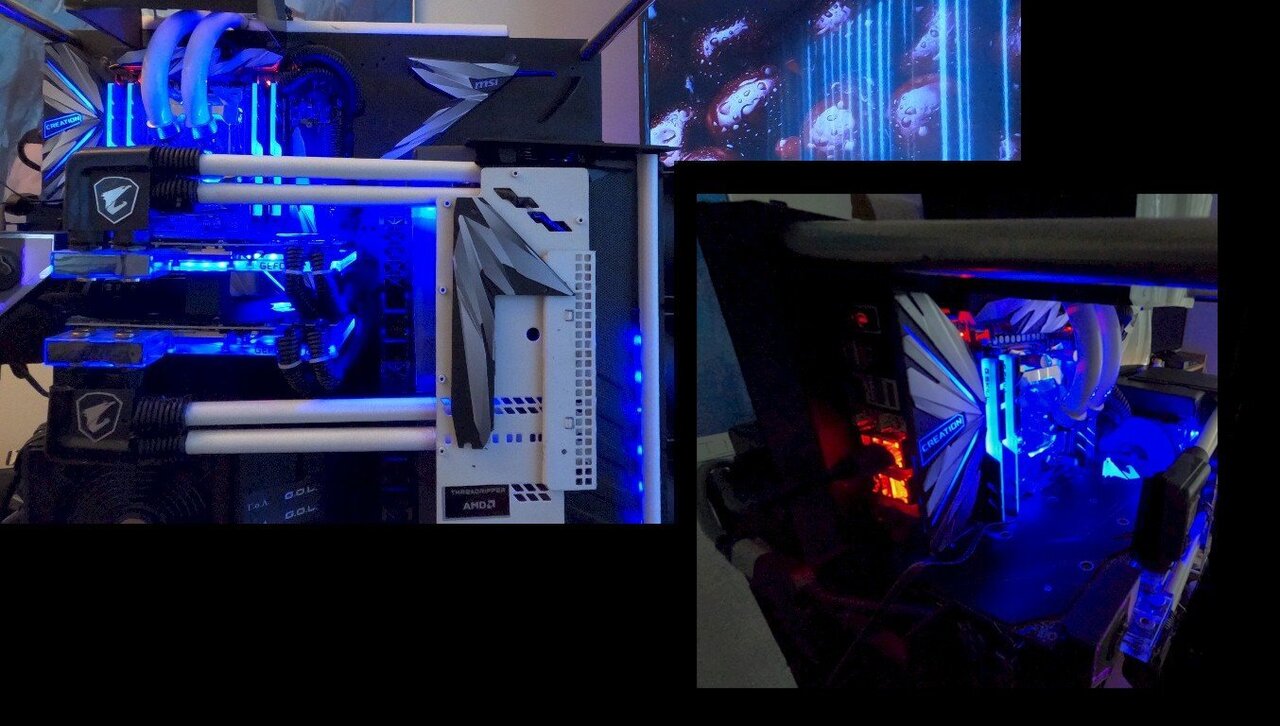

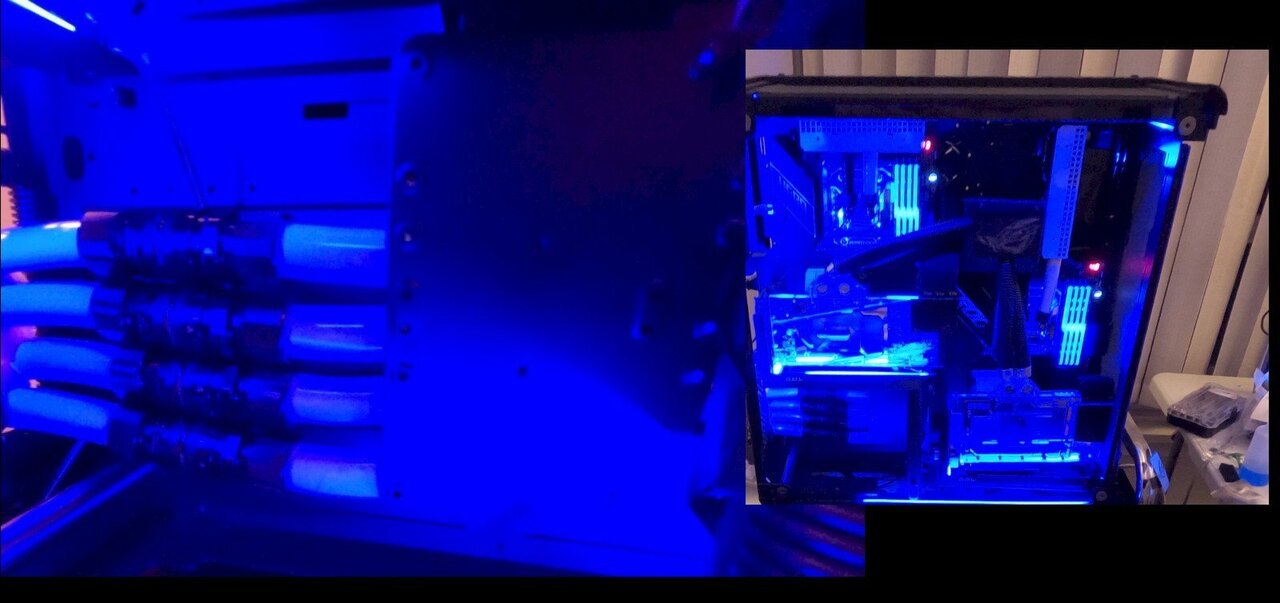

Anyhoo, finishing up Raven_B now with a few minor mods...it is based on an earlier build, but gained a second motherboard (on the back, unlike Raven_A which has both mobos on the front). It also got an updated cooling system conflabulation....and of course, 'Cherenkov radiation blue' rgB, wherever possible
