Trying to improve a Tesla M40


Bastiaan_NL

Recommended Posts

After some guys here on EHW triggered my interest in the Tesla M40 cards I decided to start looking for one in Europe.
Last Saturday I found one in Belgium for a reasonable price, so I did not hesitate and buy it. Besides that I bought an MSI 980ti cooler, a few screws, washers and nuts and a few m.2 SSD coolers.



The idea I have is to improve the air cooling on this M40, in such a way that it is usable in the air cooled workstation I'm (slowly) building. See it as a little side project to get my fix of GPU's in this time of shortage, not that I can complain. :classic_rolleyes:



[An interruption of this post, to post the final product]










[And we continue the original post]



So let's start with the card itself:

Looks pretty with those red lights reflecting on the original cooler, which looks even better in person. A shame I have to remove it..

20210508_162716 (1).jpg

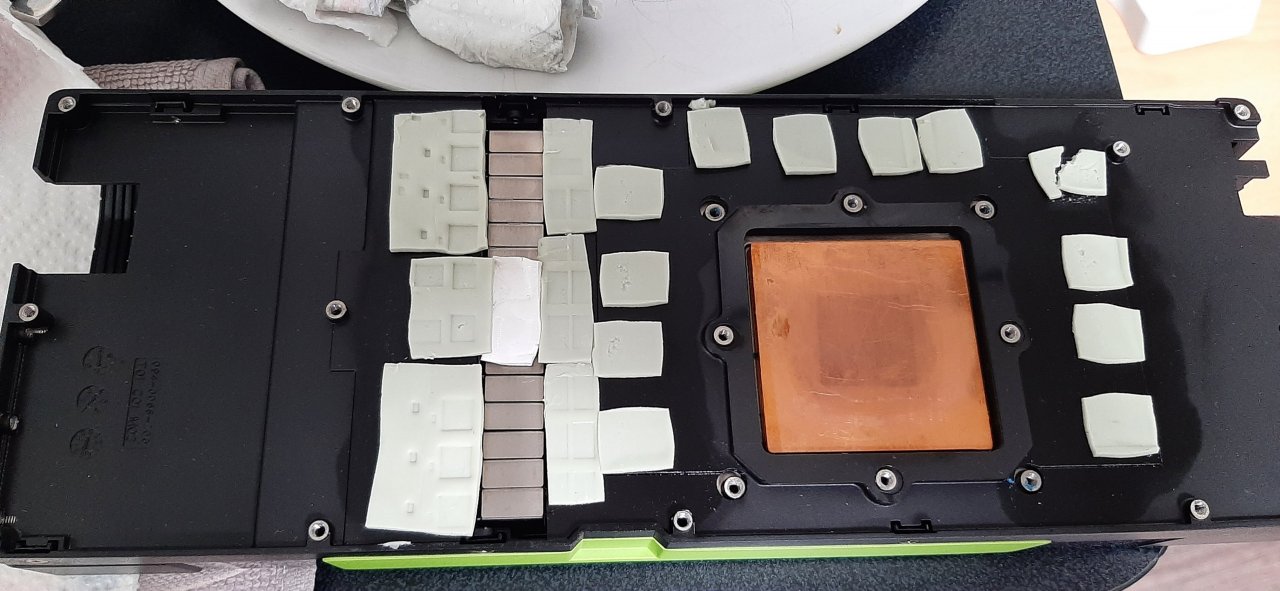

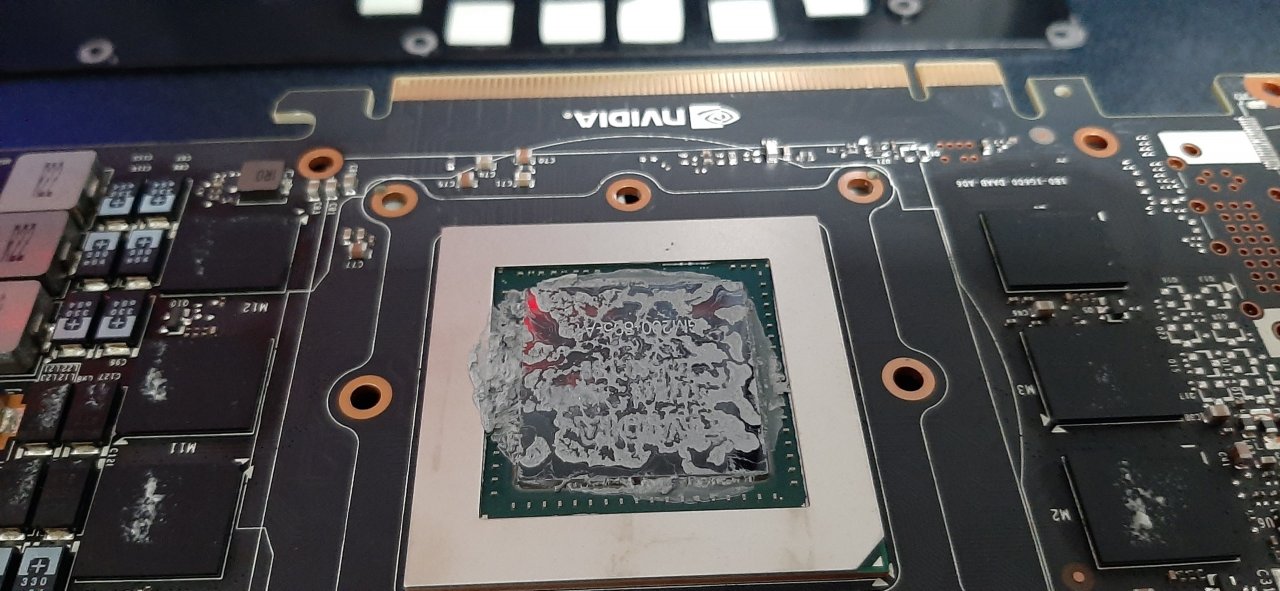

The old paste and pads:

The paste was pretty dry, but it wasn't hard to clean it.






I'm not sure if this is original, it looks like someone replaced the pads.

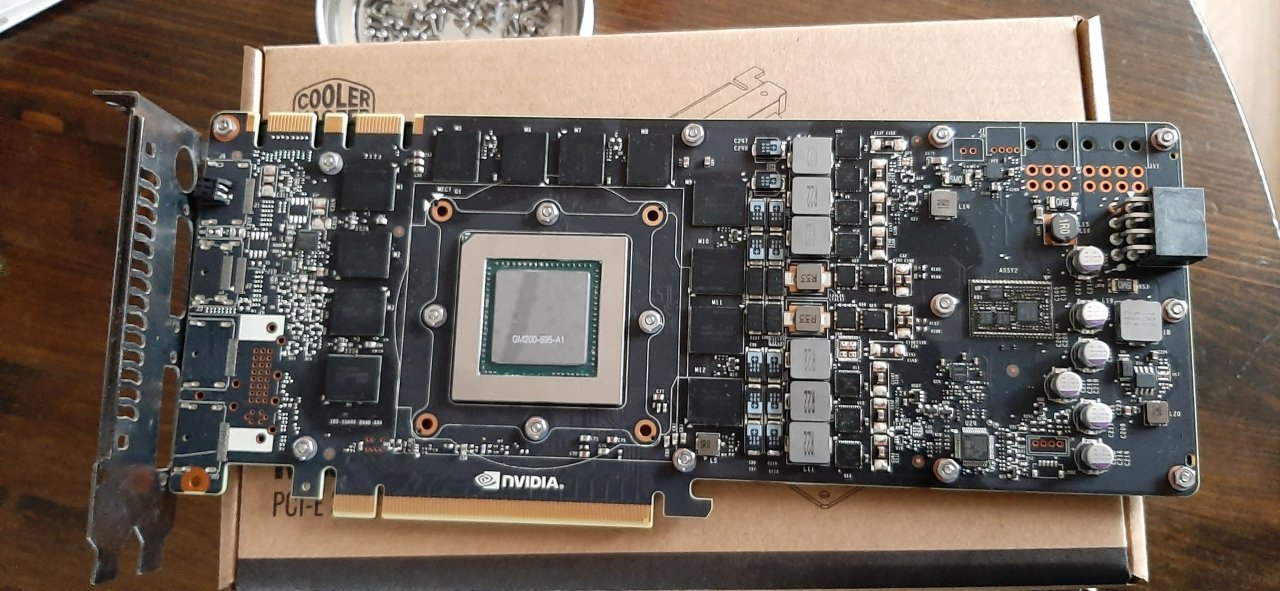

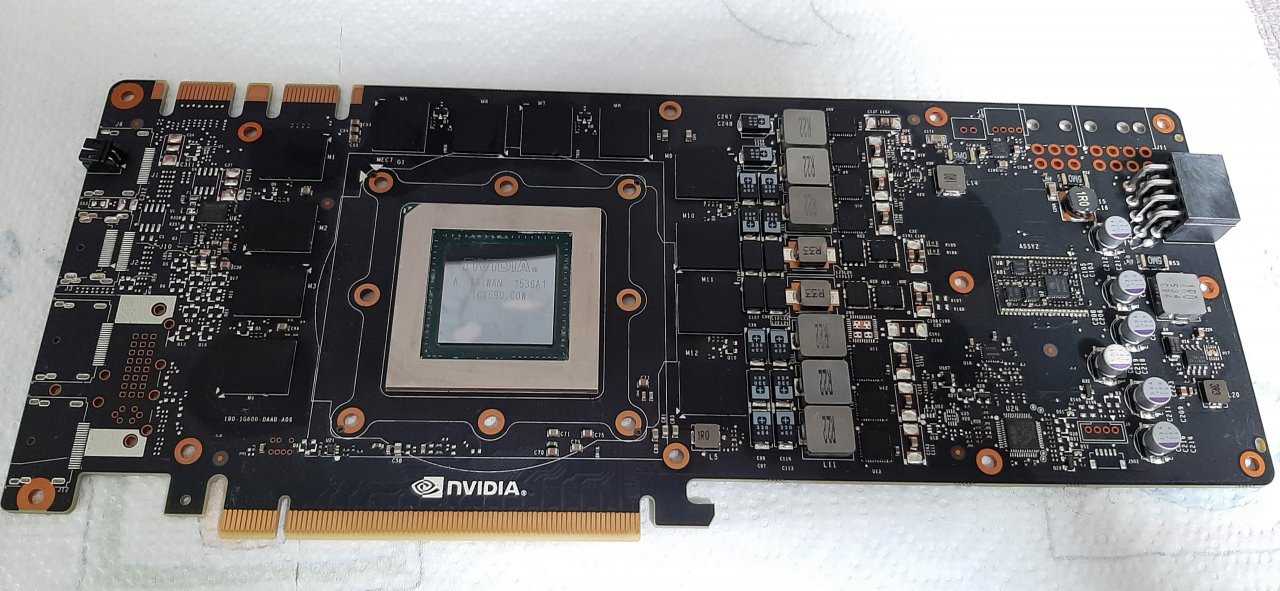

Looks good after cleaning, but we will have to wait for the cooler to arrive.

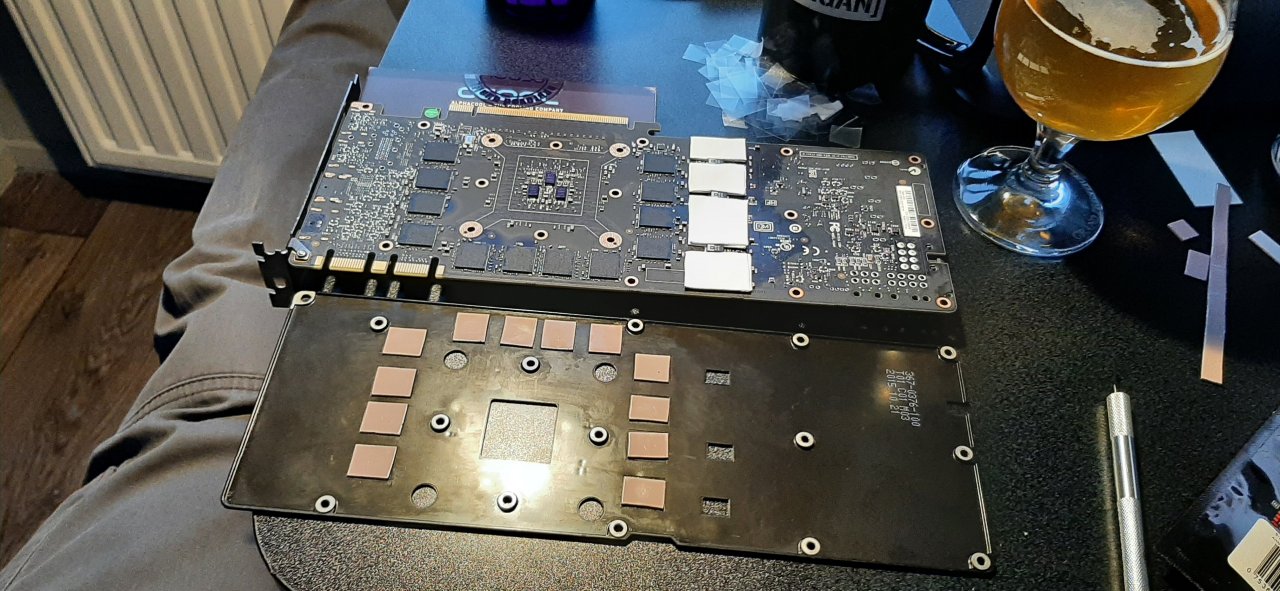

New pads on the aluminium backplate:

I did some measuring to get the thickness right for the pads next to the Vram.

I'm pretty sure I don't have any option to cool anything on the other side of the PCB, so I try to cool this side of the card as good as possible.






A lot of bolts to get some pressure on the back, and not too tight for obvious reasons.
Also, an IO shield from a GTX580 installed on the card. Not the strongest solution with only one bolt, but at least it's a good fit.

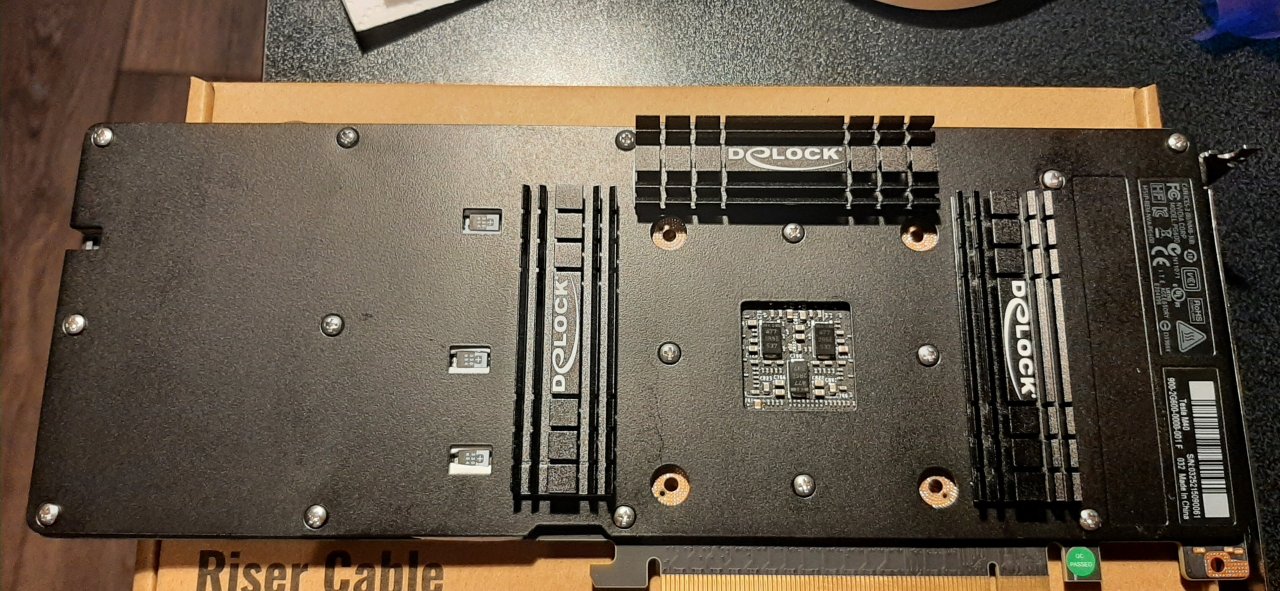

And here are the m.2 coolers on the back with some double sided tape/coolpads. As soon as I can fire the card back up I'll measure the temps on the back with a digital thermometer, to see if I have to improve it.






That's it for now, I'm waiting patiently for the cooler!

Edited by Bastiaan_NL
  • Thanks 4

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

Folding@Home Staff - Team Lead

This looks like it will be a very fun project, but the beverage in picture 5 has me most interested.

  • Thanks 1

Owned

 Share

CPU: Ryzen 9 5950x
MOTHERBOARD: B550 PG Velocita
RAM: 4x8GB Ballistix
GPU: RX 6900 XT
PSU: LEADEX V Platinum 1KW
CASE: QUBE 500
SSD/NVME: T-FORCE CARDEA A440 PRO
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 5 5500
MOTHERBOARD: X470 TAICHI
RAM: Crucial Ballistix MAX 2x8GB
PSU: EVGA SUPERNOVA P5
SSD/NVME: Silicon Power A60 256GB
GPU: Quadro M4000
GPU 2: Quadro M4000
GPU 3: Quadro M2000
Full Rig Info
Link to comment
Share on other sites

Nice, I look forward to seeing what temperatures you manage to bring them down to. The cooling to the rear of the card is important, certainly saw a good improvement with 120mm pushing cool air down onto the cards inline with the rear of the GPU core.

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

1 hour ago, damric said:

This looks like it will be a very fun project, but the beverage in picture 5 has me most interested.

Have you tried the serenity prayer? ?

Owned

 Share

CPU: 5800x
MOTHERBOARD: ASUS TUF Gaming B550-Plus
RAM: XMP 3600mhz CL16
GPU: 7900XT
SOUNDCARD: Sound Blaster Z 5.1 home theater
MONITOR: 4K 65 inch TV
Full Rig Info
Link to comment
Share on other sites

1 hour ago, Bastiaan_NL said:

After some guys here on EHW triggered my interest in the Tesla M40 cards I decided to start looking for one in Europe.
Last Saturday I found one in Belgium for a reasonable price, so I did not hesitate and buy it. Besides that I bought an MSI 980ti cooler, a few screws, washers and nuts and a few m.2 SSD coolers.



The idea I have is to improve the air cooling on this M40, in such a way that it is usable in the air cooled workstation I'm (slowly) building. See it as a little side project to get my fix of GPU's in this time of shortage, not that I can complain. :classic_rolleyes:



So let's start with the card itself:

Looks pretty with those red lights reflecting on the original cooler, which looks even better in person. A shame I have to remove it..






The old paste and pads:

The paste was pretty dry, but it wasn't hard to clean it.





I'm not sure if this is original, it looks like someone replaced the pads.






Looks good after cleaning, but we will have to wait for the cooler to arrive.






New pads on the aluminium backplate:

I did some measuring to get the thickness right for the pads next to the Vram.

I'm pretty sure I don't have any option to cool anything on the other side of the PCB, so I try to cool this side of the card as good as possible.






A lot of bolts to get some pressure on the back, and not too tight for obvious reasons.
Also, an IO shield from a GTX580 installed on the card. Not the strongest solution with only one bolt, but at least it's a good fit.






And here are the m.2 coolers on the back with some double sided tape/coolpads. As soon as I can fire the card back up I'll measure the temps on the back with a digital thermometer, to see if I have to improve it.






That's it for now, I'm waiting patiently for the cooler!

Just so you know, there are thermal pads under that backplate there. 0.5mm. Is yours the 12 or 24 GB variant?

Link to comment
Share on other sites

8 hours ago, Bastiaan_NL said:

After some guys here on EHW triggered my interest in the Tesla M40 cards I decided to start looking for one in Europe.
Last Saturday I found one in Belgium for a reasonable price, so I did not hesitate and buy it. Besides that I bought an MSI 980ti cooler, a few screws, washers and nuts and a few m.2 SSD coolers.



The idea I have is to improve the air cooling on this M40, in such a way that it is usable in the air cooled workstation I'm (slowly) building. See it as a little side project to get my fix of GPU's in this time of shortage, not that I can complain. :classic_rolleyes:



So let's start with the card itself:

Looks pretty with those red lights reflecting on the original cooler, which looks even better in person. A shame I have to remove it..






The old paste and pads:

The paste was pretty dry, but it wasn't hard to clean it.





I'm not sure if this is original, it looks like someone replaced the pads.






Looks good after cleaning, but we will have to wait for the cooler to arrive.






New pads on the aluminium backplate:

I did some measuring to get the thickness right for the pads next to the Vram.

I'm pretty sure I don't have any option to cool anything on the other side of the PCB, so I try to cool this side of the card as good as possible.






A lot of bolts to get some pressure on the back, and not too tight for obvious reasons.
Also, an IO shield from a GTX580 installed on the card. Not the strongest solution with only one bolt, but at least it's a good fit.






And here are the m.2 coolers on the back with some double sided tape/coolpads. As soon as I can fire the card back up I'll measure the temps on the back with a digital thermometer, to see if I have to improve it.






That's it for now, I'm waiting patiently for the cooler!



 ...very nice and clean ! ?



BTW, do you have a link / detail for the ' double sided tape/coolpads' ?

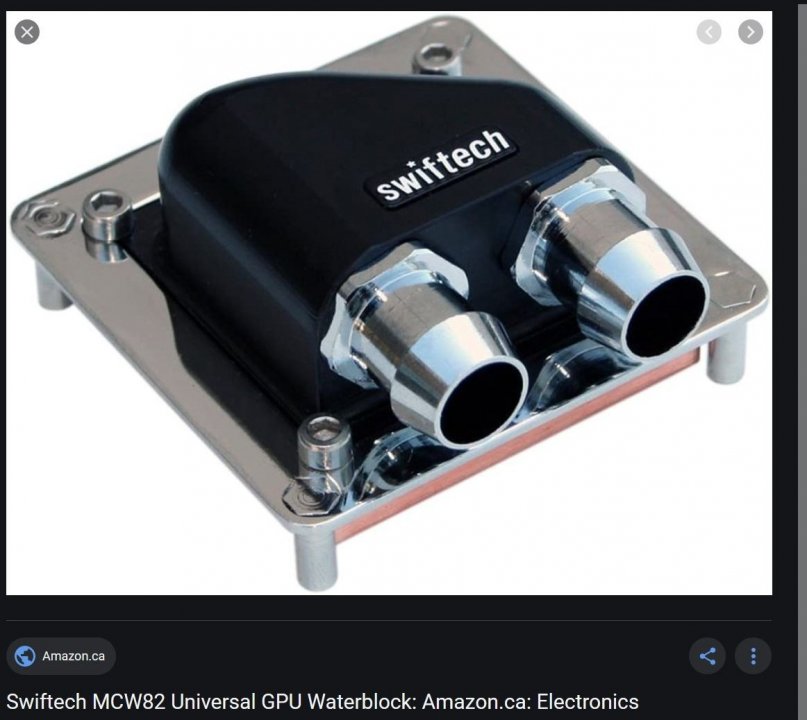

Also, perhaps more for other GPU (and even CPU !) water-cooling and folding projects, you might want to keep the item below in mind...I have 8 of them left over from my HWBot days, and they work really, really well (copper base). They can also be transferred between different GPUs and come with adapters for both NVidia and AMD. That said, you'll need a separate VRM fan and VRAM heat sinks




Edited by J7SC_Orion

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

11 hours ago, damric said:

This looks like it will be a very fun project, but the beverage in picture 5 has me most interested.

Yeah, I'm already enjoying the simple mods. And it's not expensive, so that's a bonus!

The beverage was a NEIPA from a local brewery, we have a subscription with a group of friends. We get a box of beers every two weeks, share/drink and review them together :classic_biggrin:





11 hours ago, ENTERPRISE said:

Nice, I look forward to seeing what temperatures you manage to bring them down to. The cooling to the rear of the card is important, certainly saw a good improvement with 120mm pushing cool air down onto the cards inline with the rear of the GPU core.

I hope it'll be enough to keep it at a good boost clock for folding, that's the idea. And every bit helps for that, so I might have to use a higher profile m.2 heatsinks on the back to cool it even more.





10 hours ago, Avacado said:

Just so you know, there are thermal pads under that backplate there. 0.5mm. Is yours the 12 or 24 GB variant?

I already replaced those, but on my card they were 0.75mm.
This one is a 12GB card, does that impact anything?





3 hours ago, J7SC_Orion said:



 ...very nice and clean ! ?



BTW, do you have a link / detail for the ' double sided tape/coolpads' ?



Also, perhaps more for other GPU (and even CPU !) water-cooling and folding projects, you might want to keep the item below in mind...I have 8 of them left over from my HWBot days, and they work really, really well (copper base). They can also be transferred between different GPUs and come with adapters for both NVidia and AMD. That said, you'll need a separate VRM fan and VRAM heat sinks



Thanks :classic_smile:

The pads came with the m.2 heatsinks, I'll see if I can find some info about them and I'll let you know!



I will keep those blocks in mind, though I don't plan on doing any water cooling on the workstation and both the pc's are done. (besides a block for the 3090, dammit Watercool..)

  • Thanks 1

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

1 hour ago, Bastiaan_NL said:

Yeah, I'm already enjoying the simple mods. And it's not expensive, so that's a bonus!

The beverage was a NEIPA from a local brewery, we have a subscription with a group of friends. We get a box of beers every two weeks, share/drink and review them together :classic_biggrin:





I hope it'll be enough to keep it at a good boost clock for folding, that's the idea. And every bit helps for that, so I might have to use a higher profile m.2 heatsinks on the back to cool it even more.





I already replaced those, but on my card they were 0.75mm.
This one is a 12GB card, does that impact anything?





Thanks :classic_smile:

The pads came with the m.2 heatsinks, I'll see if I can find some info about them and I'll let you know!



I will keep those blocks in mind, though I don't plan on doing any water cooling on the workstation and both the pc's are done. (besides a block for the 3090, dammit Watercool..)

You should be able to keep the cards and max boost. So long as you have powerful through flow cooling blowing through the GPU heatsink as well as good exterior back plate cooling, you should be golden.

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

2 hours ago, Bastiaan_NL said:

I hope it'll be enough to keep it at a good boost clock for folding, that's the idea. And every bit helps for that, so I might have to use a higher profile m.2 heatsinks on the back to cool it even more.





I already replaced those, but on my card they were 0.75mm.
This one is a 12GB card, does that impact anything?





Thanks :classic_smile:

The pads came with the m.2 heatsinks, I'll see if I can find some info about them and I'll let you know!



I will keep those blocks in mind, though I don't plan on doing any water cooling on the workstation and both the pc's are done. (besides a block for the 3090, dammit Watercool..)

As long as it stays <85c, you should maintain boost clocks. The M.2. Sinks are a great idea, though I am not entirely convinced that the backplates are metal alloy. I am pretty sure all of mine were hard plastic. That is one of the reasons I bought backplates, I didn't see the rational with thermal pads on the back try to move heat through plastic. I was just curious to which model you got a hold of as I know that the 24GB models are out there, should not make a difference.

Link to comment
Share on other sites

1 hour ago, ENTERPRISE said:

You should be able to keep the cards and max boost. So long as you have powerful through flow cooling blowing through the GPU heatsink as well as good exterior back plate cooling, you should be golden.

I have a pair of Noctua NF-A20 fans on the workstation to blow through the system, and a room fan to help if needed. Should be alright, but the cooler the better!





12 minutes ago, Avacado said:

As long as it stays <85c, you should maintain boost clocks. The M.2. Sinks are a great idea, though I am not entirely convinced that the backplates are metal alloy. I am pretty sure all of mine were hard plastic. That is one of the reasons I bought backplates, I didn't see the rational with thermal pads on the back try to move heat through plastic. I was just curious to which model you got a hold of as I know that the 24GB models are out there, should not make a difference.

Below 85°C should be no problem, maybe some OC headroom or possible mods.

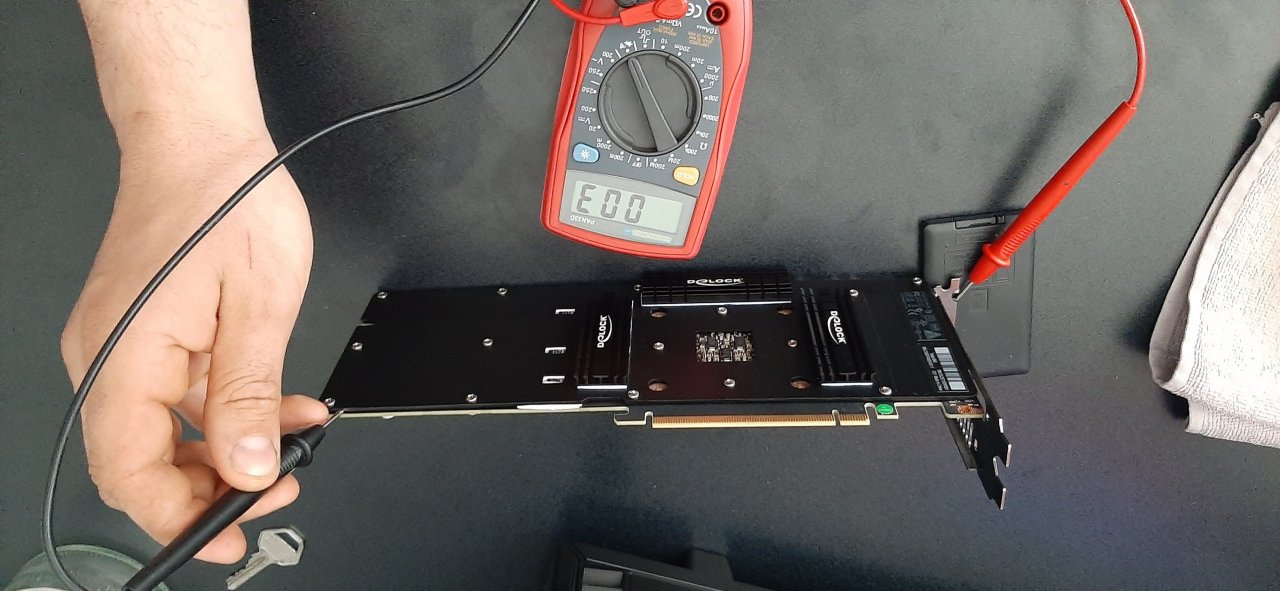

I drilled out a hole in the backplate a little bit to fit the io shield, so I knew it was metal. But here is a little display for you, I scratched a little bit of paint from the side and did a resistance check.

Also flipped the picture around in the original folder a few times but the forum keeps uploading it upside down :classic_laugh:






  • Thanks 1

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

12 minutes ago, Bastiaan_NL said:

I have a pair of Noctua NF-A20 fans on the workstation to blow through the system, and a room fan to help if needed. Should be alright, but the cooler the better!





Below 85°C should be no problem, maybe some OC headroom or possible mods.

I drilled out a hole in the backplate a little bit to fit the io shield, so I knew it was metal. But here is a little display for you, I scratched a little bit of paint from the side and did a resistance check.

Also flipped the picture around in the original folder a few times but the forum keeps uploading it upside down :classic_laugh:






Show off. ?

  • Thanks 1
Link to comment
Share on other sites

Folding@Home Staff

Oh man,  this looks like cheap fun in the mining era.  Avacado's doing well in etf now with his!

3.50

Owned

 Share

CPU: 5600x
GPU: EVGA RTX 3090 FTW3 Ultra
GPU 2: EVGA RTX 3080ti FTW3 Ultra
GPU 3: EVGA RTX 3080ti XC3 Hybrid
GPU 4: EVGA RTX 3070ti FTW3 Ultra
GPU 5: MSI RTX 3070 Gaming X Trio
GPU 6: Asus RTX 2080ti ROG STRIX
GPU 7: EVGA RTX 3080ti FTW3 Ultra
Full Rig Info
Link to comment
Share on other sites

3 minutes ago, BWG said:

Oh man,  this looks like cheap fun in the mining era.  Avacado's doing well in etf now with his!

I wish brother, I wish. Tesla's only get about 3 MH/s each. Not worth it, which kills me because



https://www.betterhash.net/NVIDIA-TITAN-X-(Pascal)-mining-profitability-9981235.html#:~:text=NVIDIA TITAN X (Pascal) can,- Ethash (Phoenix) algorithm.

Edited by Avacado
Link to comment
Share on other sites

Folding@Home Staff

I meant the mining era makes anything GPU related expensive, and these are not expensive, so cheap fun.

3.50

Owned

 Share

CPU: 5600x
GPU: EVGA RTX 3090 FTW3 Ultra
GPU 2: EVGA RTX 3080ti FTW3 Ultra
GPU 3: EVGA RTX 3080ti XC3 Hybrid
GPU 4: EVGA RTX 3070ti FTW3 Ultra
GPU 5: MSI RTX 3070 Gaming X Trio
GPU 6: Asus RTX 2080ti ROG STRIX
GPU 7: EVGA RTX 3080ti FTW3 Ultra
Full Rig Info
Link to comment
Share on other sites

6 hours ago, BWG said:

Oh man,  this looks like cheap fun in the mining era.  Avacado's doing well in etf now with his!

That's the whole idea, and another 1mil ppd doesn't hurt with Avacado breathing in my neck every competition :classic_biggrin:

But that's not the reason, just trying my luck with a product I've never used before.

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

weird timing





was tempted to get one just for curiosity's sake but I don't really have a need for it.

Edited by The Pook
  • Thanks 1

1337.69

Owned

 Share

CPU: Intel i9 10900K @ 51/47 1.26v
MOTHERBOARD: Asus Z590 Maximus XIII Hero
RAM: G.Skill DDR4-4266 CL17 32GB @ 4300 15-16-16-35 2T 1.55v
GPU: Gigabyte Aorus Master RTX 3080 Ti
SSD/NVME: Team Group MP34 4TB NVMe + WD Blue 4TB SATA SSD
CPU COOLER: Arctic Liquid Freezer II 360 + Noctua iPPC 3000
PSU: Super Flower Leadex Titanium 1000W
CASE: Fractal Design Meshify S2
Full Rig Info

420.42

Owned

 Share

CPU: Intel i7 8700K @ 47/43 1.22v
MOTHERBOARD: Asrock Z390 Taichi
RAM: Corsair LPX DDR4-3000 CL16 64GB @ 3200 16-20-20-38 1T 1.35v
SSD/NVME: SN850 1TB + HP EX950 2TB + SX8200 2TB NVMe
HDD: 4x Seagate Exos X16 14TB
OPERATING SYSTEM: Windows Server 2022 Datacenter
OTHER: LSI Logic 9207-8i
NETWORK: Intel X540 10 GbE
Full Rig Info

$600

Owned

 Share

CPU: Ryzen 7 5825U
MOTHERBOARD: SFX14-42G-R607
RAM: 16GB LPDDR4-4266
SSD/NVME: SK Hynix P31 Gold 2TB M.2 NVME
SSD/NVME 2: Samsung PM991a 512GB M.2 NVME
GPU: NVIDIA RTX 3050 Ti 4GB 35W @ 55W
OPERATING SYSTEM: Windows 10 Enterprise LTSC 2021
MONITOR: 14" 1080p IPS 60hz @ 72hz
Full Rig Info
Link to comment
Share on other sites

2 hours ago, The Pook said:

weird timing





was tempted to get one just for curiosity's sake but I don't really have a need for it.



Do it to satisfy not only your curiosity, but mine also :p

  • Thanks 1

£3000

Owned

 Share

CPU: AMD Ryzen 9 7950X3D
MOTHERBOARD: MSI Meg Ace X670E
RAM: Corsair Dominator Titanium 64GB (6000MT/s)
GPU: EVGA 3090 FTW Ultra Gaming
SSD/NVME: Corsair MP700 Pro Gen 5 2TB
PSU: EVGA Supernova T2 1600Watt
CASE: be quiet Dark Base Pro 900 Rev 2
FANS: Noctua NF-A14 industrialPPC x 6
Full Rig Info

Owned

 Share

CPU: Intel Core i5 8500
RAM: 16GB (2x8GB) Kingston 2666Mhz
SSD/NVME: 256GB Samsung NVMe
NETWORK: HP 561T 10Gbe (Intel X540 T2)
MOTHERBOARD: Proprietry
GPU: Intel UHD Graphics 630
PSU: 90Watt
CASE: HP EliteDesk 800 G4 SFF
Full Rig Info

£3000

Owned

 Share

CPU: 2 x Xeon|E5-2696-V4 (44C/88T)
RAM: 128GB|16 x 8GB - DDR4 2400MHz (2Rx8)
MOTHERBOARD: HP Z840|Intel C612 Chipset
GPU: Nvidia Quadro P2200
HDD: 4x 16TB Toshiba MG08ACA16TE Enterprise
SSD/NVME: Intel 512GB 670p NVMe (Main OS)
SSD/NVME 2: Samsung 1TB 980 NVMe (VM's)
SSD/NVME 3: 2x Seagate FireCuda 1TB SSD's (Apps)
Full Rig Info
Link to comment
Share on other sites

Folding@Home Staff
16 hours ago, The Pook said:

weird timing





was tempted to get one just for curiosity's sake but I don't really have a need for it.



Well, you do need to fold more? Come on, whatcha say?



13 hours ago, ENTERPRISE said:



Do it to satisfy not only your curiosity, but mine also :p



And this ^

  • Thanks 1

3.50

Owned

 Share

CPU: 5600x
GPU: EVGA RTX 3090 FTW3 Ultra
GPU 2: EVGA RTX 3080ti FTW3 Ultra
GPU 3: EVGA RTX 3080ti XC3 Hybrid
GPU 4: EVGA RTX 3070ti FTW3 Ultra
GPU 5: MSI RTX 3070 Gaming X Trio
GPU 6: Asus RTX 2080ti ROG STRIX
GPU 7: EVGA RTX 3080ti FTW3 Ultra
Full Rig Info
Link to comment
Share on other sites

Ah great, so that means we can have a benchmark competition with M40's! @Avacado@ENTERPRISE, and you too @The Pook :classic_biggrin:



And yes, you really should do it to help us all with this part of our M40 investigation. Enterprise works on the stock cards, I try the air cooled route and Avacado works on the water cooling. Now we need someone who works on the software and drivers, to optimize the cards!

  • Thanks 1

Owned

 Share

CPU: Intel Core i9 13900KF
MOTHERBOARD: ASUS ROG MAXIMUS Z690 HERO
RAM: G.SKILL Trident Z5 6400CL30-38-38-28
PSU: Corsair AX1600i
GPU: Galax 4090 Hall Of Fame OCLabs Edition
Full Rig Info
Link to comment
Share on other sites

Folding@Home Staff - Team Lead

I see some K40s for cheap on ebay. How difficult is it to get one of these folding in Windows 10? These are basically OG Titan right?

Owned

 Share

CPU: Ryzen 9 5950x
MOTHERBOARD: B550 PG Velocita
RAM: 4x8GB Ballistix
GPU: RX 6900 XT
PSU: LEADEX V Platinum 1KW
CASE: QUBE 500
SSD/NVME: T-FORCE CARDEA A440 PRO
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 5 5500
MOTHERBOARD: X470 TAICHI
RAM: Crucial Ballistix MAX 2x8GB
PSU: EVGA SUPERNOVA P5
SSD/NVME: Silicon Power A60 256GB
GPU: Quadro M4000
GPU 2: Quadro M4000
GPU 3: Quadro M2000
Full Rig Info
Link to comment
Share on other sites

5 minutes ago, damric said:

I see some K40s for cheap on ebay. How difficult is it to get one of these folding in Windows 10? These are basically OG Titan right?

Very difficult. I have 3 Tesla K80's on the shelf. I have never been able to get them consistently folding. If you want to play with one, I'll send it to you.



There is a reason they aren't on the Lars.sys database.  Roughly equivalent to a 780. There are 2 GPU die on the PCB.

Edited by Avacado
  • Thanks 1
Link to comment
Share on other sites

Folding@Home Staff - Team Lead
1 minute ago, Avacado said:

Very difficult. I have 3 Tesla K80's on the shelf. I have never been able to get them consistently folding. If you want to play with one, I'll send it to you.

I'd certainly mess around with it. Is it because it's just not intended to work in Windows?



Check this out too. I'm watching this listing. Do you think this a good deal or a snake in the grass?





Owned

 Share

CPU: Ryzen 9 5950x
MOTHERBOARD: B550 PG Velocita
RAM: 4x8GB Ballistix
GPU: RX 6900 XT
PSU: LEADEX V Platinum 1KW
CASE: QUBE 500
SSD/NVME: T-FORCE CARDEA A440 PRO
Full Rig Info

Cheap

Owned

 Share

CPU: Ryzen 5 5500
MOTHERBOARD: X470 TAICHI
RAM: Crucial Ballistix MAX 2x8GB
PSU: EVGA SUPERNOVA P5
SSD/NVME: Silicon Power A60 256GB
GPU: Quadro M4000
GPU 2: Quadro M4000
GPU 3: Quadro M2000
Full Rig Info
Link to comment
Share on other sites

4 minutes ago, damric said:

I'd certainly mess around with it. Is it because it's just not intended to work in Windows?



Check this out too. I'm watching this listing. Do you think this a good deal or a snake in the grass?





Thats a good deal which will most likely be a lot higher before it ends. The 1900x itself looks to be in good condition on the contacts. I would ask for a closeup of the MOBO socket. I actually have one of those boards and love it.



The K80 will show in Windows just fine as 2 GPU's, but getting it to fold is another story.

Edited by Avacado
  • Thanks 1
Link to comment
Share on other sites

...I have some old Radeon 8990s (which need some attention) - essentially 2x 7970s per card...are they any good for folding these days ?



...Tesla M40s, but with custom coolers ?

not really






  • Thanks 2

Owned

 Share

CPU: CPU: ><.......7950X3D - Aorus X670E Master - 48GB DDR5 7200 (8000) TridentZ SK Hynix - Giga-G-OC/Galax RTX 4090 670W - LG 48 OLED - 4TB NVMEs >< .......5950X - Asus CH 8 Dark Hero - 32GB CL13 DDR4 4000 - AMD R 6900XT 500W - Philips BDM40 4K VA - 2TB NVME & 3TB SSDs >> - <<.......4.4 TR 2950X - MSI X399 Creation - 32 GB CL 14 3866 - Asus RTX 3090 Strix OC/KPin 520W and 2x RTX 2080 Ti Gigabyte XTR WF WB 380W - LG 55 IPS HDR - 1TB NVME & 4TB SSDs
Full Rig Info
Link to comment
Share on other sites

4 minutes ago, J7SC_Orion said:

...I have some old Radeon 8990s (which need some attention) - essentially 2x 7970s per card...are they any good for folding these days ?



...Tesla M40s, but with custom coolers ?

not really






Only one way to find out. That looks cool AF BTW.

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now



×
×
  • Create New...

Important Information

This Website may place and access certain Cookies on your computer. ExtremeHW uses Cookies to improve your experience of using the Website and to improve our range of products and services. ExtremeHW has carefully chosen these Cookies and has taken steps to ensure that your privacy is protected and respected at all times. All Cookies used by this Website are used in accordance with current UK and EU Cookie Law. For more information please see our Privacy Policy
